Full automatic steel wire mesh welding machine, fence machine
- Category: >>>
- Supplier: Wuxi Anber Machine Co. Ltd.
Share on (60695883098):
Product Overview
Description
Layout of the full production line:
The wire mesh welding line can both feed in coil and can put out in coils or in pieces.
24 sets of line wire pay off -----Line wire end supervision station --- 2 sets ofX-levels line wire straightening unit ---- line wire straightening system --- line wire pulling system ---- line wire accumulator --- cross wire cut---- welding system----mesh converting table ---- mesh cutting machine –mesh stacker--- mesh coiling machine-----electrical controlling cabinet

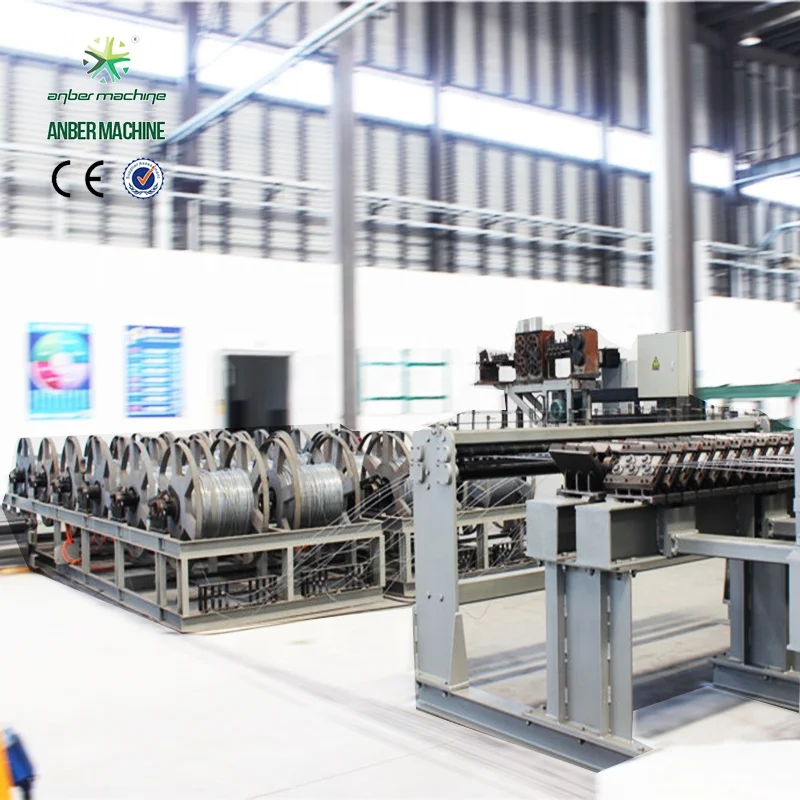

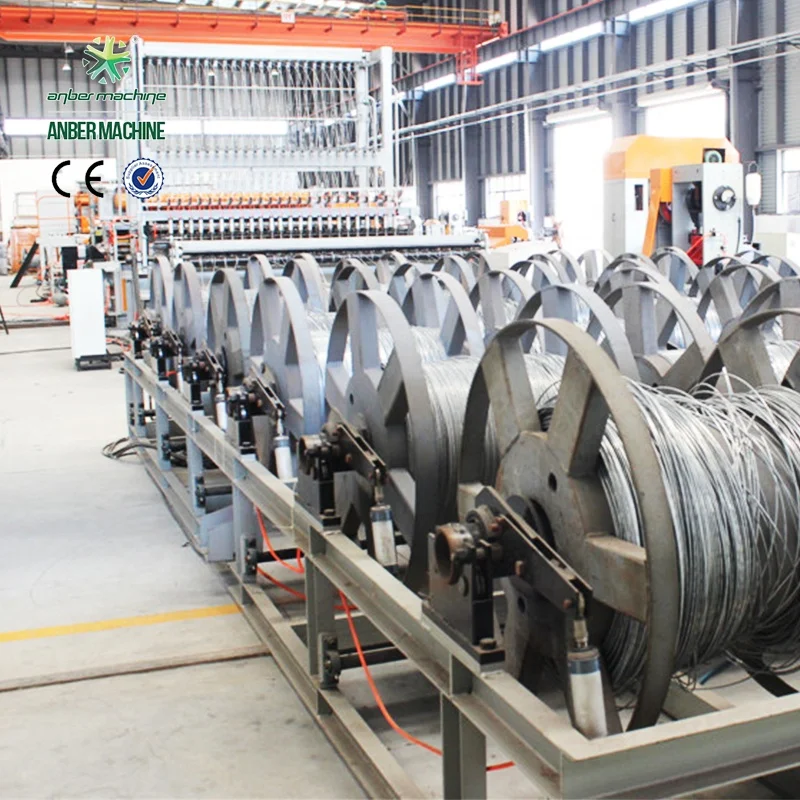

1. wire pay-off
24 sets of wire pay off with 24 spool stands (line wires from coil/ spools of 1000 Kg weight each)
ID (inner diameter): 600mm or according to your requirement
OD (outer diameter): 800mm or according to your requirement
Size:5MX7MX1.2M
2. Line wire straightening (for perpendicular)
It is easy for adjusting the wire straightening. straightening units for line wire.
Wire diameter: Ø3mm - Ø 6mm.
3. Line wire straightening (for level)
4. Line wire feeding to accumulator

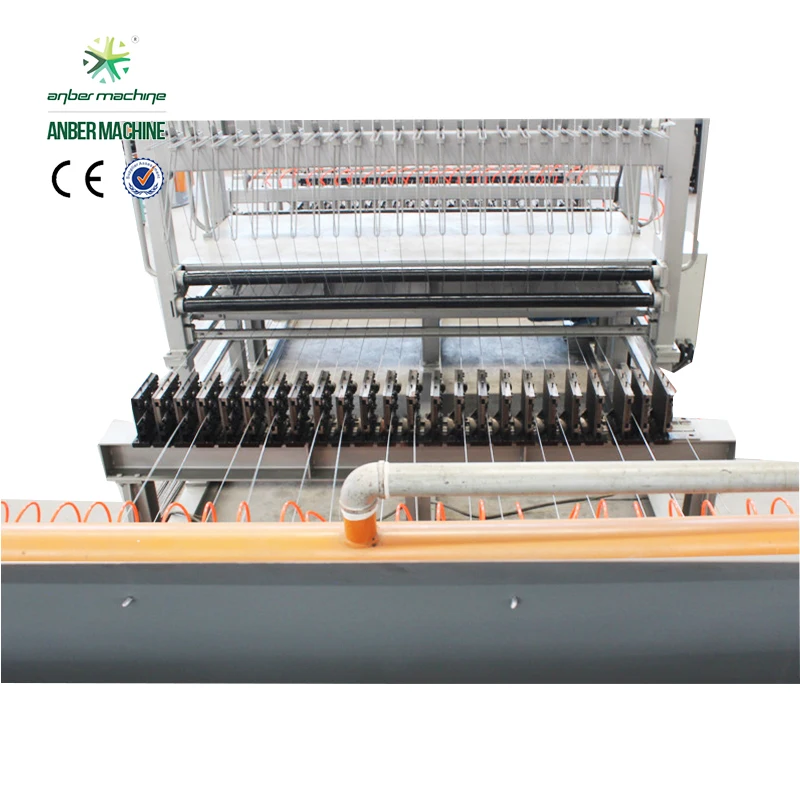

5. Line wire accumulator (Line wire pulling station with loop/line wire balancing system)
line wire accumulator: Ø 3mm - Ø 6mm. 24 wires CNC automatic feeding and adjusting
Each set can be controlled separately.
Emergency stop switch, keep personnel and equipment away from damage.
Overall 24 sets line wire pulling system
Each set can be controlled separately
All pneumatic parts of the accumulator uses branded systems for easy replacement and maintenance.
All steel structures of the accumulator is hardened using the heat treatment technical.
6. Cross wire feeding hopper:

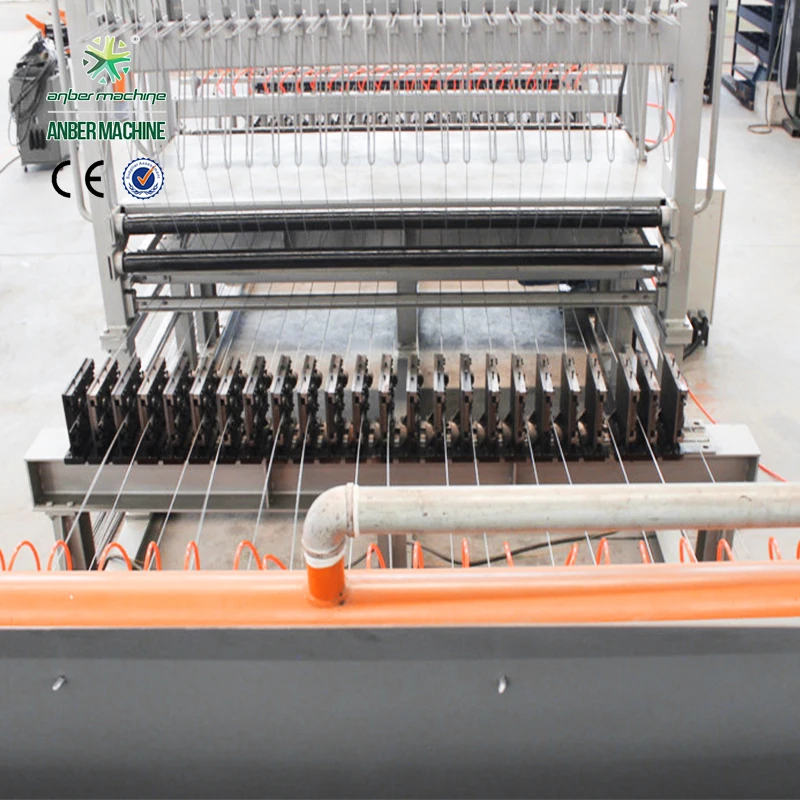

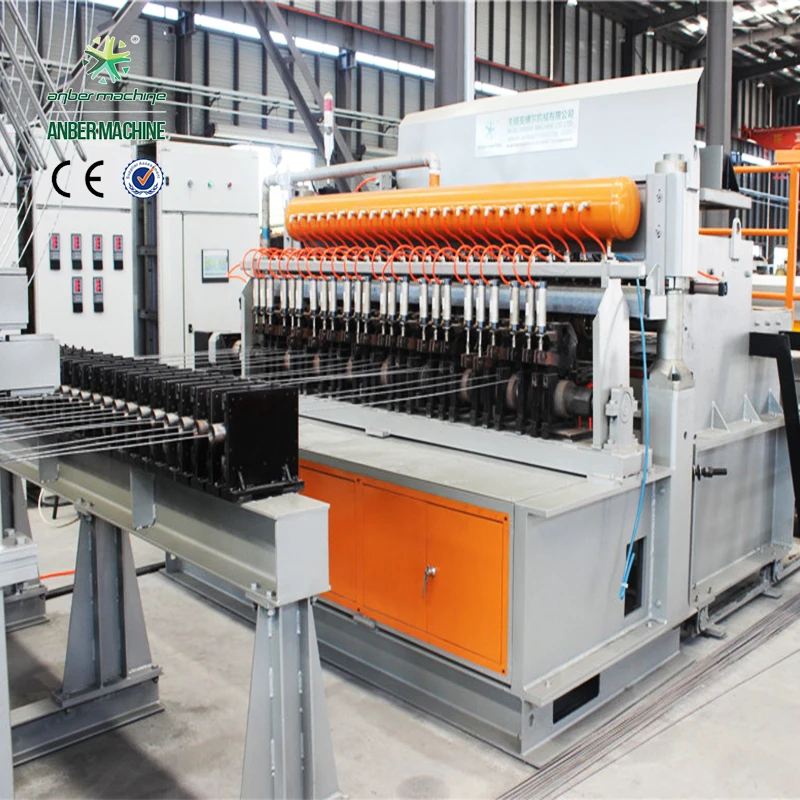

7. Welding mesh machine:
Wire space: 100*100mm, according to your requirement, can be adjusted.
Wire mesh welder with step less adjustable cross and line wire pitch, the line wire space is adjusted by hand; the cross wire space is adjusted by the electrical controlling cabinet.
The welding system is designed for smooth and ribbed wire
Max width of the panel mesh | 2400mm | |
Max length | 6000 mm | |
Line wire spacing | 100mm | |
Cross wire spacing | 50mm, freely programmable spacing | |
Wire diameter | Line wire | 3-6mm |
Cross wire | 3-6mm | |
Feeding way | Line wire | In coils |
Cross wire | In coils | |
Number of welder point | 24 points | |
Max. welding speed | 55-70 meshes/minute | |
Water Cooling Transformer | 6X125KVA | |
Power | 380V, 50Hz | |
Air consumption | ≥0.8Mpa, 2m3/min | |
Cooling water consumption | ≥0.3Mpa, 3m3/min | |
Machine overall dimension | 60m(L) × 8m(W) × 5m(H) | |
Machine overall weight | 25,000Kg | |

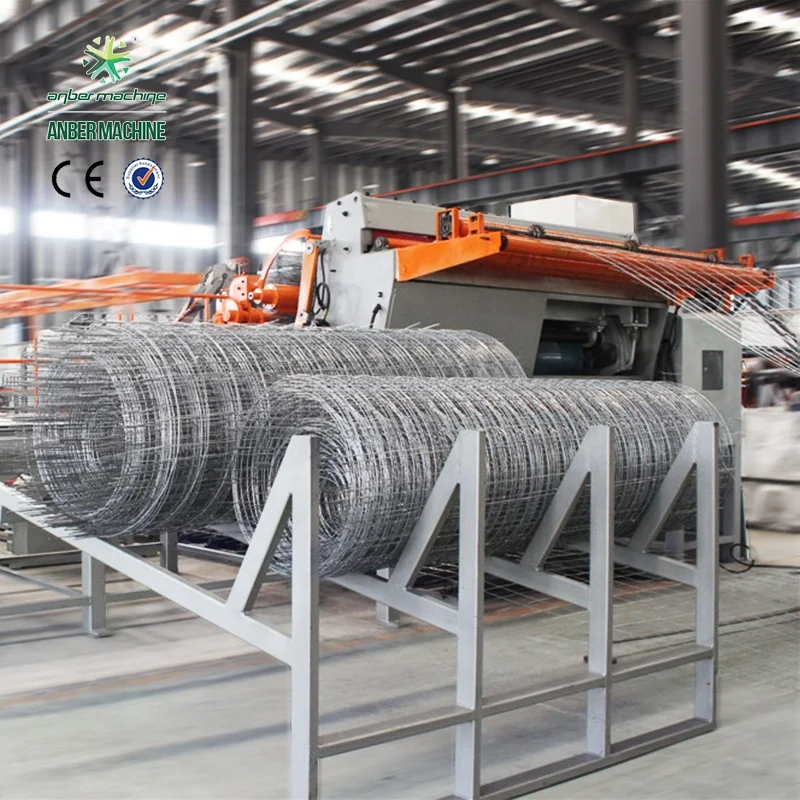

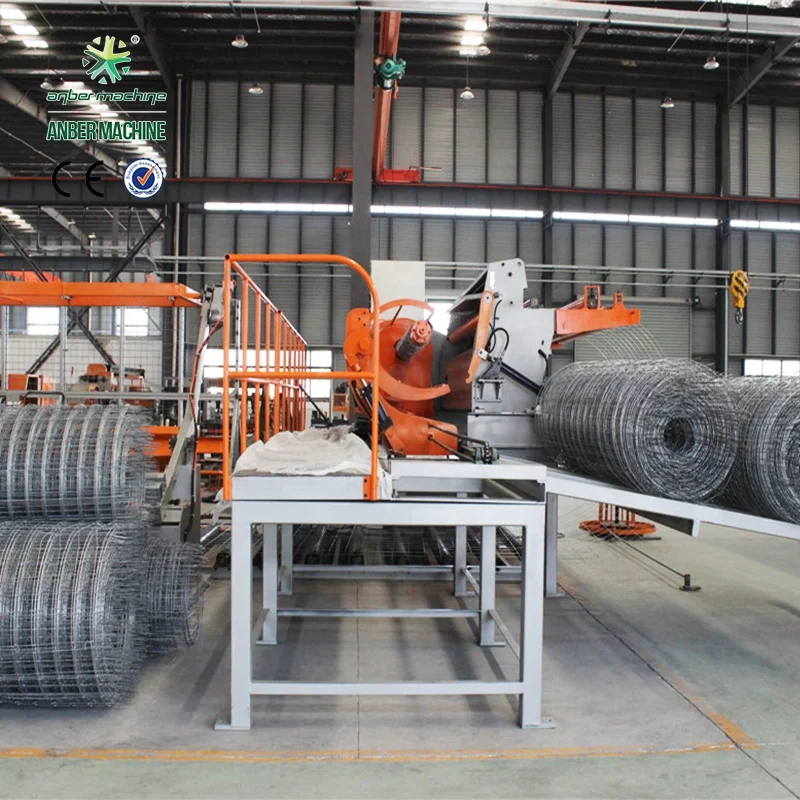

8. Hydraulic mesh coiling machine:
Saving man energy
The coil can be push to the other side, and roll down automatically.
Roll width: 2400mm
In side diameter: 220mm
Loading Weight: 500kg.

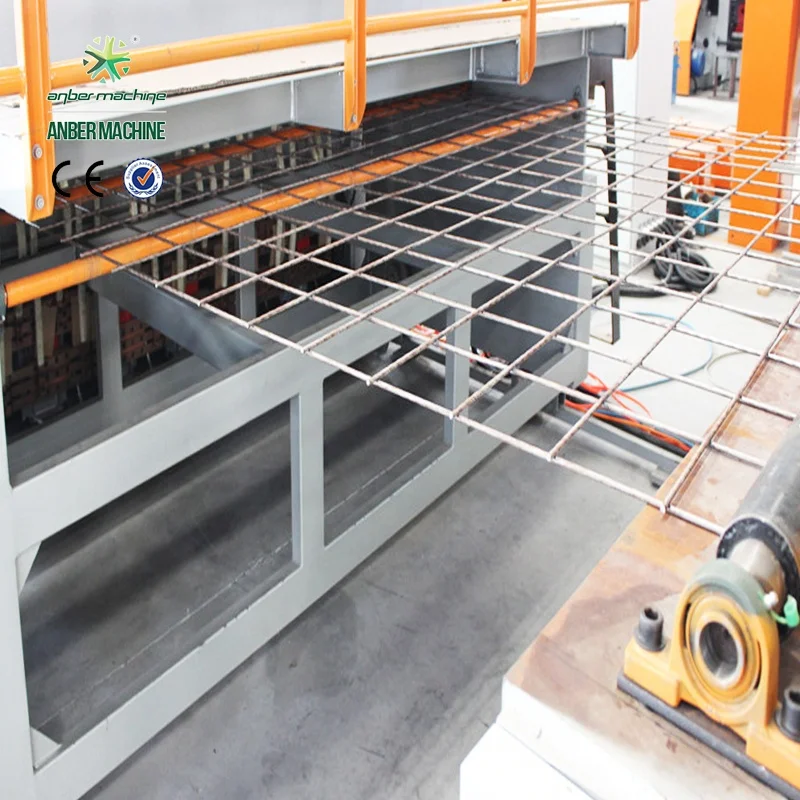

9. mesh collectiong table and flipper:
10. Controlling system:
1 units of servo control system
CNC & Display unit from HUICHUAN
Other electrical component from Schneider
The language of the control in English language and with computer

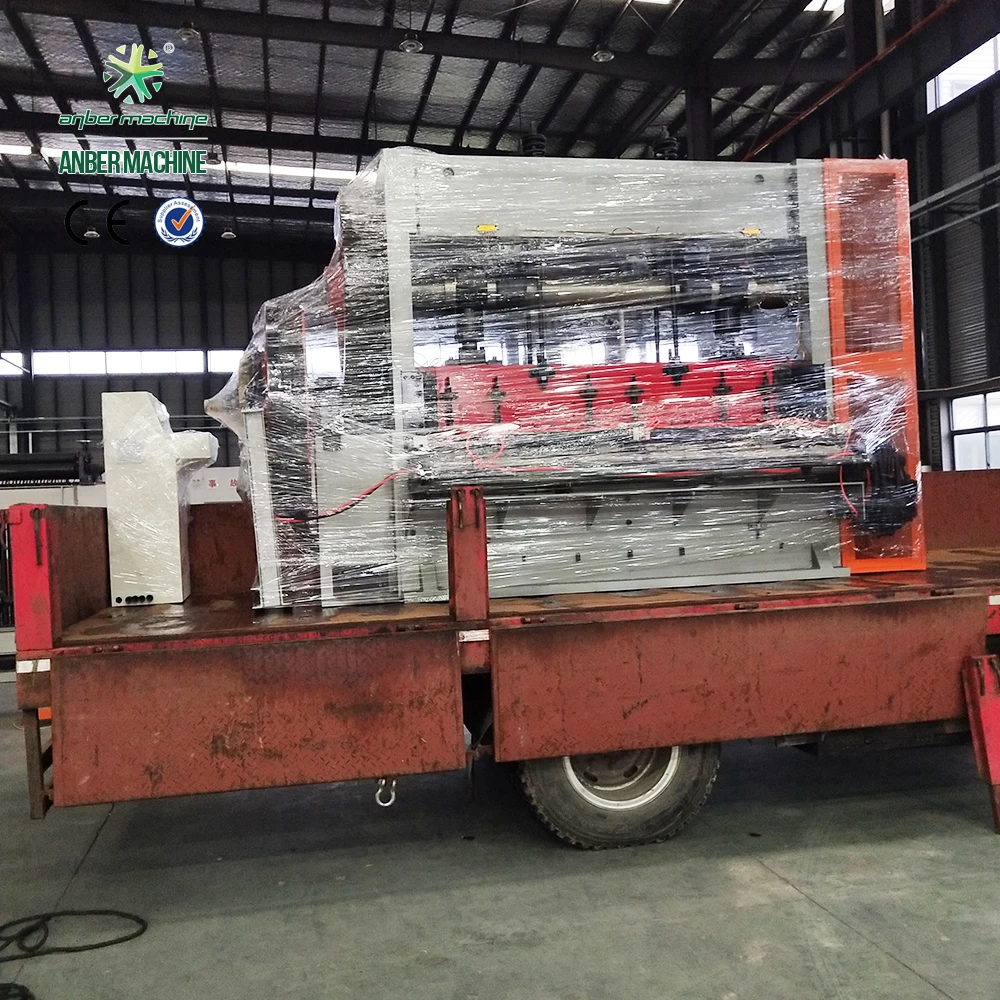

Packaging & Shipping
Contact us
Our Services
Warranty
Within the limits of what hereinafter set forth, ANBER undertakes to remedy all defects of the equipment attributable to its engineering, material and workmanship. Such obligation of ANBER is limited to defects that show within 12 (twelve) months from the delivery of the equipment.
To benefit from these rights, Buyer shall notify within 8 days of its discovery to ANBER, in writing, analytically and precisely, all shown defects.
Installation and commissioning
To benefit from these rights, Buyer shall notify within 8 days of its discovery to ANBER, in writing, analytically and precisely, all shown defects.
Installation and commissioning
Machine is installed and commissioned by ANBER technicians. Testing cost, travel, accommodation and meal expenses are payable by the customer, the customer will provide local engineers and staff to support the installation.
