High speed precision Medium Duty live center D413,D414CNC machine tools

Product Overview

Description

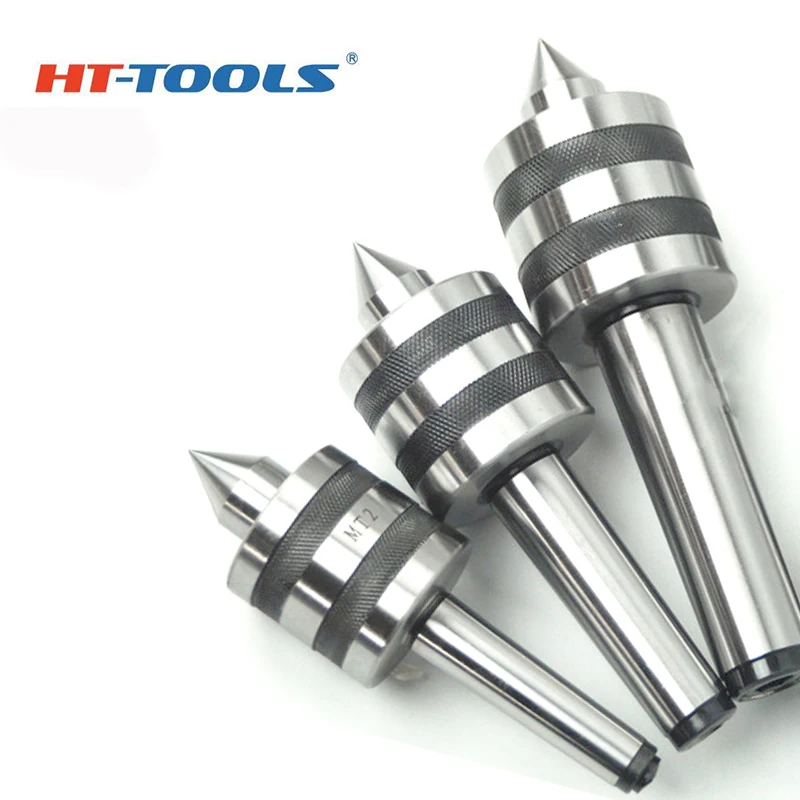

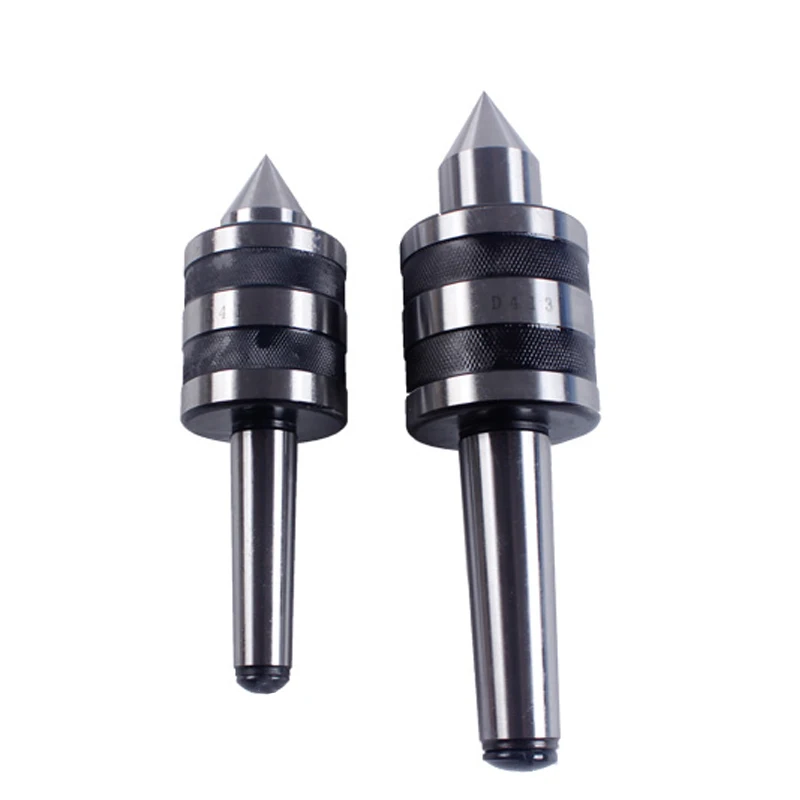

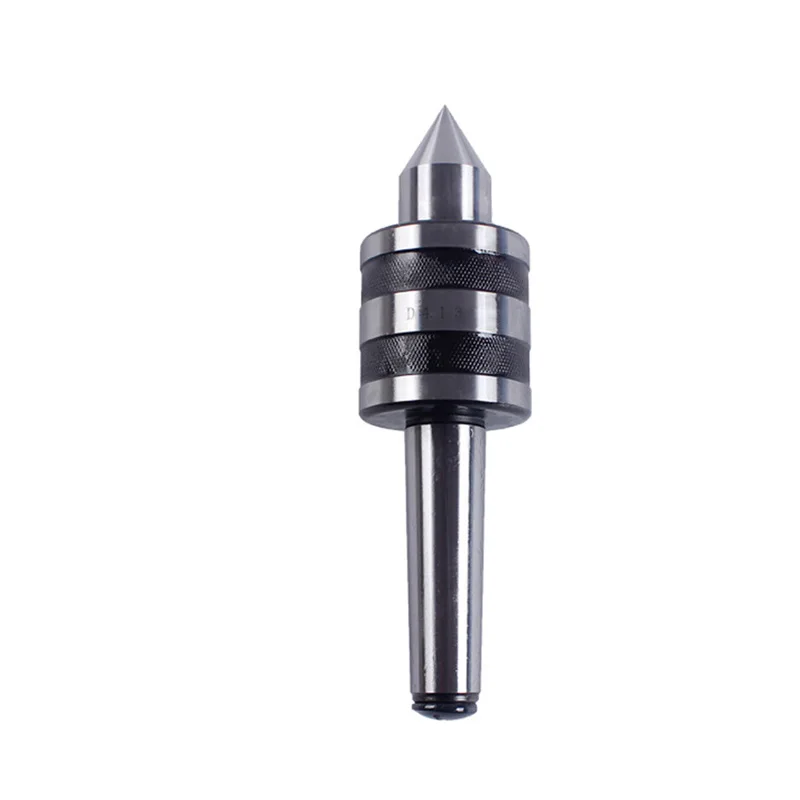

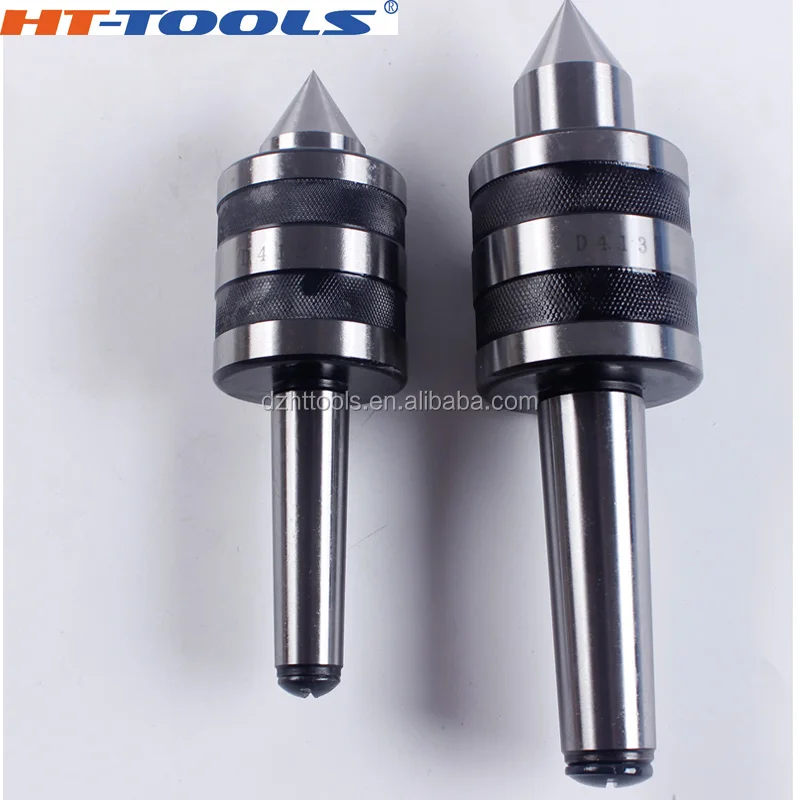

High speed precision Medium Duty  live center D413,D414CNC machine tools



1.material:mandrel use bearing stell GCr15

2.hardness:HRC58-60,high rigidity and high durability

3.precision≤5μ,high speed 12000rpm



Order NO.	MS.NO	L   mm	L1 mm	D   mm	D1 mm	d    mm	Max Radial Load	(rpm)Max Speed	Wt(kg)	Accuracy(mm)
D411	MS1	115	20	34	12.065	18	900	5000	0.29	0.01
D412	MS2	145	26	45	17.778	25	1500	5000	0.70	0.01
D413	MS3	170	30	52	23.825	28	2000	4200	0.93	0.01
D414	MS4	205.7	34.7	60	31.2677	32	3200	3200	1.70	0.01
D415	MS5	254	45	77	44.399	45	6300	2400	3.39	0.015
D416	MS6	362	68.5	125	63.348	75	10000	1600	12.00	0.015
D411L	MS1	125	30	34	12.065	18	900	5000	0.31	0.01
D412L	MS2	155	36	45	17.78	25	1500	5000	0.74	0.01
D413L	MS3	183	43	52	23.825	28	2000	4200	0.99	0.01
D414L	MS4	222	51	60	31.2677	32	3200	3200	1.80	0.01
D415L	MS5	272	63	77	44.399	45	6300	2400	3.62	0.015
D416L	MS6	382	88.5	125	63.348	75	10000	1600	12.69	0.015

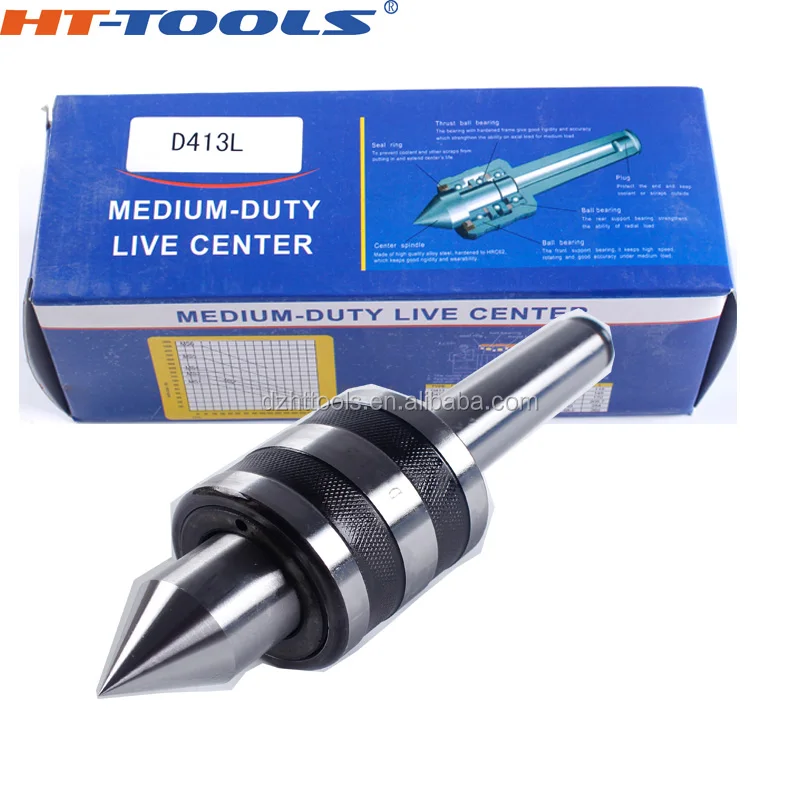

 Live center outside package



Trade terms:

1 Lead time: about 5-30 days, Samples within 3days

2 Payment: T/T, L/C, PAYPAL

3 Certain discount is given on large quantities

4 FOB Qingdao, EXW for samples and Trail order

ADVANTAGE

OEM service.Quick responce in 24 hours. Big capacity. Short delievery time.

about us

  collets,CNC tool holders,live center,machine vise wrench etc are our main products
