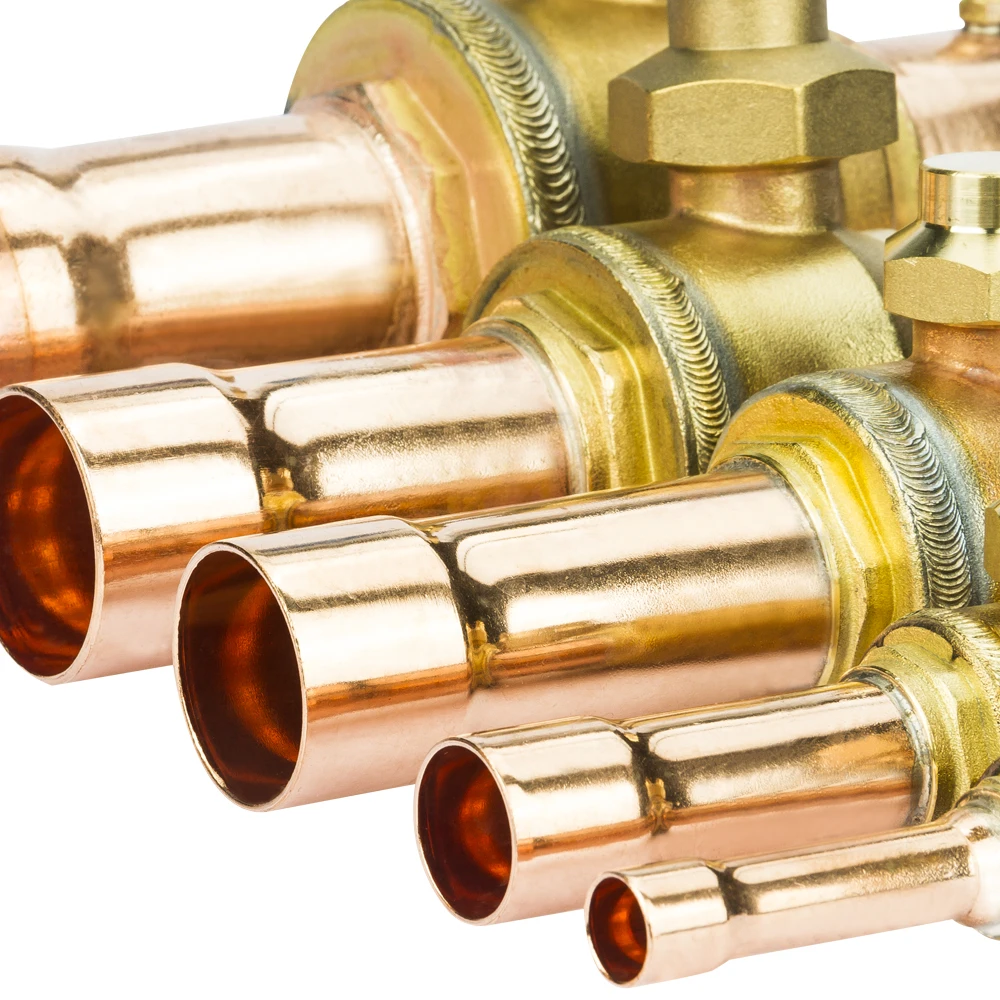

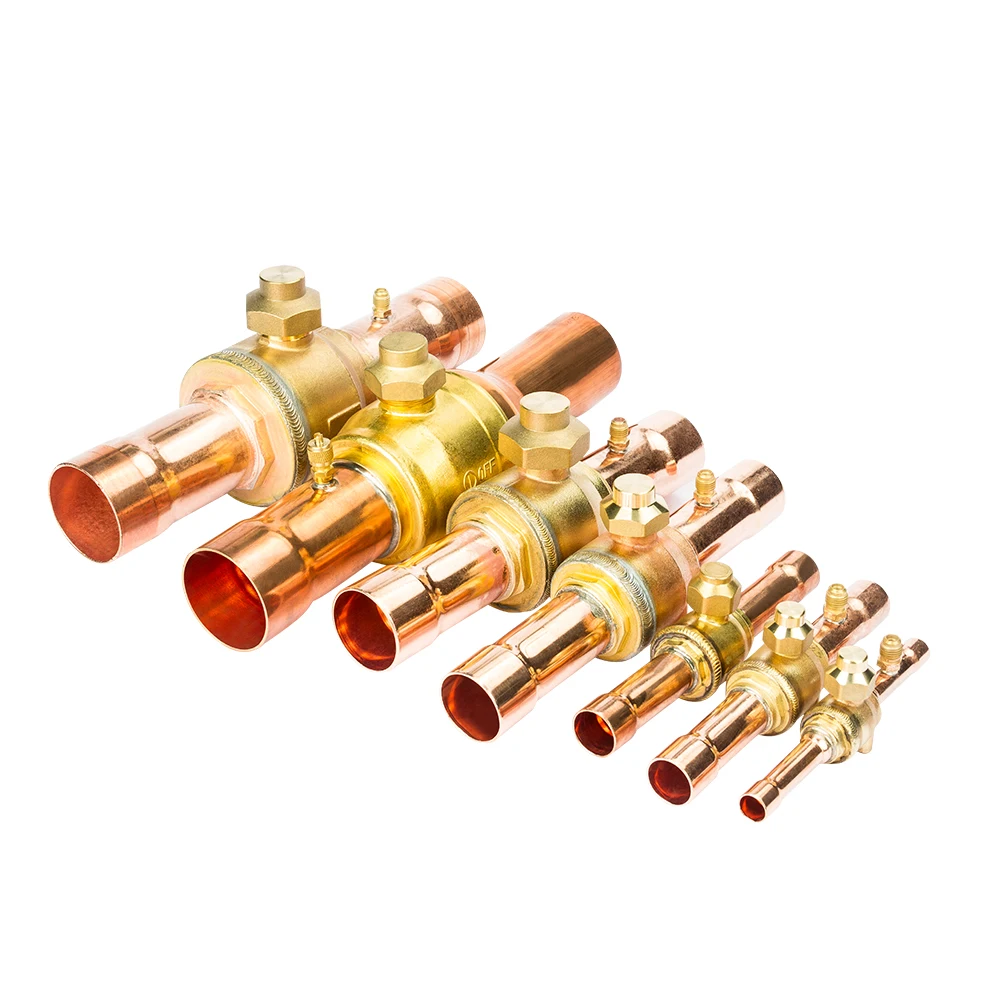

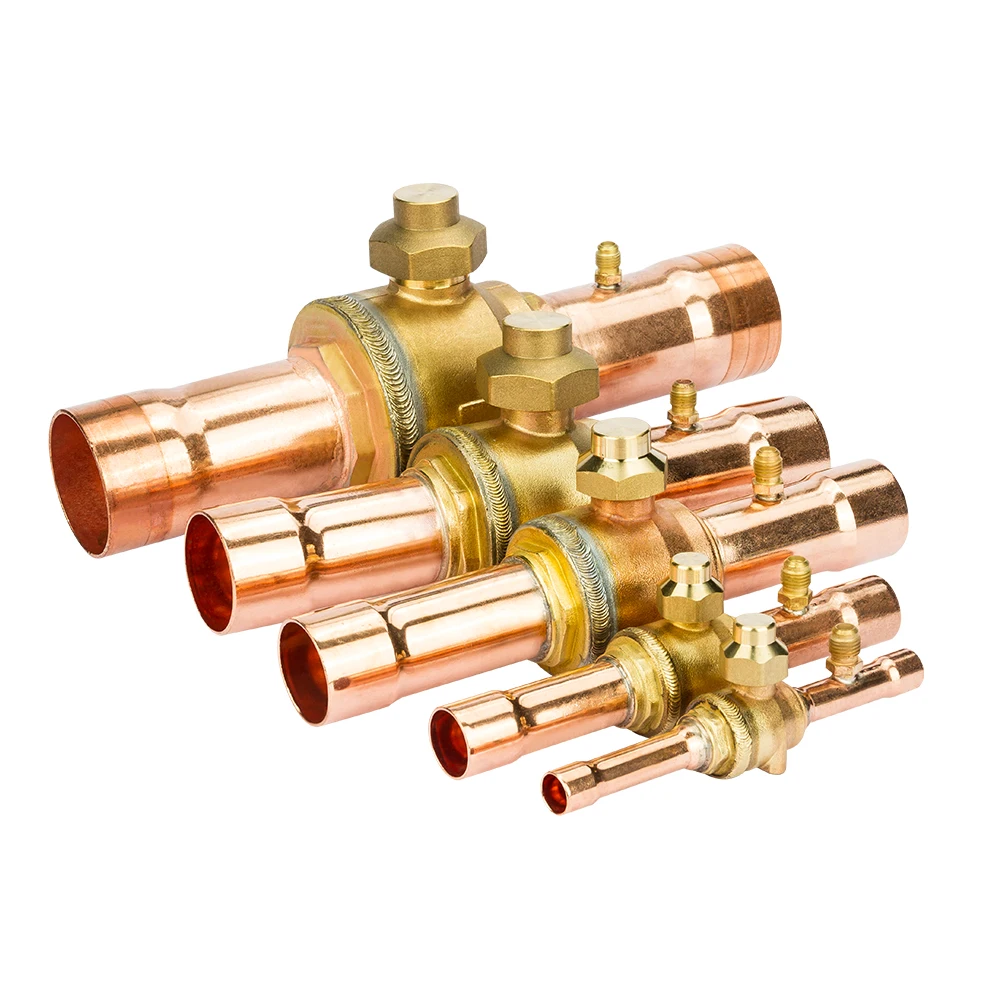

Шаровой клапан для холодильника/шаровой клапан для кондиционера/латунный медный шаровой клапан для холодильника с отверстием для доступа
- Category: Solenoid Valves >>>
- Supplier: Wenling Dayang Electric Co. Ltd.
Share on (60698087683):
Product Overview
Description
Product Description
No pressure drop in flow.
·Only turn 1/4 circle to make valve full open or full close.
·Turning stop for full open or full close.
·Full Open and Full Close mark on top of valve stem.
·Two-direction flow is available.
·Argon arc welded structure.
·Explosion-proof valve stem design.
·Modified PTFE sealing.
·Inside liquid accumulation is avoided.
·Could be mounted on the control panel.
Specifications
Model | Size | OD | KV | Model | Size | OD | KV |
GBC-6 | 1/4( Ø6) | Ø14 | 2.0 | GBC-28 | 9/8(Ø28) | Ø25 | 52.0 |
GBC-10 | 3/8(Ø10) | Ø14 | 5.7 | GBC-35 | 1-3/8(Ø35) | Ø32 | 80.9 |
GBC-12 | 1/2(Ø12) | Ø14 | 10.6 | GBC-42 | 1-5/8(Ø42) | Ø38 | 80.9 |
GBC-16 | 5/8(Ø16) | Ø14 | 14.1 | GBC-54 | 2-1/8(Ø54) | Ø50 | 80.9 |
GBC-18 | 3/4(Ø19) | Ø19 | 20.4 | GBC-67 | 2-5/8(Ø67) | Ø50 | 80.9 |
GBC-22 | 7/8(Ø22) | Ø19 | 28.2 | GBC-79 | 3-1/8(Ø79) | Ø50 | 80.9 |
Applicable Refrigerant | HCFC and HFC | Max. Operating Pressure | 4.5MPa |
Applicable Medium Temperature | -40°C~+150°C | Max. Allowable Pressure | 6.5MPa |
Yearly Leakage of Refrigerant | ≤5g R22/a |
|
