Best price food grade widely used shipping iso tank manufacturers

Tank Type

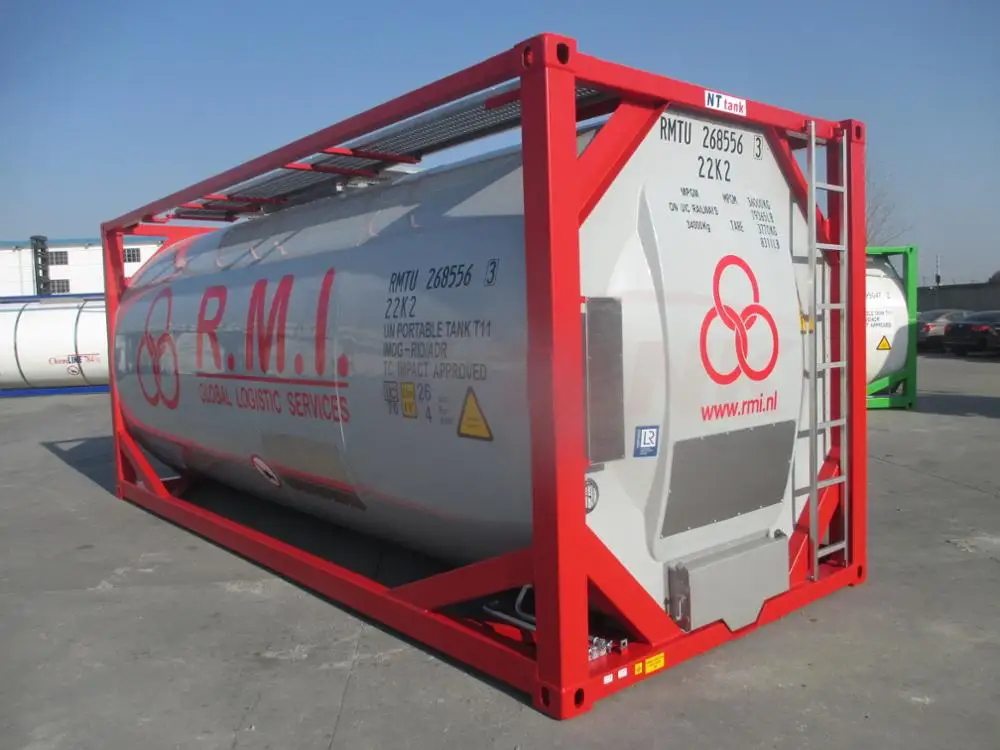

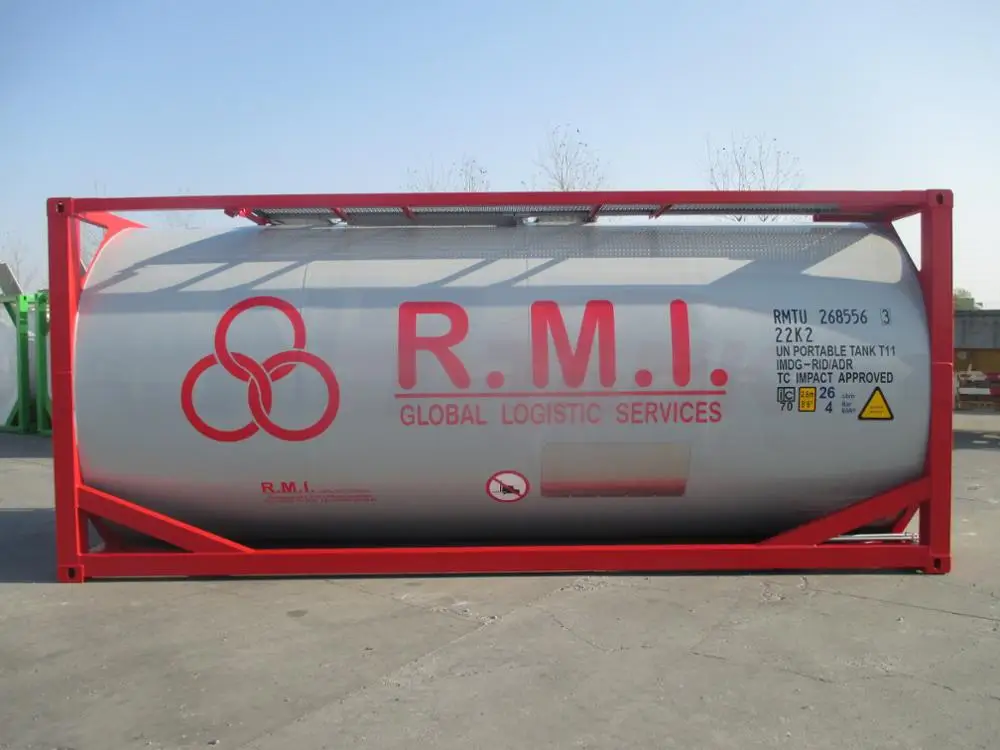

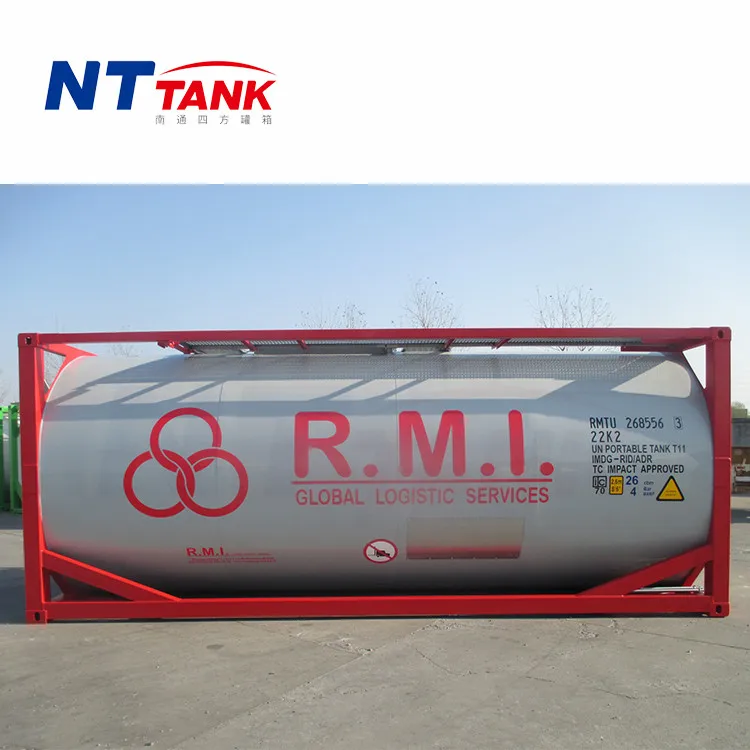

20’ ISO full frame collar tank, Type UN Portable Tank T11,

insulated, steam heated, for food grade cargo

Frame Dimensions

20’ x 8’ x 8’6”

Capacity

26,000 Litres +/- 1%

M.G.W.

36,000 kg

Tare (est.)

3,800 kgs ±3%

Max Payload

32,230 kgs

Working Pressure

4 Bar

Test Pressure

6 Bar

Design Temp

-40°C to +130°C

Vessel Material

SANS 50028-7 WNr 1.4402/1.4404 (C<0.03%), 316L stainless steel equivalent

Shell: Cold Rolled 2B finish

Dished ends: Internally polished to 1.2 Micron CLA

Shell Thickness

Calculated thickness: 4.18mm min.

Corrosion allowance: 0.2mm

Manufacturing thickness: 4.4mm min.

Ends Thickness

Calculated thickness: 4.4 mm Minimum after forming

Corrosion allowance: 0.2mm

Manufacturing allowance: 4.6mm Minimum after forming.

External pressure

0.41 Bar

Corner castings

SO 1161 - 8 off

Frame Material

GB/T 1591-Q345D

Frame to Shell

304 stainless steel

Corner castings

ISO 1161 - 8 off

Vessel Design Code

ASME VIII Div 1

Radiography

Shell

Ends

ASME Spot

ASME Full

Inspection Agency

LR or BV

Cargo carried

For food grade cargo

Design Approvals

IMDG T11, CFR 49, ADR/RID, CSC, TC, TIR, ISO, UIC, US DOT
