3. DETAILED TECHNICAL SPECIFICATIONS AND DESCRIPTION
Model FS360-6C is a high performance intermittent rotary offset, which is researched, developed and manufactured independently by Nickel Printing Machinery CO; LTD.
It is composed of unwinding/rewinding unit,PS plate offset printing units,UV drying units, web guider ,inking control system, water container, PS plate hole puncher, remote control ink duct, flexo printing unit, laminating unit and rotary die cutting unit,etc.
Key features:
a. The machine adopts the American PMAC motion control system. It is the most powerful , fastest, most reliable motion control system in the world, each unit is driven by an independent servo motor.
b. The machine adopts the most advanced German Technology Three-point Suspension Pressure Structure.
c. Shaftless turning: Every unit is driven by an independent servo motor.
d. register system: Any movement (horizontal and vertical) of each unit is controlled by an independent servo motor.

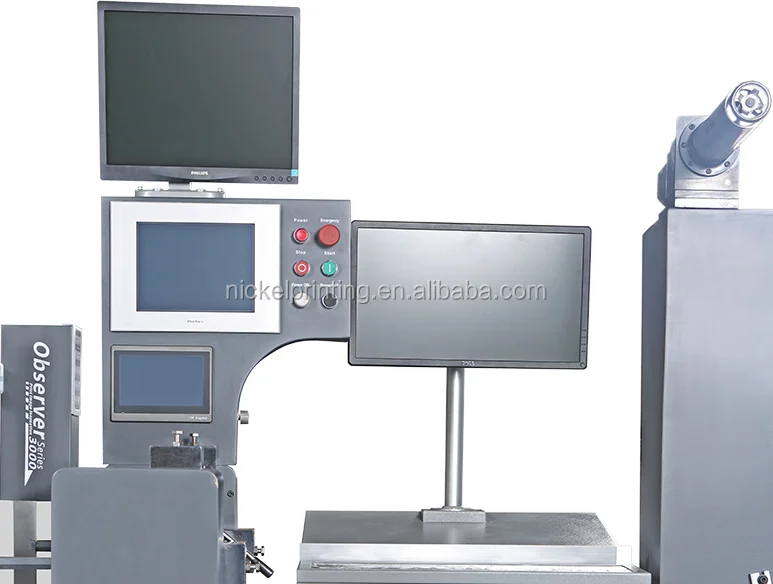

e. Adopts high precision computer tracing device to ensure accurate front and back overprint, which increases the diversity of label printing.
f. Easy operation and fast pre-print preparation.
g. Web automatic guiding.
Detailed descriptions:
Item No.
Item Name
description
1
unwinding unit
1 unit
Max. web unwinding diameter
600 mm
Max. web width
360 mm
Splicing table
1 unit
Auto web guider
1 unit
2

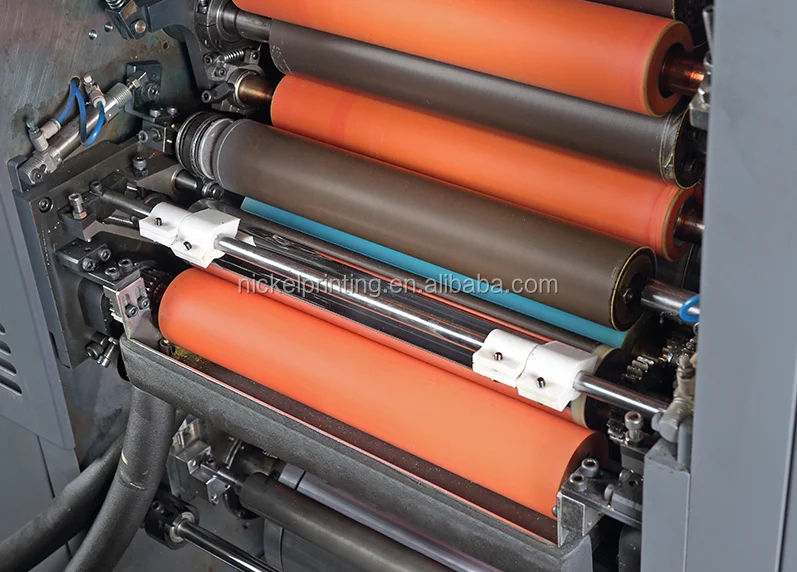

printing unit
6 units
printing area
350*350mm
PS plate size
405*370*0.24mm
rubber blanket size
500×370×1.95mm
Register adjustment: latitudinal
±2mm
Register adjustment: longitudinal
±10mm
3
UV dryers
6 units
UV dryer power
5 KW per unit
4
lamination unit
1 unit
5
rewinding unit
1 unit
Max. rewind diameter
600 mm
tension controller
1 unit
6
Varnishing unit(optional)
Anilox roller
1 pcs
Varnish roller
1 pcs
Ink duct roller
1 pcs
Ink duct roller
1 pcs
7
Rotary die cut(optional)
Magnetic roller
1 pcs
Register adjustment: latitudinal
±2.5 mm
Register adjustment:longitudinal
±10 mm
8
Other devices
PS plate hole puncher
1 unit
Water container
1 pcs
Inking control system(optional)
1 unit
Air compressor(optional)
0.6-0.7KPa
10
Machine color
standard
suitable materials: self-adhisive paper/pvc/pet/opp,polyster film,laminate tubes,flexible packaging material,etc Thickness of substrate: 70g-350g suitable ink: UV ink only
suitable printing plate: PS plate
.Auxiliary Facilities(Prepared by Customer) 1) Power source:3 phase 4 wires,380V 50Hz 2) main power Cable size: 3×25㎜²;N:1×10㎜²;PE:1×10² 3) air compressor: 0.6-0.7KPa
Our Service
CE Certifications
Exhibitions
Applications
Trade terms
Quotation validity:120 days Delivery time:120 days after the deposit payment received by the seller Country of Origin and manufacturer: NICKEL PRINTING MACHINERY CO.,LTD P.R.CHINA Port of Shipment: Guangzhou or Shenzhen
PAYMENT TERMS: ● 30% advanced T/T ● 60% by T/T before shipment or irrevocable L/C at sight. ● 10% by T/T in a week after signing acceptance report for installation and testing.10% GUARANTEE:12 months starting from the date of signing Acceptance report for installation and Commissioning. Installation and commissioning in the buyer's factory. ● The seller's engineers' salaries are for the seller's account; ● The seller's engineers' traveling, boarding,lodging costs and air tickets are for the buyer's account
