Завод по производству биореакторов лизин
- Category: Reactors >>>
- Supplier: Beijing Sentinain Technology Inc.
Share on (60699047310):
Product Overview
Description
Product Description

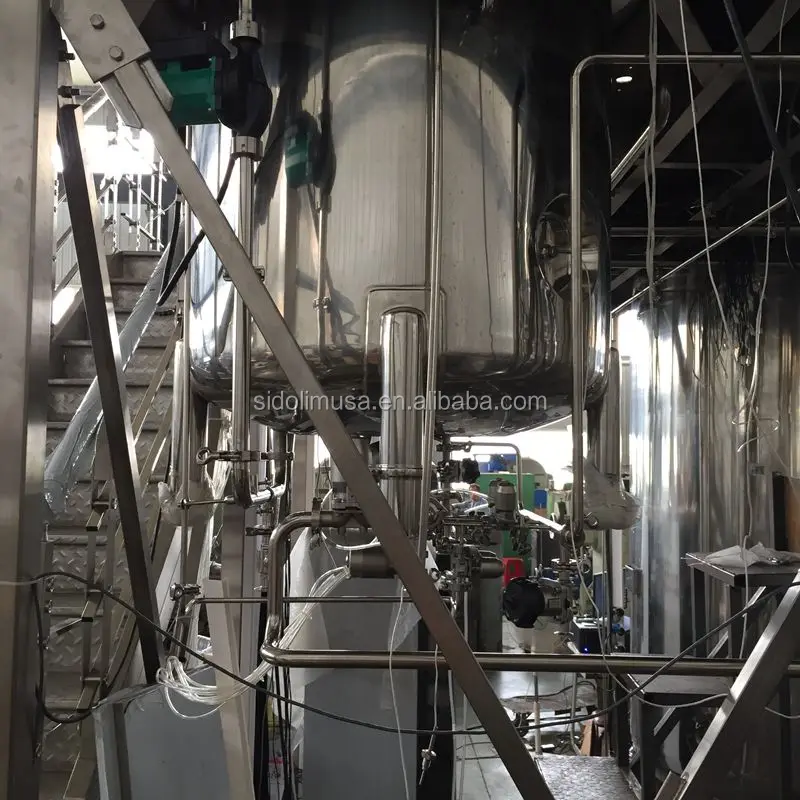

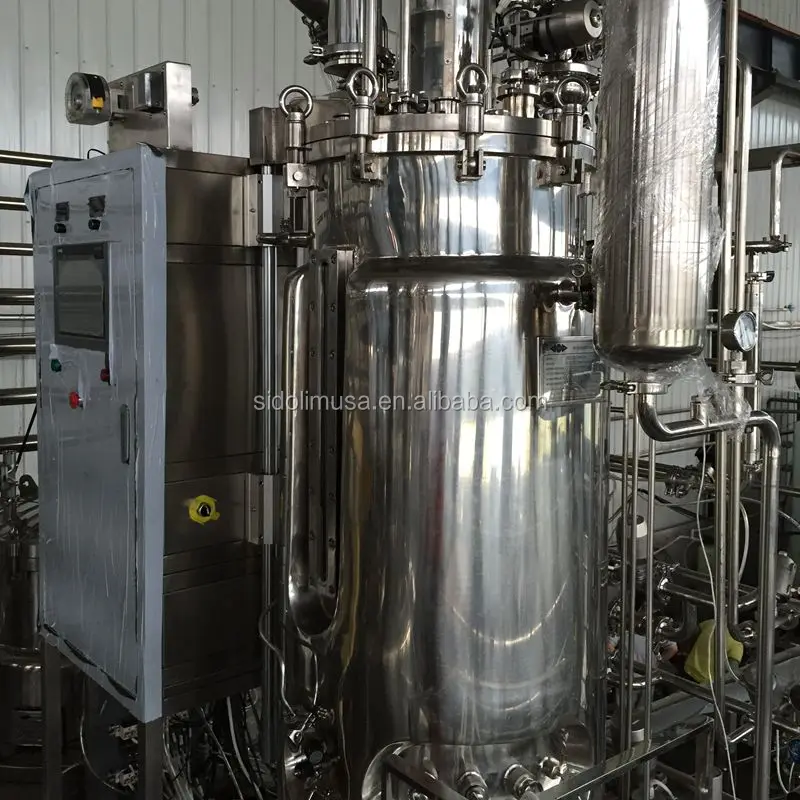

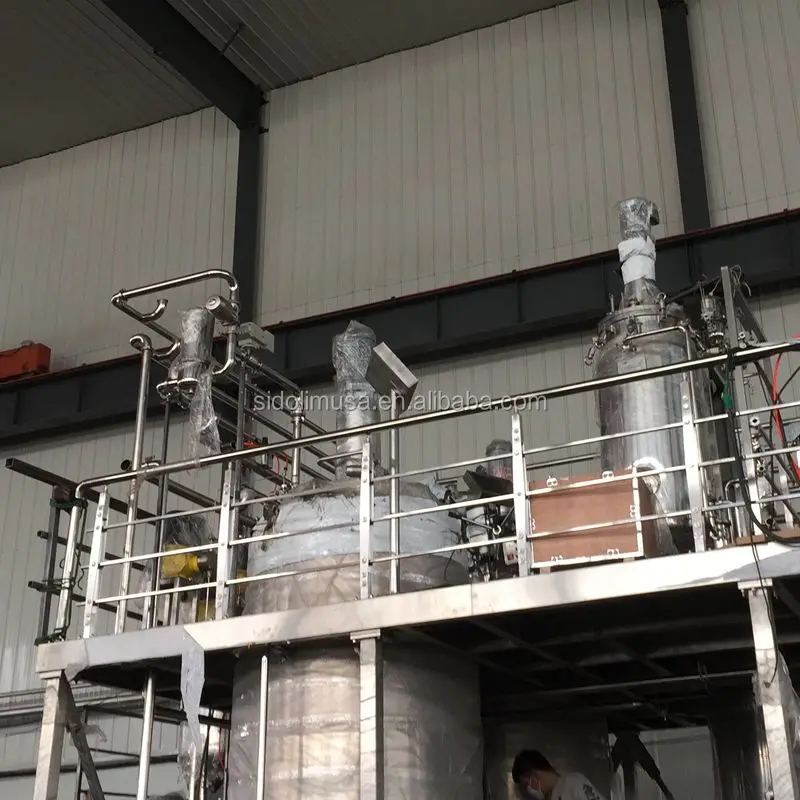

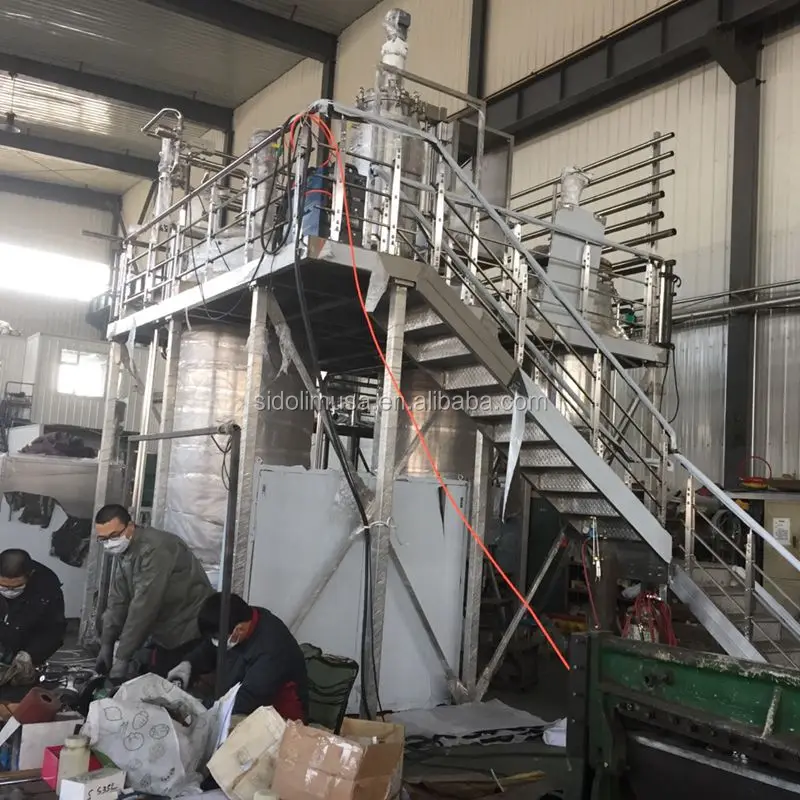

SiDoLim (1~30ton) system is designed based on the spirit of mass production that the system can perform the industrial scale fermentation process. The whole system is designed by the design team of Silver Double Limited.
All of the special options or ordered specifications can be acceptable.
As a leading fermentation technology, equipment supply and technical value-added services supplier,our company has a wealth of experience in project and outstanding professionals.
Advanced technology, Services responsive and high cost-effective is our operation principle.
Parameters
Agitation | Drive | DC motor, AC Gear motor, Top drive (mechanical seal driving) |
Range | 50~1000rpm 1rpm | |
Impellers | Turbine impeller (SUS316L) Foam breaker (SUS316L) | |
Sensor | Magnetic Hall sensor | |
Control | Microprocessor based PID | |
Materials & Finish | Vessel | Using 316L stainless steel it is polished mechanically or electrically |
Piping | 316L stainless steel prevent contamination and is polished by electrically | |
O-rings/Gaskets | Viton or silicon material is used for the O-ring and the EPDM is used for gasket | |
Sterilization | Built-in heater makers the in-situ sterilization for the vessel, head plate, filter, aeration pipe lines in 105 ~130 temperature range automatically | |
Temperature | Range( ) | From 3 above the cooling water temperature to 80 (accuracy 0.1 ) |
Sensor | RTD(Pt-100) | |
Control | The built-in heater cartridge raises and cooling water pulling downs the water temperature and water pump circulates the water inside of the jacket | |
Aeration | Sparger | Ring sparger (SUS 316L) |
Intel Filter | The cartridge type sterilizable pleated type 0.2µm absolute filter specifications(option item) | |
Out Filter | The same as internal filter specification(option item) | |
Control Range | Different vessel size and/or ordered specifications | |
Pressure Control | The back pressure is controlled manually or automatically | |
Control Unit | Panel | 8.5" Graphic Color LCD, Membrane keypad |
Communications | Memory stick, printer, computer with the RS-232C communications protocol. | |
Controller Board | MC68EC020 microprocessor based integrated controller board is adopted to measure, control and display the fermentation system | |
Related Products
Insulin production line
Vaccine production line
Antibiotics production system
Lysine production line
Biological health drinks production line (e.g. hericium drinks)
Any shape of tablet production line
Packaging & Shipping
1.Qualified wooden package or carton for different products or as customer require.
2.Sufficient inner protection with different materials, including bubble bag, foam board and others.
3. Strict packing process to ensure the safety and completeness of the goods.
4. We have good cooperation with many international express companies such as DHL / UPS / FedEx / TNT and Other, as well as large shipping companies to provide air shipping and sea shipping. We can also arrange global shipment as clients' requirement.
FAQ
1. How can you guarantee we receive a good quality?
First, we have Q/C department to control the quality from raw material to the finished products. When the machine was finished, we will send you the inspection video and pictures. Or you can come to our factory to inspect the machine before you arrange the balance of the payment.
2. Do you provide any help about the product operation?
We have English manuals and operational video, which could help you know the operation easily.
3. How about warranty?
We could make sure all of our machines with one year’s warranty and provide you with free technical support of equipment lifelong.
4. How can I get more details about this machine?
Please write all your question in the below mailbox, we will reply to you via E-mail within 12 hours.
Company Information
SiDoLim, Silver Double Limited is a worldwide leading OEM manufacturer and supplier of measuring instruments and automation solutions for the industrial process, engineering industry, chemicals and petrochemicals industries,and paper making industries, metallurgy and so on, and is focused on providing advanced, state-of-the-art products for our customers. We are also committed to producing cost-effective, accurate, rugged, and reliable monitors and control solutions at reasonable prices.
