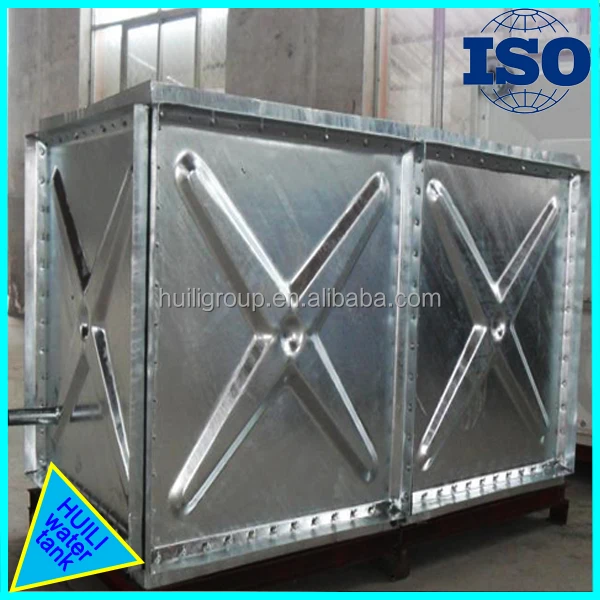

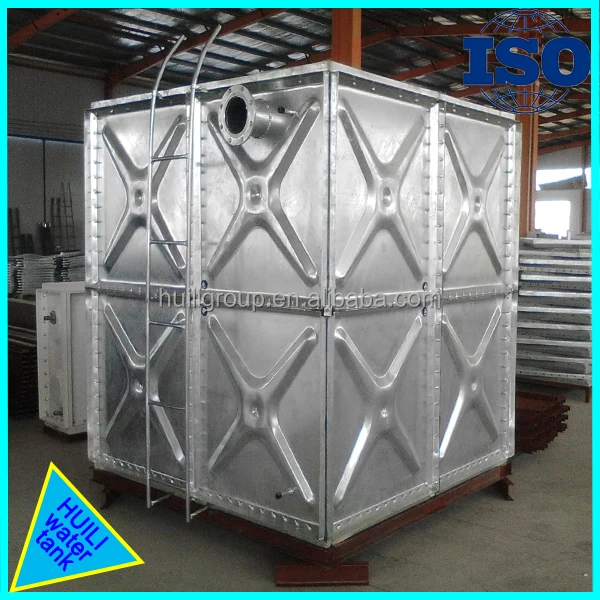

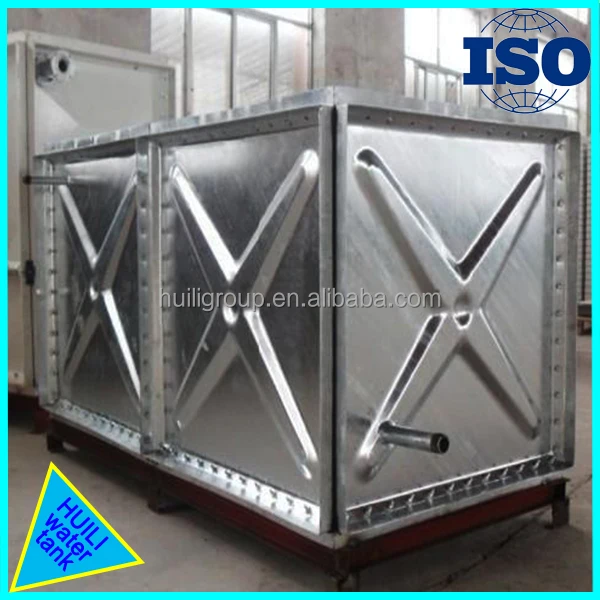

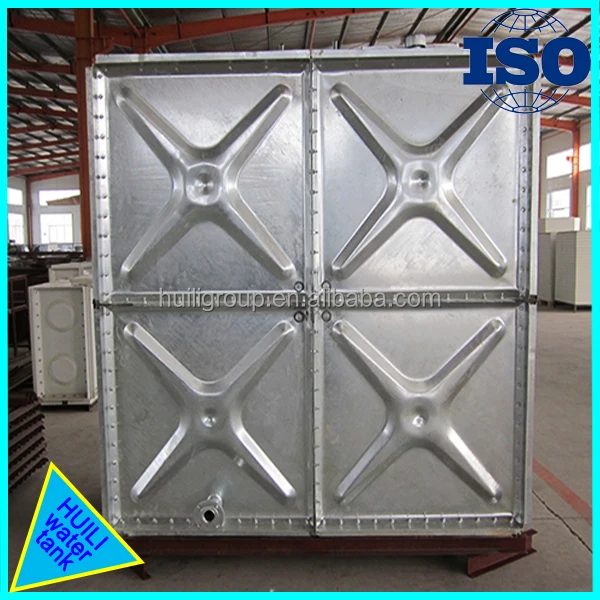

Hot Dipped Galvanized Water Tank
HDG water tank is the short of Hot Dip Galvanized water tank,with 90 μm thick surface zinc coating of Q235 Pressed Steel. Zinc coating can help to prevent rust and corrosion over at least 10 years. HDG water tanks have the most panels types including 1000 x 1000 mm,1000 x 500 mm,500 x 500 mm,1220 x 1220 mm.So HDG water tanks are more flexible and high cost-effective.Meanwhile,the strong steel structure and zinc coating protection has made it available to be used as underground water tank.
Our Advantages
ANTI-CORROSION
The thickness of zinc layer can be up to 70μm, have superior anti-corrosion capability.
DIMENSION FLEXIBILITY
The size of panel can be 1.22*1.22 m, 1*1 m, 1*0.5 m and 0.5*0.5 m, which can assemble kinds of volume from 0.125 m³ to 5000 m³. That’s extremely convenient to select for you.
RELIABLE QUALITY
Our panel comply the standard of Singapore PSB, SGS, China QSB, etc. The life-span can be over 1/4 century.
CONVENIENT INSTALLATION
Factory precast panel is easy to assemble and disassemble, the construction drawing, installation video, and a series of complete installation plan will be provided.
DURABLE
Using the 1000 T hydraulic press integrated molding, no welding seam at panel corners.
BURY UNDERGROUND
All the HUILI steel material water tank can be bury underground, the thickness of inner structure and panels are thicker than normal tank.

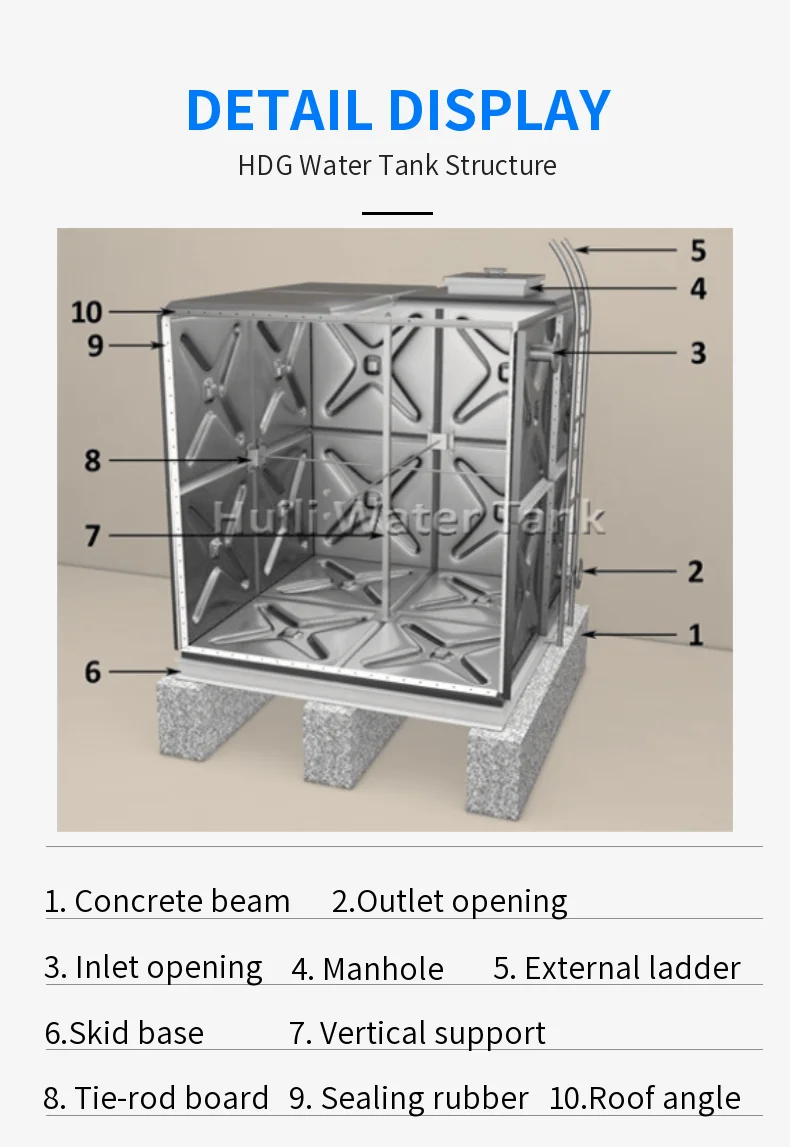

Details Images
PANEL DIMENSION | WEIGHT OF EACH PANEL | ||||||||
2mm | 2.5mm | 3mm | 4mm | 5mm | |||||
1*1m | 17.4kg | 22.7kg | 26.6kg | 36.2kg | 46kg | ||||
1*0.5m | 9.5kg | 12.5kg | 14.6kg | 19.9kg | 25.2kg | ||||
0.5*0.5m | 5.3kg | 6.9kg | 8kg | 11kg | 13.9kg | ||||
1.22*1.22m | / | 33.6kg | 39.3kg | 53.7kg | 68kg | ||||
PHYSICAL PROPERTIES | STANDARD REQUIREMENT | RESULT |
Tensile strength | ≥350 MPa | 509 MPa |
Yield strength | ≥220 MPa | 414 MPa |
Elongation | ≥23% | 24% |
TANK HEIGHT (mm) | THICKNESS OF EACH PANEL | ||||||||||||
Bottom | 1st layer | 2nd layer | 3rd layer | 4th layer | 5th layer | Roof | |||||||
1000 | 3mm | 3mm | / | / | / | / | 2mm | ||||||
1500 | 3mm | 3mm | 3mm | / | / | / | |||||||
2000 | 3mm | 3mm | 3mm | / | / | / | |||||||
2500 | 4mm | 4mm | 3mm | 3mm | / | / | |||||||
3000 | 4mm | 4mm | 3mm | 3mm | / | / | |||||||
3500 | 4mm | 4mm | 3mm | 3mm | 2.5mm | / | |||||||
4000 | 5mm | 5mm | 4mm | 3mm | 2.5mm | / | |||||||
4500 | 5mm | 5mm | 5mm | 4mm | 3mm | 2.5mm | |||||||
5000 | 5mm | 5mm | 5mm | 4mm | 3mm | 2.5mm | |||||||
The standard tolerance of thickness is 0.25mm. For example, the actual thickness of 3mm is 2.75mm.
Company Profile
Why Choose Us
Product packaging
FAQ
Q: Are you trading company or manufacture?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 10-15 days if the goods are not in stock, it is according to the quantity.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment <= 1000usd="">= 1000USD, 30% T/T in advance, balance before shippment. If you have other questions, pls feel free to contact us as below:
