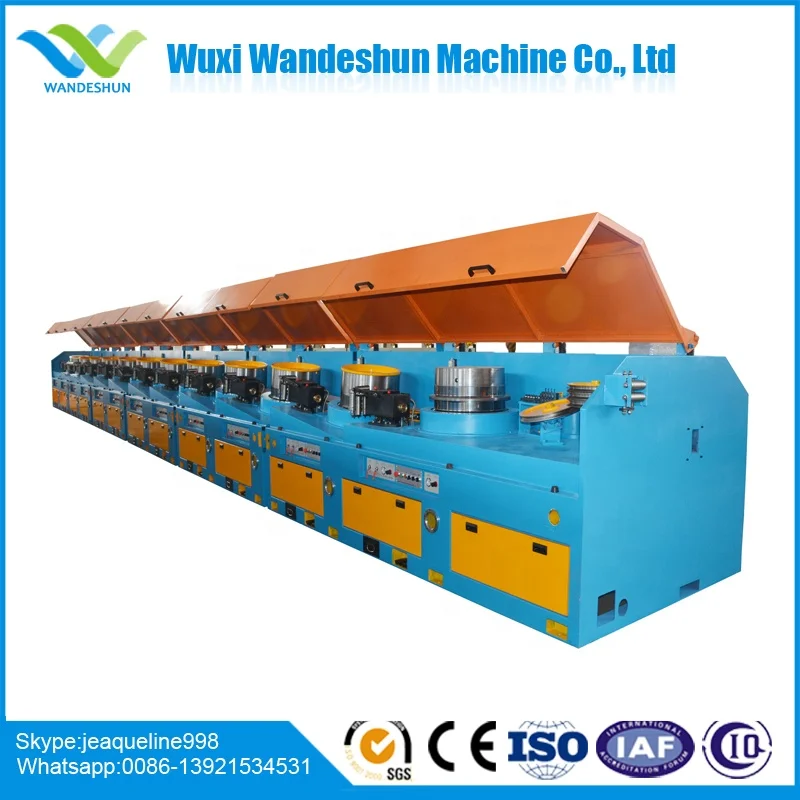

PLC Controlled Touch Screen High Carbon Low Carbon Spring Wire Alloy Wire LZ560 straight Dry High Speed Wire Drawing Machine

Product Overview

Description

Wuxi Wandeshun Machine Co., Ltd  (we are factory)

 our transaction level is big.





 1.    About us



Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.



We had more than 60% market share in China wire drawing industry in accordance with the industry statistic report by China Wire & Cable research institutions. In overseas market, Our machines have been exported to more than 20 countries such as Korea ,Peru, Argentina, Columbia, Poland, Italy, Georgia, Bulgaria, Serbia, Qatar, Qatar ,Egypt, Syria, Saudi Arabia, India, Malaysia, Indonesia, Philippines, Vietnam, Thailand, Korea, Uzbekistan ,Tajikistan,Kazakhstan,Brazil,South Africa, Ethiopia, turkey  Puerto Rico ,Bolivia, Senegal ,etc.

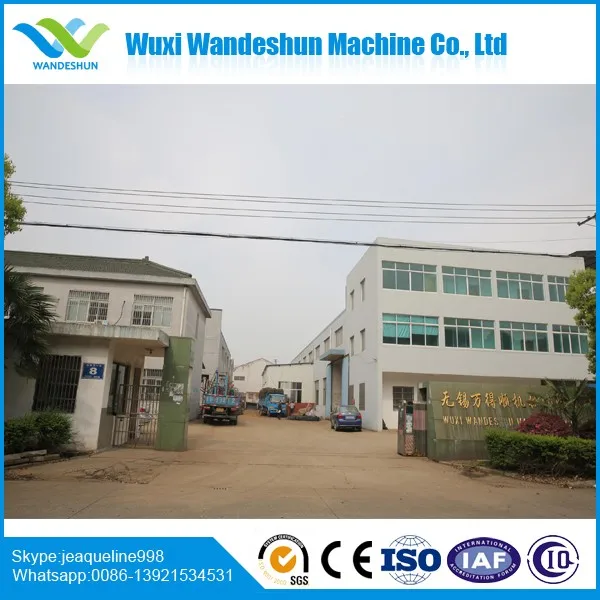

Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.







My contact way

My mobile: 86-13921534531

Whatsapp: 86-13921534531

Skype: jeaqueline998

trademanager: wxwds

Email:sales(at)wxwds.com

QQ:349791577

Product  Details

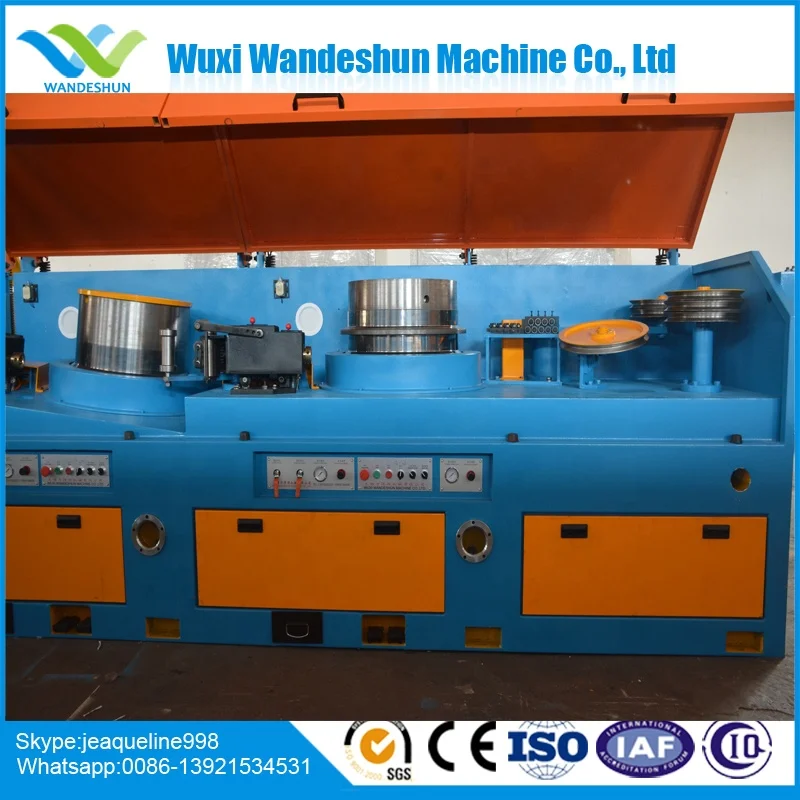

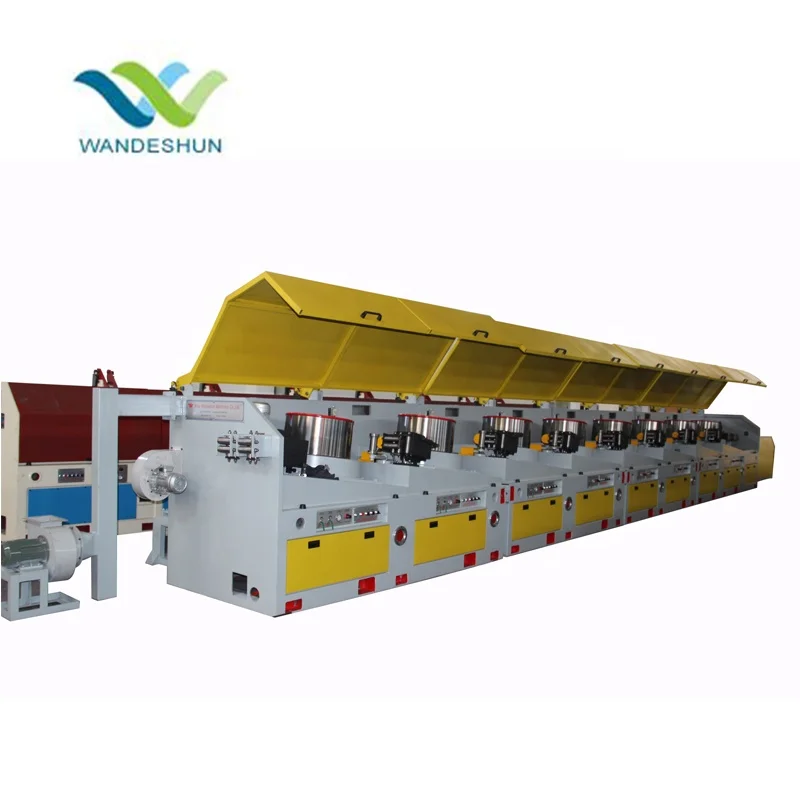

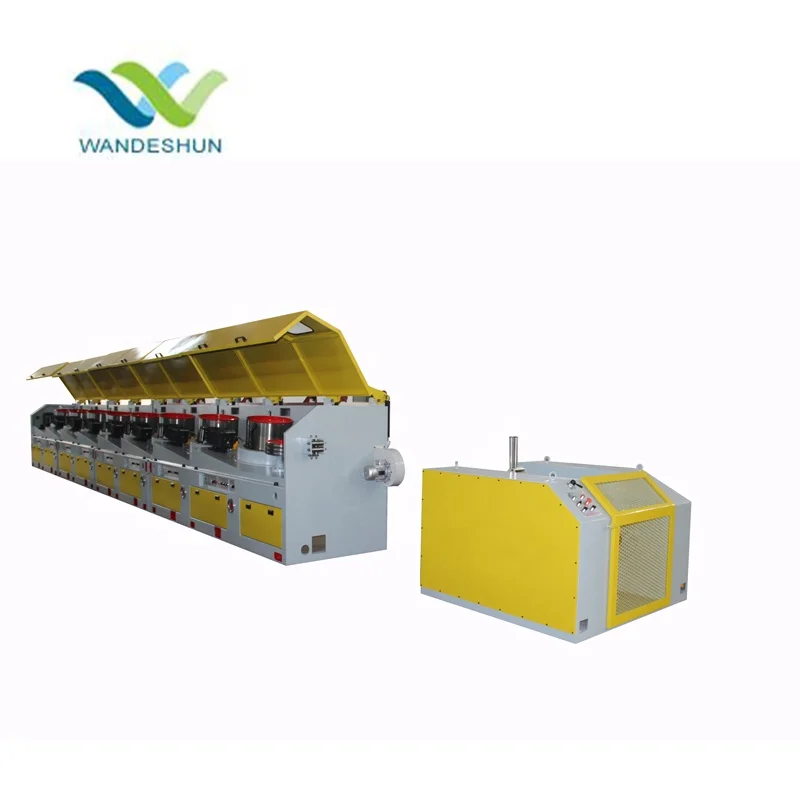

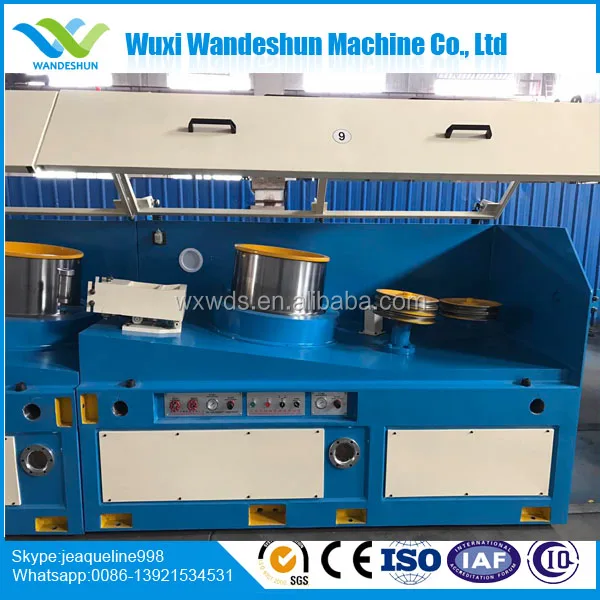

PLC Controlled Touch Screen High Carbon Low Carbon Spring Wire Alloy Wire LZ560 Straght Dry High Speed Wire Drawing Machine



The straight line drawing machine applies advanced international technology, with digestion and absorption, the drawing machine is applicable for high intensity and performance demand. It mainly applied for the production of steel curtain wire, tyre steel wire, steel wire for rope, spring steel wire, stainless steel wire, gas welding wire, arc welding wire, etc. The capstan diameter of the series products is φ350-φ1200mm with maximum inlet diameter of φ14mm and minimum outlet diameter of 0.7mm.











Main Technical Parameters:



Items	Unit	LZ9-12/1200	LZ10/800	LZ9/700	LZ10/560	LZ10/400
Reel diameter	mm	900	800	700	560	400
Draw passage	time	9-12	10	9	10	10
Incoming dia	mm	Φ14-8	Φ10-8	Φ8-6.5	Φ6.5-5.5	Φ14-8
Outgoing dia	mm	Φ5-3	Φ4-3	Φ3-2.5	Φ2-1.8	Φ1-0.8
Wire darwing line	m/min	300	360	480	720	840
Incoming strength	Mpa	≤1300	≤1300	≤1300	≤1300	≤1300
Total compressibility	%	87.24-85.94	84-85.94	85.94-85.21	90.53-89.29	87.24-84
Average compressibility	%	20.48-19.58	18.42-19.58	19.58-19.13	21.00-20.02	18.61-16.74
Single motor power	Kw	110-90	90-55	75-55	37-22	15-7.5

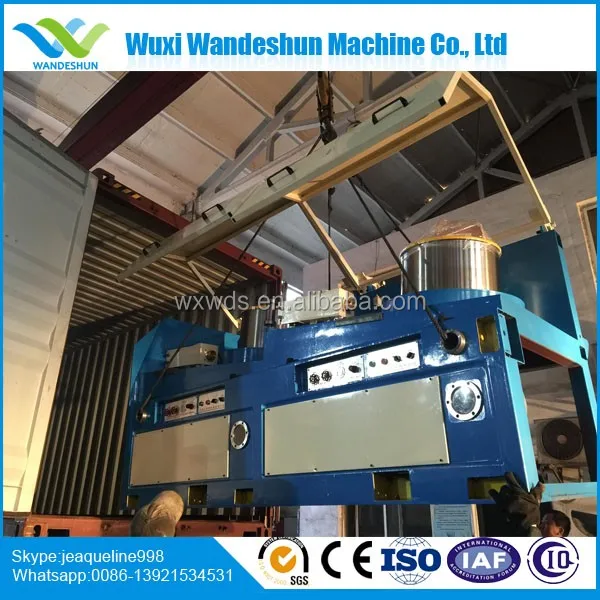

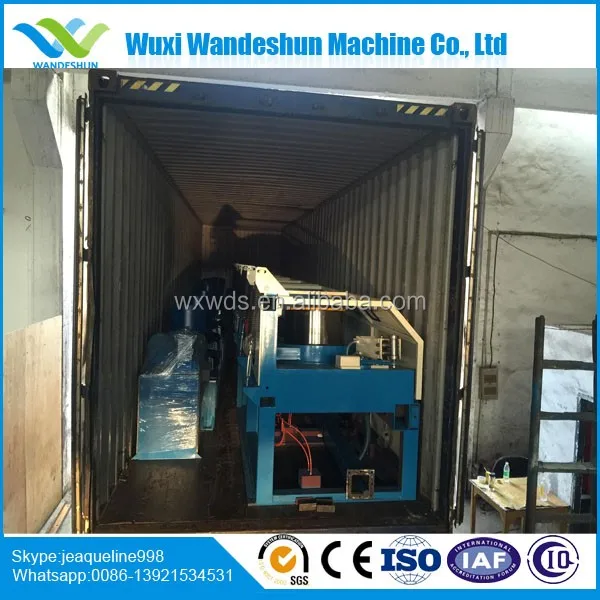

  our loading and shipment  photos

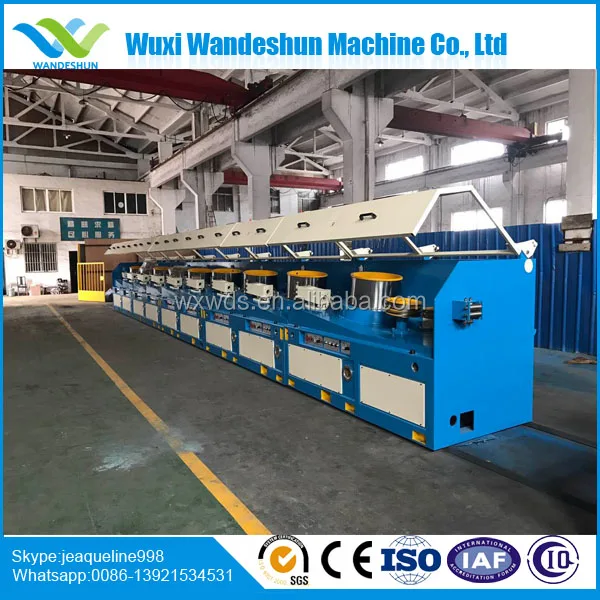

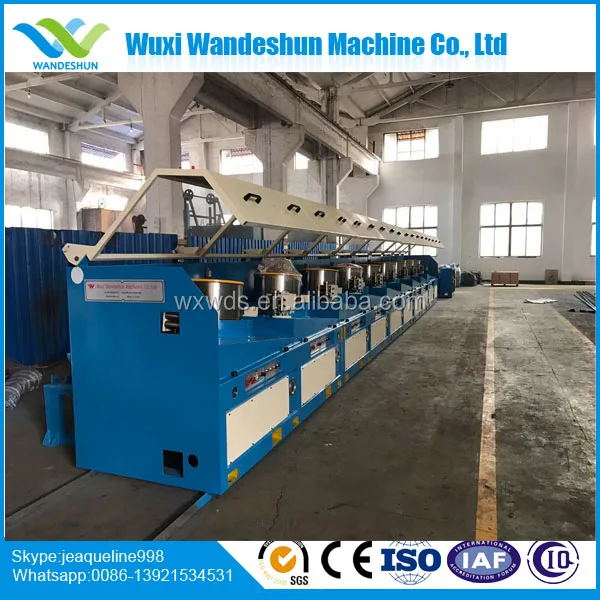

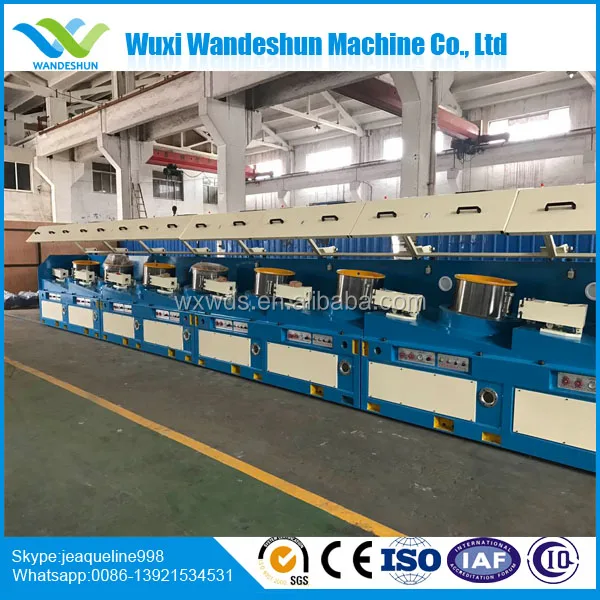

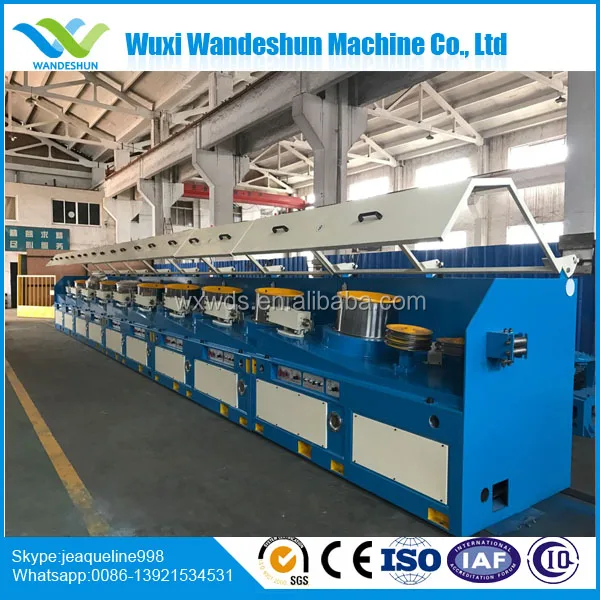

 our clients and our machine











FAQ

1.How about our quality ?

We continuously develop and improve our products and are widely used in many fields such as industrial, technical, medical and aerospace. Quality is at the world's leading level



2.How about the price ?

Very low price, don’t worry about it, All fees you pay will be used on your machine. The price depends on your expectations of the machine.



3.How about our service?

Once we get your inquiry for our products, we will make offer within one hour ,and for reply you any doubt at any time



4.How about the brand of electric parts of machine?

We use famous brand as following

Siemens / HD motor

Siemens /ABB / Inovance inverter

Siemens/ Inovance touch screen

Schneider low voltage electric. etc.



5.How about packaging?

1.Plastic wrap with dryer agent

2.Plywood box with plastic wrap and dryer agent

3.Carton with plastic wrap and dryer agent

4.SEA , TRAIN , AIR according to clients requirement



6.How about the delivery?

We promise that we provide wire machine, mold, brushed powder machine test operation service in the workshop, and then free shipping, you carefully check and then ship



7.How about delivery time?

It is 30 days. According to your specific requirements for the machine.



8.How about the after service?

When the machine has a problem,  the Engineers available to service machinery overseas



9.How to prove what you said?

If you are convenient, you can visit our factory at any time, and when you visit us, you will see the running machine in our factory.



10.Where is our factory?

Wuxi city China

Our company is only 5 minutes away from ShuoFang International Airport in southern Jiangsu, we can pick you up when you come to this airport



11.How about the invitation letter?

We will do that according to your request , and give you invitation letter in one week.



12.Please provide following information if you want to directly quotation:

1. Wire Material:

2. Inlet Wire Diameter range:

3. Outlet wire Diameter range:

4. Where and what does the wire use for:
