Jewelry Industry Silver Rod/Wire/Pipe/Tube Continuous Casting Machine for Sale Manufacturing Plant (60700100502)

Share on (60700100502):


Price:

Quantity:


Product Overview

Description



Products Description


Factory price speedy melting jewellery continuous casting machine for sale

CDOCAST Jewelry Continuous Casting machine is used to draw small volumes of different shapes of precious metals, such as gold, silver, carat gold, copper alloy, etc.
The continuous casting machine is a pull-down type. Only one continuous casting machine can get the required semi-finished products.The semi-finished products can be made into rectangles, cylinders, circles and rods.
And can be in wire, sheet or tube.




Details Images






Parameter


Model
CDO-JC15
CDO-JC25
CDO-JC30
CDO-JC35
Power
15kw
25kw
30kw
35kw
Voltage
Three phase 380V, 50/60Hz
Three phase 380V, 50/60Hz
Three phase 380V, 50/60Hz
Three phase 380V, 50/60Hz
Suitable Metal
Gold, Silver, Copper, Brass, Bronze, and their alloys
Gold, Silver, Copper, Brass, Bronze, and their alloys
Gold, Silver, Copper, Brass, Bronze, and their alloys
Gold, Silver, Copper, Brass, Bronze, and their alloys
Melting Time
10min
10-12min
10-15min
12-16min
Casting speed
10-20cm/m
10-20cm/m
10-20cm/m
10-20cm/m
Capacity
Gold:3.0 kg
Silver: 2.0kg
Copper:1.5kg
Gold:6.0 kg
Silver: 4.0kg
Copper:3.0kg
Gold:10.0 kg
Silver: 6.0kg
Copper:5.0kg
Gold:20.0 kg
Silver:16.0kg
Copper:10.0kg
Gas
Argon Gas or Nitrogen
Argon Gas or Nitrogen
Argon Gas or Nitrogen
Argon Gas or Nitrogen
Temperature
1500℃
1500℃
1500℃
1500℃
Overall Size
800*600*1650mm
900*700*1750mm
1000*800*1850mm
1000*800*1850mm
Machine Weight
200kg
220kg
240kg
250kg


Application


The application and finished products of continuous jewelry casting machine






Feature


1:CDOCAST Jewelry Continuous Casting Machine Adopt intermediate frequency induction heating technology, it has strong intermediate frequency stirring force, which can lead to a high degree of uniformity of the metal, which is especially helpful for the casting of some alloys
2: Equipped with independent temperature control to continuously monitor the temperature during the entire draw process.
3:Comes with the continuous temperature monitoring system which leads to the best density and quality of the final product.
4: Design With the ability to work 24 hours per day, this function ensures maximum productivity to meet the high production demands of some customers.
5:Customized size wires, sheets or tubes Can be cast in our Jewelry Continuous Casting Machine

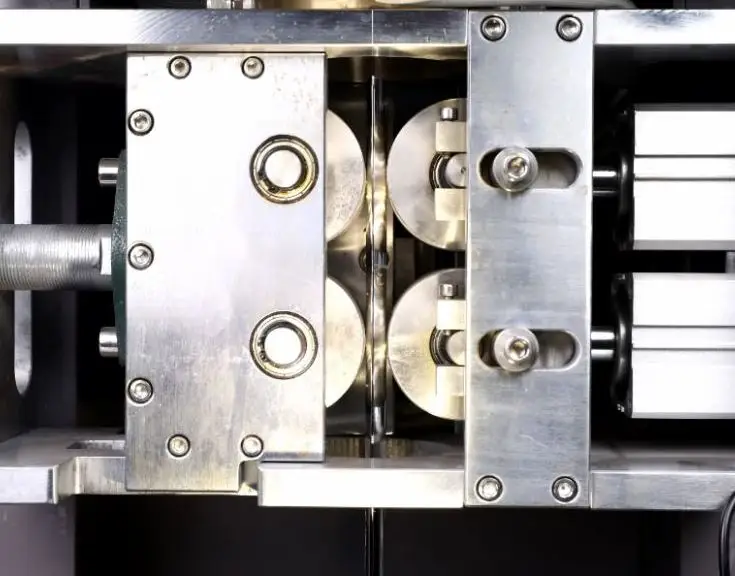

6:Special device is designed in the Pulling for automatic detection of slippage phenomena between the roller and the semi-finished product.
7:If a rapid cooling process is required, a water spray system can be installed to cool the semi-finished product directly.

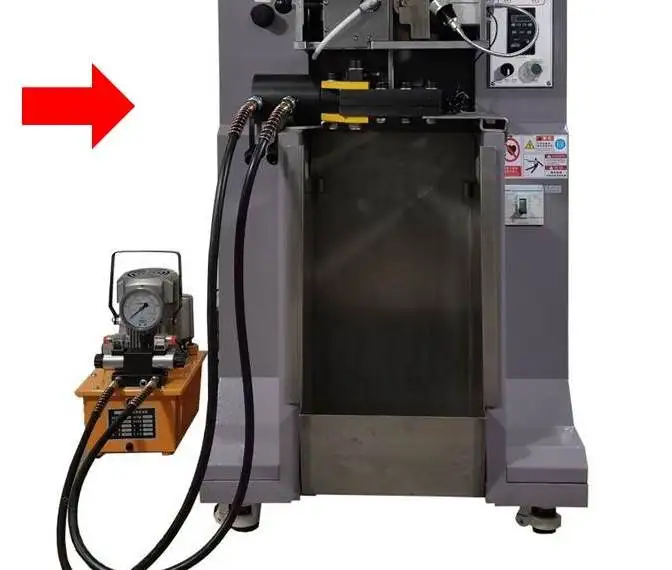

8:Each continuous casting machine is equipped with advanced hydraulic shears for easy cutting of semi-finished products.


Packing & Delivery






Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.

II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance

III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.


Customer Photos








FAQ


1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.
Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking


2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.


3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
