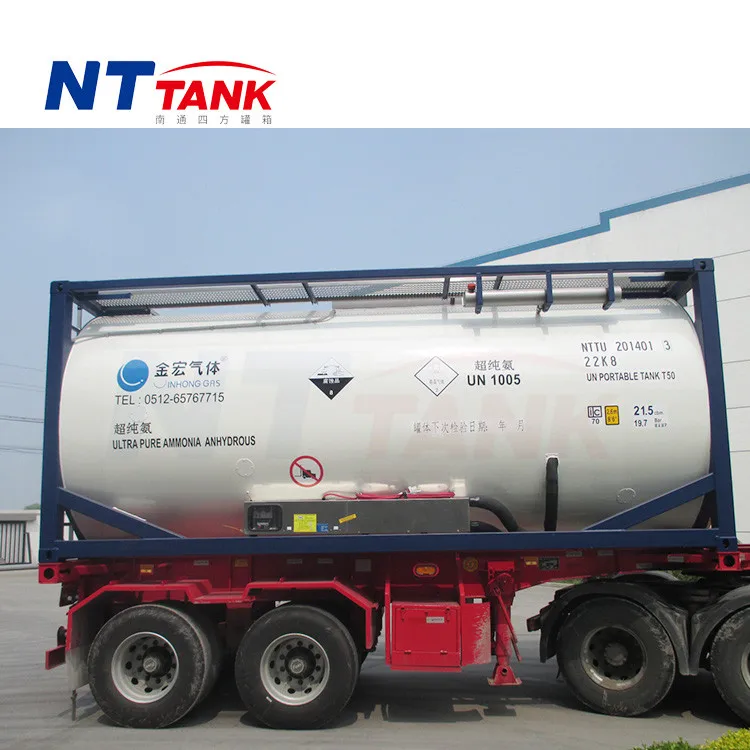

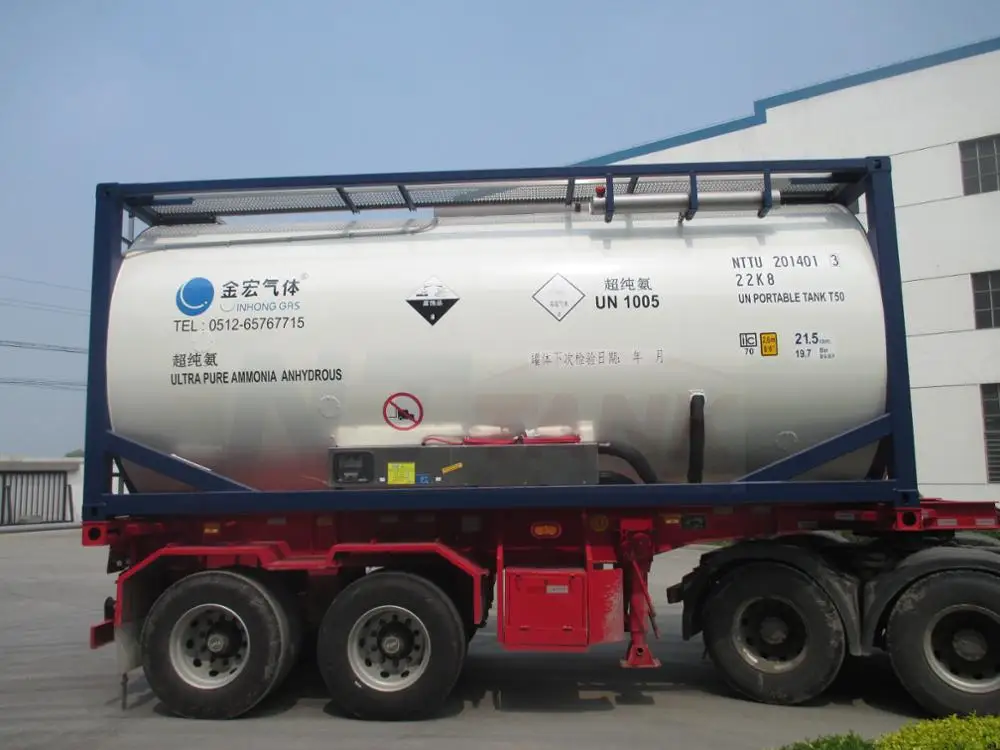

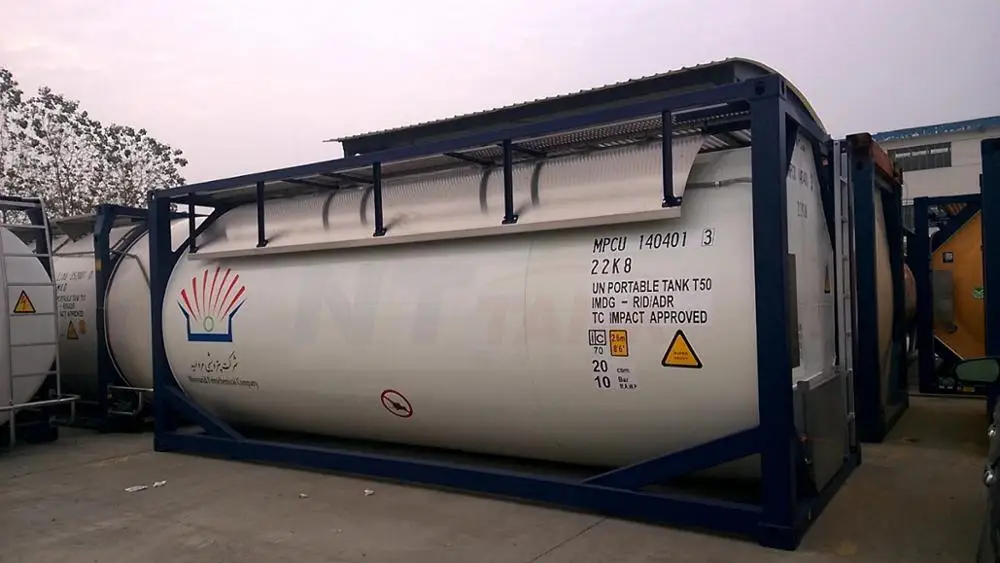

24000L T50 portable transport gas lpg iso tank container

Tank Type

20’ ISO full frame collar tank, Type UN Portable Tank T50

With Sunshield, top side rails fitted

Frame Dimensions

20’ x 8’ x 8’6”

Capacity

24,000 Litres +/- 2%

M.G.W.

24,000 kg

Tare (est.)

7,800 kgs +/- 2%

Max Payload

16,200 kgs

MAWP

18 Bar

Test Pressure

23.5 Bar

Design Temp

-40°C to +55°C

Vessel Material

ASME SA612

Shell Thickness

16mm Nominal

Ends Thickness(B.F)

18mm Nominal

Corrosion Allowance

0 mm

Max. Allowable Vacuum

1.0 Bar

Frame Material

GB/T 1591-Q345D

Frame to Shell

Q345R

Corner castings

ISO 1161 - 8 off

Vessel Design Code

ASME VⅢDiv,1

Cargo carried

LPG

Radiography

RT(X-ray) : 100% all longitudinal and circumferential butt welds

Inspection Agency

Lloyd’s Register

Design Approvals

IMDG T50 , ADR/RID, CSC, TC, TIR, ISO
