Feature:

1.Collector ring,Main control panel, Intermediate tower box,end tower box,and booster tower box,guide tower box

2.Galvanized steel construction,stainless steel shaft and bearing assembly helps to assure long time .

3.High quality electrical element and circuits to extend life

4.ABS tower box cover.

Specification:

.1.Working temperature:

2.Temperature: -20℃~80℃

3.Relative humidity:<95%

4.Contactor coil Voltage:110V/220VAC

5.Current:09A,12A,25A

Installation:

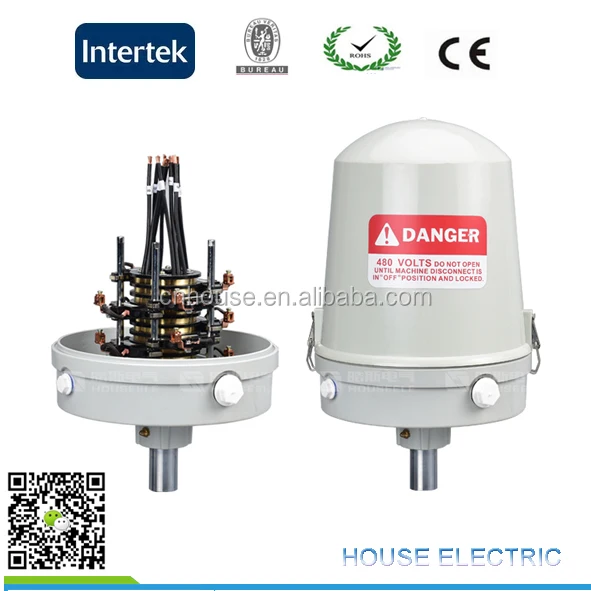

The collector ring is intalled on cneter pivot irrigator frame,by G1"

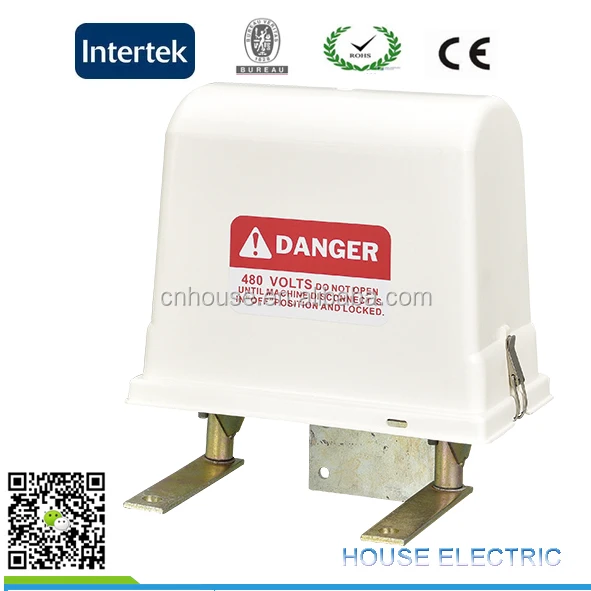

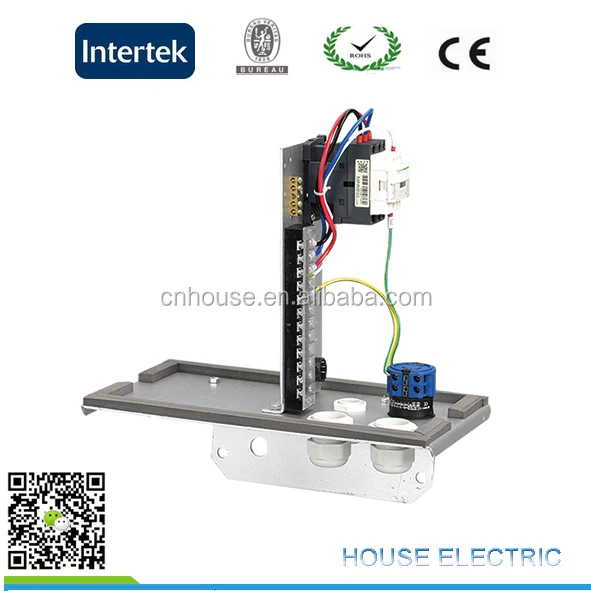

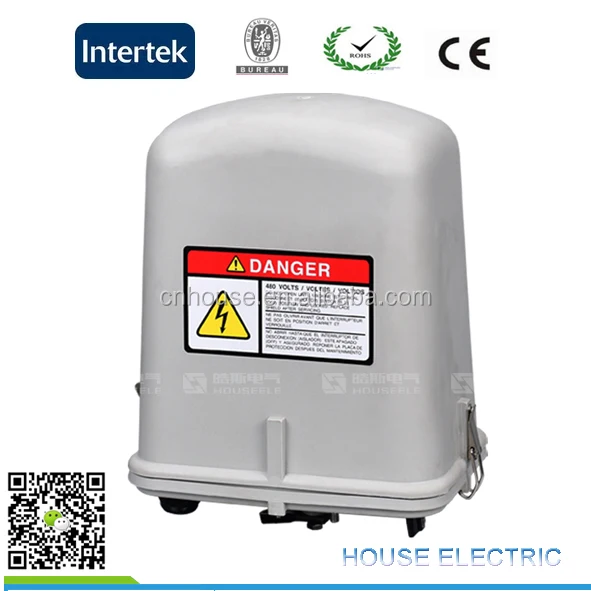

Tower box is Installed the through the mounting panel,if the mounting hole needs to be special,pls provide addtional drawings or instructions.
