Xinhua 150mm 450 500kg/h EVA Plastic Extruding Machine Price
- Category: Plastic Extruders >>>
- Supplier: Shishi Xinhua Plastic Machinery Co. Ltd.
Share on (60701726279):
Product Overview
Description
Product Description
This granule line is specialized for making EVA granules. When with the same specification kneader and mixing mill, they form a complete assembly line, which consists of plasticizing, extrusion, granulizing, cooling, filtration and packing. We have make some special designs to avoid EVA changing to forming.
The whole production line:
Kneader - Bucket Conveyer - Mixing Roller - Extruder mainframe - Auxiliary Cutter - Whirlwind Cooler(1st Process) - Cooling Conveyer - Whirlwind Cooler(2nd Process) - Mixing machine(blender) - Final prodcts.
Technical Parameter
SJΦ150 EVA Air Cooling Granule Line | ||||||
No. | Item | Description | Specification | |||
1 | Kneader(optional) | Model | X(S)N-75L | |||
Capacity | 75L | |||||
Actuating motor power | 110kw | |||||

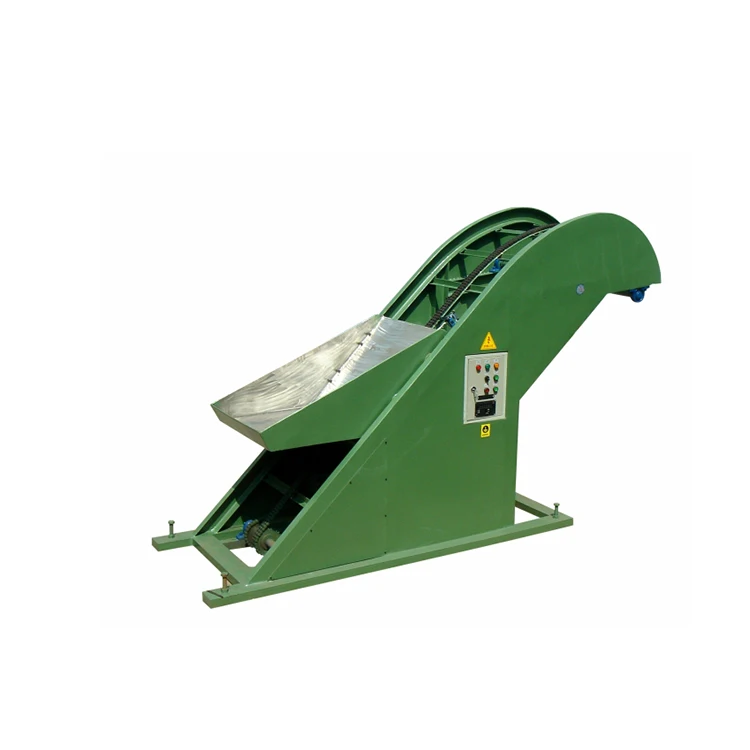

2 | Bucket conveyer for EVA | Material | Stainless | |||
Motor Power | 1.5kw | |||||
Bucket dimension | 700*600*300mm | |||||
3 | Mixing roller(optional) | Model | XK-400 | |||
Diameter of roller | 400mm | |||||
Main motor power | 45kw | |||||
4 | Main extruder | Screw dia | Φ150mm | |||
Screw Speed | 0-50r/min | |||||
Main motor power | 55kw (all with inverter) | |||||
Feeder motor power | 7.5kw (all with inverter) | |||||
Cutter motor power | 2.2kw (all with inverter) | |||||
Heat power | 11kw | |||||
Gear box | oil bath lubrication,hardened gear reducer | |||||
Cutting system | air cooling | |||||
Auto thermo control | 5 zones | |||||
Screw/barrel material | 38CrMoAIA | |||||
Barrel cooling system | water cooling | |||||
Granule diameter | 3-5mm | |||||
Overall dimension (L*W*H) | 4500*2000*1600mm | |||||
Weight | 2800kg | |||||

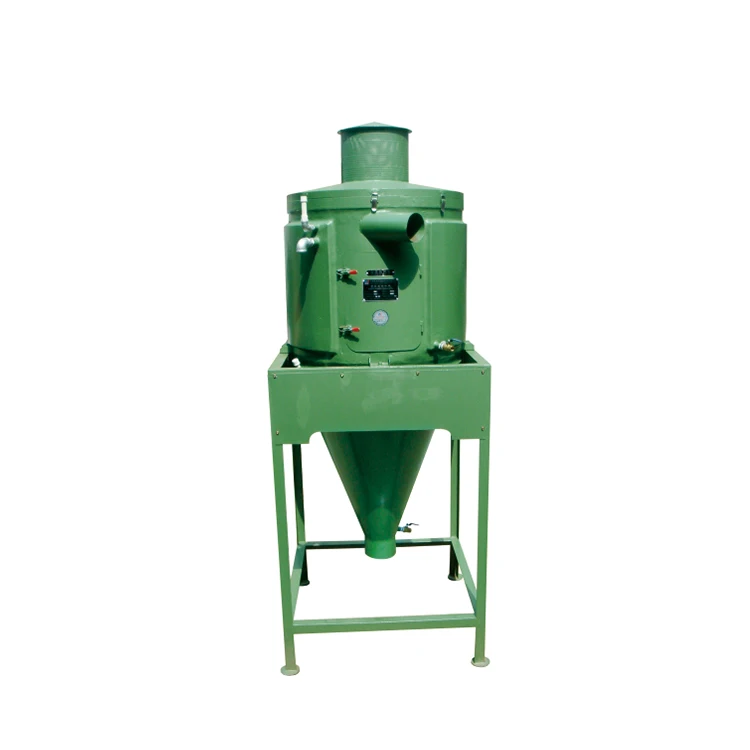

5 | Whirlwind cooler | a. Cooling tank diameter | Φ650*1set | |||
b. Cooling tank diameter | Φ850*2sets | |||||

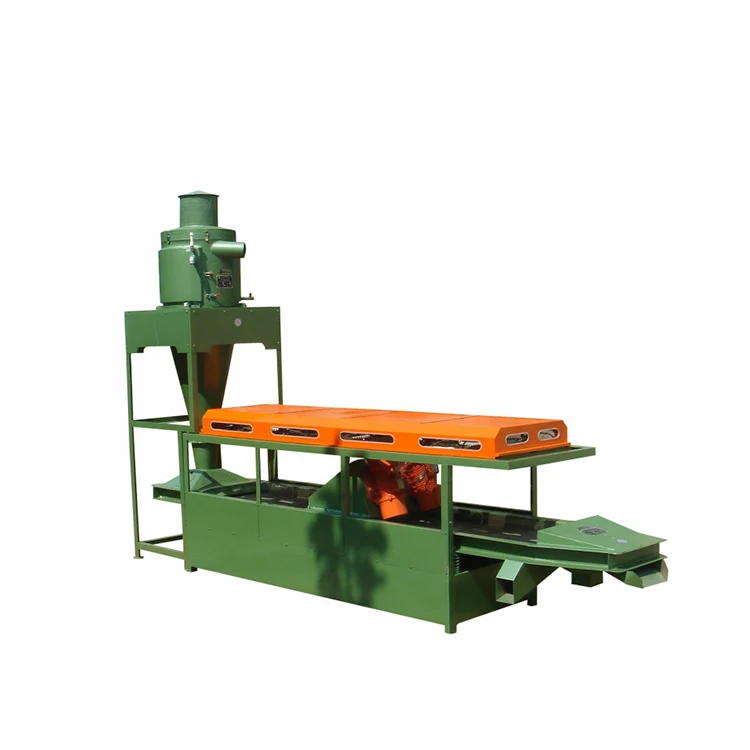

6 | Cooling conveyer | Length and width | 4200*610mm | |||
Thermal Design Power | 4.5kw | |||||
Material | Stainless | |||||

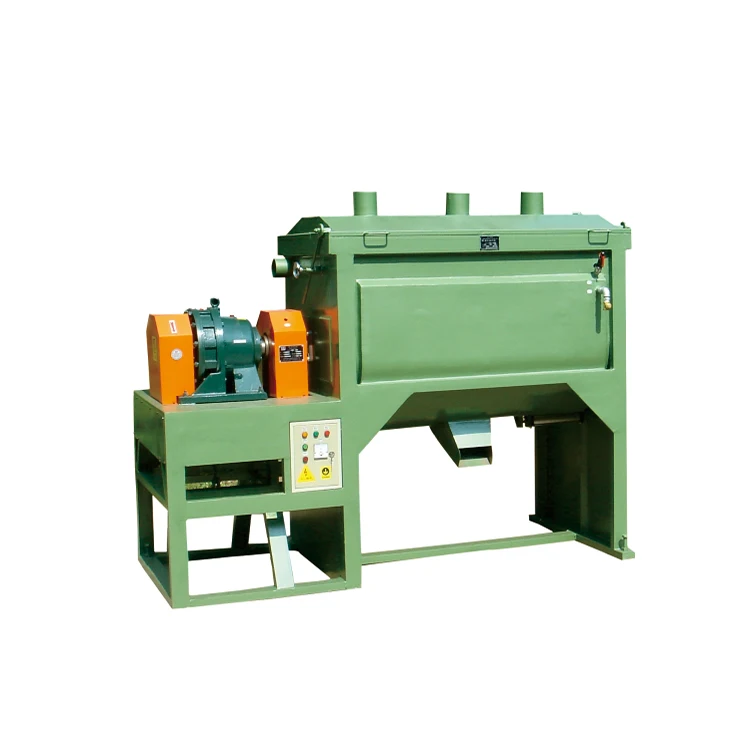

7 | Blender | Capacity | 1000L | |||
Spindle speed | 10r/min | |||||
Motor power | 11-4kw | |||||
8 | Air machine | Motor power | 4.0kw | |||
Screw speed | 2880r/min | |||||
9 | Air machine | Motor power | 5.5kw | |||
Screw speed | 2880r/min | |||||
Product Show
Packing & Delivery
Packaging | ||
Size | 40HQ Container | |
Weight | 10T | |
Packaging Details | Wooden packing is also acceptable. | |
