chipboard hot press machine hydraulic hot press machine
US $11500-$12000
Automatic price mechanical 50t 220v lamination oil cold press machine in woodworking
- Category: Press >>>
- Supplier: Qingdao Allison Machinery Technology Co. Ltd.
Share on (60702628953):
Product Overview
Description
Product Description
1. Application
The machine is applied for modern fashion board,plyboard,flak-board,laminating board.woodbased panel board,furniure manufacture,solid board furniture,speaker box,plastic and wooden mould etc.
Technical specification:
Model | MH3248*50T | MH3248*100T |
Size of worktable (mm) | 1250x2500 | 1250x2500 |
Nominal pressure | 500KN (50T) | 1000KN (100T) |
Size of worktable (mm) | 1250x2500 | 1250x2500 |
Hydraulic pump power | 4Kw | 5.5Kw |
Cylinder diameter | 145mm | 160mm |
Maximum pressure plate thickness | 1000/1300/1500mm | 1000/1300/1500mm |
Maximum working pressure | 20Mpa | 20Mpa |
Weight | 2.4T | 3T |

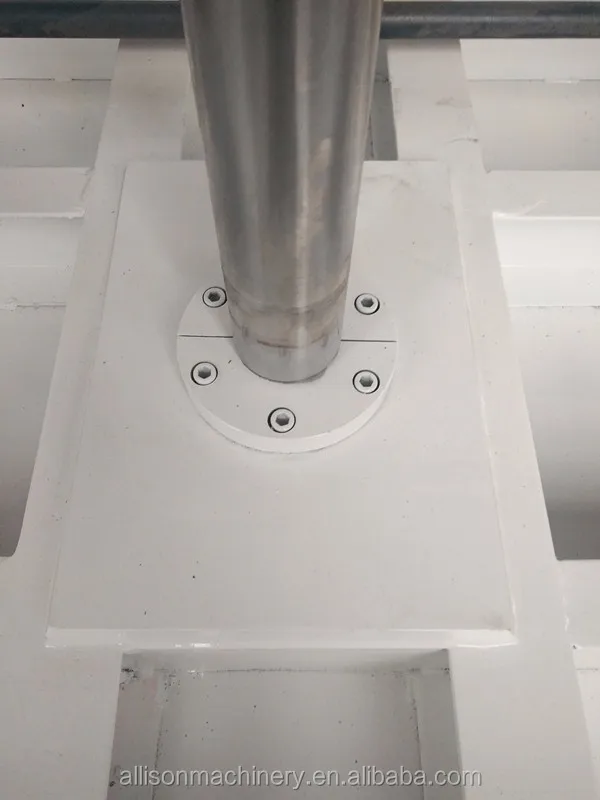

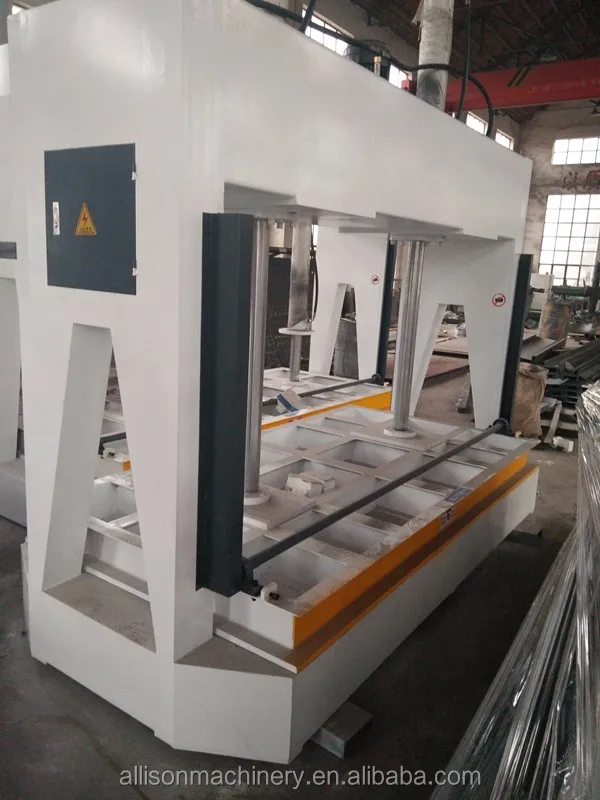

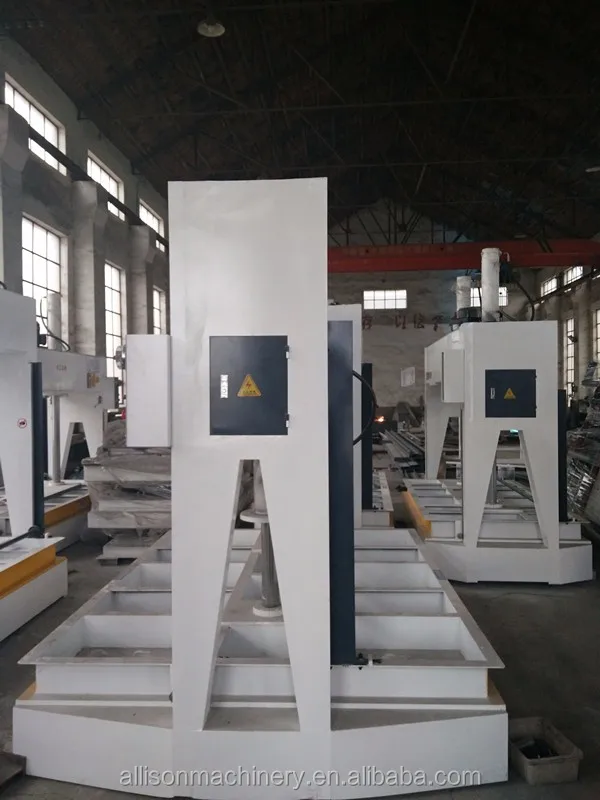

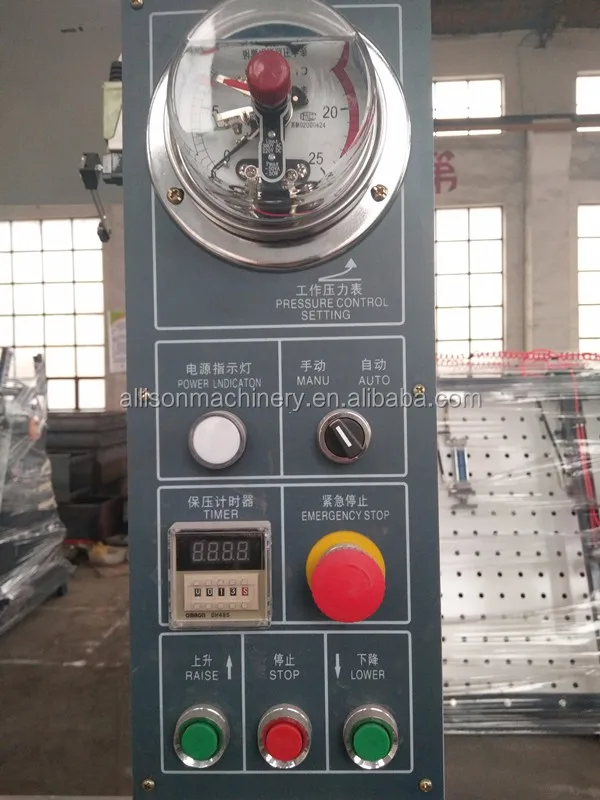

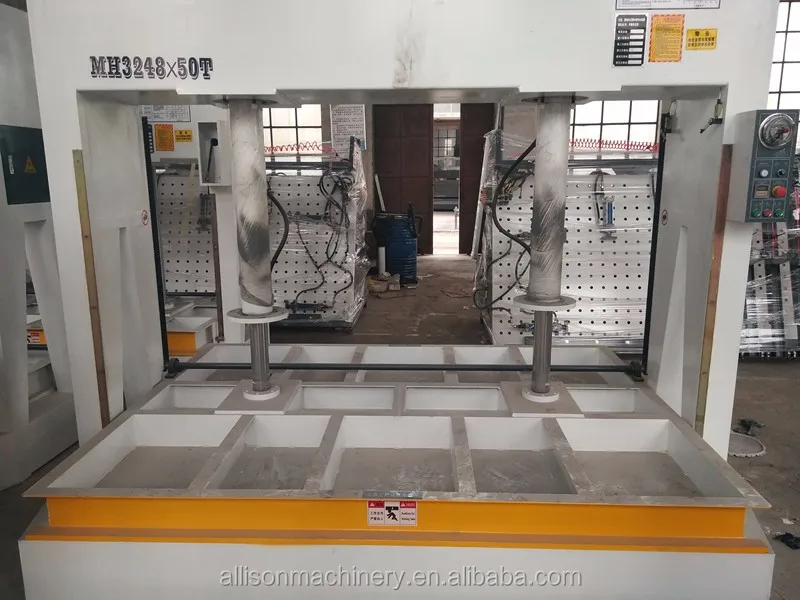

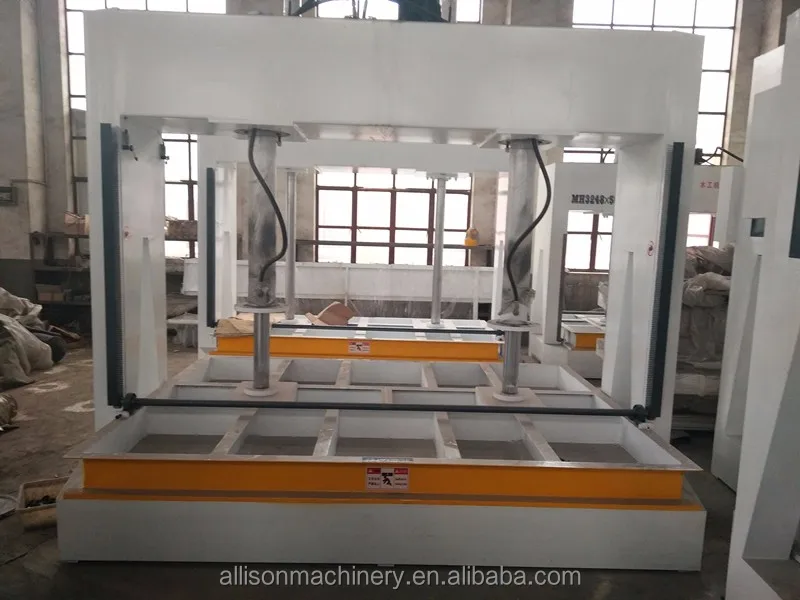

Detailed Images
\t\t\t\t\t\t\t\t\tOur Service \t\t\t\t\t\t\t
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
\t\t\t\t\t\t\t\t\tOur Company \t\t\t\t\t\t\t
Why choose Allison?
1.Professional: We have more than ten years experiences in high quality woodworking machinery, especially Sanding Machine,Planing Wood Sangding Machine,Lock Jointing Machine,Cold Press Series,Hot Press Series,Frame Combination Machine Series,etc.
2.Excellent: Established in 2007, ISO9001 certificated.
3.Economial: We offer the good price with great quality because we do high-volume production manufacturer
4 .Location: One hour reach Qingdao port
