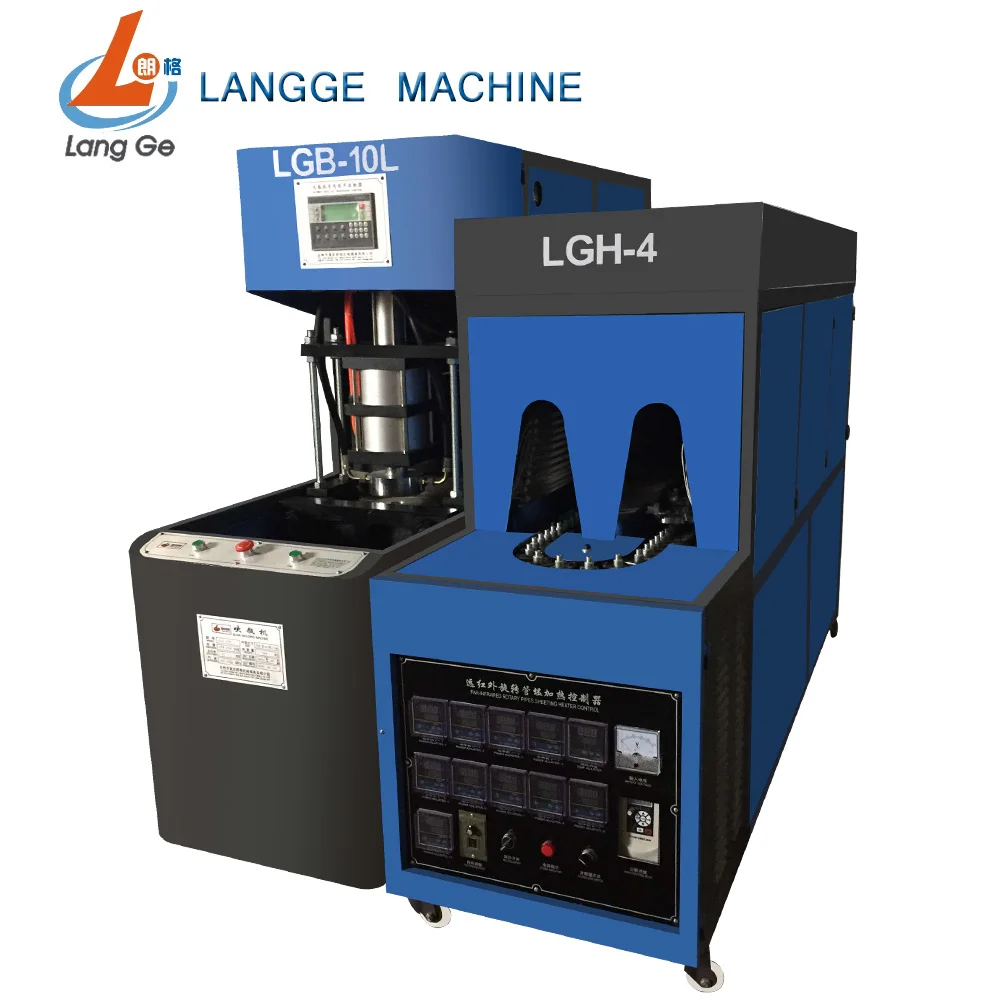

Full Automatic Pet Blow Machine Auto Bottle Blowing Machine
US $13000-$30000
semi automatic blow molding machine, drinking bottle making machine,
- Category: Stretch Blow Moulding Machines >>>
- Supplier: Taizhou Longer Machinery Co. Ltd.
Share on (60703405133):
Product Overview
Description
Product Description
1. Produce bottle from 6L to 10L(1 cavity)
2. Output capacity up to 300 for 6L using two-cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.
| ITEM | UNIT | LGB-10L |
| Theoretical Output | pcs/hr | 300-350 |
| Max.container volume | L | 1 |
| Max.neck diameter | mm | 140 |
| Max.container diameter | mm | 240 |
| Max.container height | mm | 450 |
| Mould Thickness | mm | 200-300 |
| Mould Stroke | mm | 255 |
| Heat Lamp Amount | pcs | 40 |
| Max.heating power | kw | 32 |
| Power of Main Blower | kw | 33 |
| Actual power consumption | kw | 13-18kw |
| Working Pressure | Mpa | 0.8 |
| Low pressure consuming | Ltr/min | 600 |
| Blowing pressure | Mpa | 3 |
| High pressure consuming | Ltr/min | 400 |
| Measurement of Main Blower | mm | 1970*610*1650 |
| Measurement of preheater | mm | 2180*600*1380 |
Detailed Images

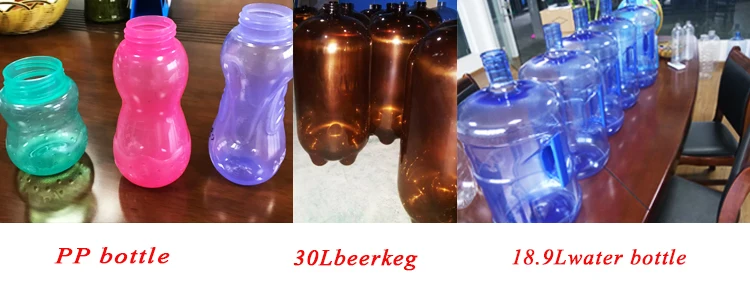

machine mold

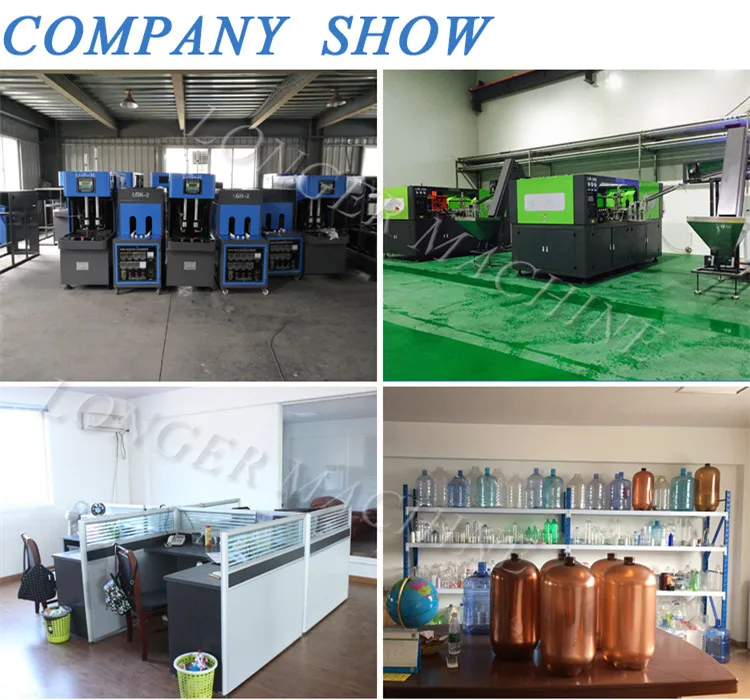

company show
Certifications ja
Packaging
Contact us
Mrs.Lucky Sales Manager
Taizhou Huangyan Longer Machinery Mould Co., Ltd.
Tel: +86-576-84266060 Fax:+86-576-84254545
Mobile&Whatsapp: +8613105678088
Wechat:+8613105678088
