Машина для резки шкафа 3d cnc маршрутизатор сменщик инструментов Автоматическая Поворотная ось 1325 atc cnc резьба по дереву
- Category: Woodworking Machinery >>>
- Supplier: Jinan Blue Elephant Cnc Machinery Co. Ltd.
Share on (60703754099):
Product Overview
Description
Product Description

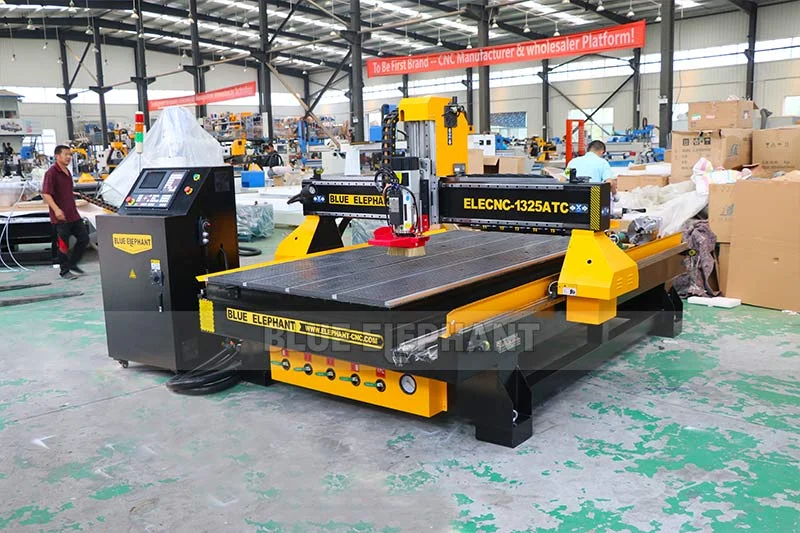

Cabinet cutting machine 3d cnc router tool changer automatic rotary axis 1325 atc cnc wood carving machine
1. High-performance machine with extraordinary value, but at a very economical price;

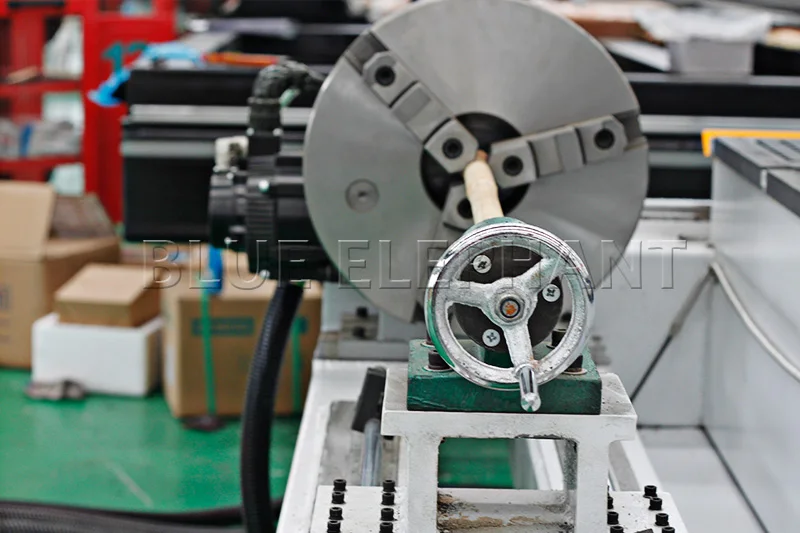

2. Removable rotary device: its diameter and length can be made according to your requirements;
3. The machine is equipped with Italy HSD ATC air cooling spindle, and its speed can be reached to 24000RPM;
4. Rigid vacuum table with grids and T-slots, maximize the vacuum hold-down power and also enables you to clamp the workpiece in place;
2. Removable rotary device: its diameter and length can be made according to your requirements;
3. The machine is equipped with Italy HSD ATC air cooling spindle, and its speed can be reached to 24000RPM;
4. Rigid vacuum table with grids and T-slots, maximize the vacuum hold-down power and also enables you to clamp the workpiece in place;
Product Paramenters
Working area | 1300x2500x200mm |
Spindle | 9kw Italy HSD atc air cooling spindle |
Spindle speed | 0-24000RPM |
Inverter | 11KW |
Lubrication system | Automatic Lubrication system |
Structure | Welded Structure |
Working voltage | 380v, 3 phase, 50/60HZ(Option） |
Table Surface | Vacuum and T-slot working table |
X, Y Structure | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
Rotary device | 300mm diameter *2500mm length |
Drive Motors | Japan YASKAWA servo motor |
Software Compatibility | Artcam Software |
Tool sensor | Auto tool sensor calibration |
Guarantee | 12 months |
Product Details
Control system
The control system of CNC router adoptsthe more advanced Taiwan Syntec system , which is widely acclaimed internationally and can perfectly control 3axis ,4 , 5 , 6 , axis . The Syntec system can work online and Wifi links , greatly increasing the intelligence of the device.

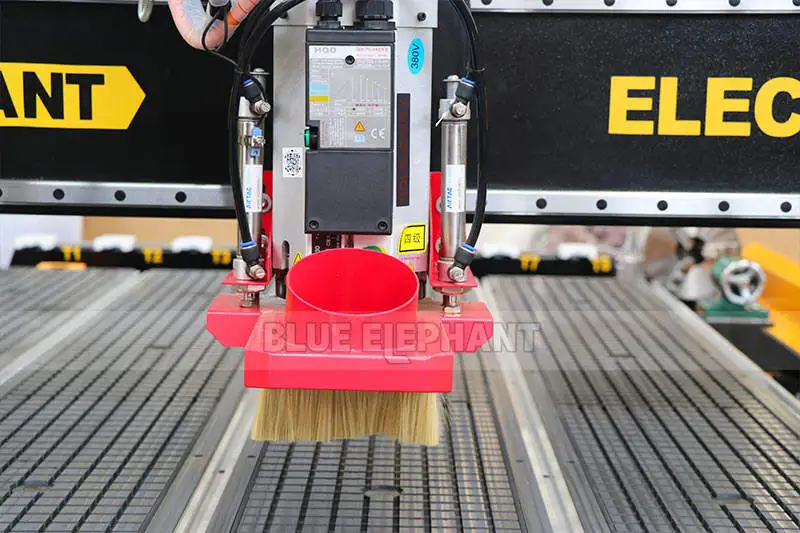

CNC head

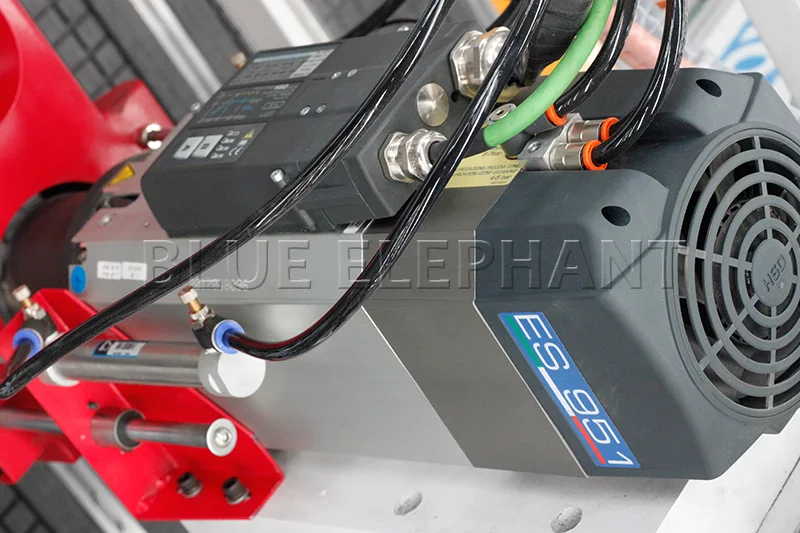

ATC CNC router selects Italian HSD air-cooled spindle , power : 9.5KW.Choose from manual , quick-release ,high-power and high-speed spindles for optimum processing of rigid sheet materials.

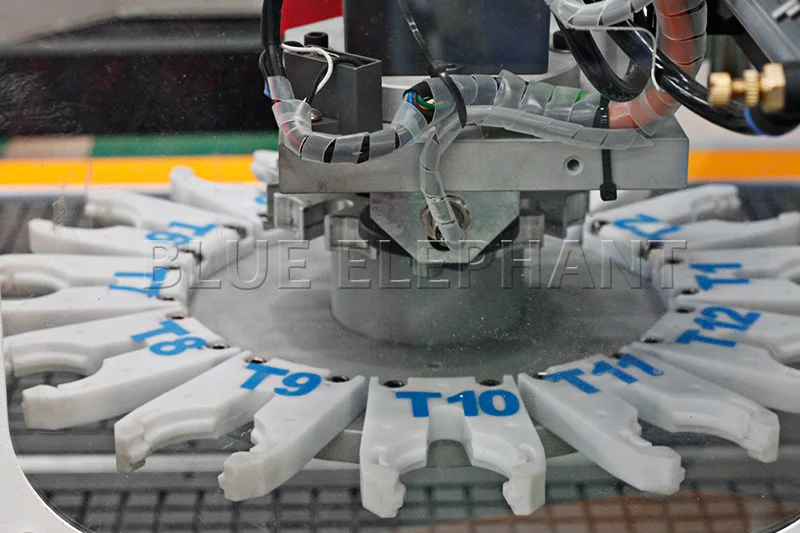

Carousel automatic tool changer
The number of tools in the carousel magazine can be customized according to the user's processing requirements. The tool changer can be placed next to the spindle or on the side of the gantry.This carousel tool change method has the feature of faster tool change speed, so the production efficiency is higher.
Safety System
ATC CNC router has the unique safety protection system and provides external emergency stop function for equipment users.This function can effectively protect the personal safety of the equipment users,meet the European safety CE standards, and is very popular among users .
Driving system
World-class servo motor and driving system ensures machine to run with fastspeed and low noise
Lubricating system
Auto lubricating system, one touch can finish periodic maintenance easily .
Related Product
Customer video feedback
Sample & Application
Company Information
Exhibition
Service Process
FAQ
1. I need a CNC router, can you give me some suggestions?
A: Sure, We will give suggestions of the most suitable machine. Before that, we need to know some information, such as effective processing area, materials, etc, to determine the main parameters.
2.Which kind of materials can be processed on this machine?
A: Wood, mdf, stone, acrylic, glass, plastic, foam, aluminium, Copper,and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A: We are the manufacturer and we have 10 years factory experience.As only the machine made by ourself, the quality can be trusted, and the most important thing is that we can do better after-sales service.We know how to fix the problem of every part easliy, so welcome to visit to our factory.
4. How should I pay for my order?
4. How should I pay for my order?
A: You need to pay 30% as prepayment at first, then we will start to makeproduction. When the machine is completed, we will send pictures orvideos to you, and then you need to pay the balance. We will ship themachine to you after we receive your full payment.
5. How long is the delivery time?
For standard machines, it will be 7-10 days: For non-standard machine and customized machines according to clients specific requirements, itwill be 15 to 30 days.
