river submerged vertical motor open impeller mud sand pump with floating pontoon
Name

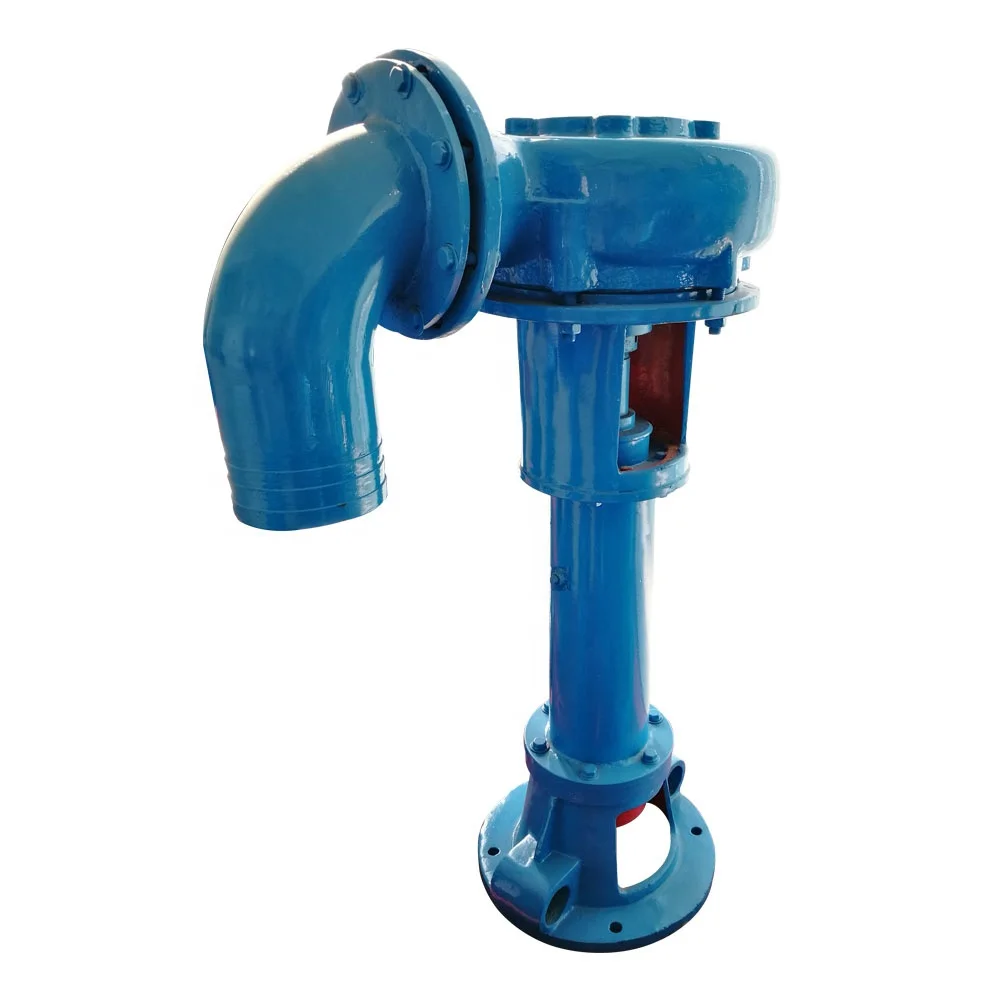

Vertical mud sand pump
Usage
Installed on the floating pontoon
Power
30KW,1470r motor
Material
anti-abrasive
Pump Type
submerged pump,only pump casing is in the water when pumping mud sand
Efficiency
no blocking,high density,high efficiency
Impeller
Semi-open impeller
seal type
oil seal or mechanical seal
Direction for use
1.usded in river,lake or pond,mining,etc,for pumping mud sand slurry,etc

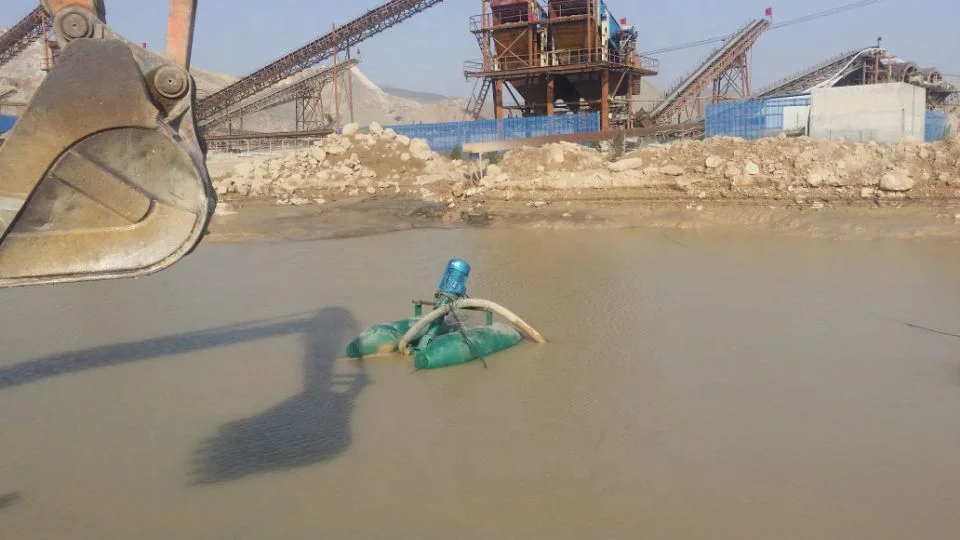

2.installed on floating pontoon,when pumping ,the pump casing is in the water,the other part is outside,cant be in water.
3.sealing type:oil seal or mechanical type
Description of application effect
High density,high efficient

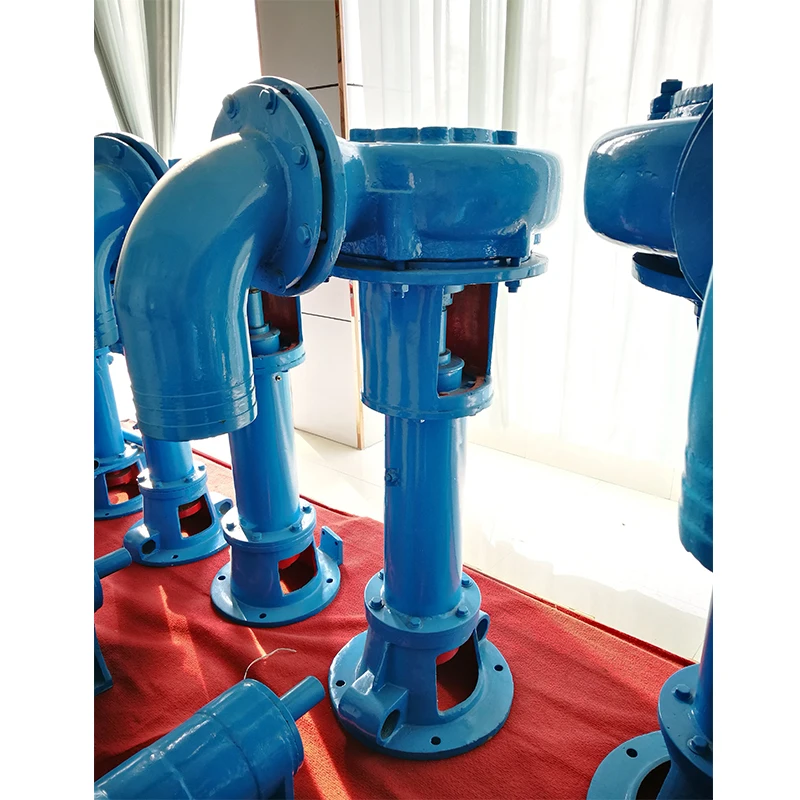

Detailed Images
1.90° outlet
can be installed in different direction.
2.pump casing
abrasion resistant material
3.protecting plate
abrasion resistant material
4. bearing casing Oil fitting
for bearing box oil injection,screw tightly after injecting 2kg oil
5.shaft seal box
installed outside of protecting plate
6.shaft sleeve oil fitting.
installed on shaft seal box
7.shaft sleeve
anti-abrasive material
8.round nut
levorotatory thread
9.water retaining plate
installed on pump shaft and next to bearing gland,rotate with pump shaft in same speed and direction
10.support frame
installed between pump casing and bearing box
Size Information
Size Chart of This Design
carton size
L meter
W meter
H meter
Total Volume m3
Carton Type
1.3
0.65
0.55
0.7
export wood carton
Related Products
Packing&Shipping
Export wood carton
After Sales Service
After sale service:
1.working site service available
2.online vedio support available
Company Introduction
Established in 1976,Yuzhou Shenlong Pump Co.,ltdis a manufacturer and trader specialied in design and production of sand gravel pumps,,mine slurry pumps,mud pumps,sewage pumps,hydroseeder pumps,sand dredgers and sand separators,sand washing machine,hydrocyclone,sand conveyor,etc,from raw material to product,the whole production process are made by our factory. For 40 years,we insist on “living byquality,development by credit”,Our researcher successfully designed and developed new high anti-abrasive slurry pump,gravel pump and sand pump in 2006.Our advanced skill and equipments make the lifetime of flow parts increase 4-5 times,at present,the flow part lifetime of sand gravle pump can be up to 1.5 million cubic meters(calculated as per sand quantity),which effectively improve the economic and social benefits.
Our Services & Strength
we have own foundry,can produce many kinds of machine spare parts,not only for pumps.
can customize if you provide drawing,weight and material or delivery us the parts.
FAQ
1.Flow(m3/h):please tell us the flow you want.or the discharge pipe size you use.2.Head(m):please tell how many meters required,also how many meters is the discharge height and distance. 3.Suction Depth:how many meters underwater . 4.where do you pump sand,in river or sea 5.is it fine sand or rough sand,how many cm is the maximum stone diameter?
