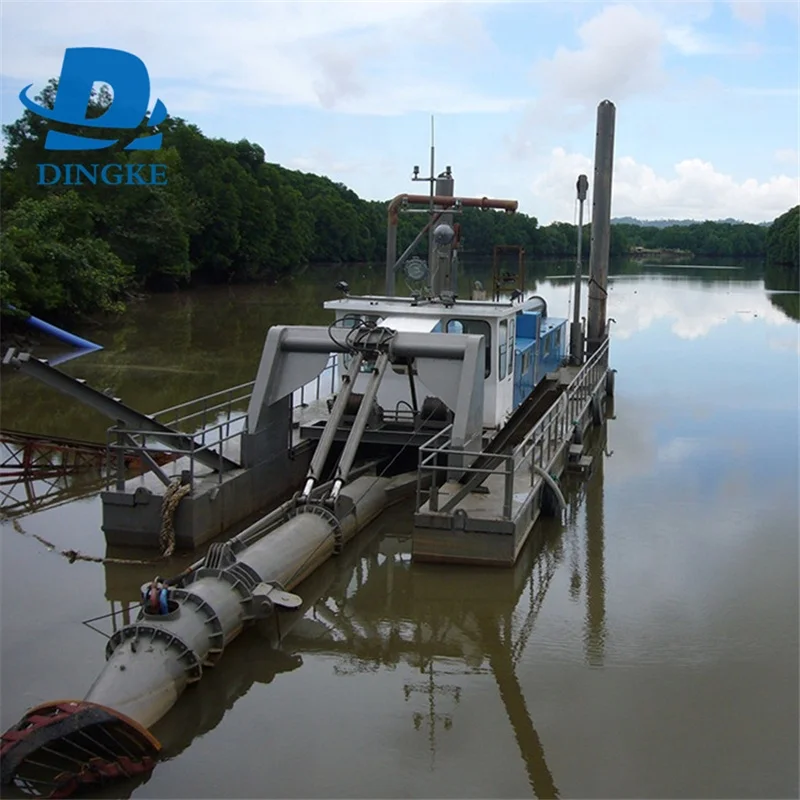

Cutter suction dredger machine sand dredging

cutter suction dredger3

For over 10 years the company has been focusing its expertise on the design and manufacture of customized cutter suction dredges of all sizes and applications for the dredging markets. DKVT Dredge units are in use throughout the world in construction, environmental,mining,navigational,recreational,restoration and specialty applications.



   Since every application has unique characteristics, DKVT Dredge has developed its specialization in customizing standard dredge platforms to meet the challenges of each customer.



   Dredging Supply Company's DKVT Class Deep Mining dredge was designed to meet the needs of deep mining deposits as and efficient tool to excavate materials. With discharge sizes ranging from 8 inch to 24 inch, the DKVT offers an array of production ranges and flow conditions. Since each DKVT is designed specifically for particular deposit, the digging depths can range from 30 feet to 120 feet.





Detailed information

A.Main Parameters

1.Main Scales:

  Overall length:23.50m

  Hull length:16.00m

  Hull width:6.10m

  Hull depth:1.85m

  Total weight:58T

 Suction/discharge pipe dia:450/400mm

2.Main parts characters

2.1.Sand pump diesel engine(one set)

   Model:Caterpillar 3412E

   Power(Max):485kw(660HP)

   Speed:1800r/min

(Also can use the Cummins KTA19,522KW,700hp,2100r/min)

( low power,high market share,excellent after-sale service)

KW

Motor

Speed

Fuel oil deplete   L/hr  g/hr

Power

522

700

2100

132.8  35.1

    MCD

2.2.Sand Pump (one set)

   Model:14/14G-G

   Maker:Shijiazhuang Pump Group

   Clean Water flux(Q):1600m³/hr

   Pump lift(H):52m

   Speed(n):600-700r/min

2.3.Cutter Diesel Engine

   Model:Cummins NT855

   Power:145kw

   Speed:1800r/min

KW

Motor

Speed

Fuel oil deplete   L/hr  g/hr

Power

145

195

1800

40.6  10.7

    CON

2.4.Cutter(one set)

   Model:φ1000

   Maker:Our factory

   Diameter:1000mm

   Power:75kw

   Max speed:     First speed          about 11r/min

                          Second speed      about 23r/min

                          Third speed          about 33r/min

 pump1



cutter4control panel1float2dredger1
