Home Used Solar Panel Mounting System Car Parking Structure Solar Carport
CL-2 Solar Carport Mounting is a pre-assembled ground mounting system. The patent and innovative support rack and rail design improves the stability of system and convenience of installation.

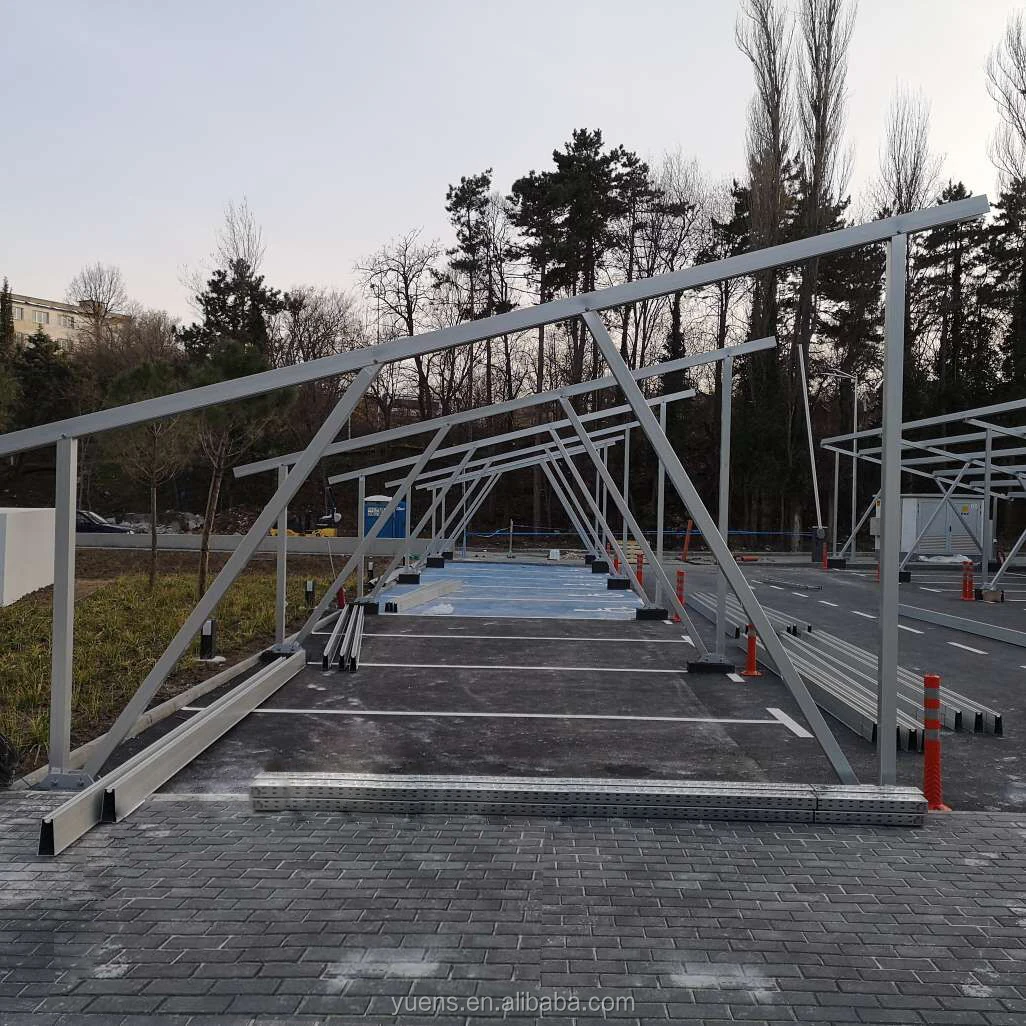

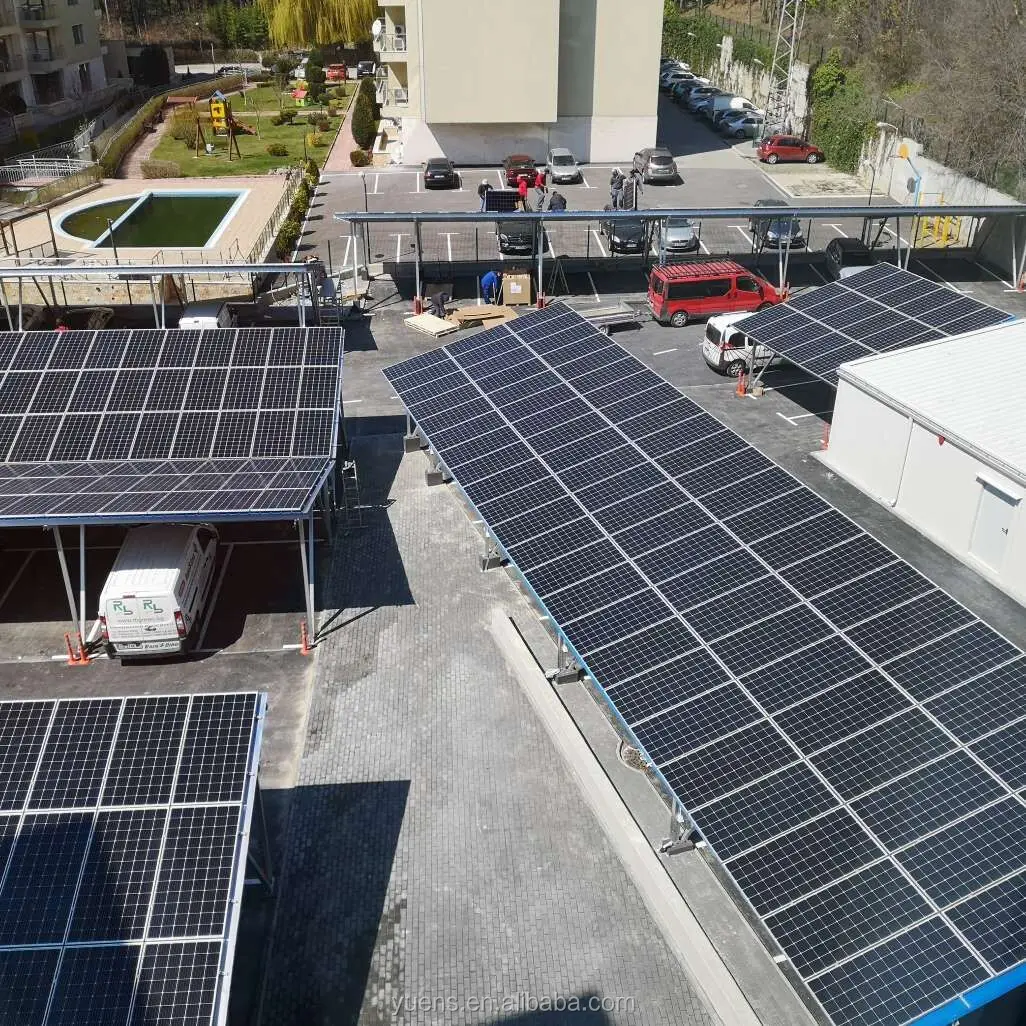

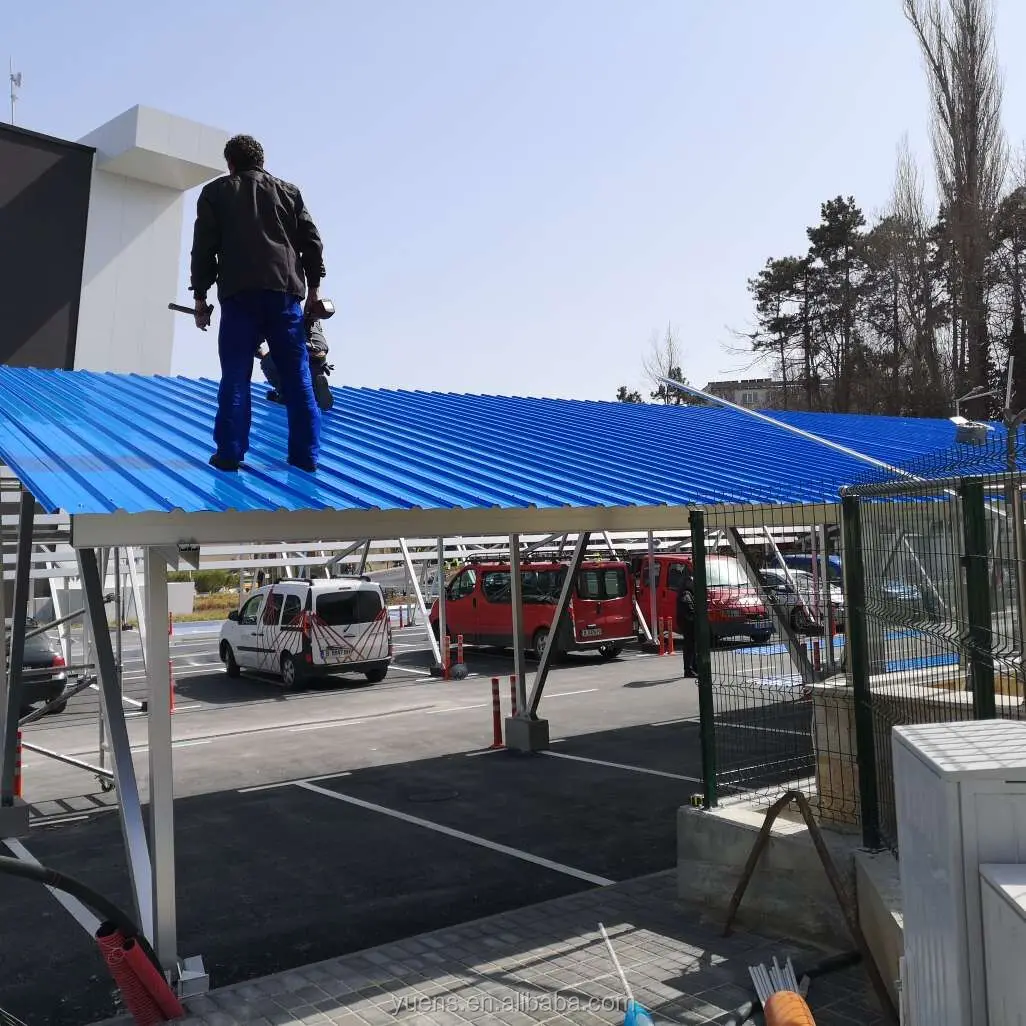

Application Case
Technical Parameter
Install Site: | Open Field / Ground |
Max. Wind Speed: | 60m/s |
Snow Load: | 1.4kN/m2 |
Ground Clearance: | 1500mm-3000mm |
Material: | AL 6005-T5 & Stainless Steel 304 |
Warranty: | 12 years warranty; 25 years service life |
Tilt Degree: | 0-20° |
Span Lenth of Parking Lot | 2500mm-5200mm |

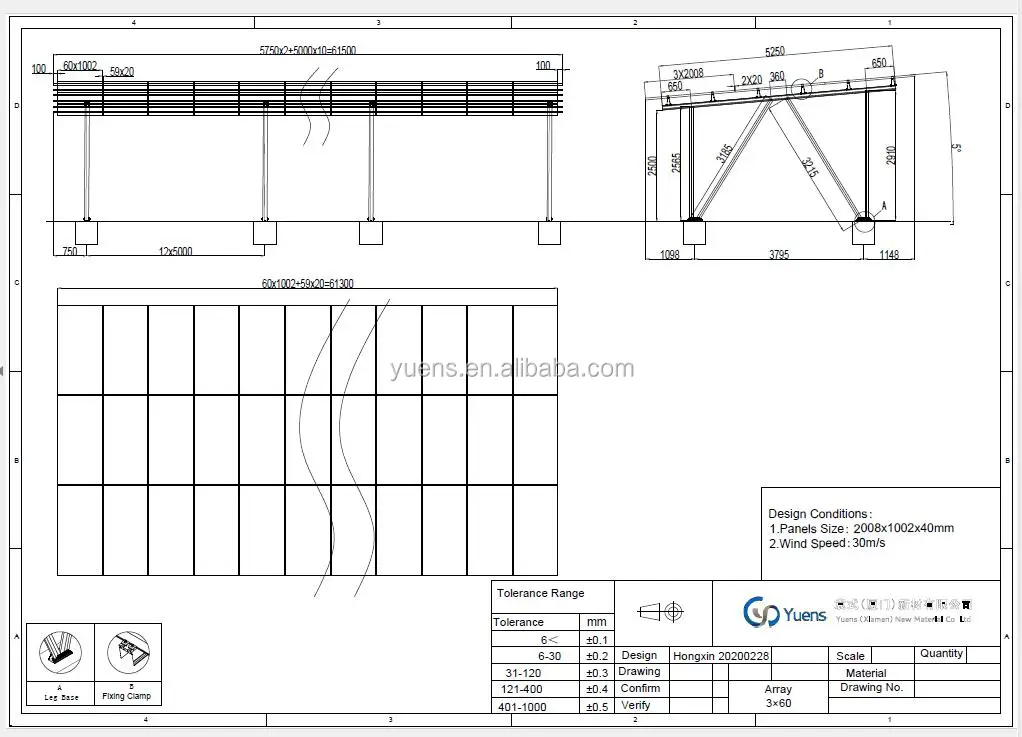

Aluminum Solar Carport Drawing
Free bom list and drawing design pls contact me.
Pls provide below datas for design, drawing sample as below
1. The dimension of your common solar panel?(L*W*T) | ||||||||
2. The PV array or installation ground area? | ||||||||
3. Max Wind speed & Snow Load in your area? | ||||||||
4. Optimal tilt angle for your area? | ||||||||
5. What is the mininum ground clearance? | ||||||||
Related Products
Click below pictures to get more details
Contact us to get samples and catalogue :-)
YS-22 L-Foot Kits
Fix the side mount rails to the beam of metal roof
AS-1 Solar Shingle Roof
Solar Flashing Kit use on fiber cement roof shingle.
YS-WG-33
Solar clip/aluminum clamp for standing seam roof
Tile Roof Mount with Hooks
Different hooks are compatible with various tile roofs.
Mini Rail for Trapezoidal Metal Roof
No need long rail, the panels will be fixed on roof by mini rail directly. Cost efficiency and fast installation.
Adjustable Triangle Mount for Flat Roof
Increasing the adoption of solar energy by adjusting the tilt angle.
Ground Mount with Screw/Pile
Patented structure without mid or end clamp. Save money and time. Protect the installer too.
Concrete Base for Ground or Roof
Choose proper mounting solution as per site condition.
Solar Carport
Have watertight option for the solar car parking.

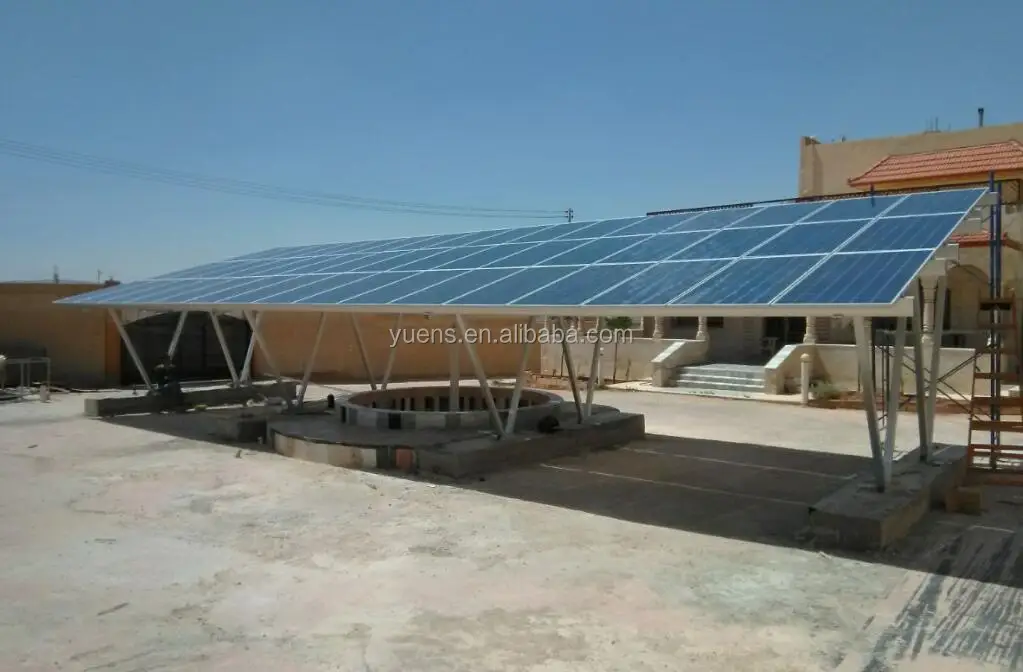

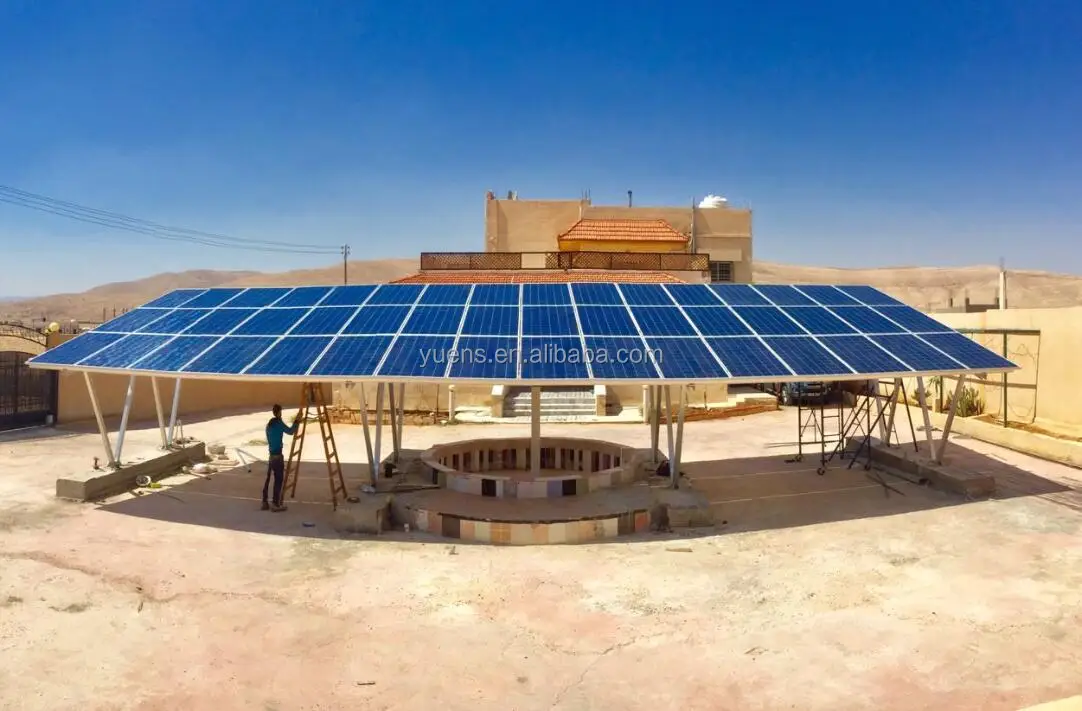

\t\t\t\t\t\t\t\t\tProject Photo \t\t\t\t\t\t\t
Solar Show
Yuens attended the Solar Show in Manila, Vietnam, etc.
Free bom list and drawing design pls contact with me.
Yuens
is a professional company, engaged in research, manufacturing, and marketing of aluminum products for the solar mounting system, curtain wall system, and other architectural constructions. We have been committed to providing high-level quality products and related technical support service.

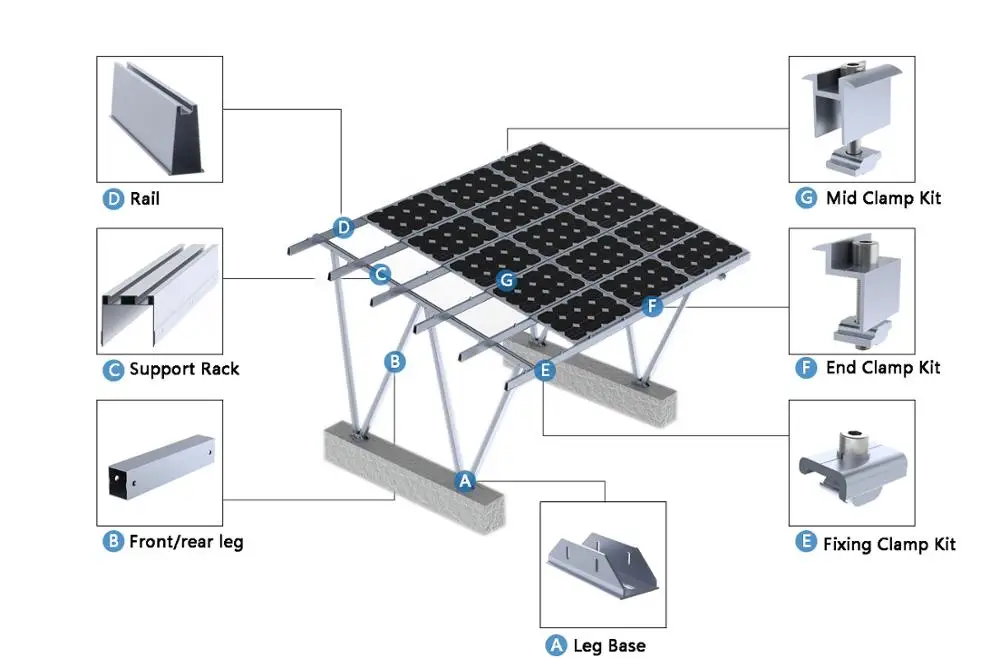

Installation Steps
Contact us to get the detail installation manual :-D

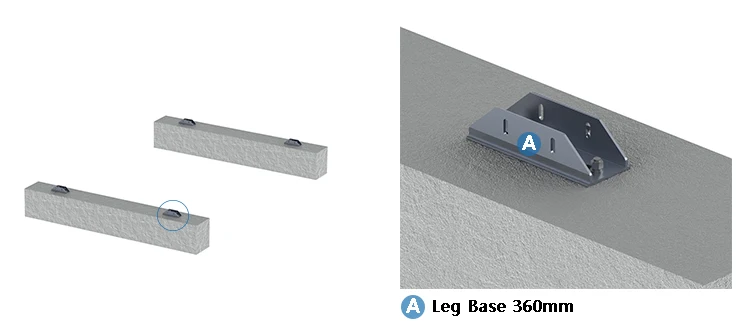

1. Fix the leg base on precasted concrete embedded foundations.

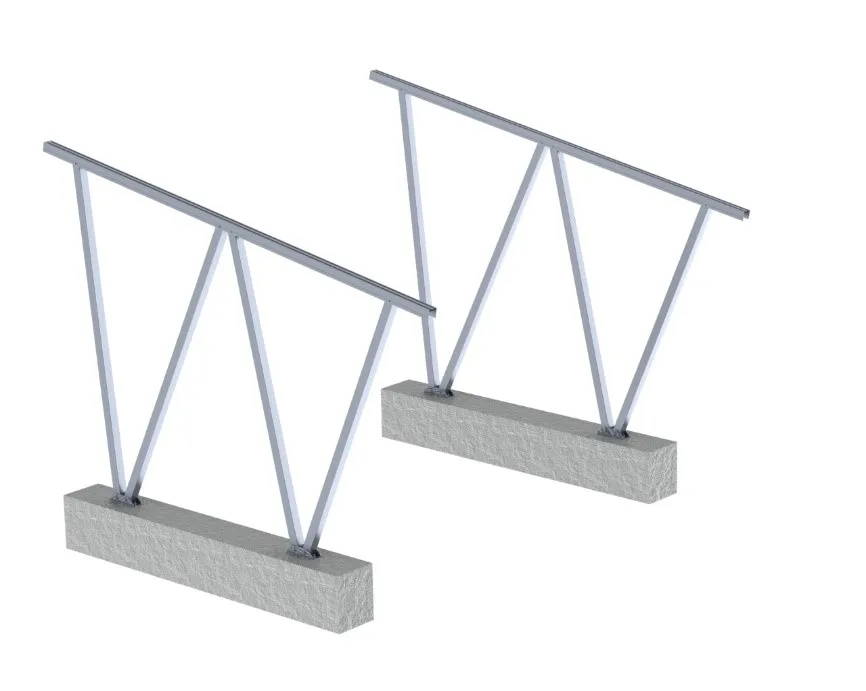

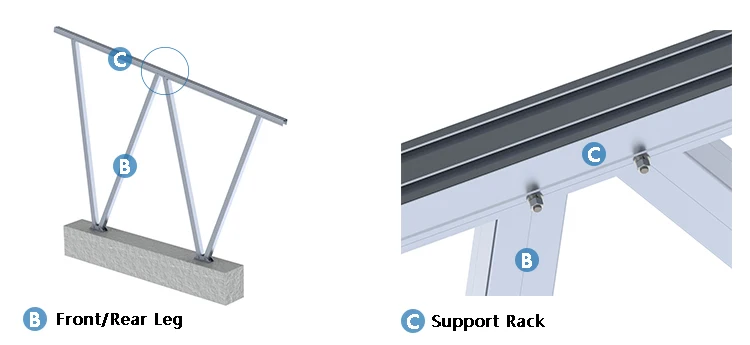

2. Install the front/rear legs and support racks.

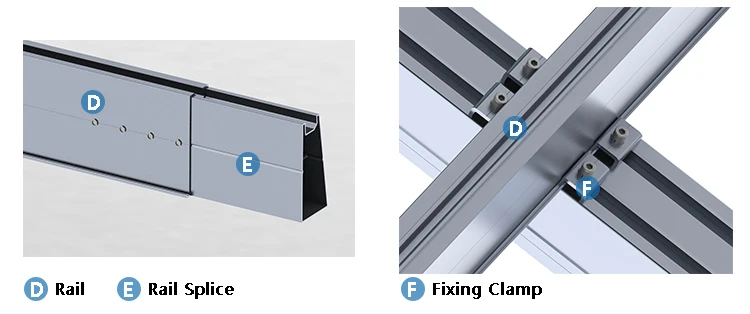

3. Connect the rails with rail splice if the rails are not long enough.

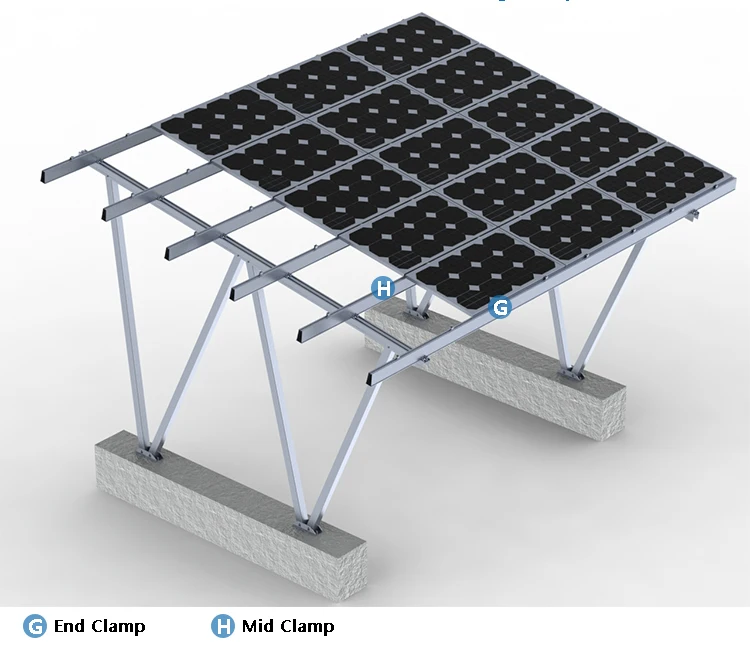

4. Fix the rail on support rack with fixing clamps.
