FACTORY DIRECTLY SS881TAB stainless steel side flexible chain for conveyor system in glasses and heavy industry
- Category: Chains >>>
- Supplier: Changshuo Converyor Equipment (wuxi) Co. Ltd.
Share on (60704743468):
Product Overview
Description
Short Description
Corner tracks or turning disks can be selected for curved transportation

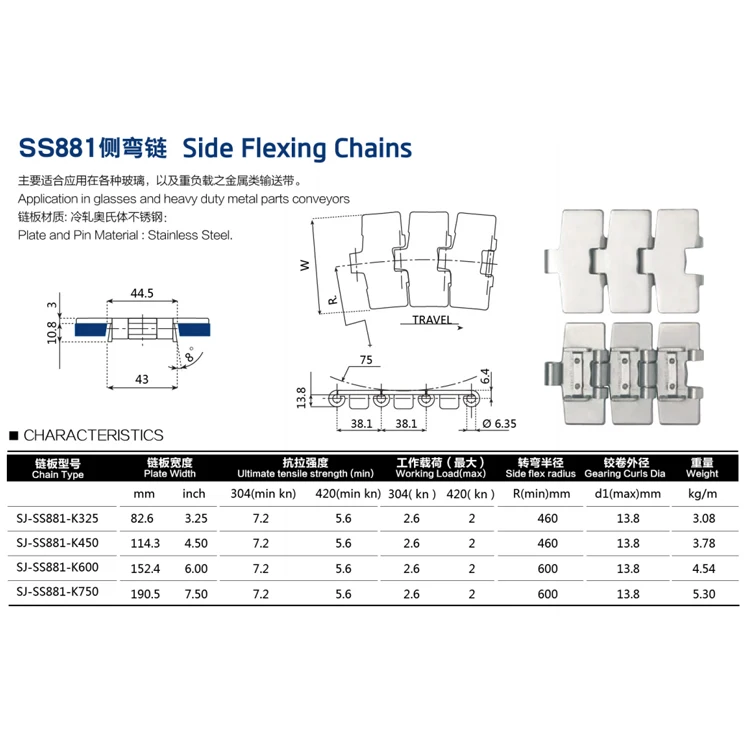

Product Parameters
Chain Type | Plate Width | Ultimate tensile strength | Working load(Max) | Radius(min) | Weight | |||||||||||
mm | inch | 304(min kn) | 420 (min kn) | 304(kn) | 420(kn) | mm | Kg/m | |||||||||
SS881-K325 | 82.6 | 3.25 | 7.2 | 5.6 | 2.6 | 2 | 460 | 3.08 | ||||||||
SS881-K450 | 114.3 | 4.50 | 7.2 | 5.6 | 2.6 | 2 | 460 | 3.6 | ||||||||
SS881-K600 | 152.4 | 6.00 | 7.2 | 5.6 | 2.6 | 2 | 600 | 4.54 | ||||||||
SS881-K750 | 190.5 | 7.50 | 7.2 | 5.6 | 2.6 | 2 | 600 | 5.29 | ||||||||
Pitch ：38.1mm | Pin Dia(Max)：6.35mm | Gearing Curis Dia(max): 13.8mm | ||||||||||||||
Material: ; austenitic stainless steel (non-magnetic) Pin material：stainless steel. | ||||||||||||||||
Maximum conveyor length: 15meters. | ||||||||||||||||
Corner tracks or turning disks can be selected for curved transportation. | ||||||||||||||||

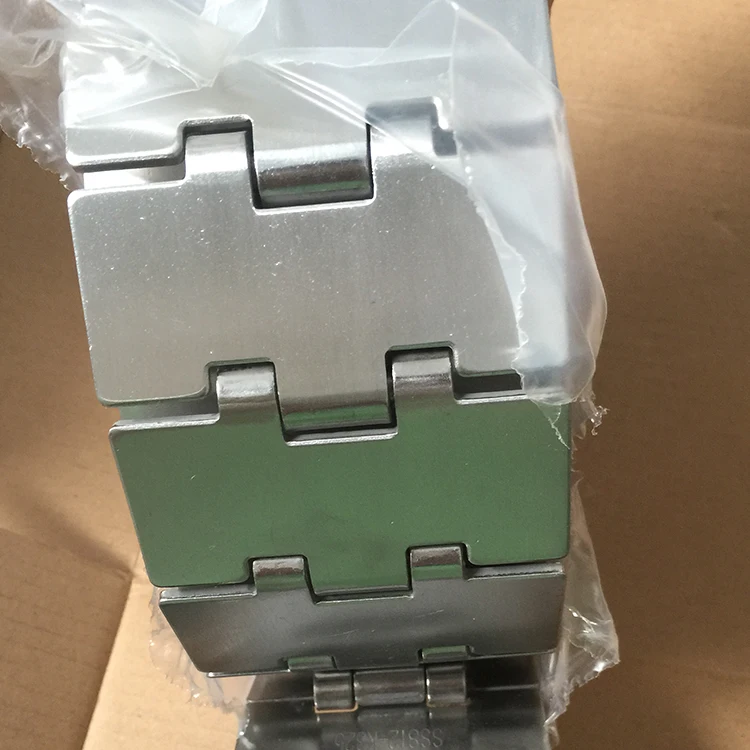

Packing: 10 feet=3.048 M/box 26pcs/m | ||||||||||||||||
Application: widely used in all kinds of conveyor of glasses and heavy load such as metal. Especially applied to beer industry. Suggestion: lubricant. | ||||||||||||||||
Advantage
1.convenient to assembly and maintain
2.Smooth, closed upper surface
3.Stable operation
4.Low maintenance cost
5.Easy to clean
6.Safe design
7.High quality
8.Widely useage
9.Can withstand low friction coefficient,
10.High impact resistance, tensile strength and other instant impact
2.Smooth, closed upper surface
3.Stable operation
4.Low maintenance cost
5.Easy to clean
6.Safe design
7.High quality
8.Widely useage
9.Can withstand low friction coefficient,
10.High impact resistance, tensile strength and other instant impact
ABOUT US
What we do
With 17 years of production and R&D experience in the conveyor industry, We have 10 R&D teams and nearly 500 existing molds set.
We serve more than 40,000 customers around the world. Our company has 15 sets of equipment injection molding machines, holds more than 20 patents and is applying for more 5 processing centers, 10 mature sales teams and 8 after-sales services.
Our mission is to create value for all of our customers around the world. To achieve a win-win outcome through high quality products and customer service attitude.
We seek to provide winning solutions to our customers' requirements and challenges. We are honest in our dealings with customers, We continuously improve our practices and processes, providing solutions to increase efficiency for the customer.
We serve more than 40,000 customers around the world. Our company has 15 sets of equipment injection molding machines, holds more than 20 patents and is applying for more 5 processing centers, 10 mature sales teams and 8 after-sales services.
Our mission is to create value for all of our customers around the world. To achieve a win-win outcome through high quality products and customer service attitude.
We seek to provide winning solutions to our customers' requirements and challenges. We are honest in our dealings with customers, We continuously improve our practices and processes, providing solutions to increase efficiency for the customer.
History of the company
exhibition
Cooperative enterprise
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-3 days according to quantity and size.
Q: Can you design according to our requirement?
A: Yes, We can manufacture according to your technical drawing. Or we can
design according to your requirement.
Q:What is the payment terms of your company?
A: T/T, Western Union, Money Gram, PayPal, Union Pay.
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-3 days according to quantity and size.
Q: Can you design according to our requirement?
A: Yes, We can manufacture according to your technical drawing. Or we can
design according to your requirement.
Q:What is the payment terms of your company?
A: T/T, Western Union, Money Gram, PayPal, Union Pay.
