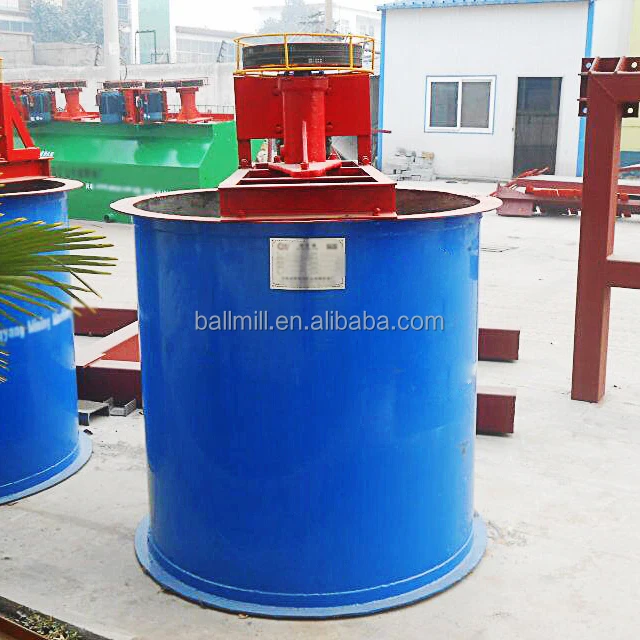

Gold cip plant leaching tank is used for mixing pulp before the flotation process, increase the reaction time of the reagent and strengthen the quality of the reagent reaction. This machine is suitable to be used in ore beneficiation industry and also for stirring the ingredients in all various industries.
Product structure
Gold cip plant leaching tank consists of tank shell, shaft, impeller, reducer, electric motor, belt, feeding device. Henan Xingyang Mining Machinery Manufactory is the lead manufacturer of mixing tank ,which has decades of experience of how to producing the quality mixing tank with stick steel plate . We can supply almost all the machine which connecting with beneficiation .

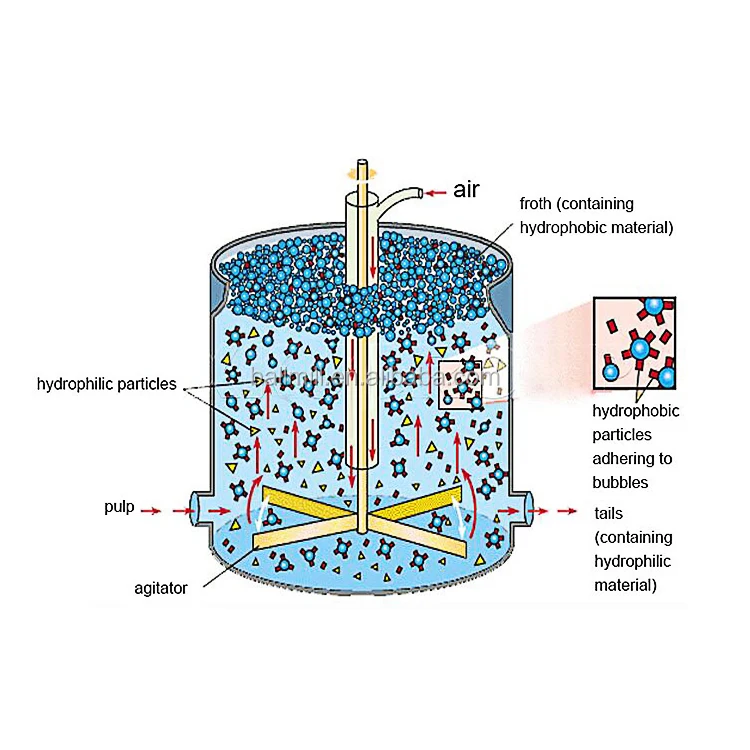

Working Principle
When the machine working, the impeller rotates which is driven by the V-Belt. The pulp and medicine take circular motion , so that get mixed evenly in the whole tank ,and the mixed suspension liquid discharges from the overflow part.
Technical Parameter
model
Tank inner diameter
(mm)
Tank inner height (mm)
Effective volume
(m3)
Impeller RPM (r/min)
Impeller diameter
(mm)
Motor model
Motor power (kw)
Dimension (L*W*H)(mm)
Weight(t)
XB-1000
1000
1000
0.58
530
255
Y100L-6
1.5
1173*1138*1491
1.0
XB-1200
1200
1200
1.4
340
400
Y132S-6
2.2
1354*1310*1742
1.1
XB-1500
1500
1500
2.2
320
400
Y132S-6
3
1656*1572*2171
1.2
XB-2000
2000
2000
5.6
290
550
Y132M2-6
5.5
2380*2162*2850
2.3
XB-2500
2500
2500
11.2
280
650
Y180L-6
15
3036*2716*3543
3.4
XB-3000
3000
3000
19.1
210
700
Y255S-8
18.5
3604*3216*4250
4.9
XB-3550
3550
3550
30
230
850
Y255M-8
22
3940*3755*5386
7.3
XB-4500
4550
4550
38
122
1000
Y280M-8
45
4720*4800*6600
9.7

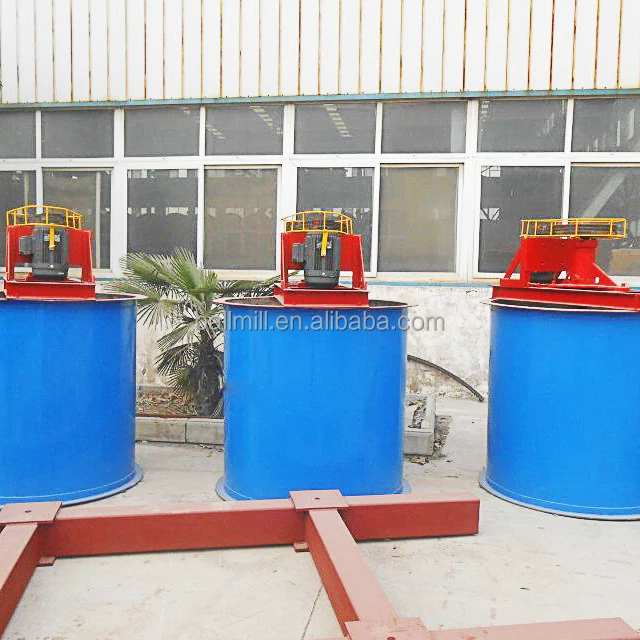

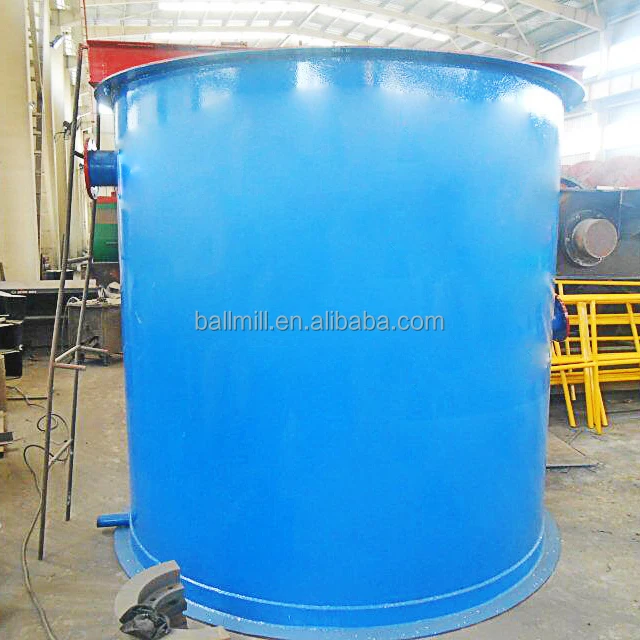

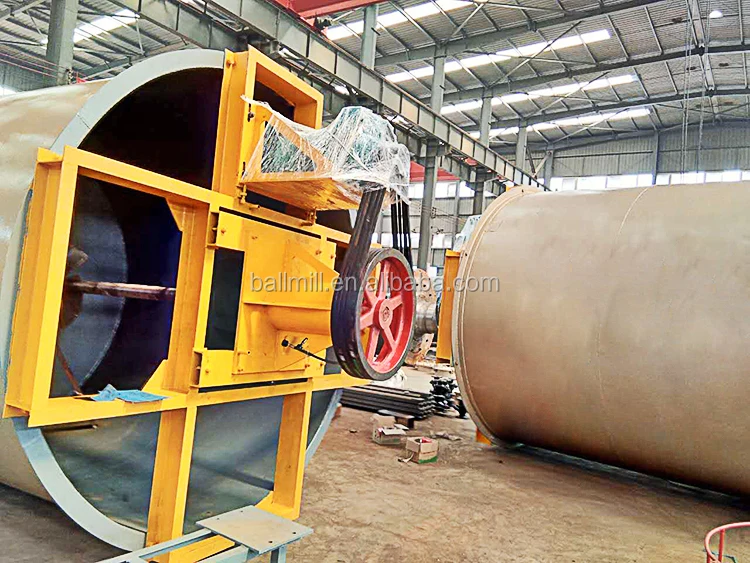

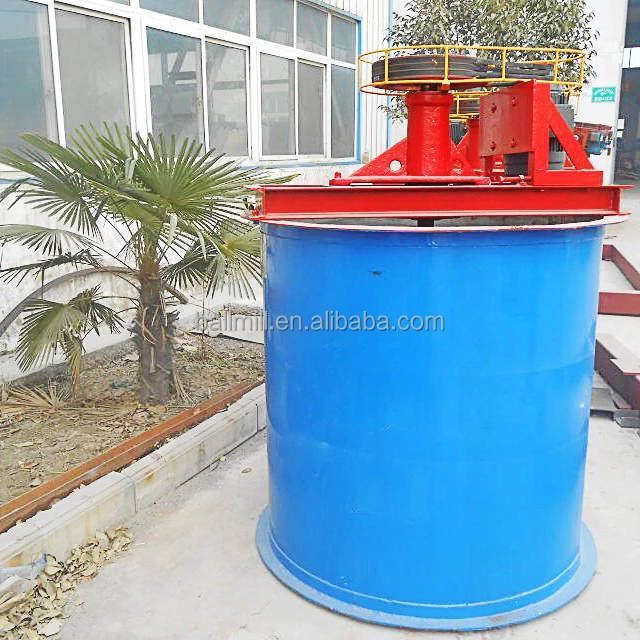

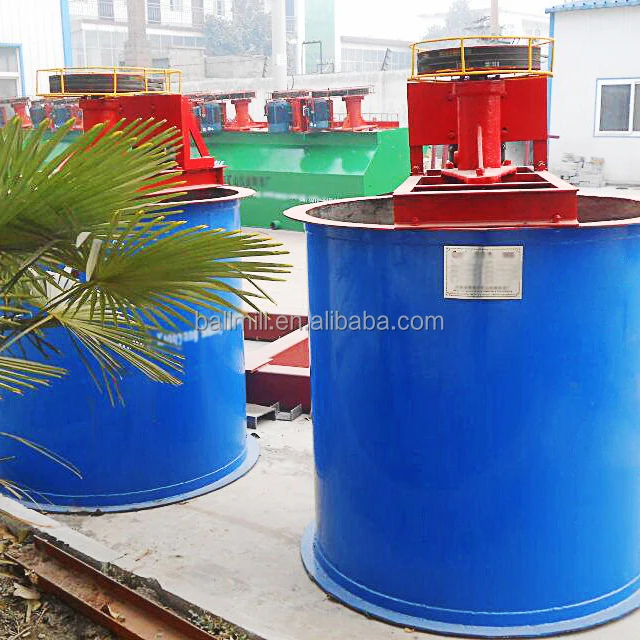

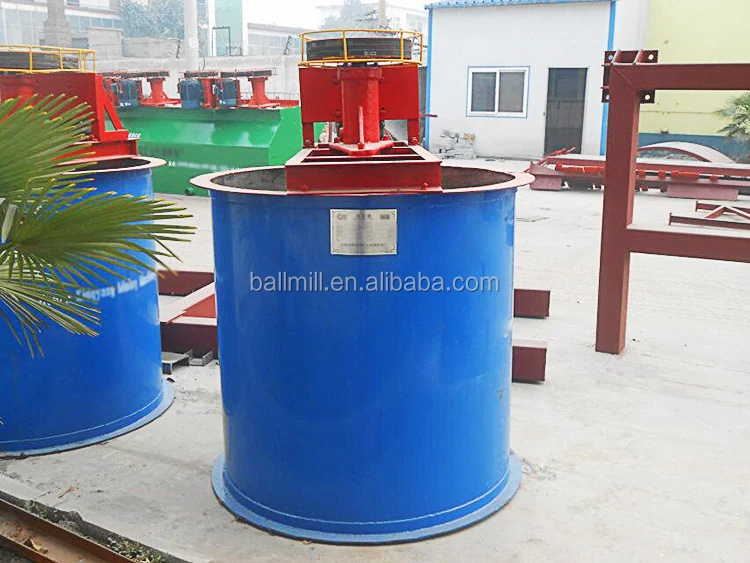

Product Display

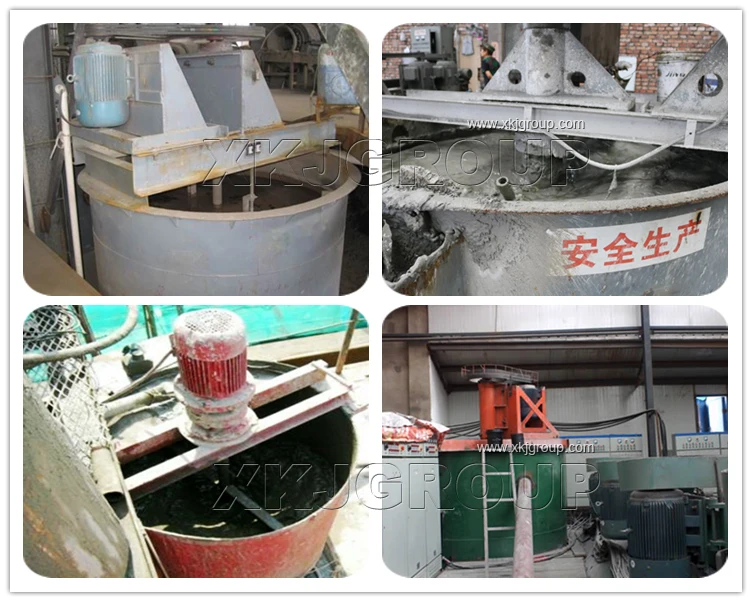

Case
FAQ
1. Quality control
All the equipment offered by XKJ company are produced based on China national standard drawings or as clients' requirement.nonstandard equipment will be produced by the drawings confirmed by clients.Most equipment will be tested in the factory before delivery. There is Quality Tracing Card for each equipment, spares can be easily confirmed if necessary.
2. Way of payment
XKJ company also offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. and all can be negotiated.
3. Delivery time
Normal delivery time within 10 to 30 working days after payment , complete production line or larger equipment may take longer time . Exact delivery time will be confirmed when place the order.
4. Trade terms
EXW, FOB, CIF, CFR, DAF under INCOTERMS 2010.
5. Shipping lines
Priority rule based on clients’ request, and freight cost, service, shipping date, date of arrival shall be considered.
6. Installation
XKJ has got several experienced engineers with passports who are ready to go for service , when needed, the clients should pay for technicians’ round way air tickets, salary(shall be confirmed before leaving),feed and lodging, most importantly to guarantee the technicians’ safety.
7. warranty
Equipment from XKJ company is with 12 months warranty, can be extended to 24 months as request.
Company Information
Henan xingyang mining machinery co., LTD has created a legend in mining machinery industry from establishment, development, growth step into the international market competition, while our culture is the main motivation for our people to make great progress.
Our company acts as the parent company and we have branches like Mineral Processing Heavy Equipment, Crushing And Grinding Equipment, Agricultural Machinery, Tibet Company. Also we have offices in Shanxi, Yunnan, Sichuan, Qinghai, and Henan Nanyang City. Our products have export to Middle Asia, the Middle East, Southeast Asia, South Africa, Europe, South America etc. We are stepping into mineral processing, metallurgy, chemical industry, electricity power and environment protecting. Our people insist the operation principle of "Quality first, Service first". We enjoy a good reputation in home and abroad, especially for the crushing equipment, magnesium metal equipment, and mineral beneficiation plant.
