Sinocastel IDD 213L WIFI 4G OBD GPS Tracker for Vehicles GPS Tracker for car Rental
- Category: Auto Electronics >>>
- Supplier: Sinocastel Co. Ltd.
Share on (60705035697):
Product Overview
Description
Product Description

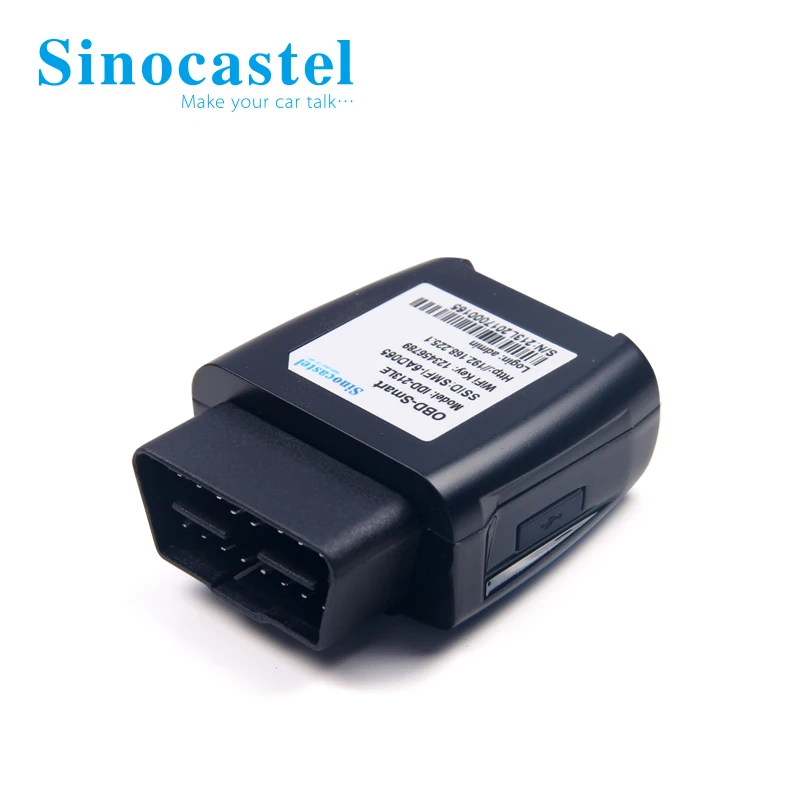

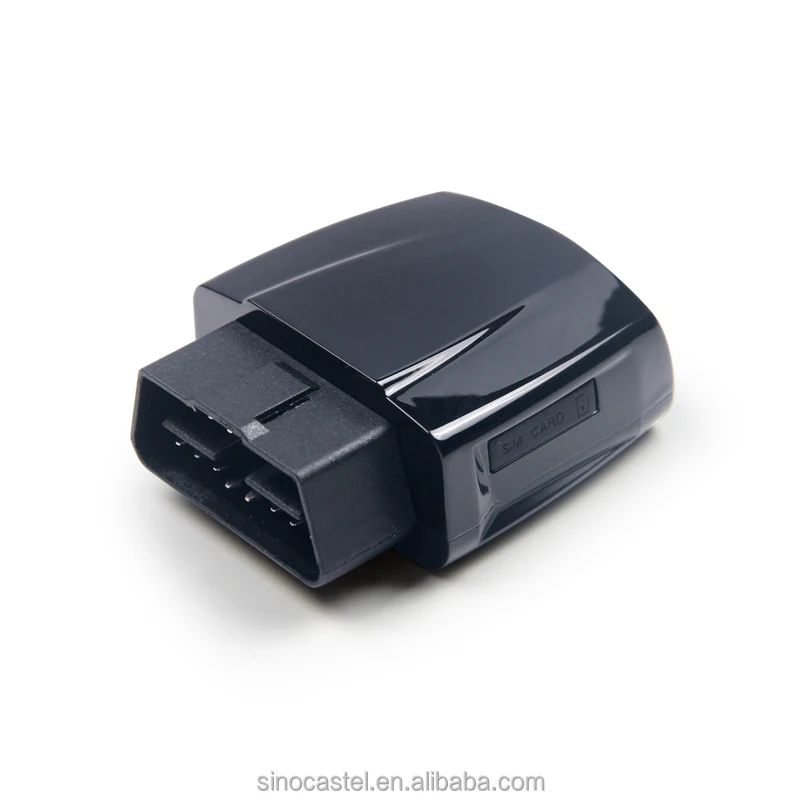

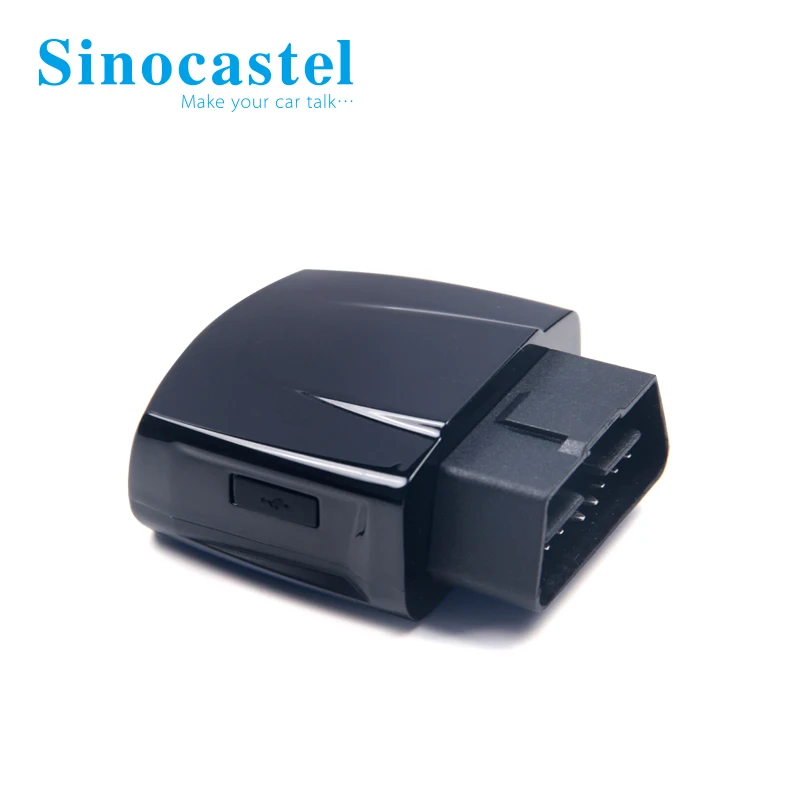

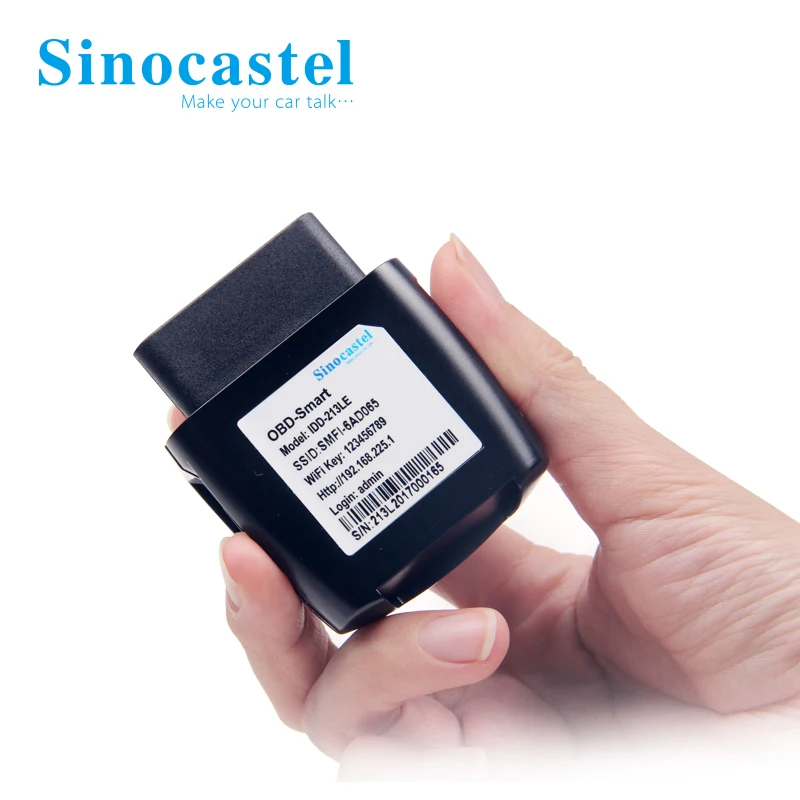

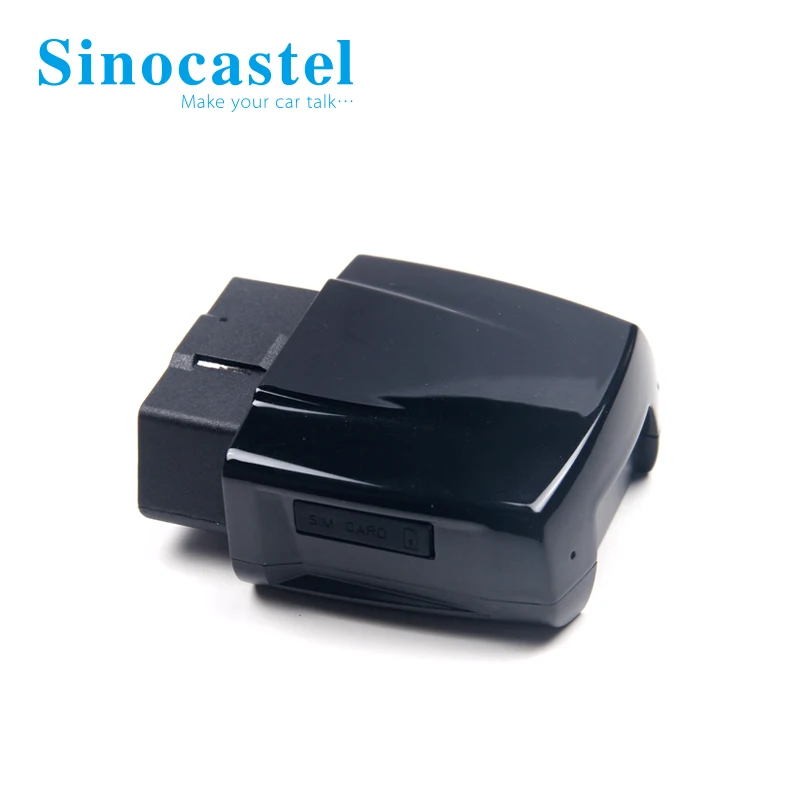

Sinocastel IDD-213L 4G OBD GPS Tracker is a small GPS tracking device compatible with trucks and commercial vehicles, it features
plug-and-play technology, plugs directly into the OBD port of any vehicle, no tools or wiring needed. Just plug the OBD GPS
tracker in and then start real-time tracking in 1 min. IDD-213L can also act as an in-Vehicle WiFi hotspot to share high speed 4G
LTE network.
plug-and-play technology, plugs directly into the OBD port of any vehicle, no tools or wiring needed. Just plug the OBD GPS
tracker in and then start real-time tracking in 1 min. IDD-213L can also act as an in-Vehicle WiFi hotspot to share high speed 4G
LTE network.
Sinocastel OBD2 GPS car trackers are widely used in business and fleet management, which can track your vehicles and personnel to
reduce fuel expenses and travel costs, monitor vehicle usage, monitor driver behavior and areas where vehicle is driven – obtain
standard tracking information and gain full control of your fleet.
reduce fuel expenses and travel costs, monitor vehicle usage, monitor driver behavior and areas where vehicle is driven – obtain
standard tracking information and gain full control of your fleet.
4G GPS Tracker for Vehicles Features
1. Industrial class components with high quality
2. OBD II/EOBD, J1939 and J1708 compliant
3. Plug & Play technology
4. Comprehensive data collection and analysis, including diagnostic data, location data and driving behavior data
5. 4G LTE In-Vehicle WiFi hotspot
6. AES-128bit encryption
2. OBD II/EOBD, J1939 and J1708 compliant
3. Plug & Play technology
4. Comprehensive data collection and analysis, including diagnostic data, location data and driving behavior data
5. 4G LTE In-Vehicle WiFi hotspot
6. AES-128bit encryption
4G GPS Tracker for Vehicles Application
1. Fleet management and vehicle tracking
2. Car service shop
3. Vehicle insurance
4. Car rental
2. Car service shop
3. Vehicle insurance
4. Car rental
Specification
4G GPS Tracker for Vehicles IDD-213L | ||
Size | 63mm (L) x 50mm (W) x 26mm (H) | |
Weight | 50g | |
Interface | OBD interface: 16 pin standard OBD II Configuration interface: Micro USB SIM card interface: Micro SIM, Push-Push Type | |
Data transmission | Packet data (GPRS/HSPA/LTE) and SMS | |
Positioning method | GPS | |
Storage | 8MB FLASH, up to 96,000 GPS data storage | |
OBD protocol | ISO 9141-2 ISO 14230-4 ISO 15765-4 SAE J1939 SAE J1587/J1708 | |
Working Voltage | 9-36VDC | |
Working Current | Max.: <200mA@13.8/27.6VDC Average: <150mA@13.8/27.6VDC Sleep mode: <10mA@12/24VDC | |
GPS | Channels: 66 Sensitivity: -165dBm Accuracy: 5m CEP Time to first fix: Cold start: <30s (typ.) Hot start: <1s (typ.) | |
WiFi | Frequency:2.4-2.4835GHz WLAN Standard:802.11b/g/n Transmission Data: 65Mbps@802.11n 54Mbps@802.11g 11Mbps@802.11b | |
Cellular | Frequency (IDD-213LC, China): FDD LTE B1/B3/B8 TDD LTE B38/B39/B40/B41 TD-SCDMA B34/B39 WCDMA/HSPA+ B1/B8 CDMA2000 1x/EVDO: BC0 GSM/GPRS 900/1800MHz Frequency (IDD-213LE, Europe): FDD LTE B1/B3/B5/B7/B8/B20 TDD LTE B38/B40/B41 WCDMA/HSPA+ B1/B5/B8 GSM/GPRS 900/1800MHz Frequency (IDD-213LA, US): FDD LTE B2/B4/B12 WCDMA/HSPA+ B2/B4/B5 Frequency (IDD-213LU,AU, South America) FDD LTE B1/B3/B4/B5/B7/B8/B28 TDD LTE B40 WCDMA/HSPA+ B1/B2/B5/B8 GSM/GPRS 850/900/1800/1900MHz Data: LTE-FDD Max 150Mbps (DL) Max 50Mbps (UL) LTE-TDD Max 130Mbps (DL) Max 35Mbps (UL) HSPA+ Max 42Mbps (DL) Max 5.76Mbps (UL) Network protocol: Embedded TCP/IP stack | |
6-axis IMU | Driving behavior detection | |
LED Indication | GPS/Cellular/OBD indication | |
Cellular | Internal | |
GPS | Internal | |
WiFi | Internal | |
Accessories | OBD II extension cable 9-Pin deutsch wiring harness 6-Pin deutsch wiring harness Power cable | |
Working Temperature | -30℃ ~ +70℃ | |
Storage Temperature | -40℃ ~ +85℃ | |
Humidity | 5%～95%（no fog） | |
1. Real-time tracking
2. Read diagnostic data, including vehicle speed, RPM, ECT etc.
3. Read diagnostic trouble codes and freeze frame data
4. Mileage statistic
5. Fuel consumption statistic
6. Driving behavior monitoring, including speeding, hard acceleration, hard deceleration,excessive engine idle time etc.
7. Support passenger car / heavy duty / tracker mode
8 . Up to 24,000 GPS data storage
2. Read diagnostic data, including vehicle speed, RPM, ECT etc.
3. Read diagnostic trouble codes and freeze frame data
4. Mileage statistic
5. Fuel consumption statistic
6. Driving behavior monitoring, including speeding, hard acceleration, hard deceleration,excessive engine idle time etc.
7. Support passenger car / heavy duty / tracker mode
8 . Up to 24,000 GPS data storage
9. Data reporting according to time interval, distance and heading change
10. Ignition on/off detection
11. Vehicle battery monitor
12. Base station ID report (when no GPS signal)
13. 4G LTE mobile hotspot, connect up to 8 WiFi enabled devices
14. Alarms and events
15. SMS alarm to user phone
16. Connect backend server via domain or IP address
17. Google Map link in location SMS
18. OTA FW update
10. Ignition on/off detection
11. Vehicle battery monitor
12. Base station ID report (when no GPS signal)
13. 4G LTE mobile hotspot, connect up to 8 WiFi enabled devices
14. Alarms and events
15. SMS alarm to user phone
16. Connect backend server via domain or IP address
17. Google Map link in location SMS
18. OTA FW update
Packing & Delivery
Company Profile
4G GPS Tracker for Vehicles Manufacturer
Our main products include: obd tracker,GPS/ Beidou trackers for all kinds of vehicles, hardwired GPS tracker, asset GPS
tracker,T-BOX, children & elderly smart watch and GPS tracker, and pet GPS tracker,which have one or more communication modes such as GSM, CDMA, WCDMA, and LTE. The hardwares and solutions have been widely used in fleet management, car insurance UBI,telecom industry, car rental business and family care service.
Our company's sub-meter car GPS tracker has excellent performance with low cost and high precision.All products have different domestic and international standards for different countries, such as CCC, CE, FCC, Rohs, EMARK,NATEL,AT&T, PTCRB, JATE and TELEC certifications.
FAQ
4G GPS Tracker for Vehicles IDD-213L FAQs
Q2.How about the quality of your device?
A: Most of our products have been approved by CE,FCC,PTCRB,CCC and Anatell certification to ensure good quality and stable performance.Our factory passed ISO9001:2015 and TS16949 quality management control system of strict production process.
Q3. What’s the warranty?
A: The warranty is 1 year.
Q4. What’s the lead time?
A: For samples: 1-2 days against full payment arrival. For bulk Orders: 4-6 weeks against the deposit arrival.
Q5. What’s the shipping time?
A: Normally is 3-5 days from DHL/Fedex/UPS/TNT door-to-door services.
Q6. What’s the payment method?
A: You can pay via PayPal, Western Union and Bank transfer.
