China 4 Cylinder Diesel Single Cab Pickup
- Category: Cargo Truck >>>
- Supplier: JC Automobile Co. Limited (Shanghai) [Shanghai China]JC
Share on (60705329446):
Product Overview
Description
Product Description
| Cabin | Single cab | |
| Body Model | 4*2WHEEL DRIVE | |
| Dimensional parameter | Overall dimension (L×W×H)(mm) | 5130×1720×1740 |
| cargo body dimension | 2160×1450×480 | |
| Wheelbase | 3025 | |
| Tread (front/rear) | 1439/1466 | |
| Gross vehicle weight | 2485 | |
| Curb weight | 1665 | |
| Mass of load | 750 | |
| Seating capacity | 2 | |
| Min ground clearance | 180 | |
| Front/rear overhang | 780/1325 | |
| Max Gradeability(%) | 40 | |
| Min Turing Radius(m) | 6 | |
| Engin | Engine model | HFC4DA1-1 |
| Type | in line-4, ind-cooler turbocharged, diesel | |
| Displacement | 2771 | |
| Rated Power | 68/3600 | |
| Rated torque | 210/2000 | |
| Emission standard | EUROⅡ | |
| Transmission model | ZM001MF ( Manual) | |
| Speed Ratio | Ⅰ:3.992 /Ⅱ:2.15/Ⅲ:1.334 IV:1.000 /V:0.757/ R:4.22(4H(1:1),4L(2.48:1) | |
| Max speed | 140 | |
| Rear-axle gear ratio | 4.1 | |
| Suspension system | Double transverse arm torsion bar independent suspension | Yes |
| Leaf spring rigid axle suspension | Yes | |
| Tyre | 225/75R15 Aluminium rim(steel steel spare tyre) | Aluminium rim |
| Break System | Front vacuum assisted | Yes |
| Dual-circuit hydraulic braking system | Yes | |
| Front disc rear drum | Yes | |
| SABS | Yes | |
| Fuel tank | FUEL TANK | 60L Diesel |
| Steering system | Anti-bump energy-absorbing bearing tube | Yes |
| Artificial leather steering wheel | Yes | |
| Appearance | ||
| Rear bumper | Rear bumper | Yes |
| Window | Electric control glass lifter | Yes |
| Wiper | Telecontrol intermittent wiper | Yes |
| Front light | Front Separated combination big lamp | Yes |
| Rear light | Integrated | Yes |
| Rearview mirror | Four-direction-adjustable electric rearview mirror | Yes |
| Interior Equipment | ||
| Interior trim | Black interior trim | Yes |
| Carpet | Normal fabric carpet | Yes |
| Rearview mirror | Anti-dazzle rearview mirror | Yes |
| Shifting handle | Normal | Yes |
| Parking handle | Normal | Yes |
| Ignition lock | Ignition lock with lighting background | Yes |
| Instrument cluster | Luminescent | Yes |
| Airconditioning | Front manual air conditioning | Yes |
| Seats | Yes | |
| Seat cover material | Velvet | Yes |
| Driver seat | Adjustable | Yes |
| Seat quantity | seats | 5 seats |
| Safety Equipment | ||
| Lock | Intelligent central door lock system | Yes |
| Child-safety door lock | Yes | |
| Telecontrol | Yes | |
| Anti-theft | Steering wheel lock | Yes |
| On-board power supply | Yes | |
| Airconditioning | Yes | |
| Power Steering | Yes | |
| USB+radio | Yes | |

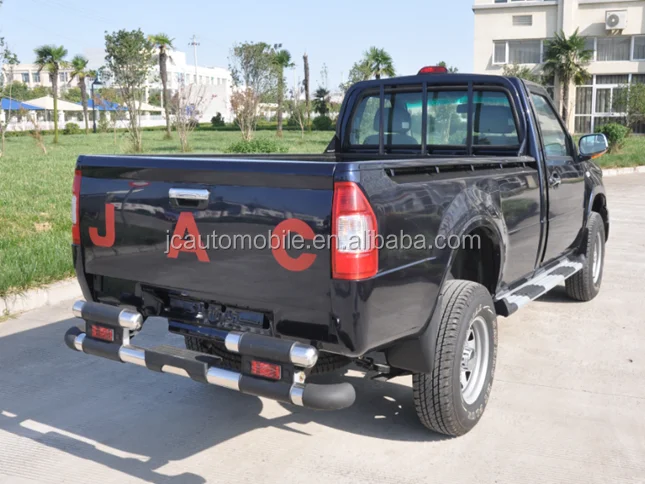

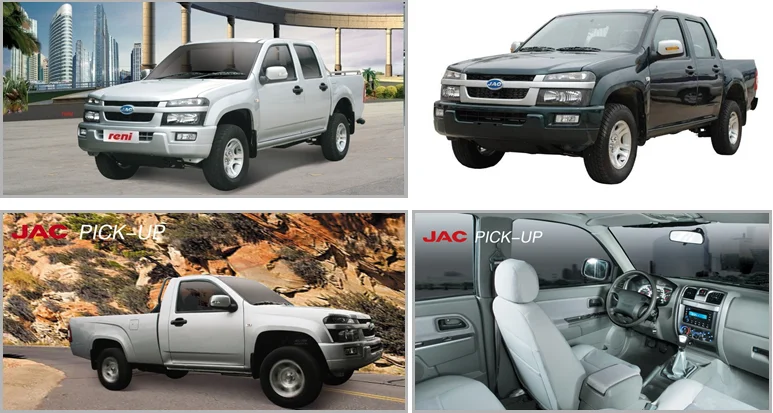

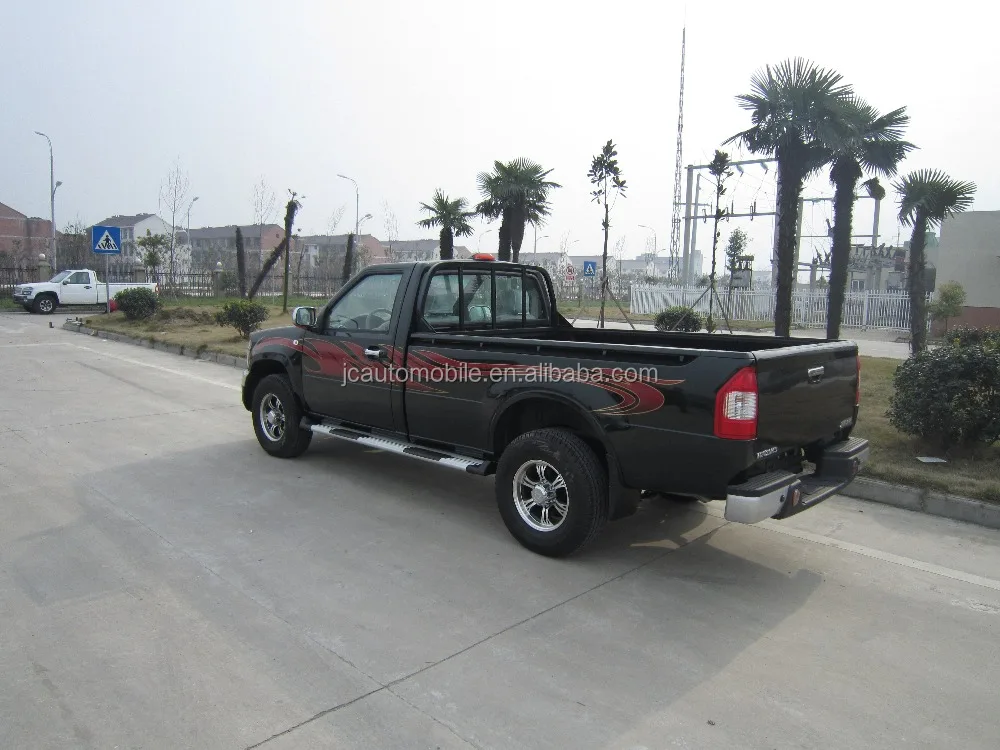

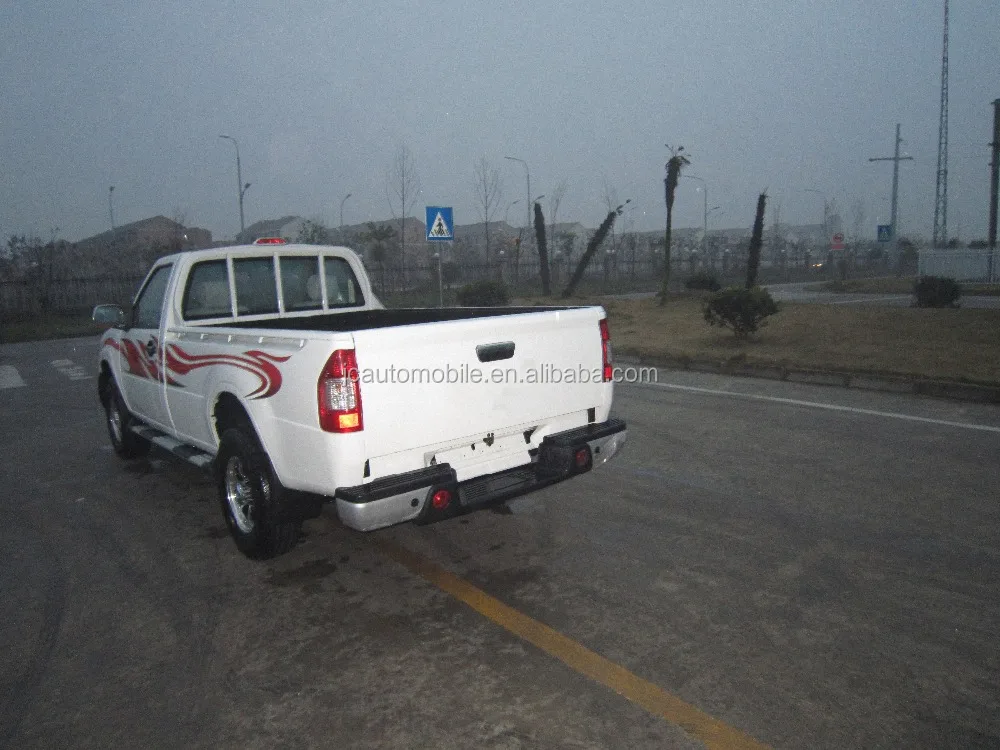

Detailed Images
Packaging & Shipping
Related Products
Company Information
Our Services
JAC truck After-sales Service Centre:
After-sell services
WARRANTY
JC AUTOMOBILE grants our client a twelve-month-period or 2000 hours warranty for any vehicles purchased
from us. During the warranty period, in case the defect of material or workmanship has occurred with spare
parts in normal operation, the defective parts will be repaired or replaced free of charge at our discretion.
---------------------------------------------------------------------------------------------------------------------------------
Spare parts
JC AUTOMOBILE is dedicated to provide our clients with genuine spare parts with the highest quality, exact
fitness, and appropriate function. With our global distribution network, you are guaranteed with fast delivery
and services, wherever you are. Please submit your spare parts requests to us and list product name, model
No, Chassis VIN NO, description of the parts, etc. We guarantee that your request will be handled as soon as
possible.
---------------------------------------------------------------------------------------------------------------------------------
Traning
JC AUTOMOBILE provides perfect facilities and comfortable environment and can provide training services
to different users. The training sessions include product training, operation training, maintenance know-how,
technical know-how training, standards, laws, regulations etc, all of which are tailored to fulfill your individual needs.Training programs can be conducted in our factor field or at client’s site.
FAQ
Which Payment terms can we accept?
Normally we can work on T/T term, Western Union or L/C term.
1. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment, or against the copy of original B/L for old clients.
2. On L/C term, a 100% irrevocable L/C without “soft clauses” can be acceptable. Please seek the
advice from the individual sales manager whom you work with.
How long will our price be valid?
We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only adjust our price based on two situations.
1. The rate of USD:RMB varies significantly according to the internally currency exchange rates.
2. The increasing labor cost and raw material cost.
What logistics ways can we work for shipment?
We can ship truck/bus by various transportation tools:
1. For 90% of our shipment, we will go by sea, to all main continents such as South America,
Middle East, Africa, Oceania and Europe etc, either by container or RoRo/Bulk shipment.
2. For neighborhood countries of China, such as Russia, Mongolia, Kazahkstan, Uzbekistan ets …
we can ship it by road or railway.
3. For light spare parts in urgent demand, we can ship it by internally courier service, such as DHL,
TNT, UPS, or Fedex.
