Auto Granite Slab Polishing Line Stone Grinding Machine

Product Overview

Description

GBLXM-1200 Auto Granite Slab Polishing Line

Features:

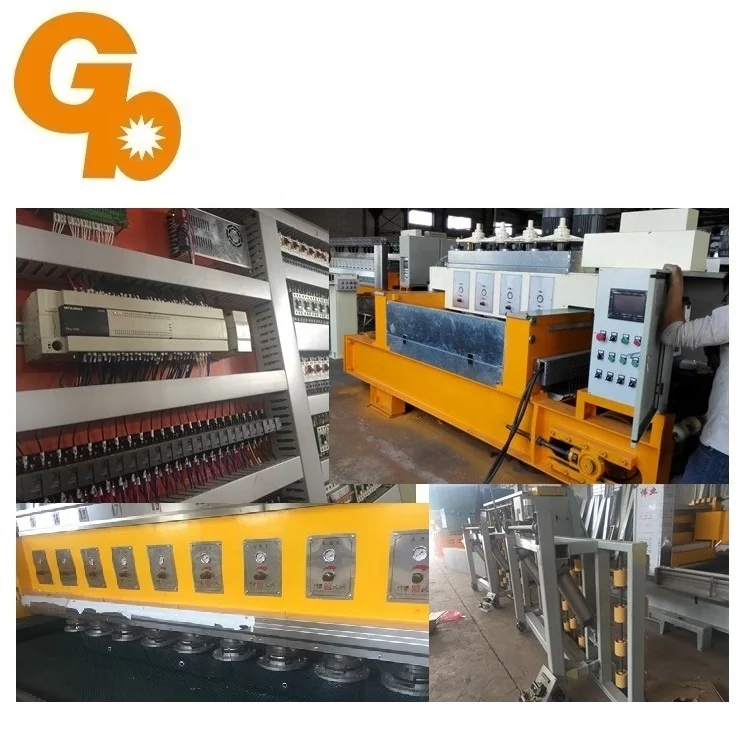

It adopts PLC terminal control system; Operator can set the parameters by the programmable controller with LCD screen. It is equipped with trouble alarm and abrasive block consumption alarm systems. It is qualified for continuous grinding and polishing granite stone slabs. The speeds of work piece conveyor and cross beam adopt converters to adjust their speed. Its processing width and working pressure of grinding heads are adjustable. Each grinding head can rise and fall automatically following the work piece movement. The machine also has the function of avoidance. Meanwhile, the main motor of this machine is only 7.5kw with 16 pcs and it uses the common round abrasive, so that it has the high efficiency energy saving and environmental protection function.

 We have sold this kind of machine to some factories in China. After long-time inquiry, we have got the probable efficiency data.



Technical data:



Name	Unit	GBLXM-1200-12	GBLXM-1600-16	GBLXM-2000-20
Max. polishing width	mm	600-1250	600-1600	600-2000
Useful working thickness	Mm	13-50mm
Useful abrasive		D.200mm resin abrasive disc
Speed of conveyer belt	Mm	0-2800mm
Frequency of front-back swing	Times/min	30 times/m( go and back)
Main power	KW	7.5kw*12	7.5kw*16	7.5kw*20

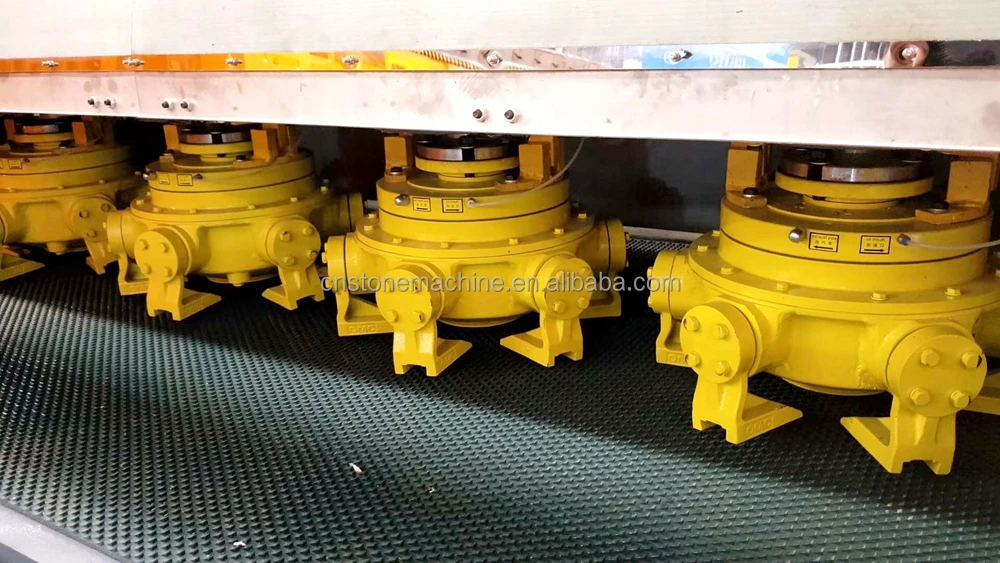

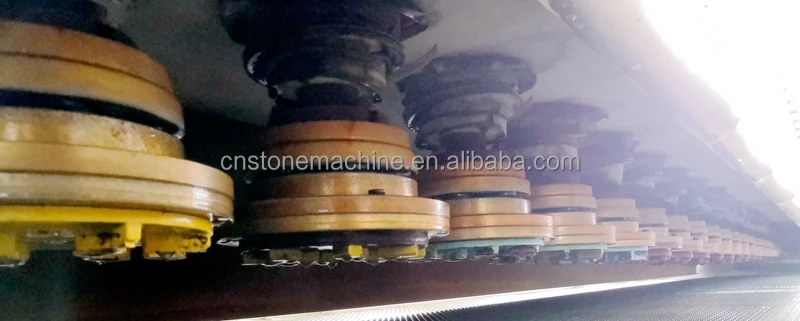

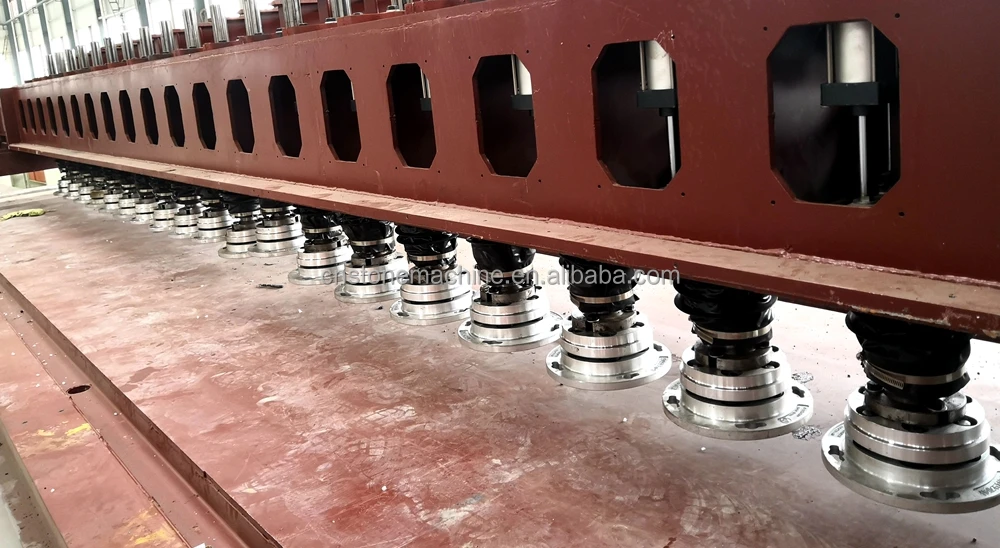

We have two granite polishing head, one is six claw type, another one is resin abrasive type.
