popular hdpe Fish Farming cage floating cage
US $4230-$4440
High Brightness 1000w LED Green Underwater Fishing Light Salmon Fish Farming Equipment
- Category: Aquaculture Equipment >>>
- Supplier: Wuhan ZJKC Technology Co. Ltd.
Share on (60706128074):
Product Overview
Description
Product Description

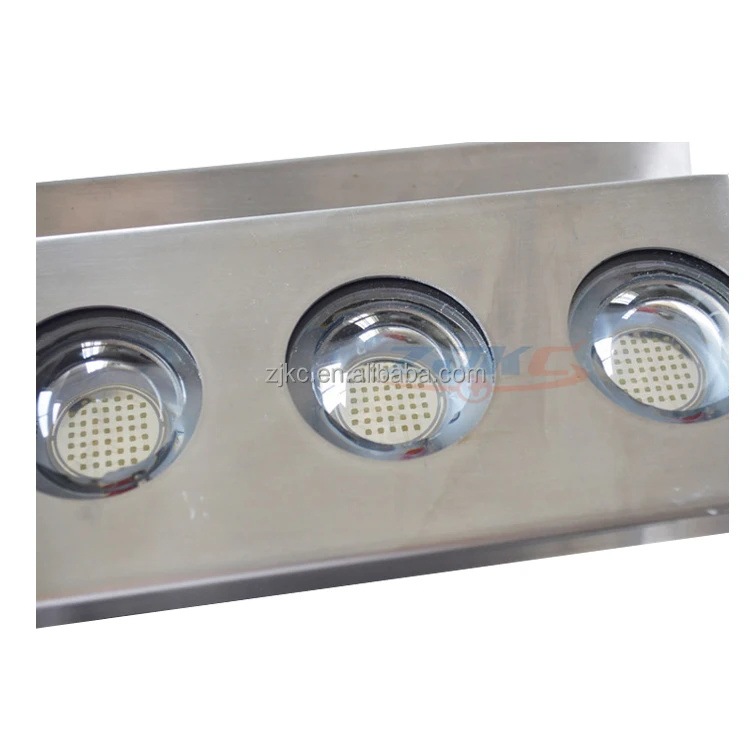

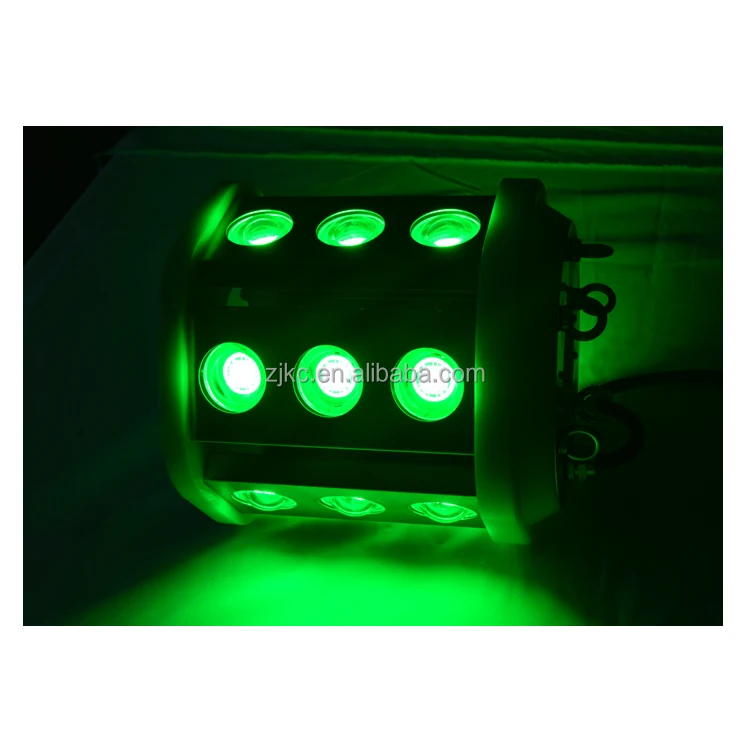

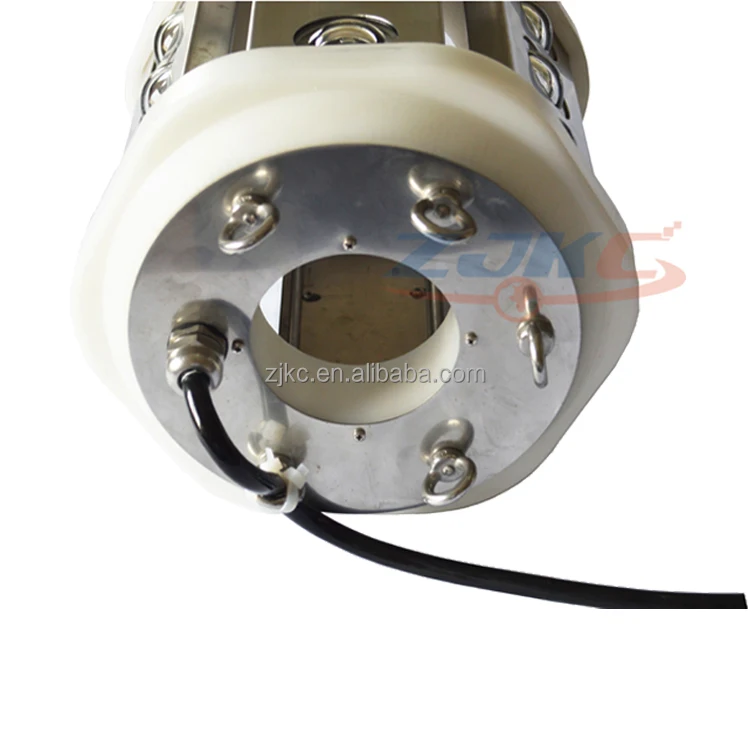

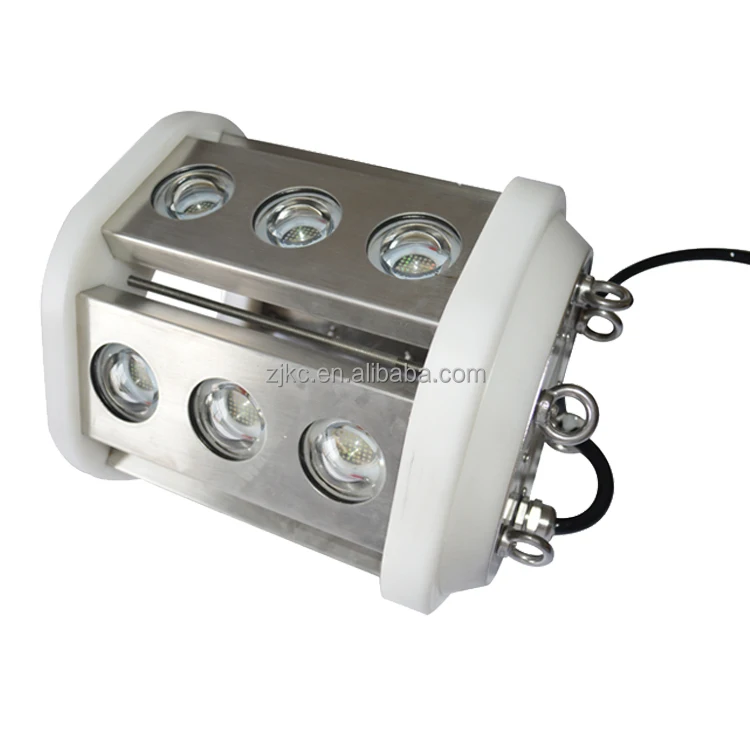

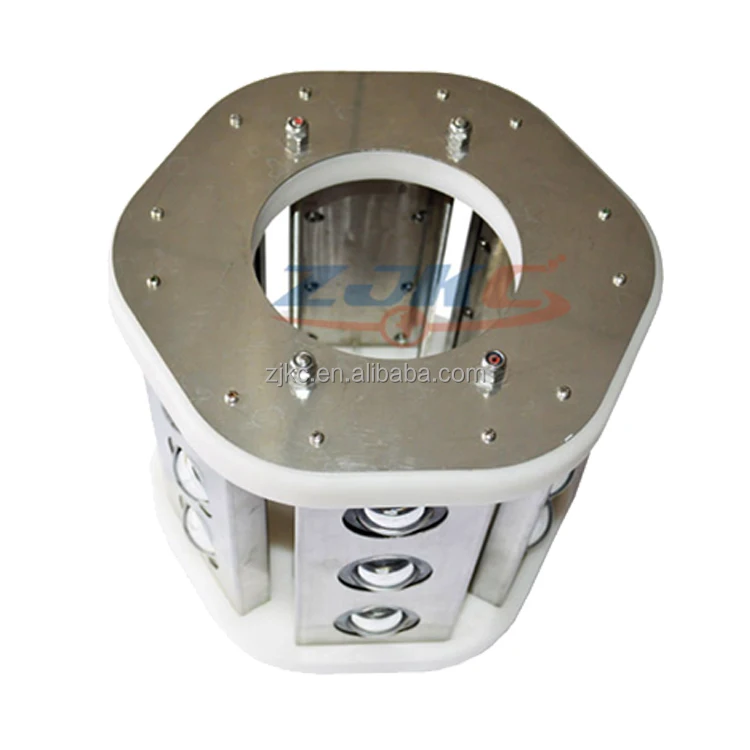

LED Underwater Fishing Light
LED fish corn light is high quality, extremely energy efficient and completely waterproofed, mainly applied underwater. With unique heat sink design, expanding surface in touch with water, fish corn series can easily take heat away, with excellent heat dissipation system. Adopting 316 stainless steel and high intensive tempered glass, makes the lamp with strong resistance to vibration and anti-corrosion. They have outstanding features, excellent heat sink, light weight, solid structure, easy installation and free maintenance.
Specification
LED power | 400W | 600W | 1000W | 1200W | 1500W | 1800W | |||||||
LED source | 6pcs*66W | 12pcs*50W | 18pcs*55W | 24pcs*50W | 30pcs*50W | 36pcs*50W | |||||||
Luminous flux (lm) | Blue: 20000lm Green: 44000lm White: 44000lm | Blue: 30000lm Green: 66000lm White: 66000lm | Blue: 50000lm Green: 110000lm White: 110000lm | Blue: 60000lm Green: 132000lm White: 132000lm | Blue: 75000lm Green: 165000lm White: 165000lm | Blue: 90000lm Green: 198000lm White: 198000lm | |||||||
N.W (kg) | 10 | 10 | 13 | 16 | 16 | 19 | |||||||
Product Size (mm) | Φ250*256mm | Φ250*256mm | Φ250*321mm | Φ250*386mm | Φ250*386mm | Φ250*451mm | |||||||
Light Body Material | 316 Stainless steel, PC & PUR cable | ||||||||||||
LEDs | USA Bridgelux | ||||||||||||
Driver brand | Taiwan MeanWell Driver | ||||||||||||
Input voltage | AC85-305V / AC310-500V / DC12-24V | ||||||||||||
Frequency | 47-63Hz | ||||||||||||
Power factor | >0.95 | ||||||||||||
THD | <15% | ||||||||||||
Luminous efficiency | Green: 110lm/W; Blue: 50 lm/w; White: 110 lm/w | ||||||||||||
Light efficiency | >90% | ||||||||||||
LED temperature | 70℃±10%(Ta=25℃) | ||||||||||||
Operating temperature | -30℃～50℃ | ||||||||||||
Storage temperature | -30℃～65℃ | ||||||||||||
Color Temperature | Green: 510---570nm; Blue: 380---495nm; white: 3,000-10,000K | ||||||||||||
Color rendering index | Ra>80 | ||||||||||||
Light distribution curve | Round optical spot | ||||||||||||
Lighting Angle | 360 degree | ||||||||||||
IP Rating | IP68 | ||||||||||||
Economical lifetime | > 50,000 Hrs | ||||||||||||
Installation | Horizontal or vertical installation | ||||||||||||
Certificates | CE ROHS ISO | ||||||||||||
Warranty | 5 years ( first 2 years free, next 3 years cost for parts ) | ||||||||||||
Advantage | The light has excellent stable performance, anti-corrosion to sea water; IP68, could drop into deep water directly; the cable can be replaced freely, easy maintenance. | ||||||||||||
Application | Fishery: installed on the fish farms to promote the hatchery and growth of the fish; Fishing: installed on the boat to attract the fishes when fishing in the sea. | ||||||||||||
Advantages
Led Fishing Lights
1.Adopting unique 316 Stainless Steel anti-corrosion and 100% waterproof materials, PUR cable IP68 waterproof
2. It is specialized to be used underwater and can't use it overwater
3. The green remitting color is best for fish hatchery and growth
4. It is widely applied in underwater fishing and attracting, indoor RAS fishing farms,.offshore fishing farms
Application
The Importance of Led Submersible Light in Aquaculture
Photoperiod control in aquaculture has shown many benefits for aquaculture producers including salmon,tilapia growers.
The modification of the photoperiod by man in poultry, agriculture and livestock has a long date. A long day can have between 12 to 18 hours of sunlight and the rest of darkness. A short day has between 8 and 16 hours of sunlight.This variability of the natural photoperiod depends on the time of year and the geo-location of the aquaculture farm.The modification of these "natural" conditions through the use of lights placed on aquaculture production units (tanks or ponds) has been beneficial in several aspects of production.
The benefits of photoperiod in aquaculture
There have been positive effects, among others, on the production of eggs of various aquaculture species such as salmon, bass, trout, corvina, crab and frog tone at different times than their natural production.Researchers Dr. Amal Kumar Biswas and Dr. Toshio Takeuchi studied the effect of photoperiod on feed intake and the growth rate of tilapia fingerlings of 3 to 5 grams average weight.Their study was published by the journal Fisheries Science in the year 2003. The summary of their study can be consulted here. This study is still widely quoted by researchers and producers around the world.
The findings of the study
The first conclusion is that using a 6LD cycle photoperiod the tilapia fry had a higher growth rate than the other photoperiod cycles.The second, using the ad libitum technique, showed that both feed intake and feed efficiency were significantly higher (P <0.05) and lower adiposity (P <0.05).And finally they conclude that this photoperiod (6LD) cycle caused an improvement in the growth of the fry attributable to the stimulation of the food intake.The most innovative, cost-effective and of greatest impact in the production variables is the use of submerged LED lights. In white for the first stages and green for later stages.
What is photoperiod?
The modification of the photoperiod by man in poultry, agriculture and livestock has a long date. A long day can have between 12 to 18 hours of sunlight and the rest of darkness. A short day has between 8 and 16 hours of sunlight.This variability of the natural photoperiod depends on the time of year and the geo-location of the aquaculture farm.The modification of these "natural" conditions through the use of lights placed on aquaculture production units (tanks or ponds) has been beneficial in several aspects of production.
The benefits of photoperiod in aquaculture
There have been positive effects, among others, on the production of eggs of various aquaculture species such as salmon, bass, trout, corvina, crab and frog tone at different times than their natural production.Researchers Dr. Amal Kumar Biswas and Dr. Toshio Takeuchi studied the effect of photoperiod on feed intake and the growth rate of tilapia fingerlings of 3 to 5 grams average weight.Their study was published by the journal Fisheries Science in the year 2003. The summary of their study can be consulted here. This study is still widely quoted by researchers and producers around the world.
The findings of the study
The first conclusion is that using a 6LD cycle photoperiod the tilapia fry had a higher growth rate than the other photoperiod cycles.The second, using the ad libitum technique, showed that both feed intake and feed efficiency were significantly higher (P <0.05) and lower adiposity (P <0.05).And finally they conclude that this photoperiod (6LD) cycle caused an improvement in the growth of the fry attributable to the stimulation of the food intake.The most innovative, cost-effective and of greatest impact in the production variables is the use of submerged LED lights. In white for the first stages and green for later stages.
Wuhan ZJKC Technology Company leads the development of these lights for aquaculture mainly in Chile and Norway,also Denmark and USA RAS and offshore salmon fish farms.
Fishery: installed on the fish farms to promote the hatchery and growth of the fish;
Fishing: installed on the boat to attract the fishes when fishing in the sea.
Fishing: installed on the boat to attract the fishes when fishing in the sea.
Packing & Delivery
Package: | Standard Export Packing Carton | |||||
Delivery Time: | Within 10-20 work days after payment. | |||||
Delivery Way: | By air (DHL/ Fedex / UPS etc.) or By Sea | |||||
Warranty: | We Provide 2 year Warranty | |||||
Cooperation Item: | OEM/ODM, or other item you want. | |||||
Price Term: | EXW, Price at USD. | |||||
MOQ: | 1pc as sample order. | |||||
Certifications
Company Profile
WUHAN ZJKC TECHNOLOGY CO., LTD.
WUHAN ZJKC TECHNOLOGY CO., LTD. specializes in R&D, manufacturing and marketing of LED fish lights as well as offering solutions for our customers around the world. With constant pursuit of high quality is our constantly pursuit, we own an experienced R&D team. At the same time, we cooperate with some Universities and research institutes to develop advanced led fish lights to meet the needs in the changing market.
To ensure high quality, we have built up strict procedures for production in compliance with the requirements of ISO9001:2000 and 5S implementations to. All our led products have obtained such national and international approvals as CE, FCC, GS, ROHS, UL and several products obtained patents.
Our products range from LED underwater fishing light (LED Fish Corn Light , LED fish bar light , LED Fish Tank Light , LED fish tube light ), LED overwater fish light ( LED Fish Globe Light , LED marine flood light) ,etc. With the tenet of "Provide high quality product, Best service, Innovate", we always work hard to be the top manufacturer of LED fish Lights.
Welcome to contact with us for consultation and communication, we are ready to provide you the best products and service to you at any time. Look forward to creating win-win situation with you.
To ensure high quality, we have built up strict procedures for production in compliance with the requirements of ISO9001:2000 and 5S implementations to. All our led products have obtained such national and international approvals as CE, FCC, GS, ROHS, UL and several products obtained patents.
Our products range from LED underwater fishing light (LED Fish Corn Light , LED fish bar light , LED Fish Tank Light , LED fish tube light ), LED overwater fish light ( LED Fish Globe Light , LED marine flood light) ,etc. With the tenet of "Provide high quality product, Best service, Innovate", we always work hard to be the top manufacturer of LED fish Lights.
Based on our efficient global distribution network, our products have been applied in many big projects and exported to more than 30 countries & districts.
Welcome to contact with us for consultation and communication, we are ready to provide you the best products and service to you at any time. Look forward to creating win-win situation with you.
FAQ
Q: What are the payment methods does ZJKC LED accept at present?
You can pay by T/T & Western Union in advance. Authority for payment must be given at the time of order. If there is a problem taking payment for all or part of your order we may contact you by email or by phone.
Q: What is the lead time after placing the order?
Usually, lead time for common orders is 7 working days while 10-12 working days for large amounts of goods. However, it would depend on our production line schedule and the complication of the items.
Q: What is the delivery and shipping?
Delivery will be made to the address specified when you complete the order. Usually, we send the shipments in EXW term. However, the terms of FOB is acceptable which depends on the preference of clients. We use Express (DHL, UPS, FedEx), Air Transportation and Sea Transportation to deliver our goods. Customers can choose alternative delivery methods.
Q: What is the replacement policy / guarantee?
We have a minimum 2 years replacement warranty for all products. For the majority of our LEDs the warranty is 3 years.The rest 3 years, only the cost of parts needed be paid. If you have a fault within the warranty period, please return the faulty item to us including a copy of your order/receipt/commercial invoice or at the least quoting your name and order number and we will send a replacement free of charge to you. In this case you have to pay to send the faulty item to us; we pay our postage costs to send the replacement. A more easier way is that you can provide evidence to show the faulty item, such as a series of photos with our item number, unabridged video clip, etc.
You can pay by T/T & Western Union in advance. Authority for payment must be given at the time of order. If there is a problem taking payment for all or part of your order we may contact you by email or by phone.
Q: What is the lead time after placing the order?
Usually, lead time for common orders is 7 working days while 10-12 working days for large amounts of goods. However, it would depend on our production line schedule and the complication of the items.
Q: What is the delivery and shipping?
Delivery will be made to the address specified when you complete the order. Usually, we send the shipments in EXW term. However, the terms of FOB is acceptable which depends on the preference of clients. We use Express (DHL, UPS, FedEx), Air Transportation and Sea Transportation to deliver our goods. Customers can choose alternative delivery methods.
Q: What is the replacement policy / guarantee?
We have a minimum 2 years replacement warranty for all products. For the majority of our LEDs the warranty is 3 years.The rest 3 years, only the cost of parts needed be paid. If you have a fault within the warranty period, please return the faulty item to us including a copy of your order/receipt/commercial invoice or at the least quoting your name and order number and we will send a replacement free of charge to you. In this case you have to pay to send the faulty item to us; we pay our postage costs to send the replacement. A more easier way is that you can provide evidence to show the faulty item, such as a series of photos with our item number, unabridged video clip, etc.
