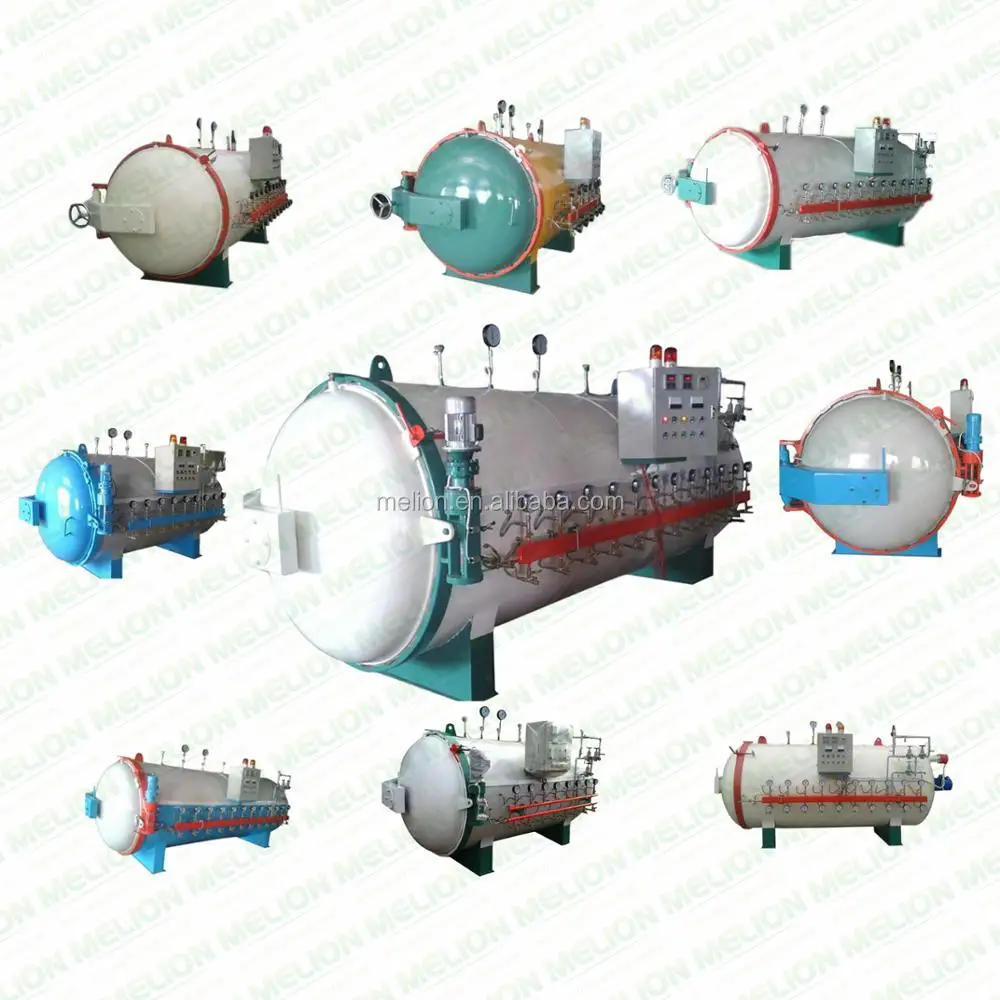

China made curing chamber used tyre retreading machine
Specification

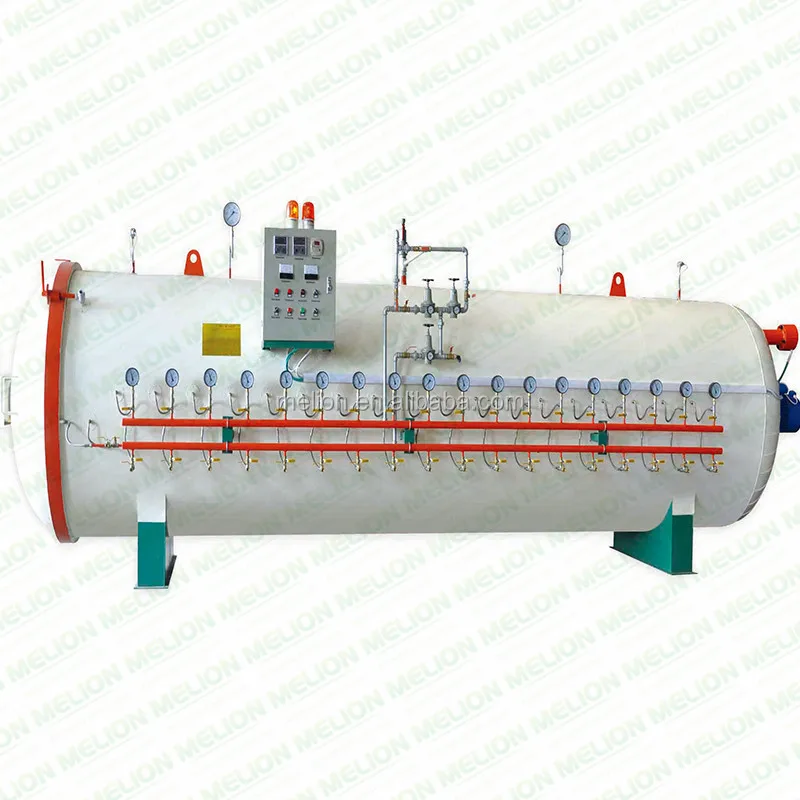

The tires are then placed in curing chamer and the pre-cured tread becomes adhered to the tyre through a vulcanizing process.
Our wide engineering capabilities and experience enable Melion Industry to build chambers to suit our clients' different preferences for size,steam heated,electric heated,or double heating systeam,semi-automatic and automatic chambers.
Product Description
| NO. | Capacity Tire | Heating Power (kw) | Fan Motor (kw) | Working Length B (mm) | Inner Diameter D (mm) | Tank Length A (mm) |
| 1 | 4 | 20 | 3 | 1300 | 1500 | 2800 |
| 2 | 6 | 30 | 3 | 2000 | 1500 | 3500 |
| 3 | 8 | 30 | 3 | 2500 | 1500 | 4000 |
| 4 | 10 | 40 | 4 | 3000 | 1500 | 4500 |
| 5 | 12 | 60 | 4 | 4000 | 1500 | 5500 |
| 6 | 16 | 60 | 4 | 5000 | 1500 | 6500 |
| 7 | 18 | 60 | 5.5 | 6000 | 1500 | 7500 |
| 8 | 24 | 90 | 7.5 | 7500 | 1500 | 9000 |
| 9 | OTR-2 | 30 | 4 | 2000 | 2000 | 4000 |
| 10 | OTR-4 | 90 | 5.5 | 4000 | 1500 | 6000 |
Packaging & Shipping
Company Information
Rizhao Melion Industry Co., Ltd

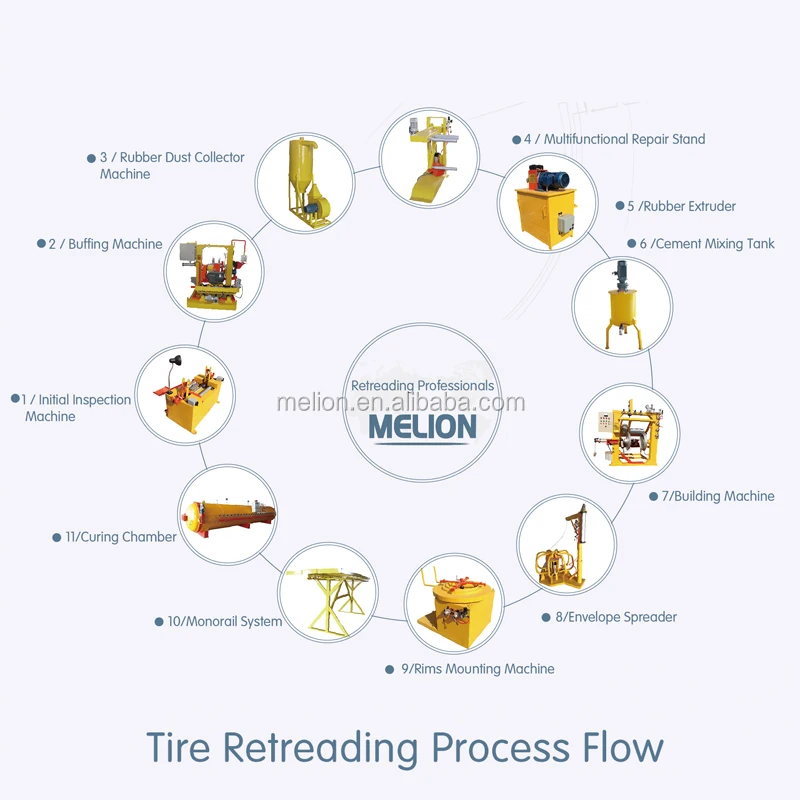

As a tire retreading equipment manufacturing supplier who providing Turn-Key Service,Melion provide customers with complete solutions all the time,including professional marketing planing,production line procedure analysis,suitable raw materials supply,free technical training and so on.
With its quality products and technical support ,Melion has widely gained excellent reputation from all customers from China and abroad.
Custmoers Visit
Different Customers form the world had visit Melion Industries in past ten years and they are satisfied with the product of Melion and keep long time cooperation untill now.
Our Services
We will supply 24 hours online support for the Curing Chamer.
