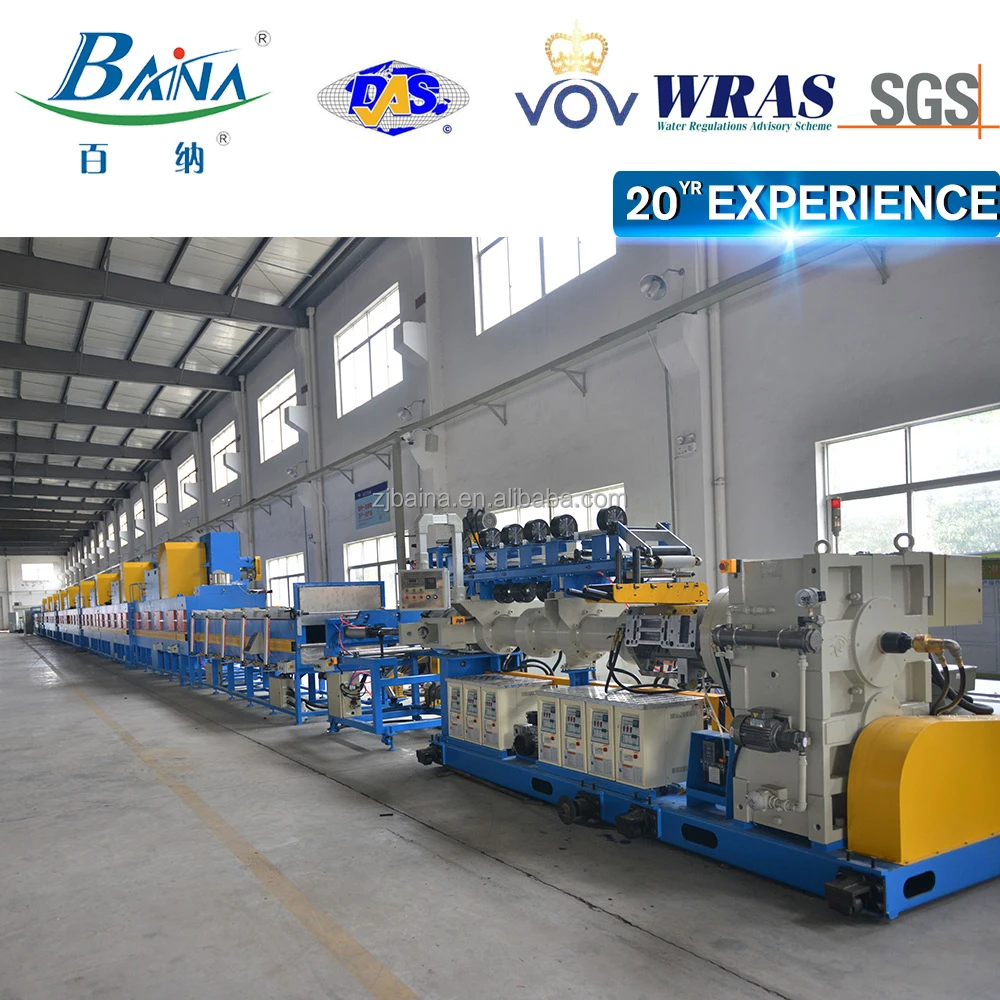

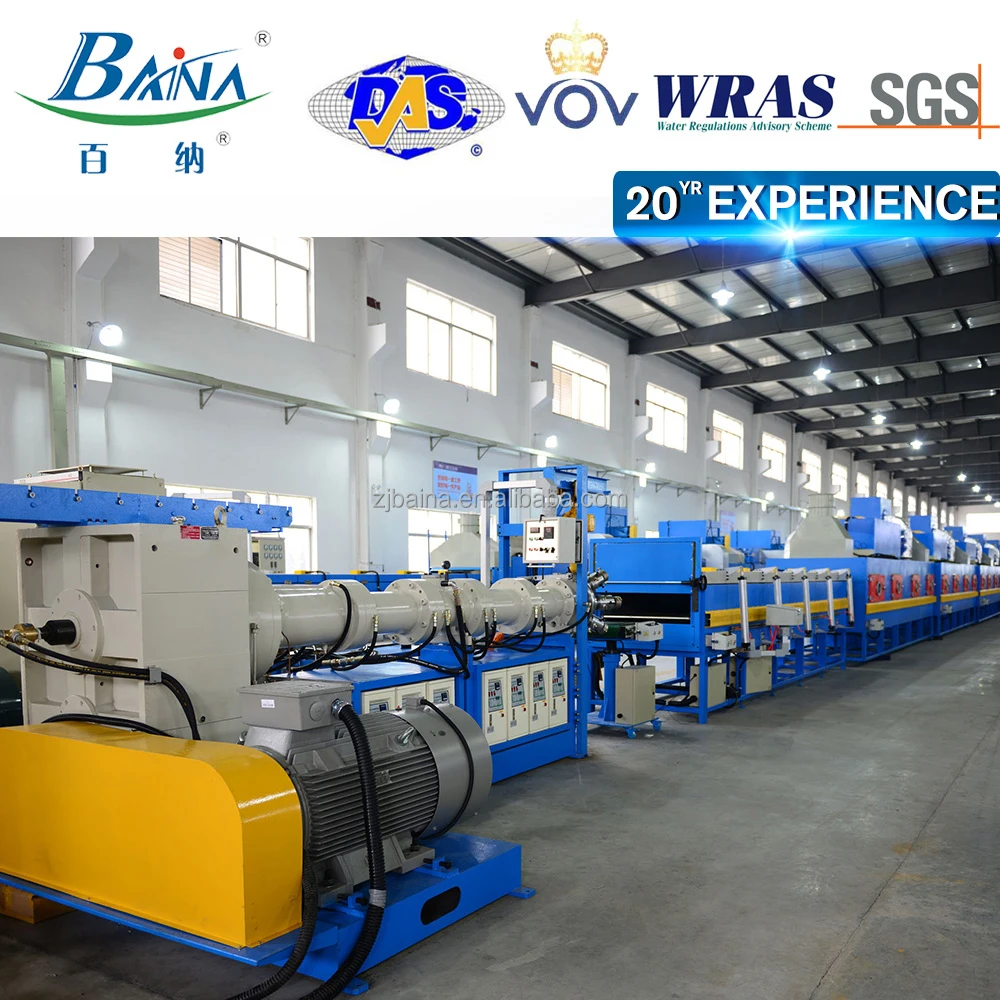

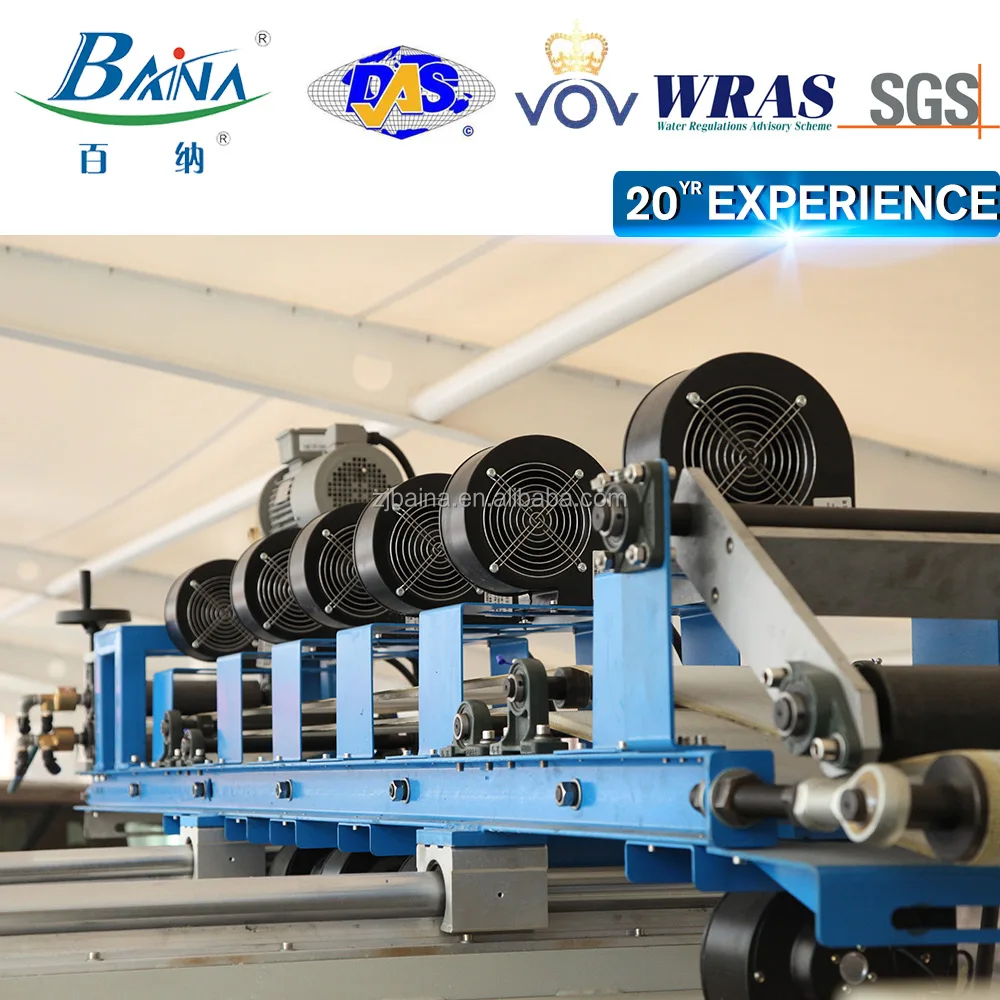

Multifunction high quality NBR & PVC rubber insulation sheet /pipe vulcanization production line rubber vulcanizing machine

Item

Qty (set)

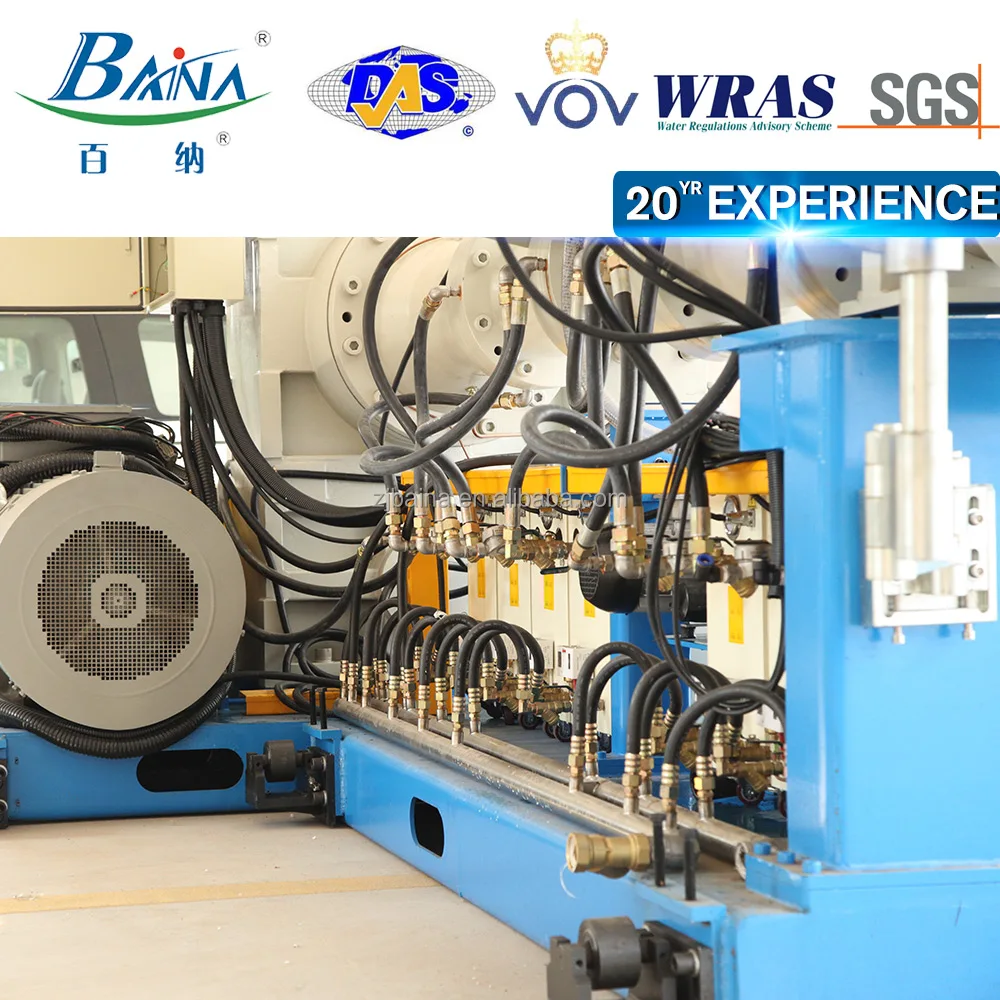

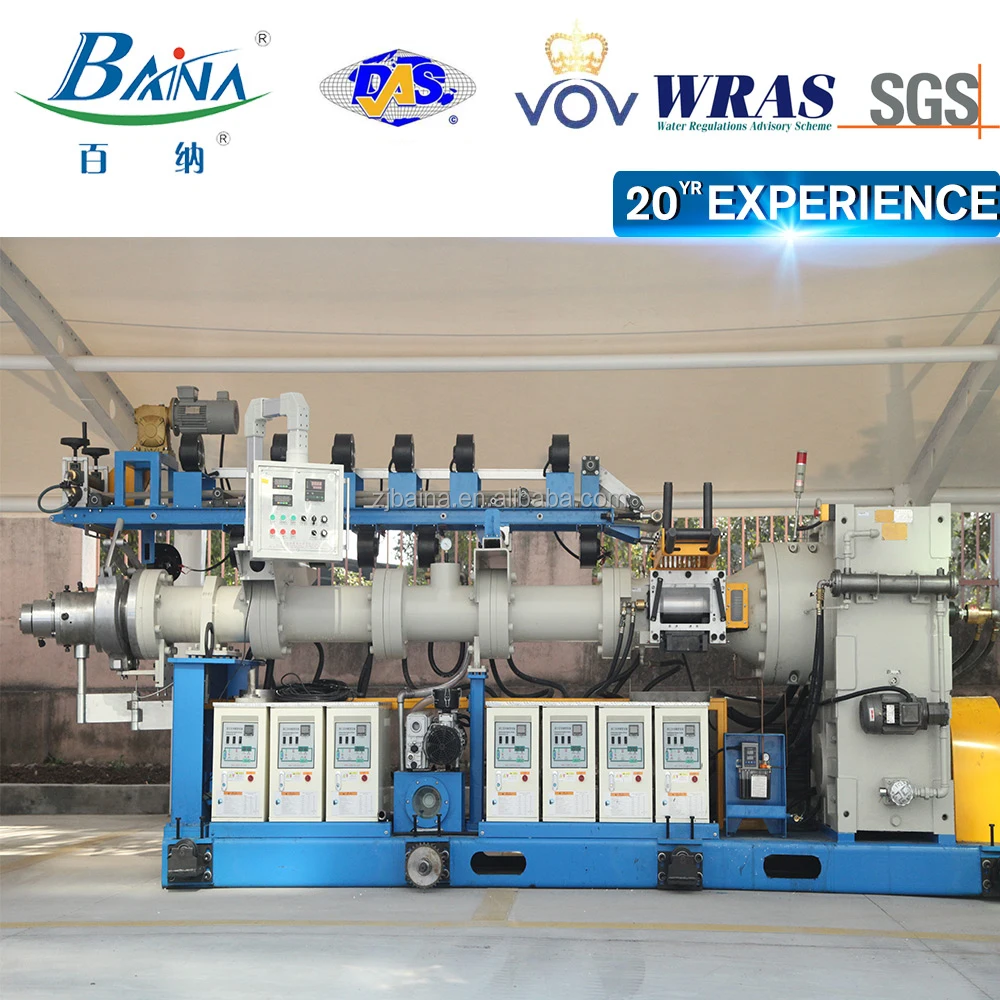

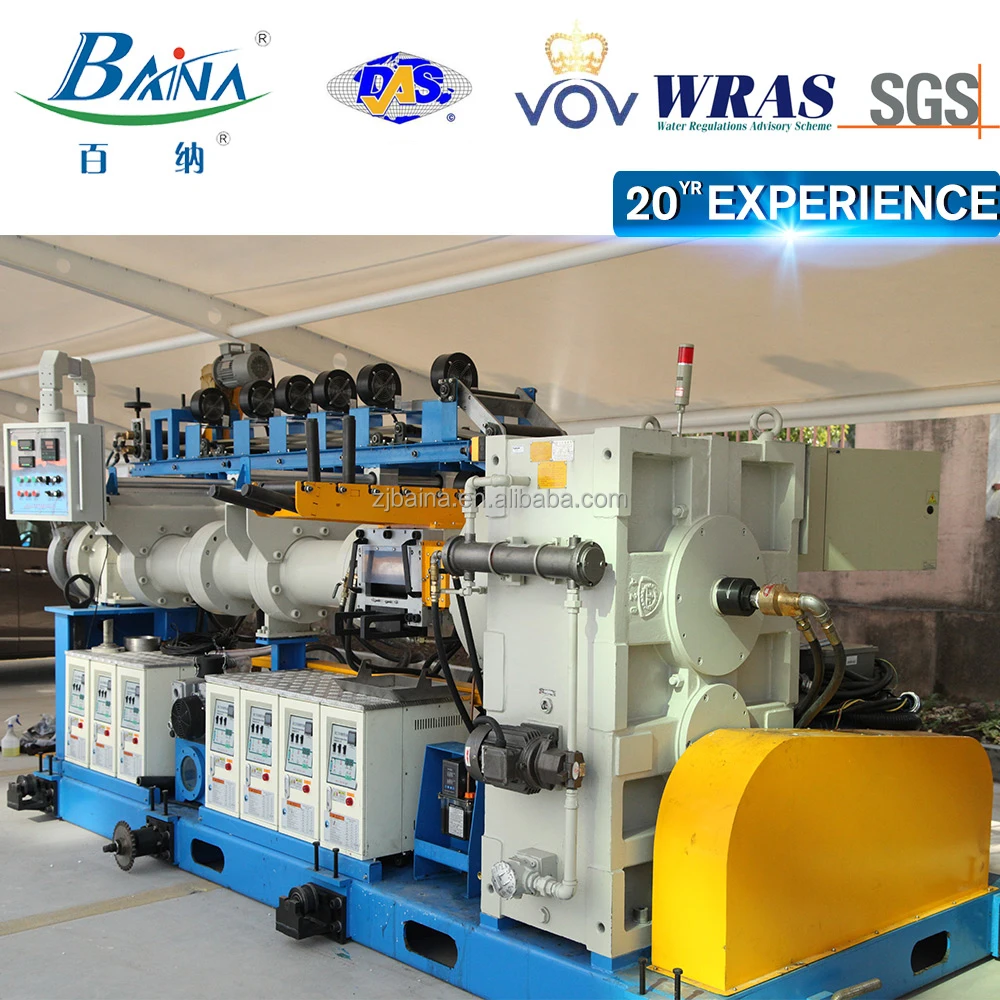

1. ∅150mm cold feed vacuum extruder

1

2. Rubber sheet head(Pneumatic)

1

3. Rubber tube head,one head with six tubes

1

4. Tube head automatic control system +6 group thermostat system(for tubes)

1

5. 6m infrared curing oven(width 650mm)

1

6. 6m hot air curing oven(width 1140mm)

1

7. 6m hot air curing oven(width 1440mm)

2

8. 6m hot air curing oven(width 1600mm)

2

9. 6m hot air curing oven(width 1800mm)

2

10. 6m hot air curing oven(width 2000mm)

2

11. 24m(3 layer)  transmission & cooling system

1

12. Automatic sheet cutter & trimming machine

1

13. One large Chiller with water tank

1

14. Gas heating

9

15. PLC

1

Total

27

    Equipment general configuration

Item

Spec.

Central height

1050±20mm

Orientation

Right from Left facing the operation panel

Color

White&Blue

Power Supply

Three-phase five wires system 380V + 10%/50HZ

Valve opening

0.5-0.6MPa

Water Supply

0.2MPa

Low voltage electrical appliance brand

Schneider

Motor brand

Siemens

The frequency converter brand

Siemens

PLC

Siemens

Gear box brand

Superior

Production Speed

Max0-10m/min

TCU

OMRON

Burner brand

JAPAN SHOEI DCM-10

Calorific value

100,000Kcal/Hr

Supply gas pressure

280mmAq±50

Burning windmill

0.18~0.37KW

Ignition method

Ignite the mother fire

Inspection mode

flame detector

Natural gas nozzle

1/2 B

Working environment

Temp. 0-50℃,Humidity 50%-90%

Emergency stop device

All the powered devices have emergency stop devices

Indicator light

Power Indicator:White, Operation indicator:Green; Fault indicator: Red

Control box machine parts

Start/ stop button and other operations buttons

The equipment meet the requirement of production with rational pneumatic structure, easy to operate

electrical control cabinet contains:Drive system, control system, speed control system

Electric control cabinet is arranged in the bracket, does not affect the the operating personnel mobility, main material of the control panel bracket is aluminum

Wiring is with a certain margin, different color to distinguish the purposes andalso with a terminal mark

All iron construction baking varnish processing, all finishing workpiece surface black or chrome plated

Product protection need to reach IP54 grade

All equipment installation and regulation of high, low, equipment colors, blue color (RAL5015) grey scale (RAL7035) safety warning colors according to national standard

Centralized control function and detailed parameter description and equipment type(including all equipment line speed, temperature and the appearance of various abnormal alarm, touch screen is from the delta brand)
