All in one Bridge Miter Saw, Stone Edge Cutting Machine, Bridge Marble Tile Cutter, TJB 500

Product Overview

Description

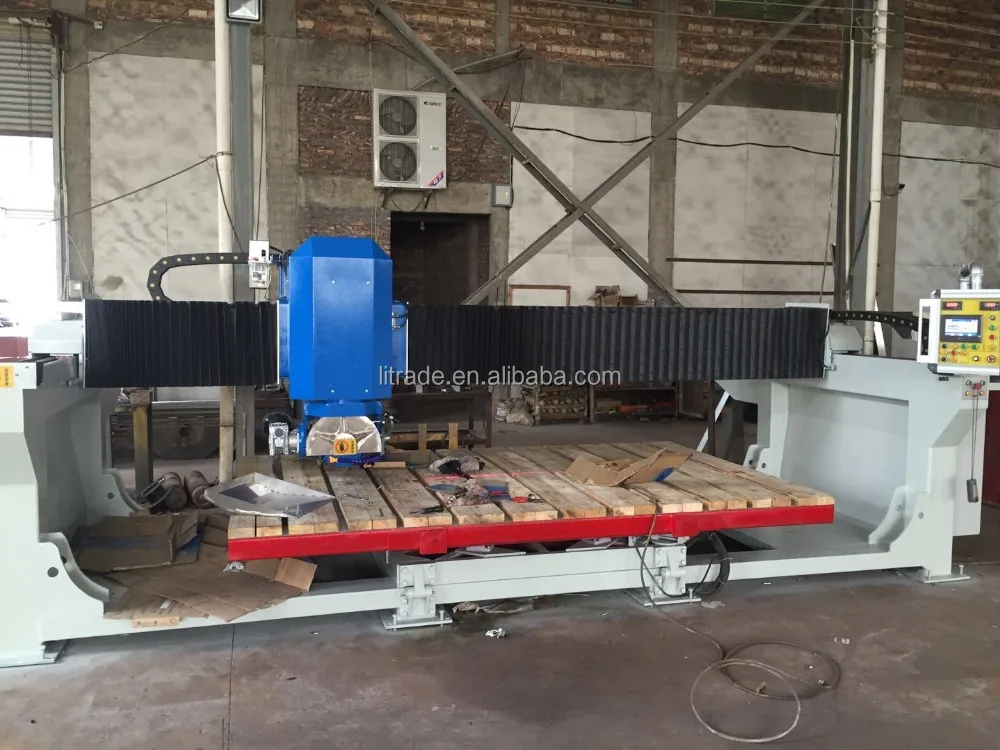

All in one Bridge Miter Saw, Stone Edge Cutting Machine, Bridge Marble Tile Cutter, TJB-500

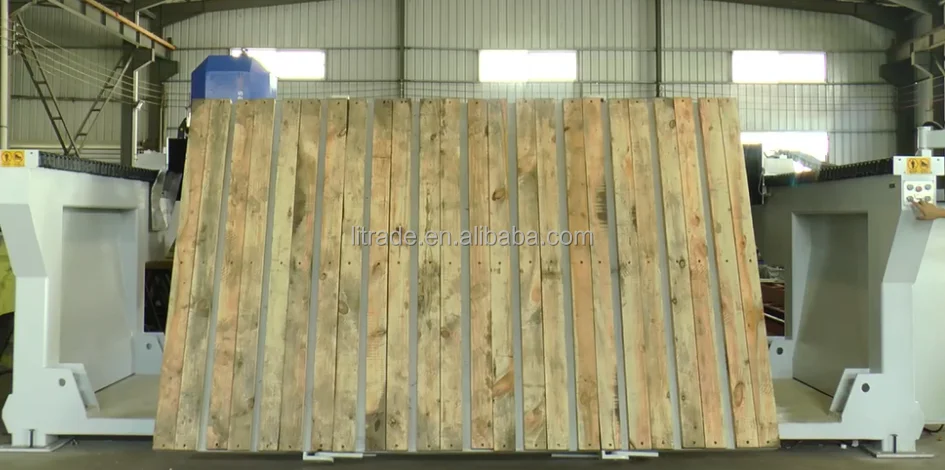

The machine is automatically controlled by PLC (or manually controlled). The cutting size is input via computer terminal. Users can set the quantity, processing thickness, cutting thickness and feeding speed according to requirements. It is equipped with infrared tool setting gauge, to accurately adjust the cutting size. The crosswise feeding speed and spindle speed is controlled by frequency converter. Users can adjust it as per requirements. Worktable rotation is 0-360°, blade rotation 0-90° and table tilting is 0-85°.Once all the parameters are well set, it is not necessary to have workers watching on machine. It will automatically stop once it finishes the cutting. It is an ideal automation equipment of stone thin plate cutting machine.



Model		TJB-500
Max. Blade Diameter	mm	350~500(Blade inner hole diameter:50mm)
Max.Cutting size	mm	3200*2000*130
Max.Up stroke	mm	230
Max.transverse cutting stroke	mm	3200
Dimensions Of Working Platform	mm	3200*2000
Main Motor Power	kw	18.5
Gross Power	kw	25.2

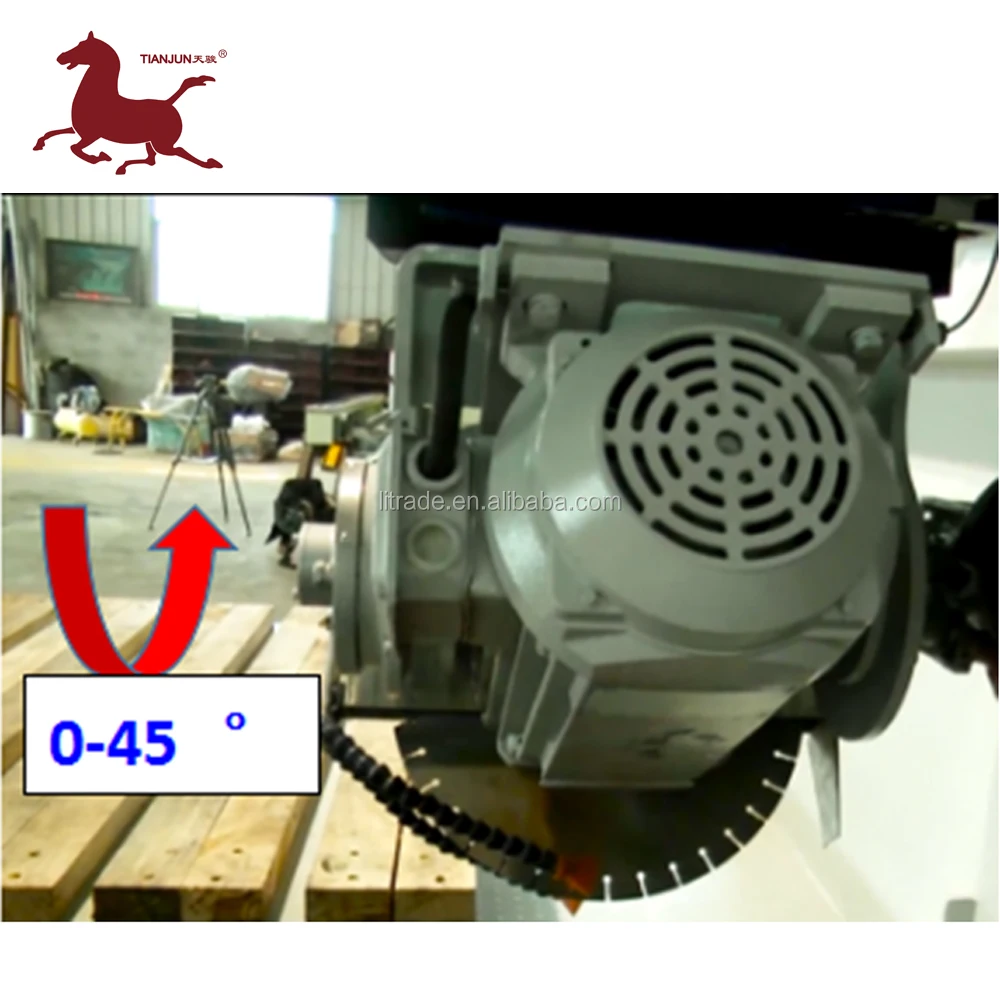

Tilting angle of blade	°	45
spindle speed	r/min	1460/2900
Water Consumption	m3/h	4
Horizontal feeding speed	mm/min	0-6580
Rotating Angle of Worktable		0°,45°,90°,180°,270°, 360°
Gross Weight	kgs	5500
Dimensions(L*W*H)	mm	5800*2700*2300

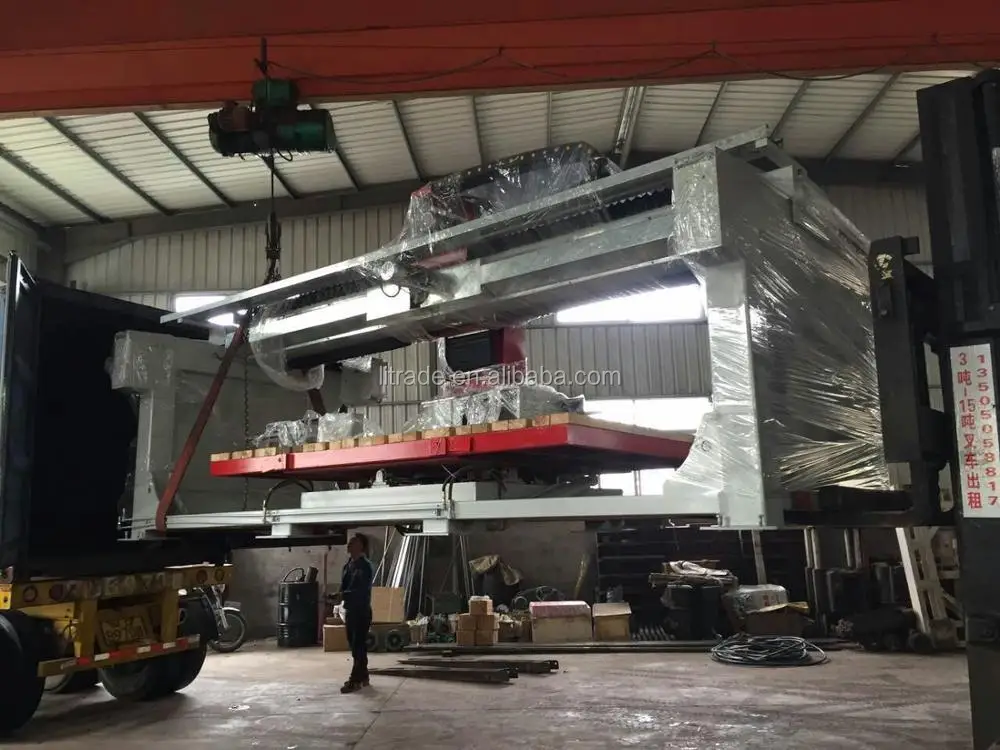

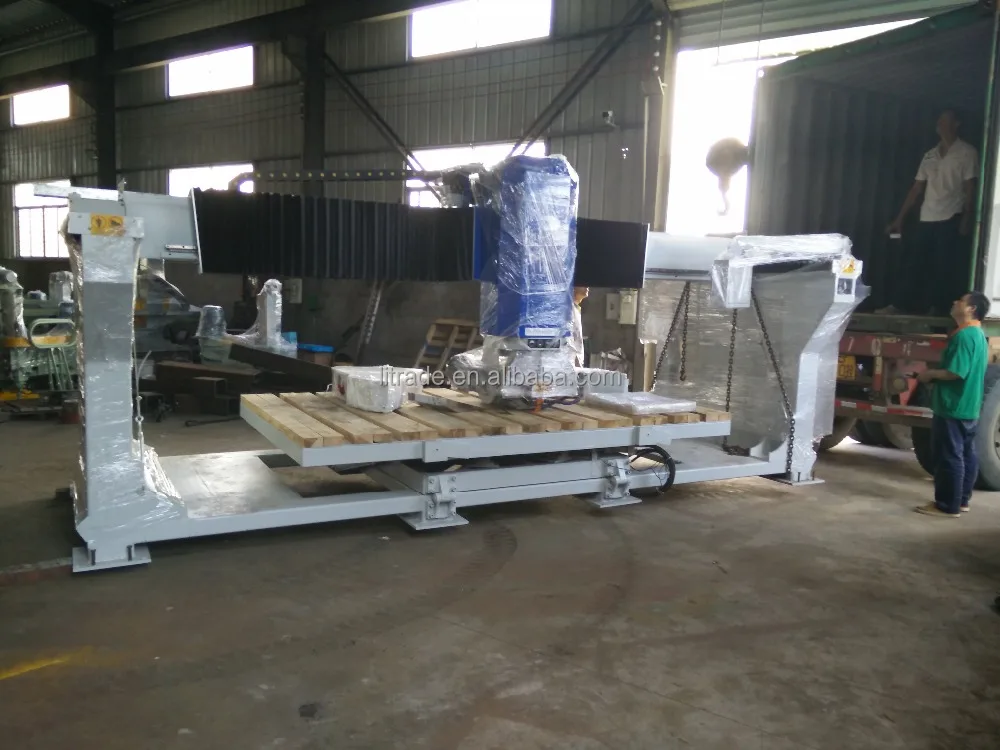

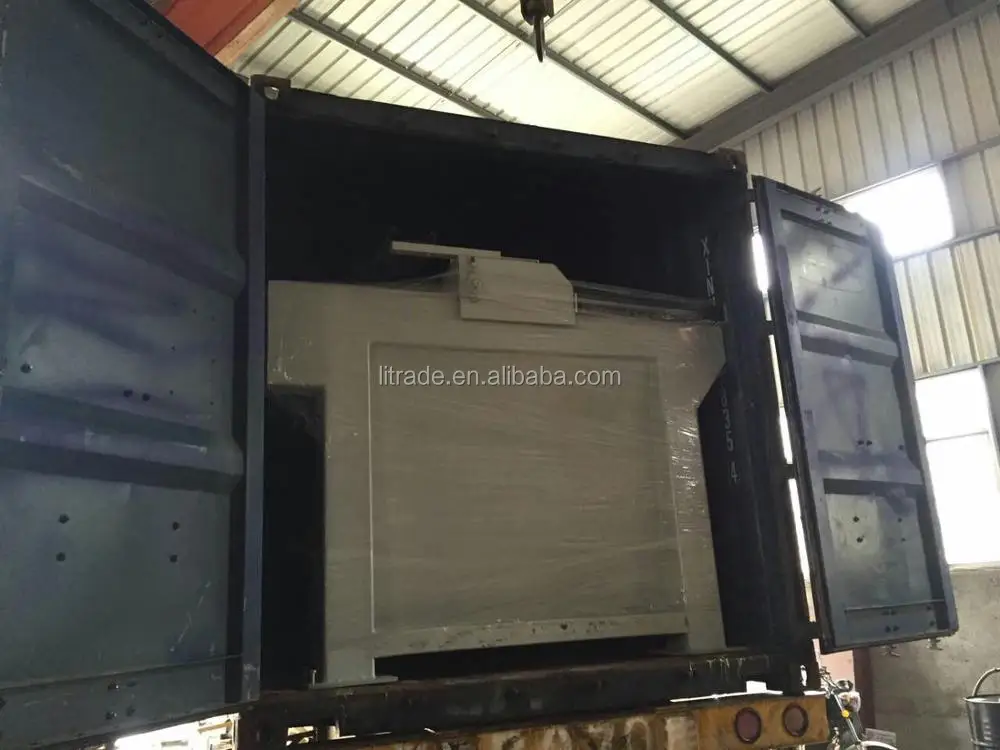

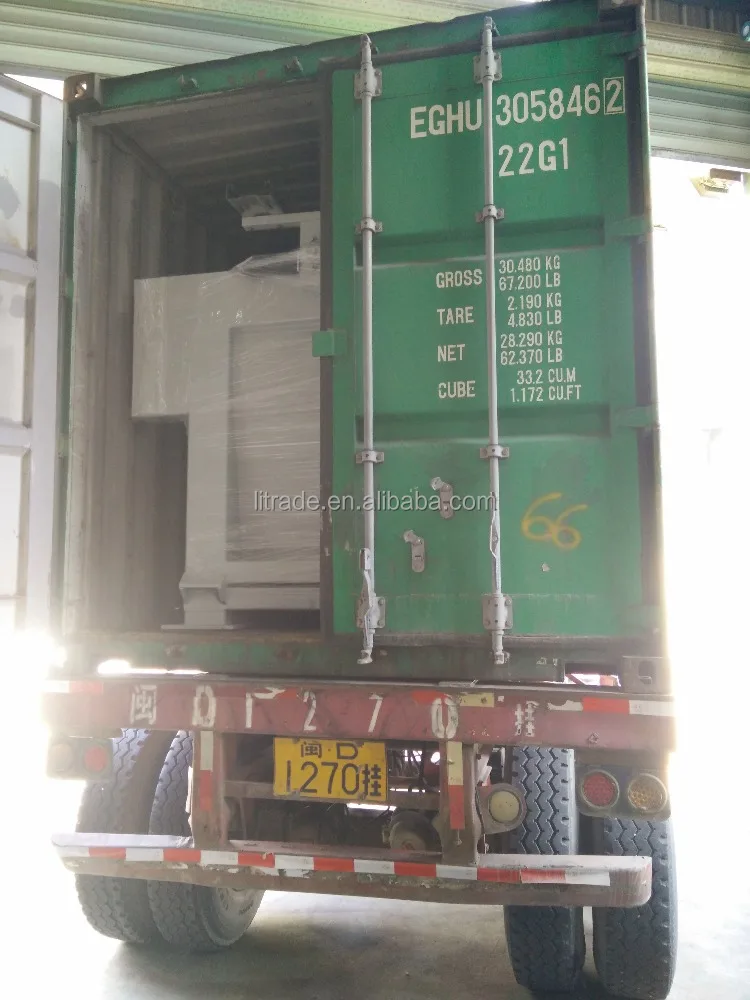

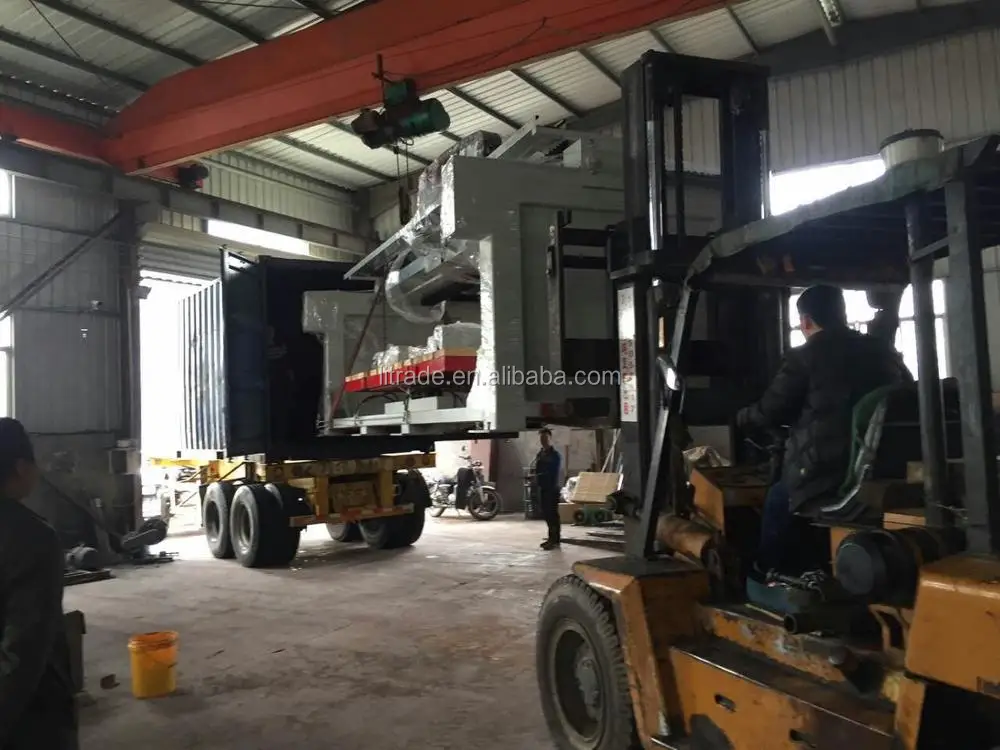

Loading photo:
