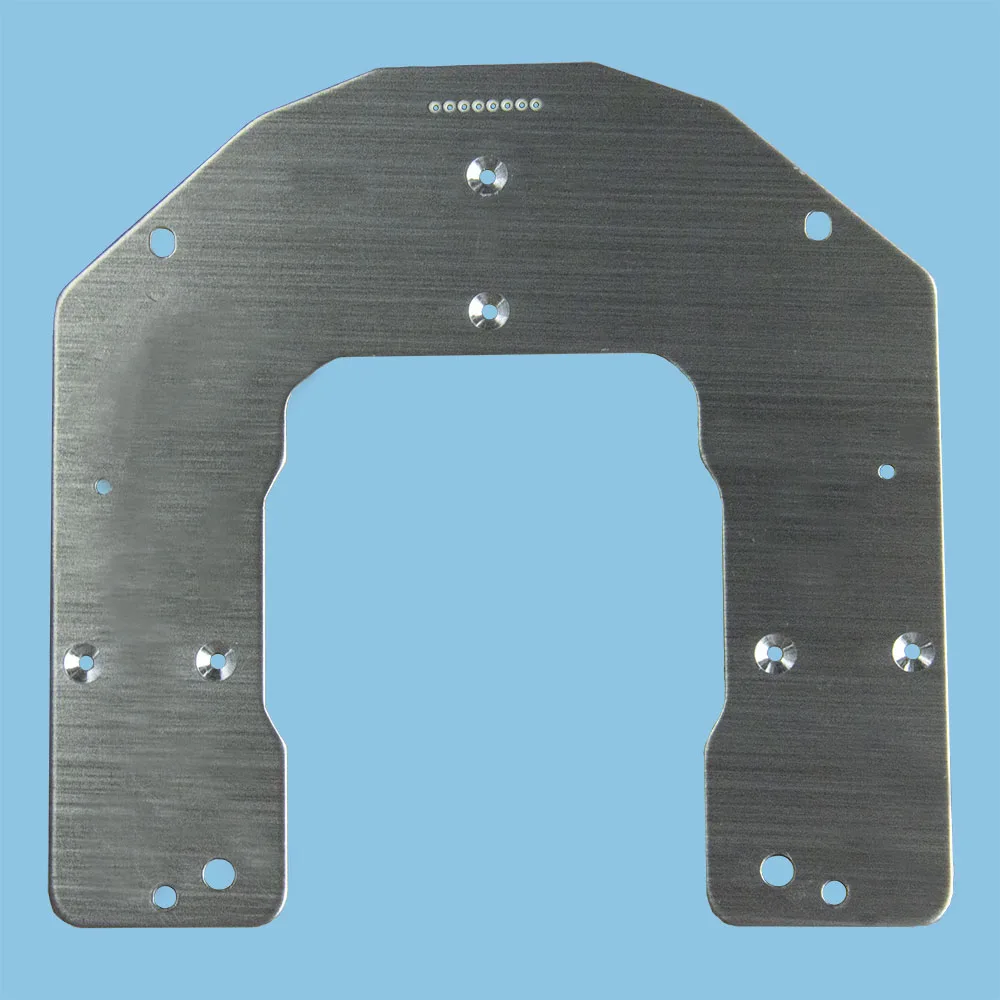

high bar led light aluminum pcb,mcpcb

Product Overview

Description

high bar led light aluminum pcb,mcpcb by China manufacturer

Aluminum(copper) MCPCB (printed circuit board) have high thermal conductivity of metal-based insulating electronic materials research and development, Our products are widely used in telecommunications, road light, led wall washer, led highbay light led down light, tube.

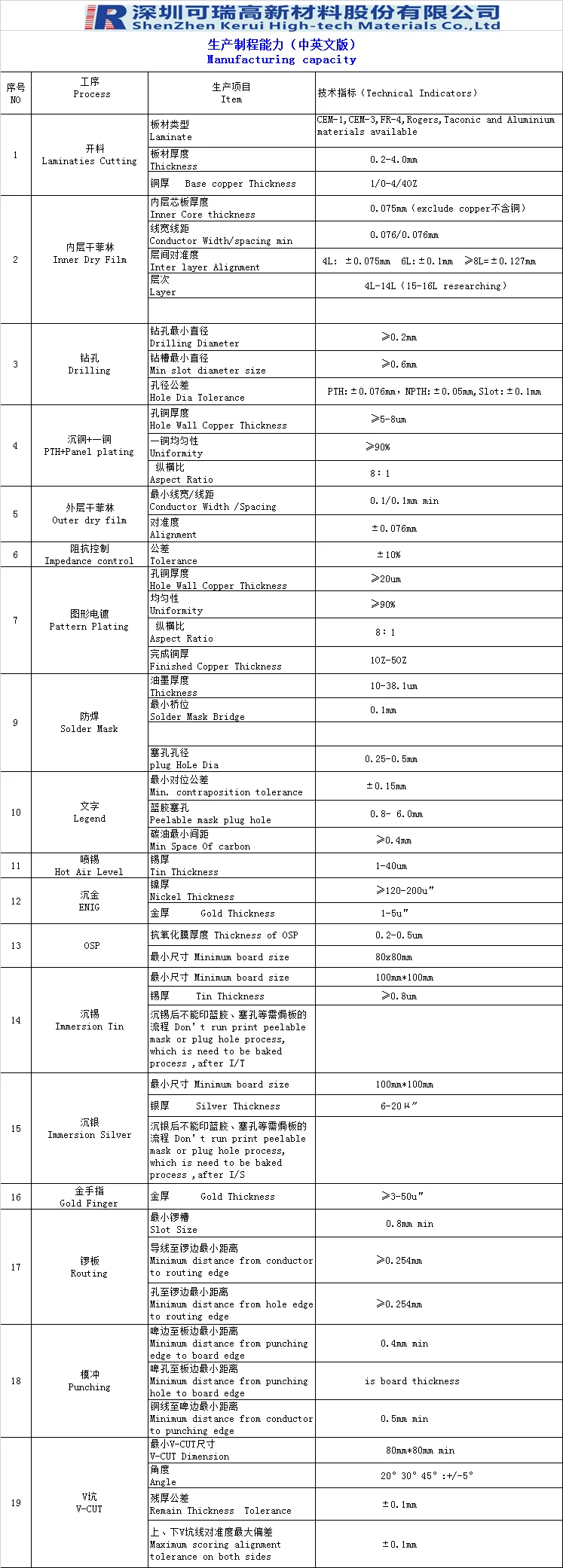

No.	Items	Index
1	Surface Treatment	HASL,Immersion gold,Flash gold, plated silver, OSP
2	Layer	Single-side, Double Side
3	PCB Thickness	0.6-5mm
4	Copper Foil Sickness	0.5-4Oz
5	Min hole diameter	T/2mm
6	Min Line width	0.15mm
7	Layers	1-4 layers
8	Max board size	585mm*1185mm
9	Min board size	3mm*10mm
10	Board thickness	0.4-6.0mm
11	Min space	0.127mm
12	PTH wall thickness	>0.025mm
13	V-cut	30/45/60 degree
14	V-cut size	5mm*1200mm
15	Min.bag pad	0.35mm





Offer: single sided mcpcb, double sided mcpcb, double layer mcpcb,bendable mcpcb, direct thermal exchange mcpcb, eutectic bonding flip -chip mcpcb. Our mcpcb is customized.

1.aluminum base pcb led light
2.aluminum substrate pcb
3.aluminum base copper-clad laminate pcb
4.aluminum base pcb

 1)material: FR-4, Copper, Aluminum based

2)layer: 1-4
3)copper thickness: 0.5oz, 1.0oz, 2oz, 3oz,  4oz
4)surface finish: HASL,  OSP, Immersion Gold, Immersion silver, Flash gold, Plated silver.
5)solder mask color: Green, black, white.
6)V-cut angle: 30, 45,60 degree
7)E-test voltage: 50-250V
8)Certificate: UL, ISO9001, RoHS ,SGS,CE

Experience

When it comes to your build you want a partner you can depend on. Our management team has roughly 20 years of combined industry knowledge. Our engineering team has over 15 years experience.





Quality

Our ISO/SGS/UL/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run, more than 30 engineers with professional skill will made sure we adhere to the highest quality standards.



Capable

Kerui offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce. Also Kerui have all kinds of machines to produce the products you ask. (The productivity are over ten thousand square meters per month)
