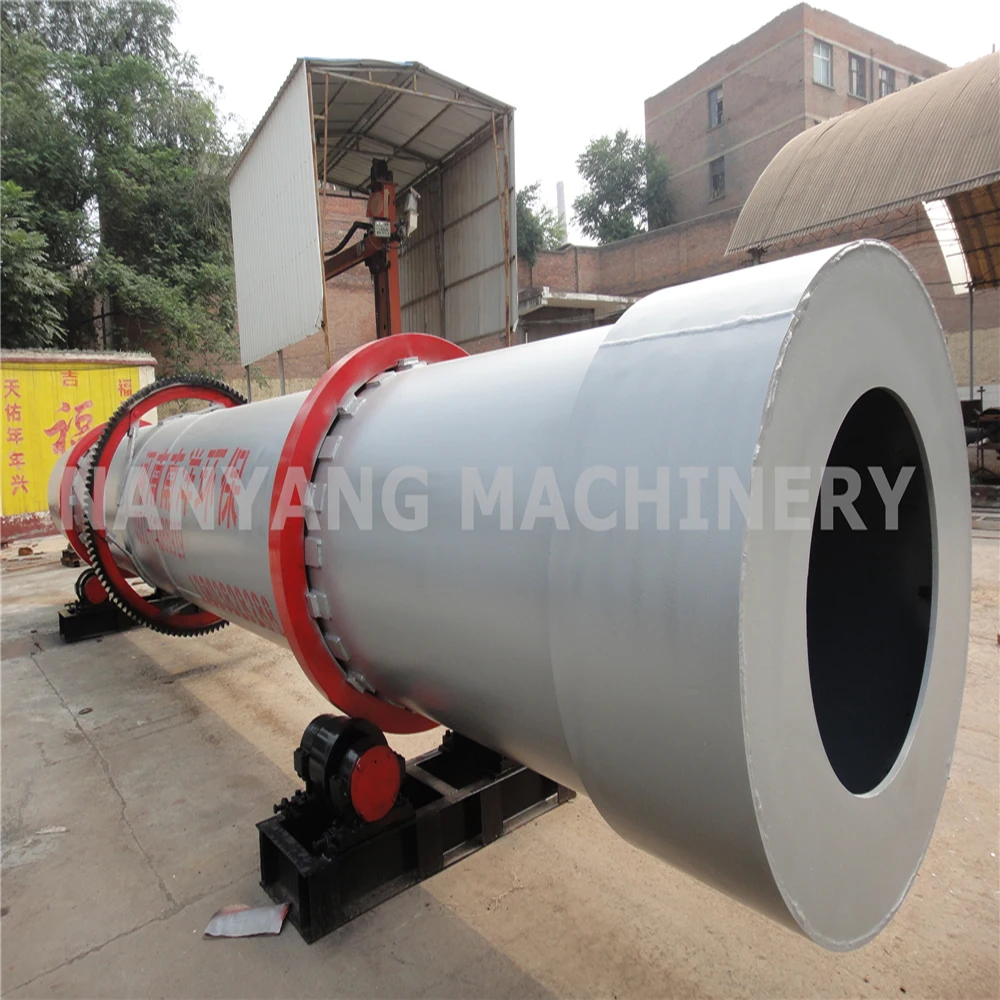

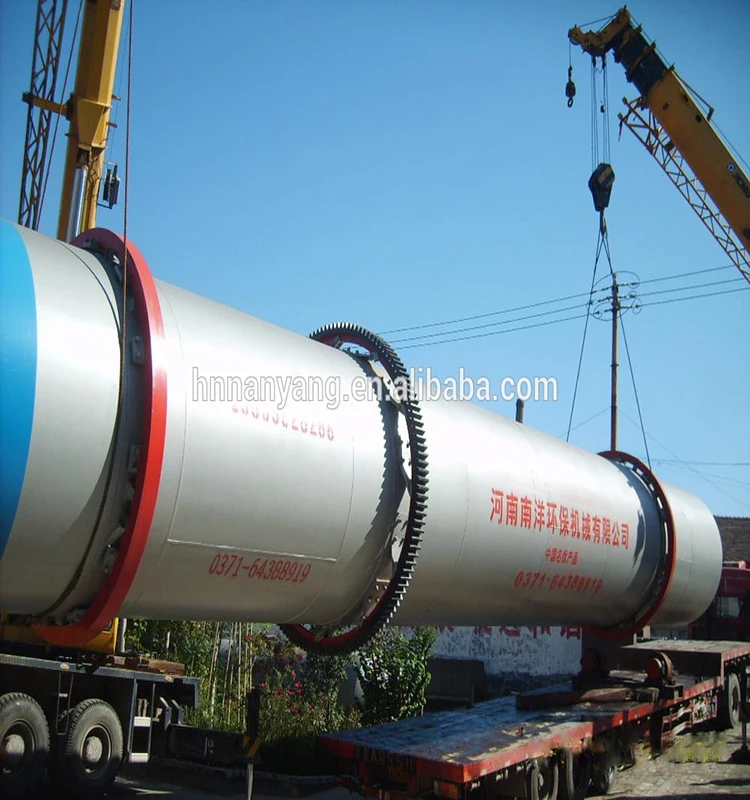

Rattler Drying Machine for Wood Chips/Sawdust/Wood Shaving
Advantages
1. Rattler Drying Machine equipped with biofuels stove, has a high degree of automation.
2. Better drying effect.
3. The Rattler Drying Machine equipped with fireproofing, the production is very safe.
4. High output and low cost.
5. High drying mechanization degree, can work continuously.

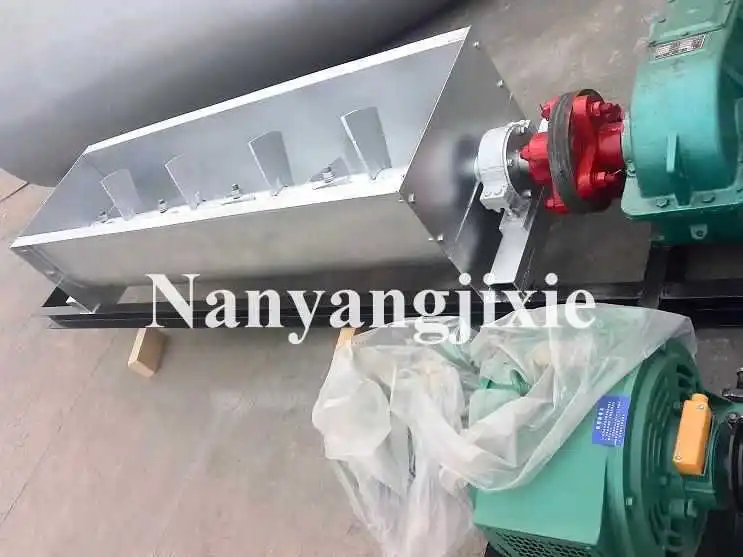

(screw feeder)

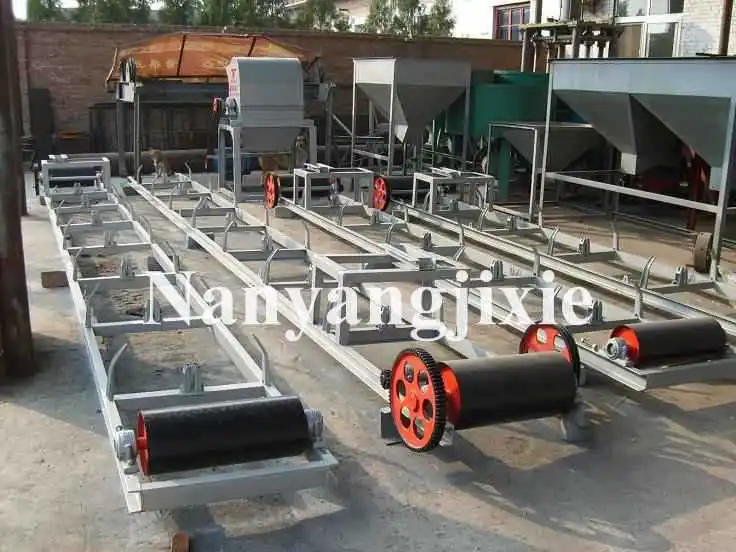

( Belt conveyor )
With the wood is becoming more scarce and expensive.Wood chips is more important in our life. The wood chips can be used to wood products and biofuels. But the wood chips must be dried before used. Nanyang company Developed the wood chips dryeraccording to this Requirement. Sawdust dryer widely used in straw press briquettes fuel, charcoal machinery, wood chip granule fuel, sawdust press blocks, farming and animal husbandry engineering industry. Such as corn straw drying, soybean straw drying, cotton straw drying, wheat straw drying, sorghum straw drying, wood chips drying, wood shaving drying, sawdust drying, ginkgo leaf drying, mulberry leaves drying and the agricultural cellulosic-based material’s drying. etc.
(Wood chips)

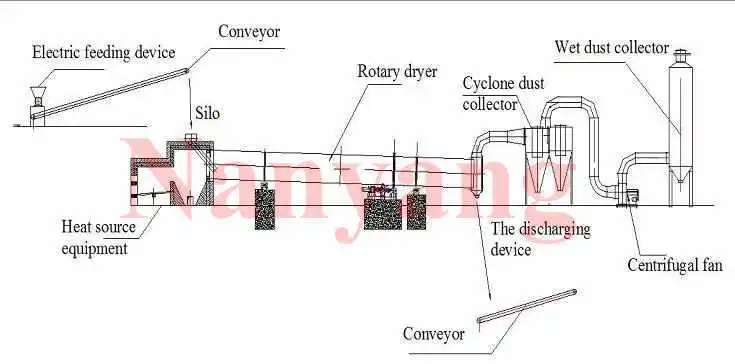

Basic structure of Rattler Drying Machine
Wood chips drier mainly consists of rotary drum dryer, induced air equipment, high-speed scattered equipment, feed plate,cleaning device, conveying equipment, heat source equipment, electric motor and reducer, supporting device and sealing device, dust-removing equipment, electronic control system and other parts.

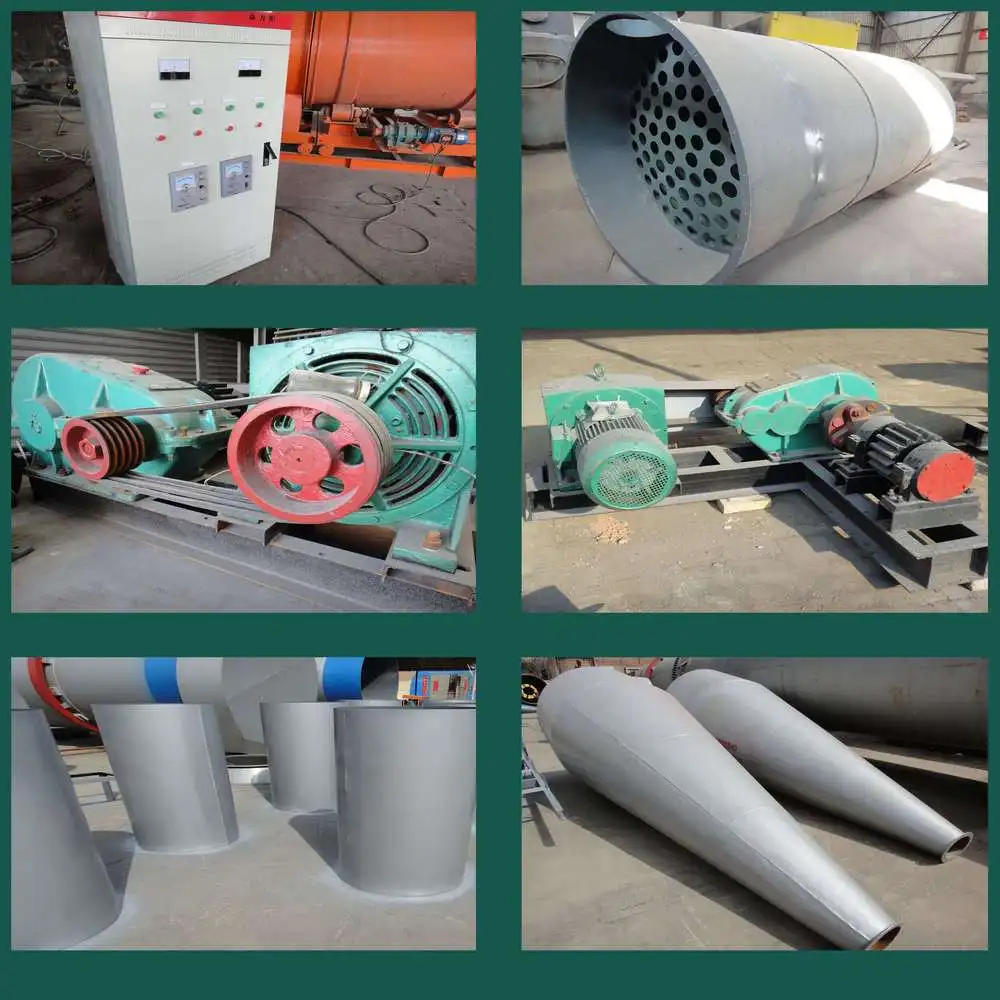

Equipment structure

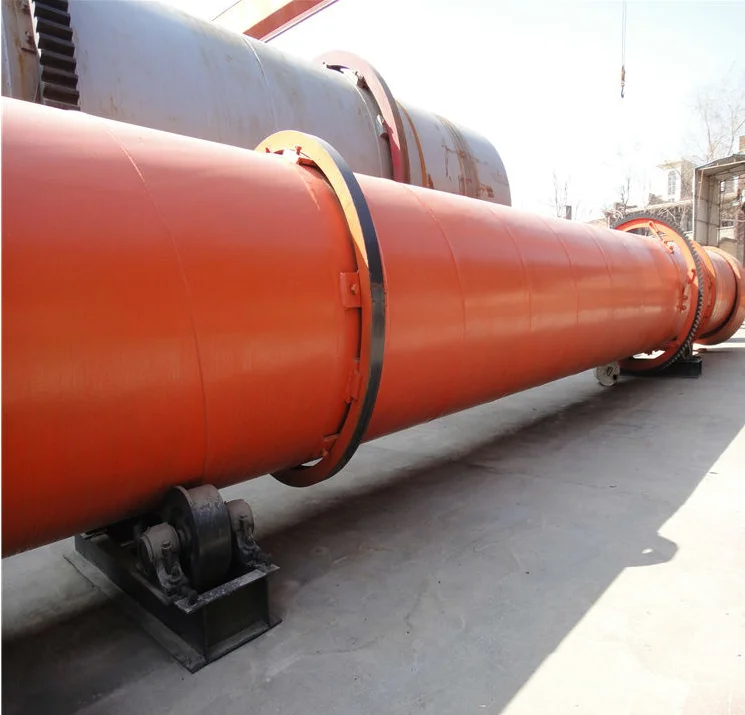

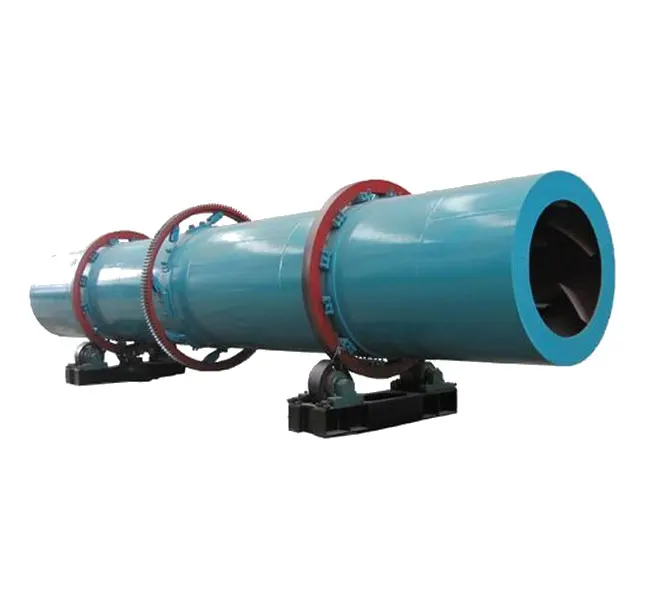

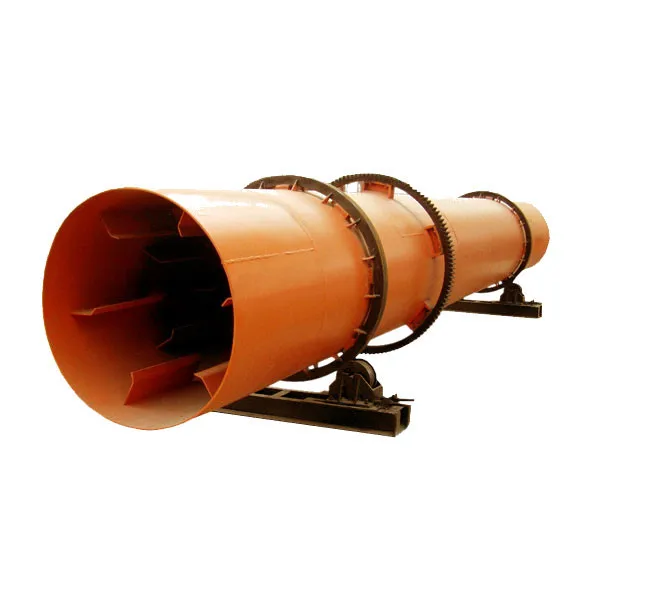

( Drying cylinder )

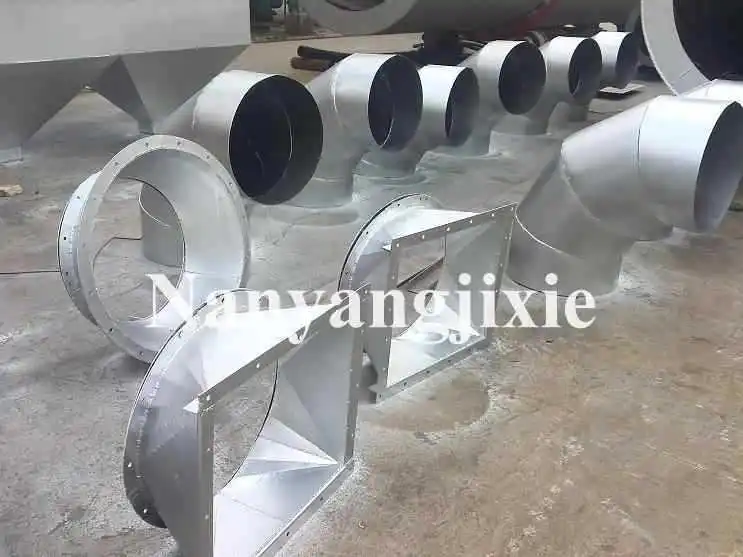

( The pipe )

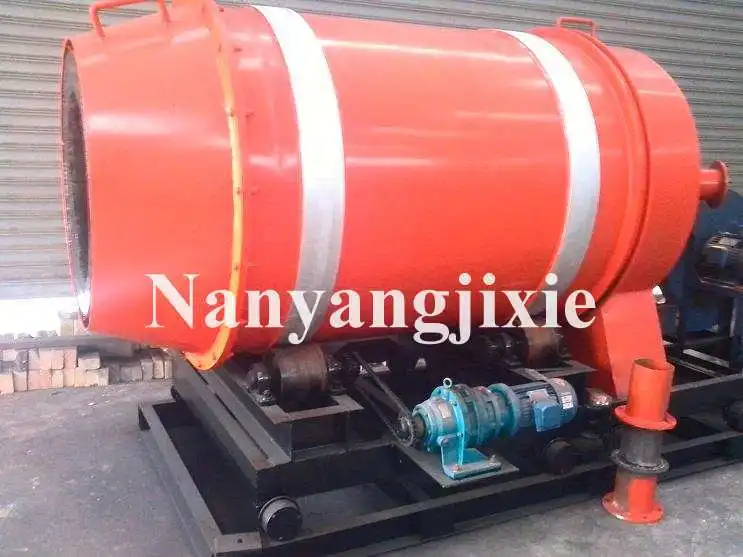

(Coal dust furnace)

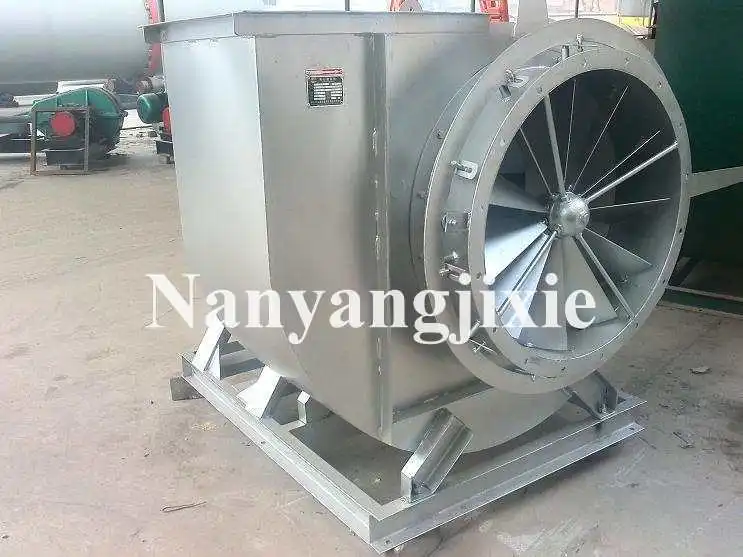

(Centrifugal fan)
Technical parameters
Model
Processing power(t/h)
The host power (kw)
Speed(r/min)
Reducer
Weight(t)
Φ0.6×8 m
1.5-2.8
4
8
JZQ 250-16-Ⅰ
5.1
Φ0.8×10 m
3.0
4
7.5
JZQ 350-16-Ⅰ
6.9
Φ10×10 m
3.3-4.9
5.5
5.8
JZQ 400-16-Ⅰ
7.5
Φ1.2×10 m
4-6
7.5
4.8
ZL 50-16-Ⅰ
13.5
Φ1.5×12 m
4-6
10
4.8
JZQ 500-Ⅲ-2F
18.9
Φ1.5×15 m
7-12
18.5
4.8
ZQ 500-Ⅲ-2F
21
Our Services
1). If any interest in our machine, please feel free to contact me and let me know your requirement on capacity and material size.
2). We are professional machine manufacturer, we will help to choose the most suitable machine for you.
3). Whole plant design and drawings are free after ordering.
4). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
5). If you need, we will dispatch professional engineer for installation, trail and worker training.
Company Information
Our company depend on experience advantages and technological innovation ideas,we make research on new type and high efficiency rotary dryers, vertical dryers, multiplexing drum dryers, i ndirect dryers for high humidity and viscosity materials such as raw coal, coal slime, lignite, sludge, waste, fly ash, gypsum, manure, lees, mine slime, etc. and matching equipments such as forming machines, grinding machines, and milling machines, etc. on the basis of years of designing, Researching, developing and producing various types of dryers. Our product won the "Chinese famous brand", "Chinese famous quality products", Our Product exported to Indonesia, Russia, Syria, Vietnam, north Korea, Egypt, azerbaijan and other countries, which have received a lot of praises of our users .
Our team
Nanyang Machinery Factory has a professional installation team, who are industrious, brave and hard learning in the aspect of innovation. So far, they have successfully completed the installation and debugging tasks for tens of thousands of large and small projects. In addition, Nanyang Machinery Factory installation team can also help our customers to train their staff until they can be independent on operating machine.We hereby promise that we will provide first-class products and first-class service to our customers.
FAQ
1. Question:How long can you guarantee your products and their parts?
Answer : We promise to repair, change or withdraw our products and their parts for free within a year if their are some quality issues. After one year, wo also can provide technical and other supports during the whole life of our products whenever you need.
2. Question: How to prove the strength of your company ?
Answer : We have accumulated nearly three decades of experience in production and sales,which helps us to through a number of national certifications and occupy so many markets that not only domestic but also international.
3. Question: What's your biggest advantage?
Answer : Obviously, it is professional and dedicated.
