jr 1600b 1 Horizontal glass washing & drying machine building glass processing machine

Juren Glass Washing and Drying Machine For Small Glass Mirror

Main Feature:

1. Main technical parameters  JR-QX-450 glass washing and drying machine, used for cleaning and drying of flat glass; Cleaning thickness 2mm-18mm, Cleaning speed 2-5m/min, The maximum cleaning width reaches 0.45 meters;

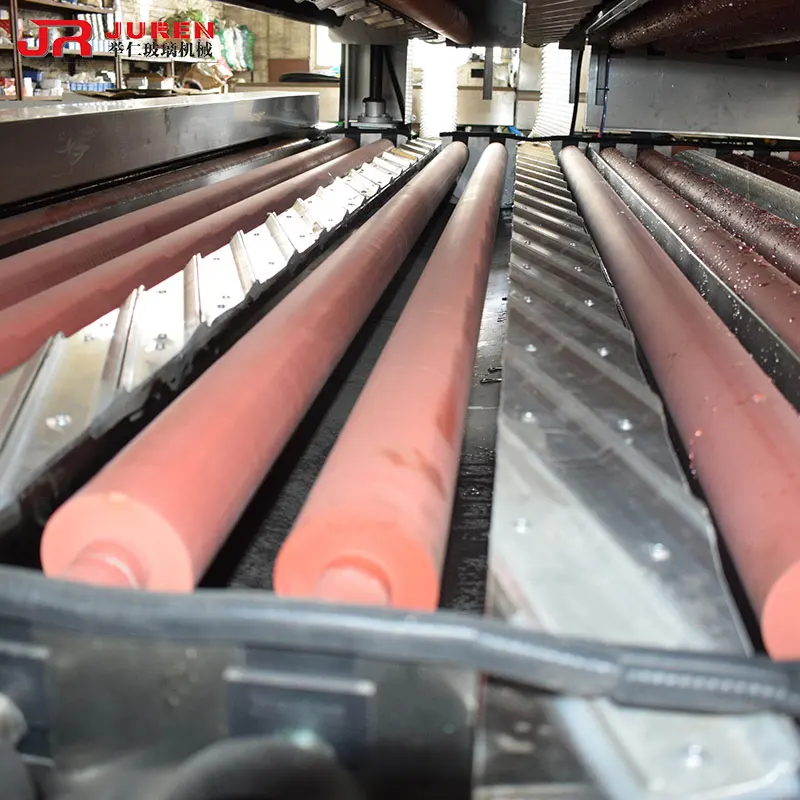

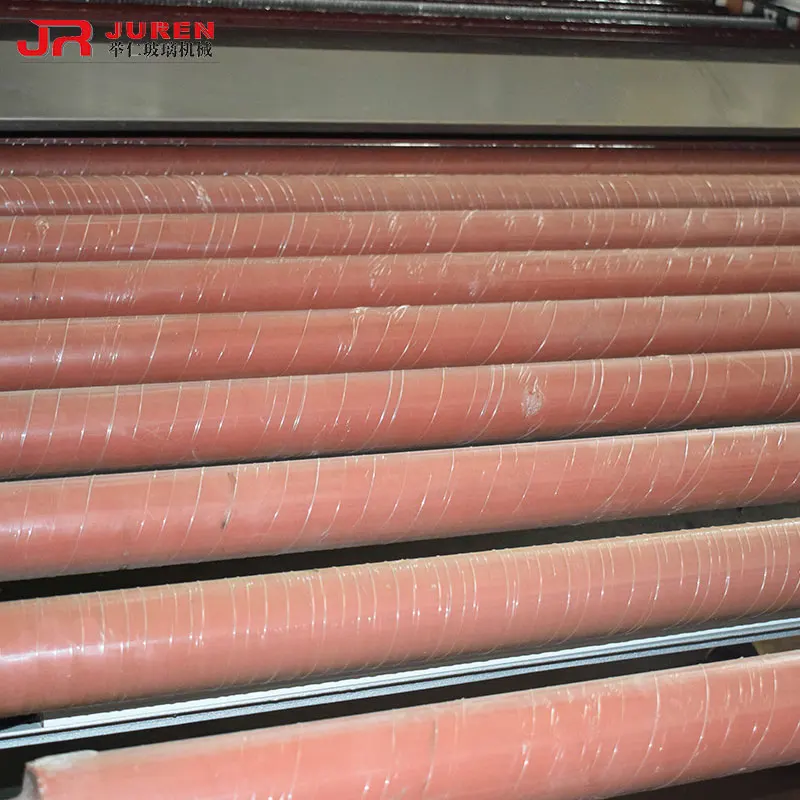

2. Dimensions: 3000mm * 800mm * 1100mm (length * width * height); Red rubber roller

3. Glass size: Minimum cleaning: 38mm*38 mm; Maximum cleaning: 450mm wide, unlimited length; Cleaning speed: 2mm ~ 20mm (adjustable);

4. Cleaning room: Clean in two stages. The first paragraph uses two sets of brushes and three sets of sponges to absorb water. The second stage cleans three sets of brushes and four sets of sponges better result

5. Drying box: Six heating tubes, digital display thermostat;

6. Cleaning speed: Stepless speed regulating motor, 2-5 meters per minute;

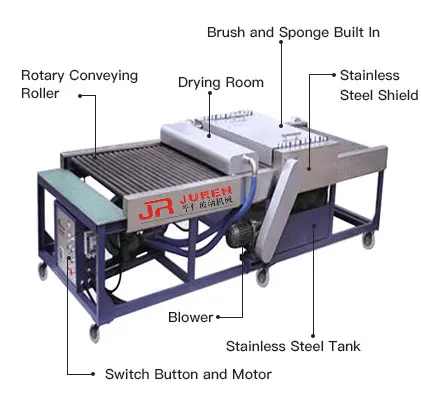

7.Machine structure: The mechanical structure is composed of feeding section, cleaning section and discharging end .

8. Voltage and power: 380V voltage; Maximum power: 12 kilowatts;

9. Preparation before cleaning glass: Turn on the water pump, open the spray valve of the sponge roller, turn the spray pipe to adjust the spray angle, wait for the sponge roller to soften, and finally turn off the spray switch of the sponge roller

10. Startup and shutdown sequence: Turn on: drive on → fan on → water pump on → temperature control on → glass cleaning Shutdown: temperature control off → water pump off → transmission off → wind machine → power off;

11. Maintenance and maintenance: Add oil at once to the chain and gear every six months;

12. Matters needing attention:   1•Adjust the cleaning speed, which must be adjusted when the machine rotates;   2•The water is dirty, clean and change frequently; 3•When shutting down, after the temperature control is turned off,the fan can only be turned off after running for at least 1 minute; 4•If the machine is not used for a long time, please confirm that the sponge stick must be in a soft state before turning on the power to open the drive
