Автоматический винт крепления крепежный винт установка машины SGJ 01

Product Overview

Description

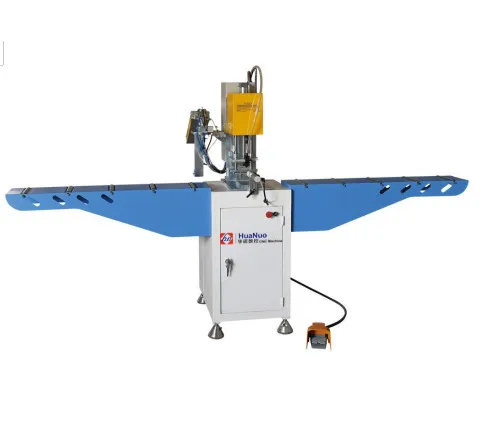

Automatic Screw Fastening Machine / Screw Installing Machine SGJ-01



Function:

it can finish the fixing and jointing of the profile and the steel liner for the PVC window door production.



Advantages:

• It can finish the fixing and jointing of the profile and the steel liner, and it no need to drill the holes, and it can install 2-4 pieces screws at one time.


• Strong torque design strong adaptability


• Automatically installing screw device, easy to operate


• The distance of the screws can be adjusted according to the needs


• High efficiency, it can save more workers, and save cost

Parameters:

Power supply:	220v 50hz
Power rate:	150w
Height:	30-120mm
Profile depth:	32mm
Screw diameter:	3.5~4.5mm(diameter), 13-26mm (length)
Screwdriver diameter:	6.35X110mm
Error rate:	2-5%
Locating distance:	100mm
Screw distance:	250-380mm
Steel Reinforcement thickness:	1-2mm
