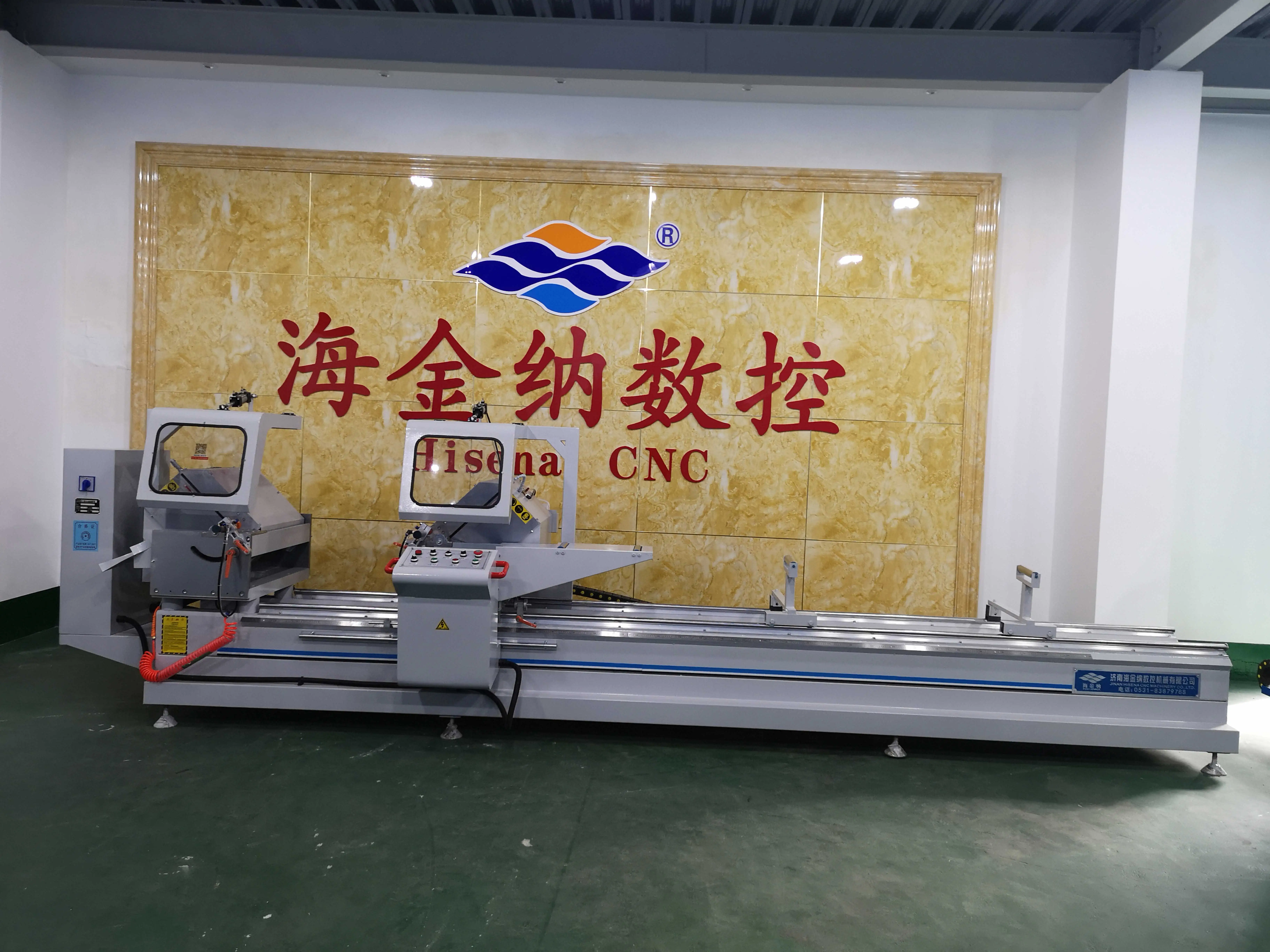

Aluminum angle cutting machine window saw cutting of aluminum and price

Share on (62401848707):


Price:$4,852.00 - $6,726.00

Quantity:


Product Overview

Description

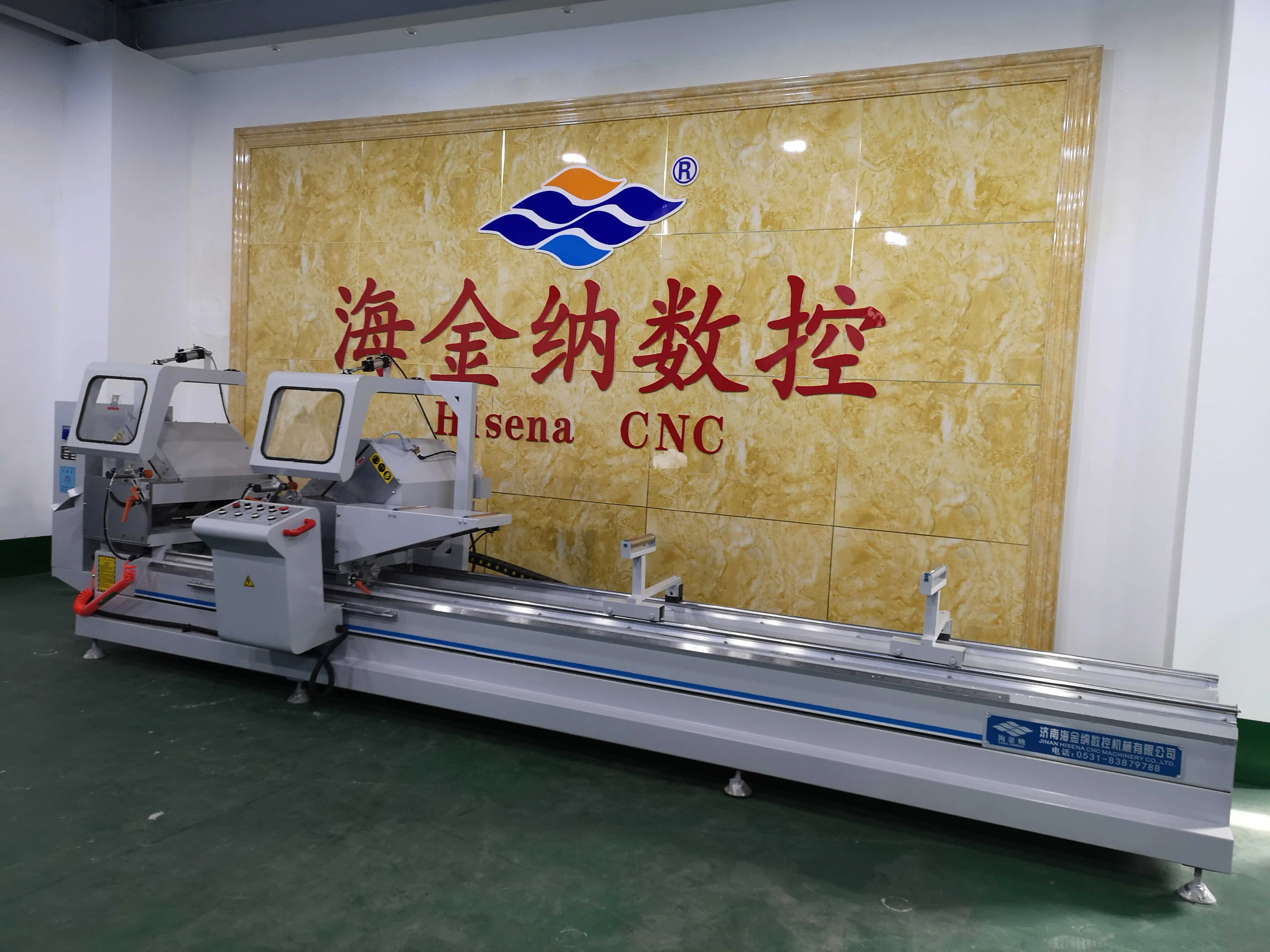

Aluminum angle cutting machine window saw cutting of aluminum and price

Product Description

 Main Features

1. Used for cutting aluminum alloy profile
2. Feeding system adopts imported linear guide pair, with high accuracy and long service life.
3. The heads can automatically flip ±45° and 90°.
4. Saw blade rotate smoothly due to high accuracy main spindle.
5. Imported carbide saw blade give accurate processing and high endurance.
6. Imported linear bearing motion pair ensured steady processing accuracy.
7. Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
8. Auto-opening guard shield ensured safety operation.



Main parameter

Power supply

380V 50Hz

Cutting W x H

120x200  mm

Main motor power:

2*1.5kw

Repeat locating length

≤0.2mm

Input power

3kw

Angle cutting tolerance

±5′

Air pressure

0.4-0 .6 M pa

Plane of cutting surface

≤0.10

Air consumption

200L /min

Cutting profile surface roughness

Ra12.5um

Main motor rotation speed:

3000rpm.

Size: (width × high × long)

4500mm × 1170mm × 1400mm

Max/min Cutting length

3700-450mm

Weight:

1000Kg

Saw blade dimension:

φ450× φ30

Cutting angle:

-45 ° /90 ° /+45 °

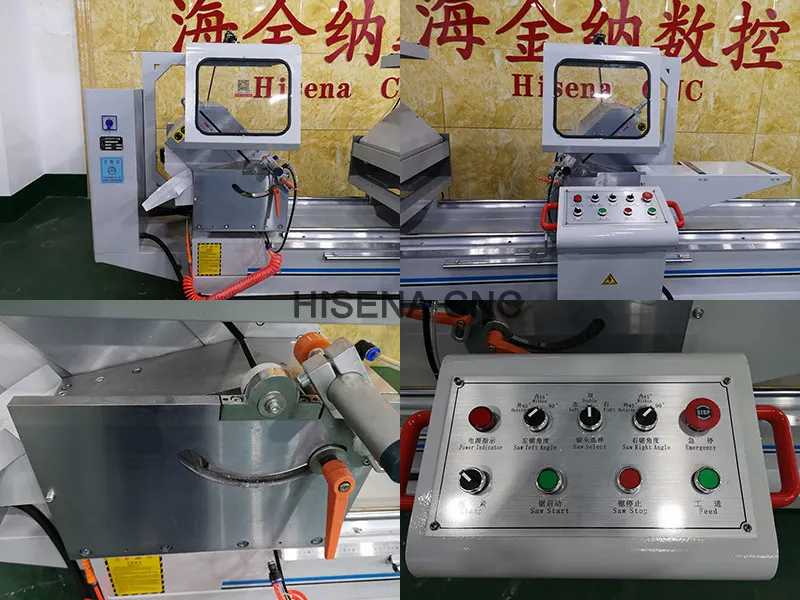

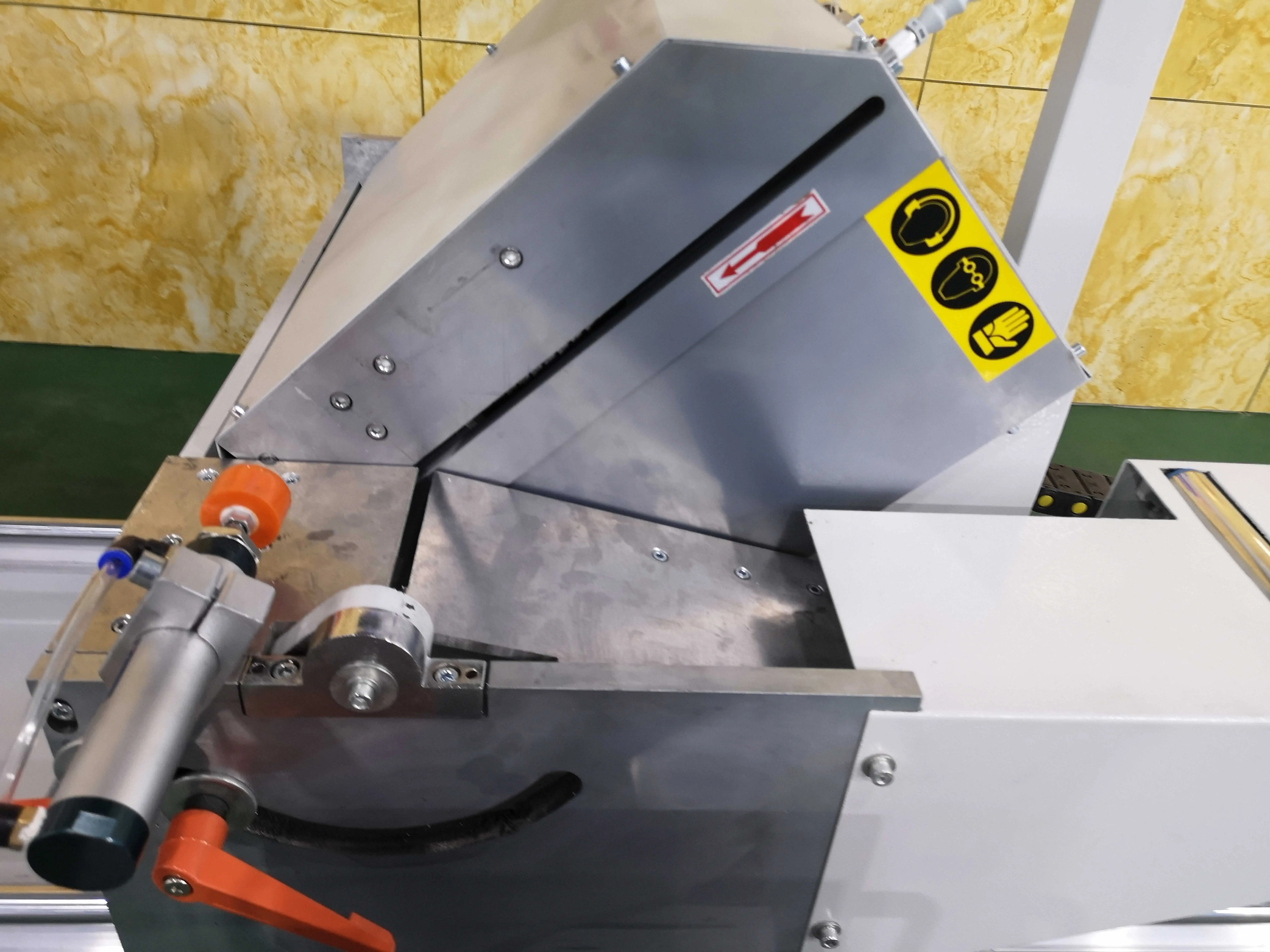

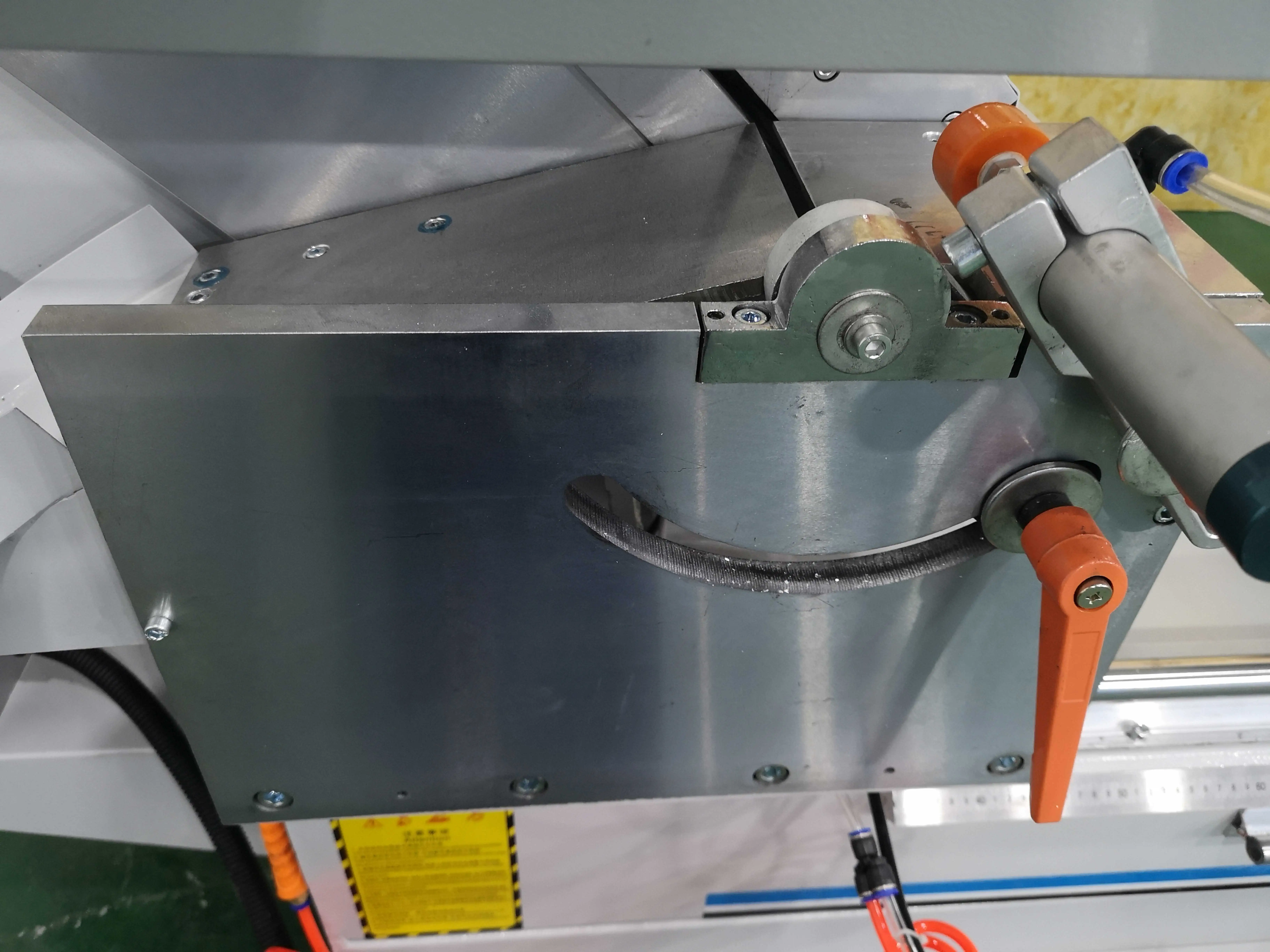

Detailed Images



FAQ



1.Are you a factory or trading company?
We are a factory that has more than 10 years online sales experiences
2.Where is your factory located? How can I visit there?

Our factory is located in Jinan City, shandong Province, China .You can fly to Jinan international airport directly.we will pick you up. All our clients, from home or abroad, are warmly welcome to our company.
3.How do you regard quality control?
A:Quality is the most important. Hisena CNC machinery always attach great importance to quality control from the every beginning to the every end.
5.How to order?
A:please send us your purchase order and requirement in Alibaba.com,or by email, fax or can contact us on skype anytime .we need to know following information for your order .
a):product information, about quantity ,size and color as u requirement
b):delievery time



Packaging & Shipping

 we following the packing request from customers, and try to prevent any damage for the machine.

_20190419110529

loading goods (2).jpgloading goods (9).jpg

Customers visiting

 Testing machines for customer:



Visit



closed order in our office:





travel with our sales team:

Our company



Hisena CNC machinery is trying to be the most professional on window-door making and related machines, after more than 10 years' development in designing and manufacturing, our products reach to the top quality with traceable quality control system and perfect after-sale service.

And now, Hisena are becoming the expert for window and door making solution and manufactuer of all kinds of machinery, help wind-door factory improve their business.

We welcome your inquiry and visit to us!!

_15

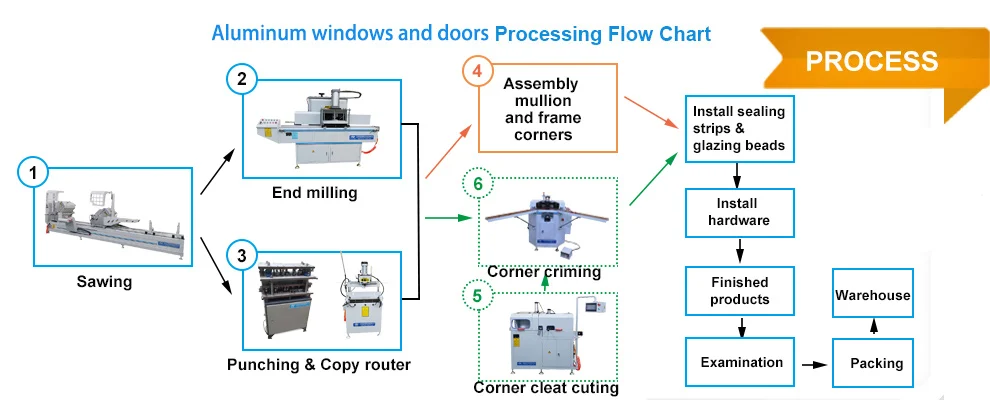

Main Process
