BXJ IP66 alibaba огнестойкая электрическая распределительная коробка с сертификатом ATEX
- Category: Power Distribution Equipment >>>
- Supplier: Feipu Explosion Proof Electric Co. Ltd.
Share on (60710367181):
Product Overview
Description
BXJ IP66 alibaba flame-proof electric junction box with ATEX certified
Product Description
1. Can be used in hazardous areas: Zone 1 and Zone 2 .
2. Can be used in explosive gas atmospheres of Category IIA, II B and II C where the temperature classification is T1-T6.
3. Hazardous zone : 20. 21. and 22
4. Flammable dust atmosphere.
5. widely used in the fields of oil, chemical industry , spaceflight ,war industry and so on.
Rated Voltage | Cable diameter | Inlet thread | enclosure material | Ex-mark | Degree of protection | Erosionproofclass | Size of the enclosures (mm) |
AC380v | 10-70mm | NPT3/4-NPT3,M20*1.5-M75*1.5 | aluminum alloy | ExdIIB+H2T6Gb ExtD A21 IP66/IP67 T80 | IP54,IP65 | WF1,WF2 | 250*200*170 300*200*170 350*200*170 350*300*200 450*350*208 450*350*280 560*400*205 560*400*280 634*434*265 634*434*335 720*560*275 720*560*345 |
Product Details

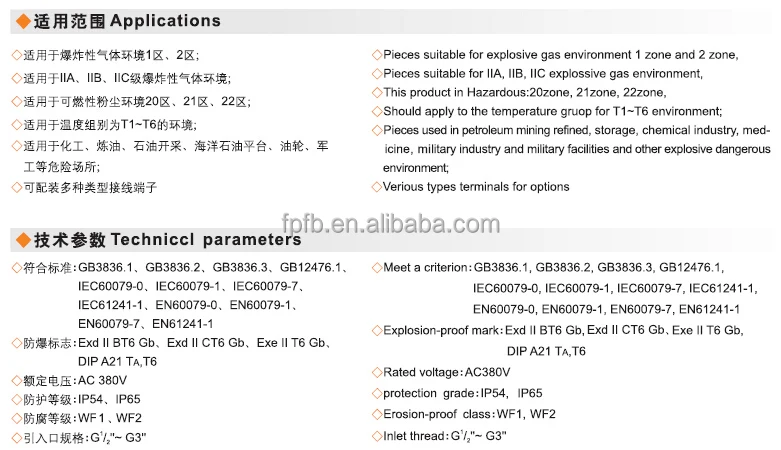

APPlications:
- Suitable for explosive gas environment Zone1 and Zone2.
- Suitable for IIA,IIB,IIC explosive gas environment.
- Suitable for Hazarous dust area: Zone20, Zone21, Zone22.
- Can be used in the environment of temperature group for T1~T6.
- Various types terminals for options.
- Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.
Techinical parameters:
- Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB12476.1,IEC60079-0, IEC60079-1, IEC60079-7, IEC61241-1, EN60079-0, EN60079-1, EN60079-7, EN61241-1
- Ex-proof Mark:ExdIIB+H2T6Gb ExtD A21 IP66/IP67 T80
- Rated voltage: AC380V
- Protection grade: IP66/IP67
- Corrosion-proof grade:WF1
- Inlet Thread: NPT3/4-NPT3,M20*1.5-M75*1.5

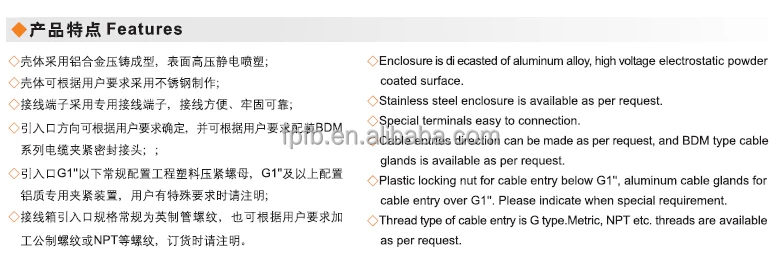

Product Features:
- Steel Enclosure,high-pressure electrostatic powder coated after shot plastic.
- Stainless steel enclosure can be available on clients' request.
- Exclusive terminals, easy to connection.
- Cable entries direction can be made as per request, BDM type cable glands are available on request.
- Plastic locking nut for cable entry below G1", aluminum cable glands for cable entry over G1". Please indicate If special requirements.
- G type Cable entry thread, also Metric, NPT etc. threads are available If request.
- Dimensions of Boxes can be customized.

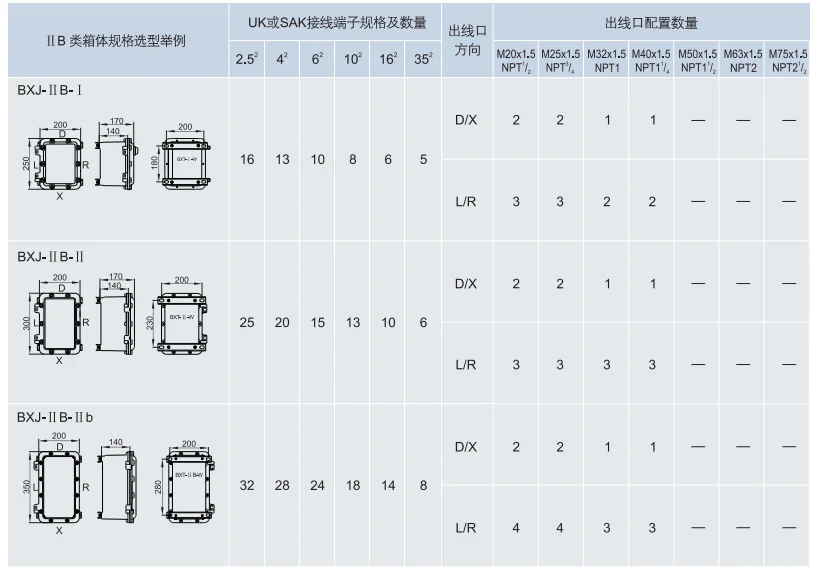

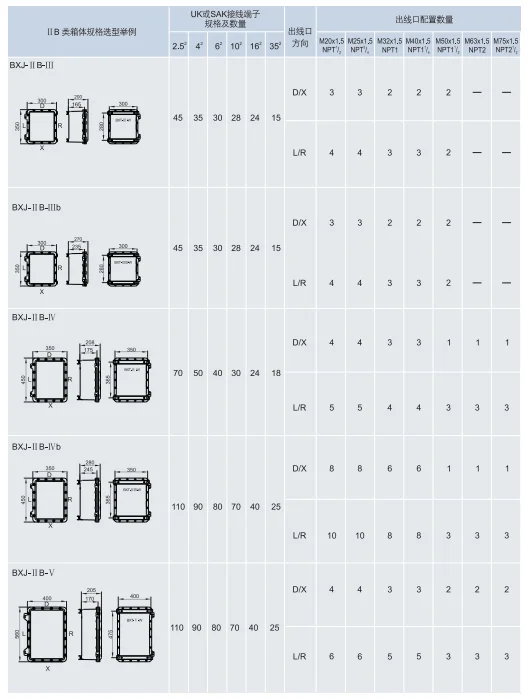

Dimension specifications:

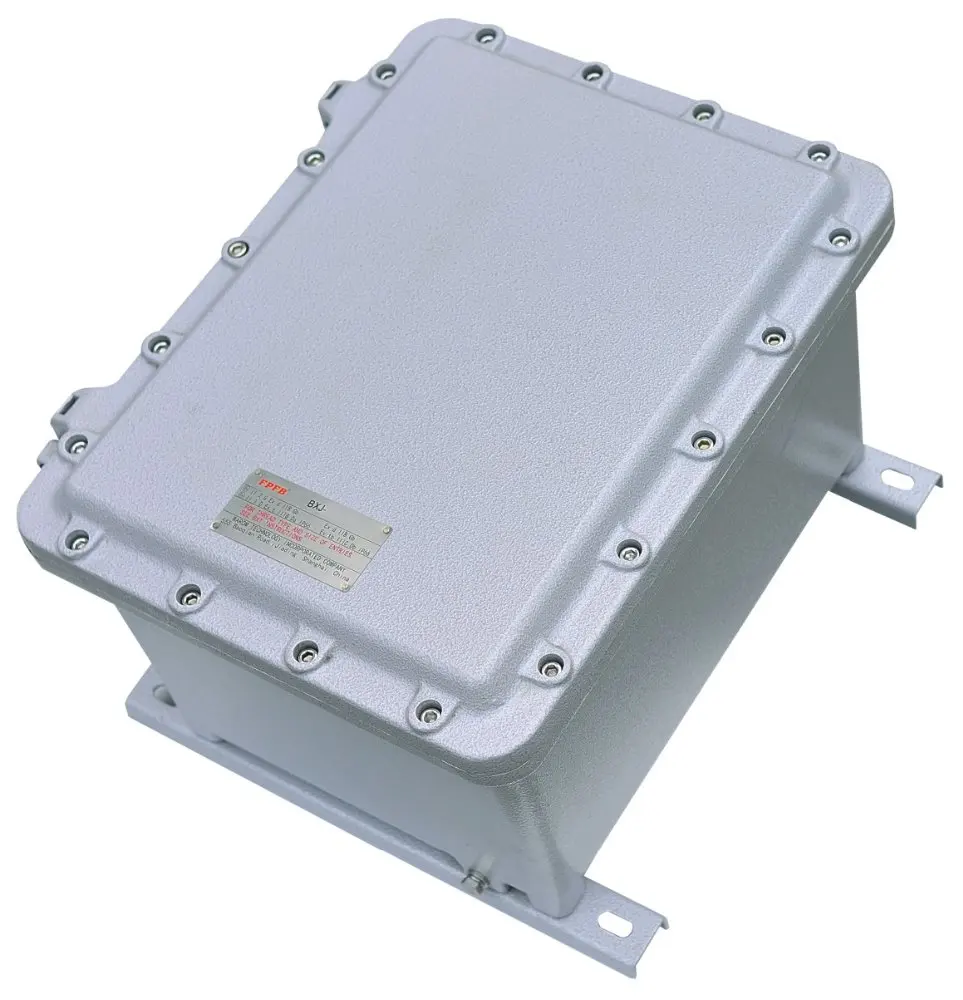

Disaplaying of the sample:
Company Information
Feipu Explosion-proof Electric Co., Ltd. is an advanced electrical solution provider for hazardous areas of zone1, zone 2, and zone 20, zone 21, zone 22.
We have wide range explosion proof products of lamp & light fixtures, electrical equipments, and box & fittings. And excellent company crew of R&D, marketing and artificers that has abundant experience in both Chinese domestic market and overseas markets.
Our products and projects occur in various occasions of petroleum, chemical, military and workshop across the world.
We care the most of quality and stability of our products, as well as efficient communication and positive service to our customers and partners.
Our Services
Dear Customers,
Welcome to visit FPFB online marketing display.
To serve you in a better and efficient way, please browse our products and contact us with following information.
1. Where is the occasion products will be used, petroleum refinery, chemical factory or industrial workshop?
2. What is the purpose from products? Routine illumination, field illumination, platform lighting, emergency or portable.
3. Your preference on light source, power and installation methods etc.
We will offer our best products and prices according to your actual demand.
Sincerely yours,
FPFB sales team.
FAQ
1. What is our advantage in the industry?
Our main advantage is high performance price ratio of our products, and positive service to our customers and partners.
Our products are not the top grade of quality in the industry, and our prices are not the lowest as well, but the performance price ratio of our products is outstanding.
2. What is our sales and distribution policy?
We welcome all kinds of business cooperation methods, including region distributors, new market agencies, project & bid buyers, and end user procurement.
3. Do you have warranty policy?
We offer at least 2 year-warranty for our products, longer warranty for certian products, and full lifespan aftersales service.
Packaging & Shipping
1. Standard export packing or customized packing available.
2. Shipping arrangement according to buyers request.
