arff fire fighting truck from renult branches
US $70000-$100000

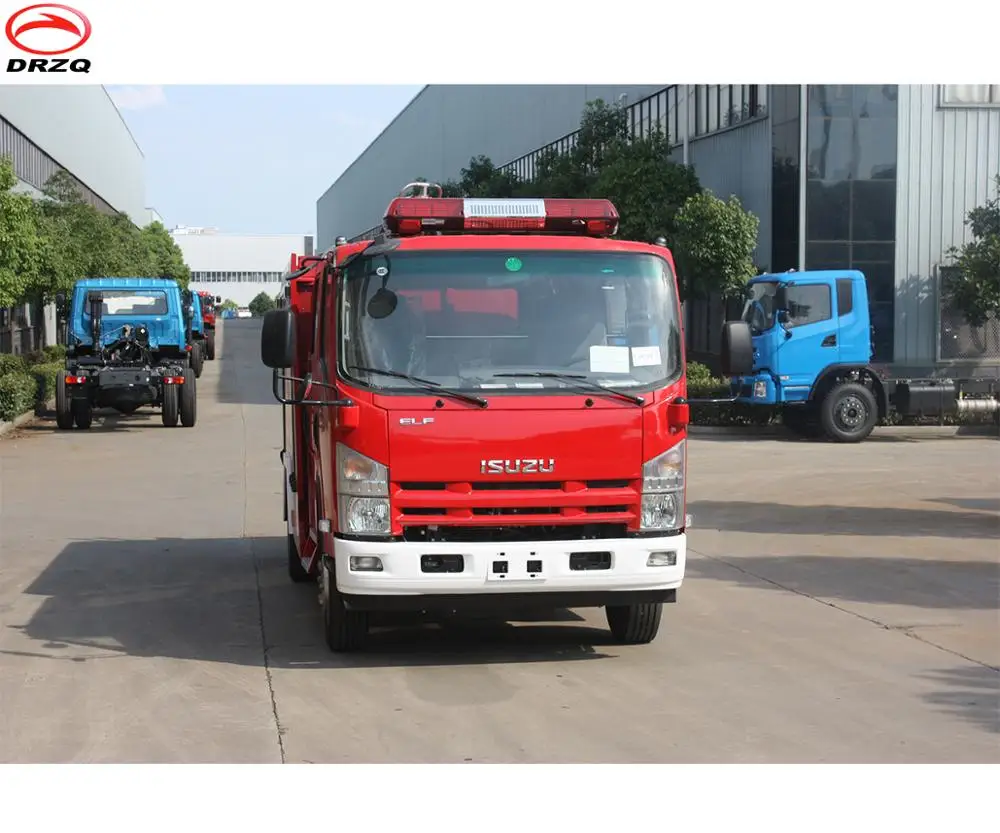

Famous Japan brand 3Tons small capacity Foam Fire Fighting Truck
- Category: Fire Trucks >>>
- Supplier: Hubei Xindongri Special Vehicle Co. Ltd.
Share on (60710985371):
Product Overview
Description
TRUCK MODELS
TRUCK MODELS

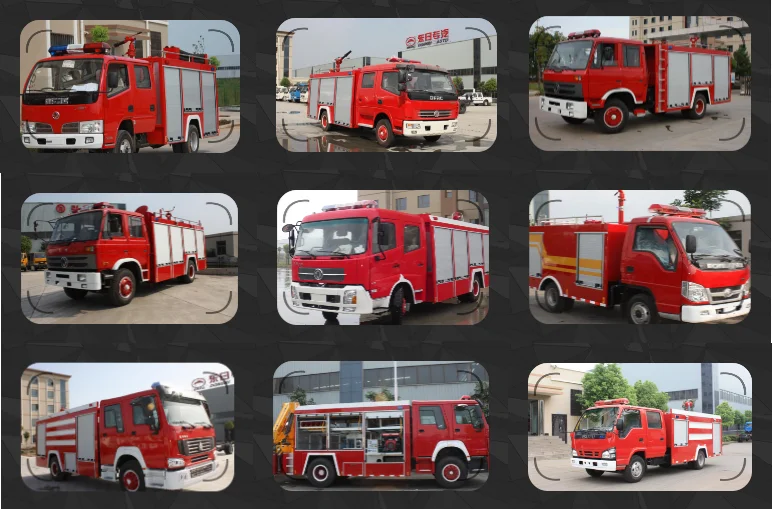

FIRE FIGHTING TRUCK MODELS

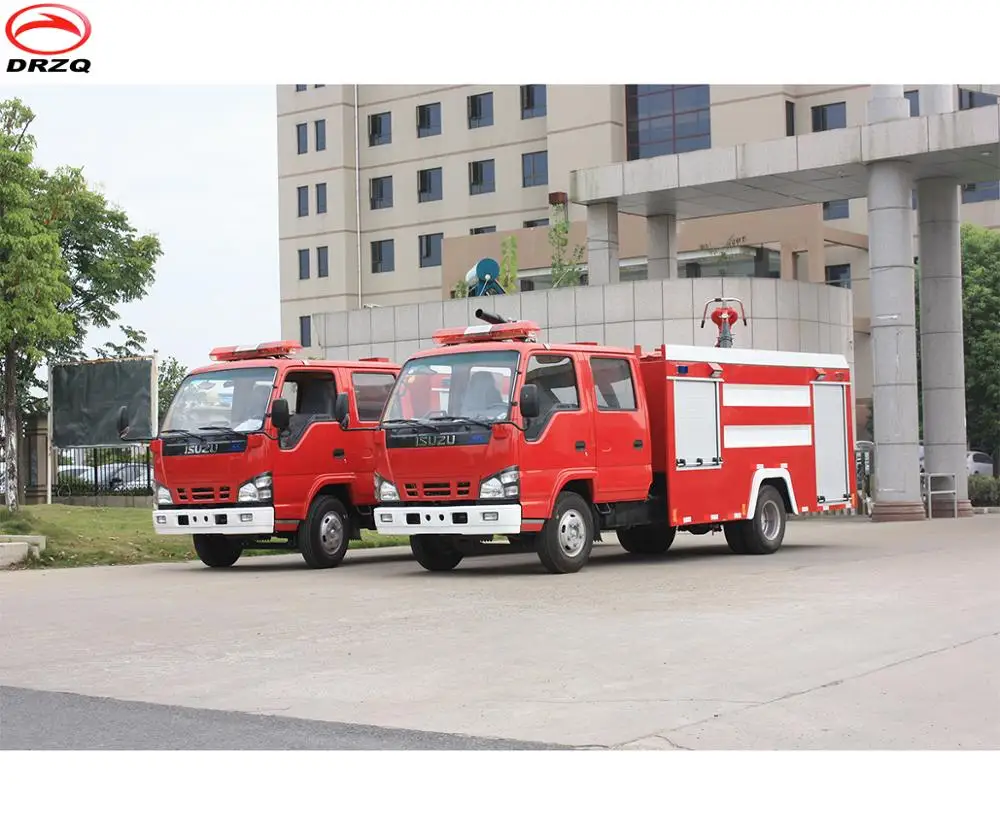

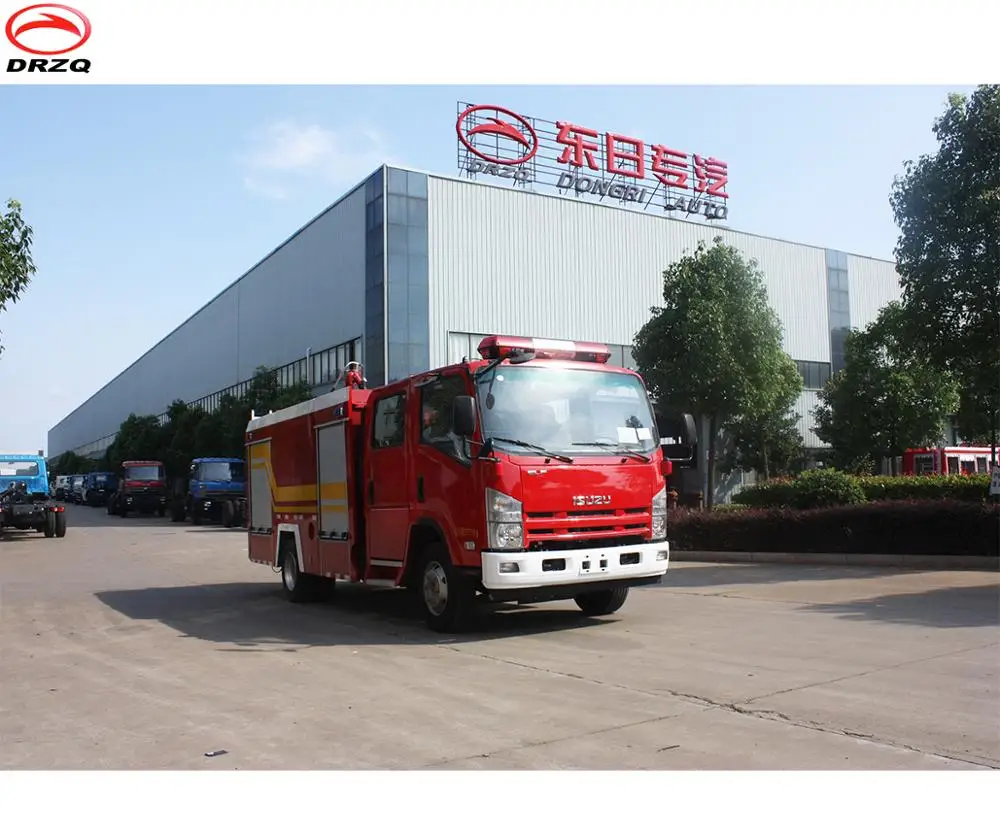

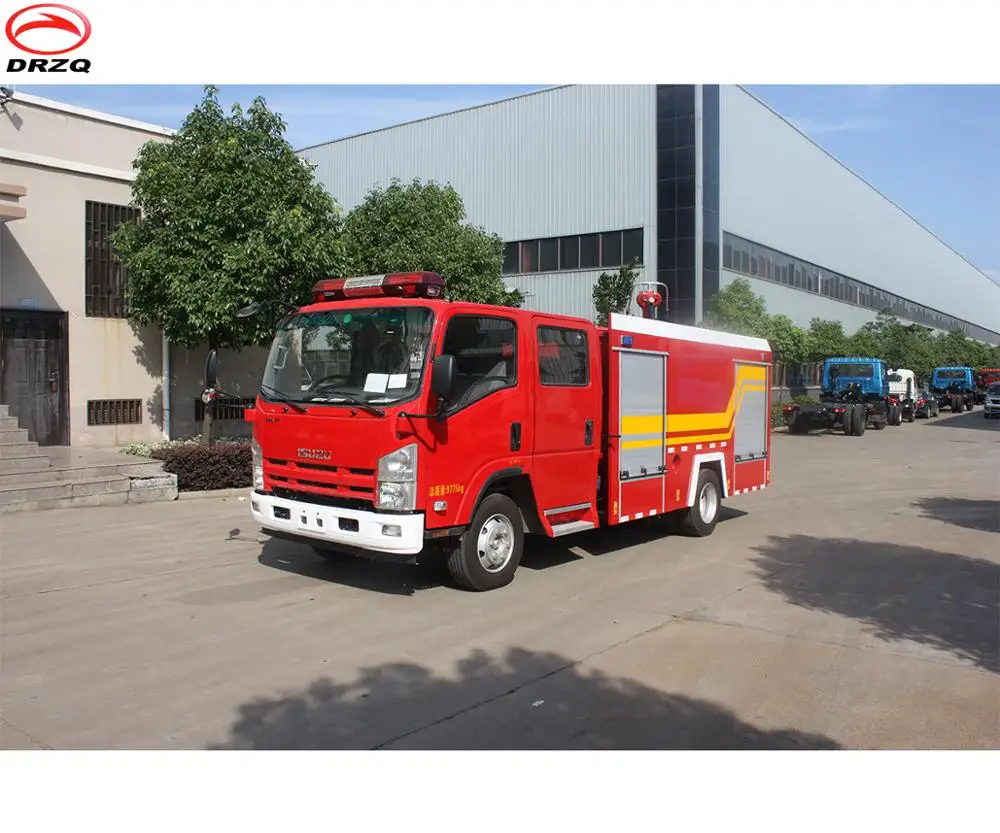

PRODUCTS SHOW

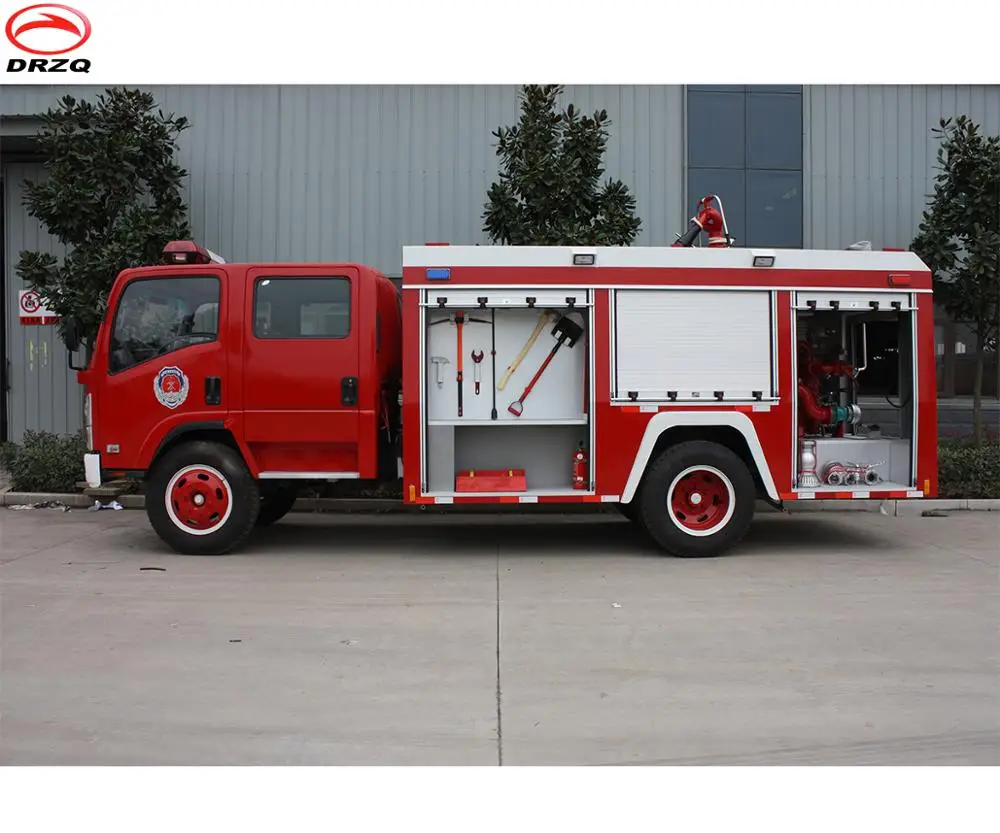

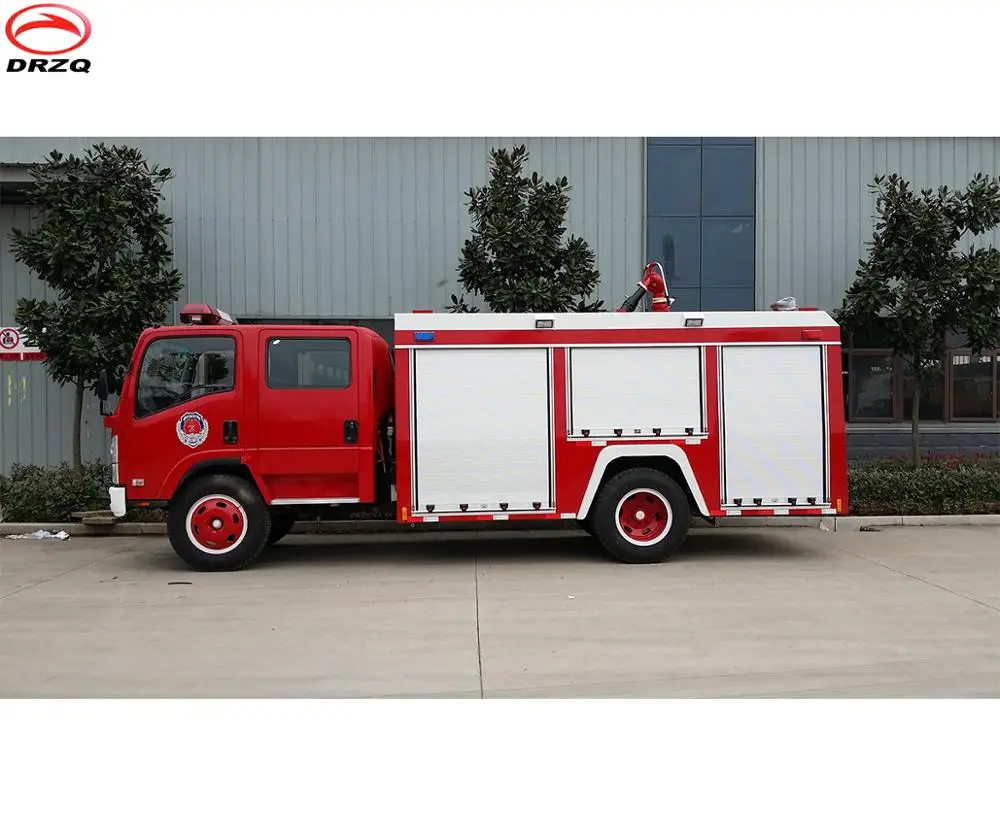

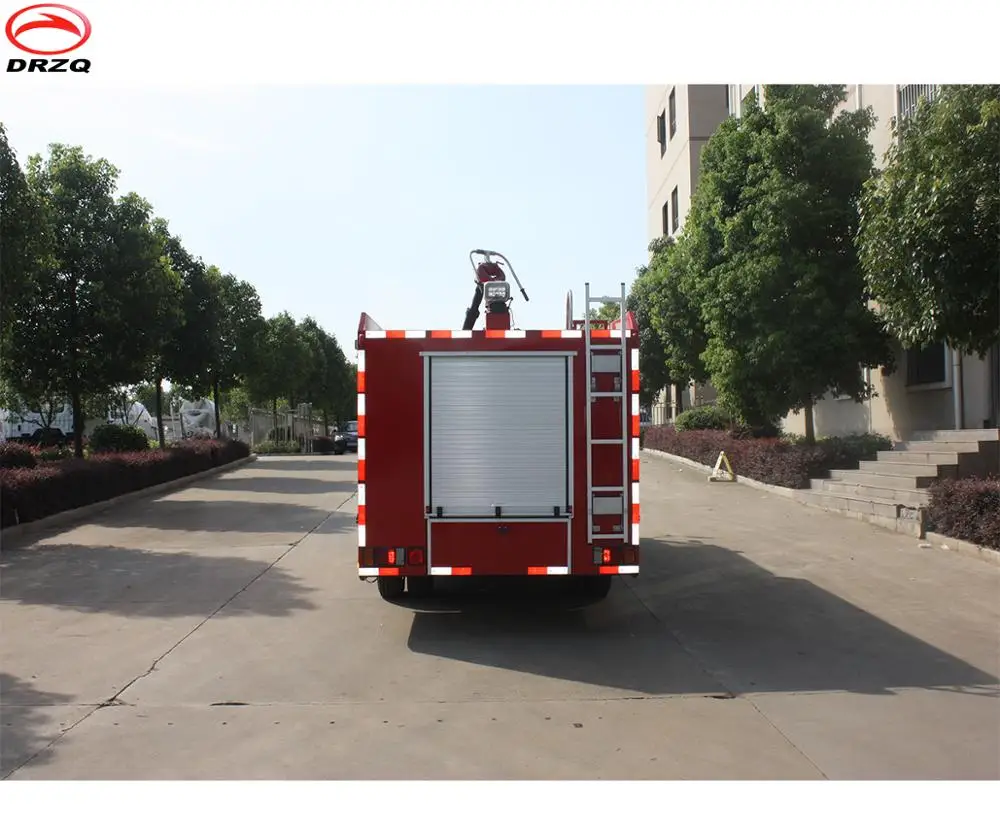

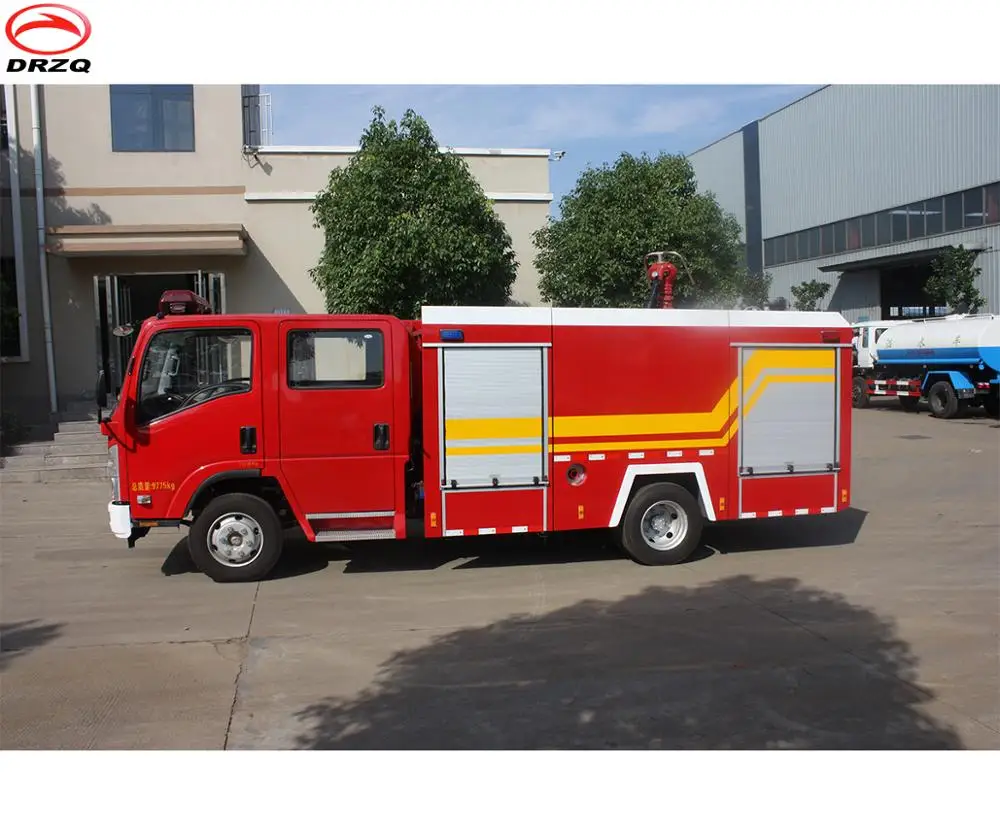

DETAILED VIEW OF TRUCK
ACCESSORIES
ACCESSORIES
SPECIFICATION
SPECIFICATION
| Item | Specifications | Item | Specifications |
| Truck | |||
| Name | 3ton ISUZU Foam Fire Truck Euro4 | ||
| Model | YZR5101GXFPM30 | Gross Weight | 3100kg |
| Overall dimensions | 7065×2280×3140mm | Curb Weight | 6300kg |
| Wheelbase | 3815mm | Approach/departure angle | 21° |
| Front Track | 1680mm | Departure Angle | 13° |
| Rear Track | 1650mm | Front Overhang | 1110mm |
| Number of axles | 2 | Rear Overhang | 2050mm |
| Max speed | 90km/h | Number of Tyres | 6 |
| Traction system | 4×2 | Tyre | 235/75R17.5-16PR |
| Transmission | ISUZU, manual | Allowable Cab Passengers | 2+4 |
| Chassis | |||
| Model | QL11109KARY | Leaf Spring | 8/10+6 |
| Engine (Motor) | |||
| Brand | ISUZU | Type | Diesel |
| Model | 4HK1-TCG40 | Displacement | 5.1L |
| Horse power | 139 | Emission standard | Euro 4 |
| Equipment | |||
| Tanker(ton) | Water:2 Foam:1 | Tank Material | stainless steel |
| Flow | 30L/S | Low Pressure Pump | CB10/30 |
| Pressure | 1.0MPa | Fire distance (water) | Water≥45m |
COMPANY INFORAMTION
FACTORY SHOW
Certificates
PACKING AND SHIPPING
