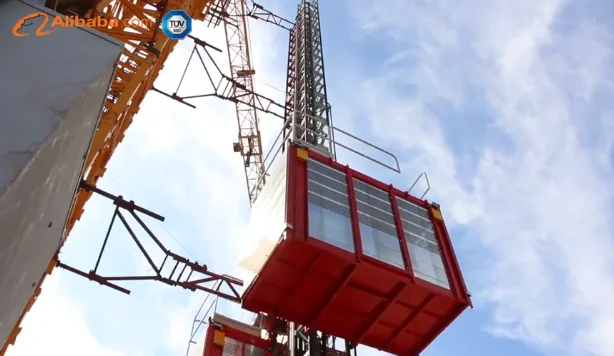

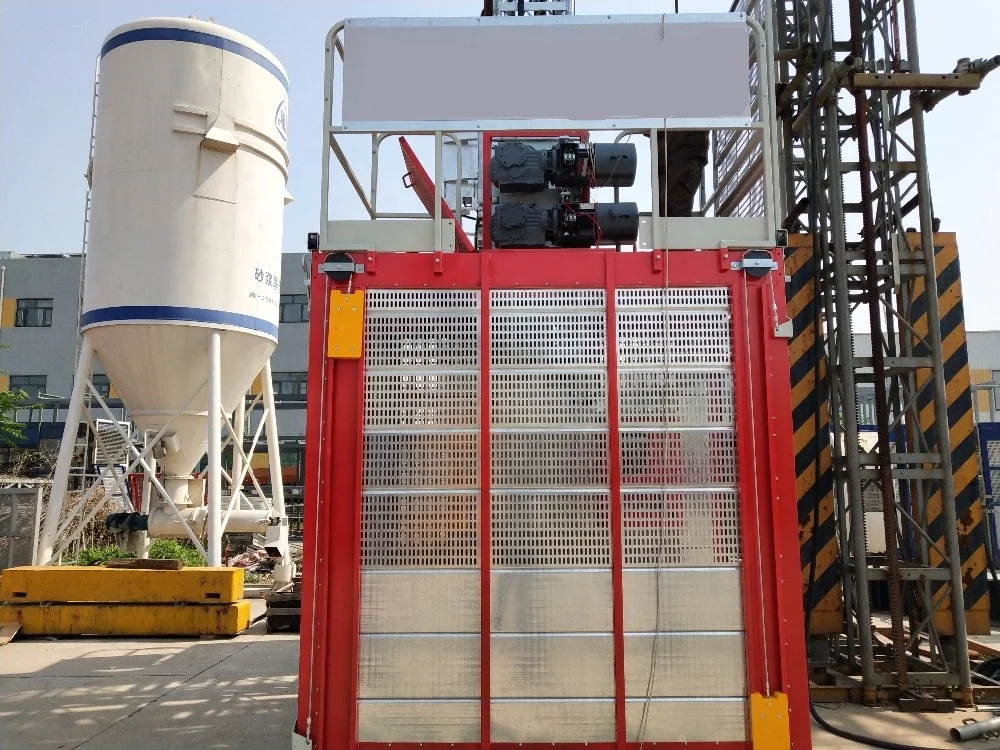

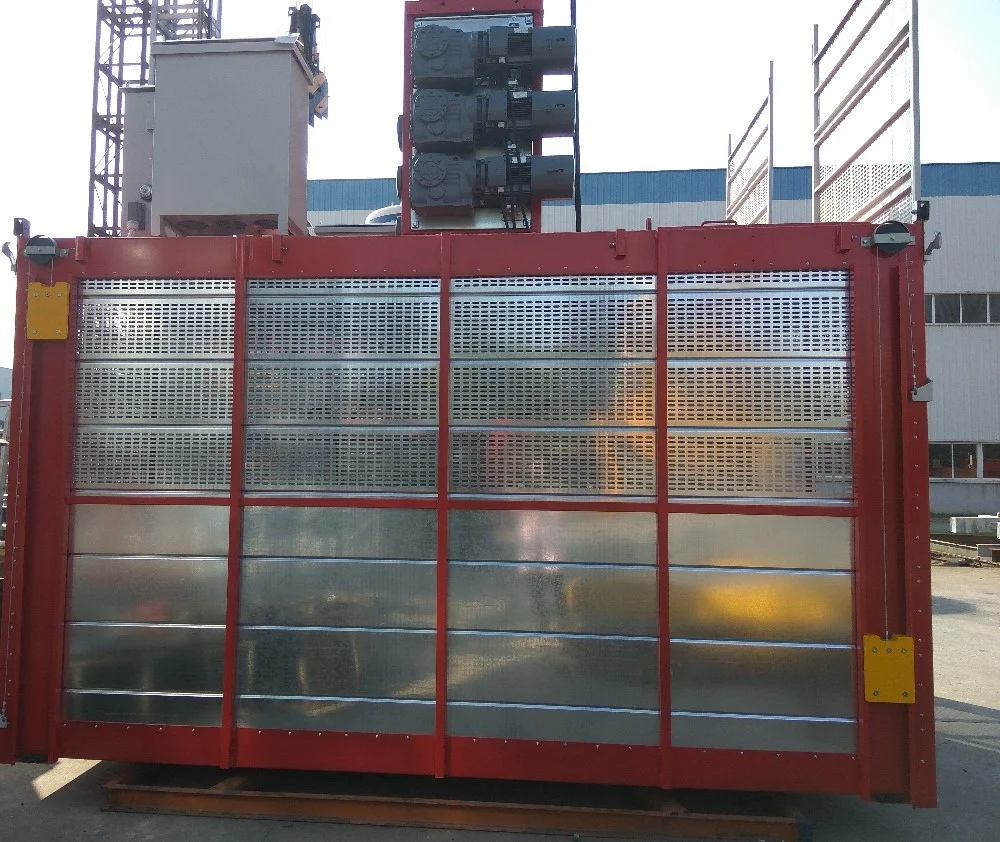

SC series building elevator lifting machine

Remarks:

1. The recommended cage dimensions (L×W×H) (m) of our building hoist are:2.0×1.0×2.5, 2.5×1.3×2.5, 3.0×1.3×2.5, 3.2×1.5×2.5,3.8×1.5×2.5, 4.2×1.5×2.5 etc. We can also manufacture cages of the other sizes according to customer requirements.

2. Steel knitted mesh, galvanized sheet, punched sheet, figured sheet, and the others can be optional for customers to make cage body and door for the hoist.

3. Either painting or hot galvanized mast section and the tie-in/wall anchor can be optional for customers.

4. Both domestic and imported driving systems are available for the hoist.

5. Generally mast section size 650×650×1508 is used, other sizes e.g. 450×280×1508, 450×450×1508, 650×200×1508, 650×900×1508, 650×1508,800×800×1508, etc. are also available for your choice.

6. Any special requirements pls let us know.

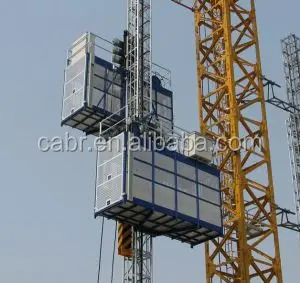

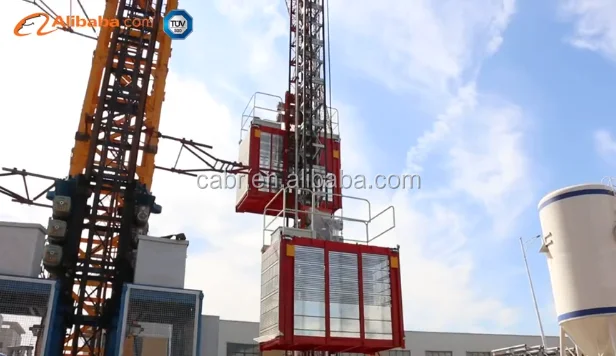

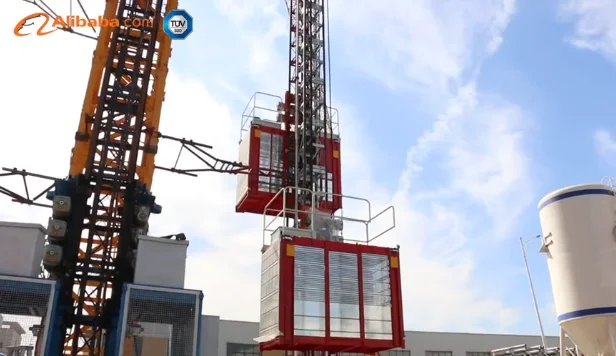

SC200 & SC200/200 building lifter/elevator cage lift (for reference)

SPECIFICATIONS

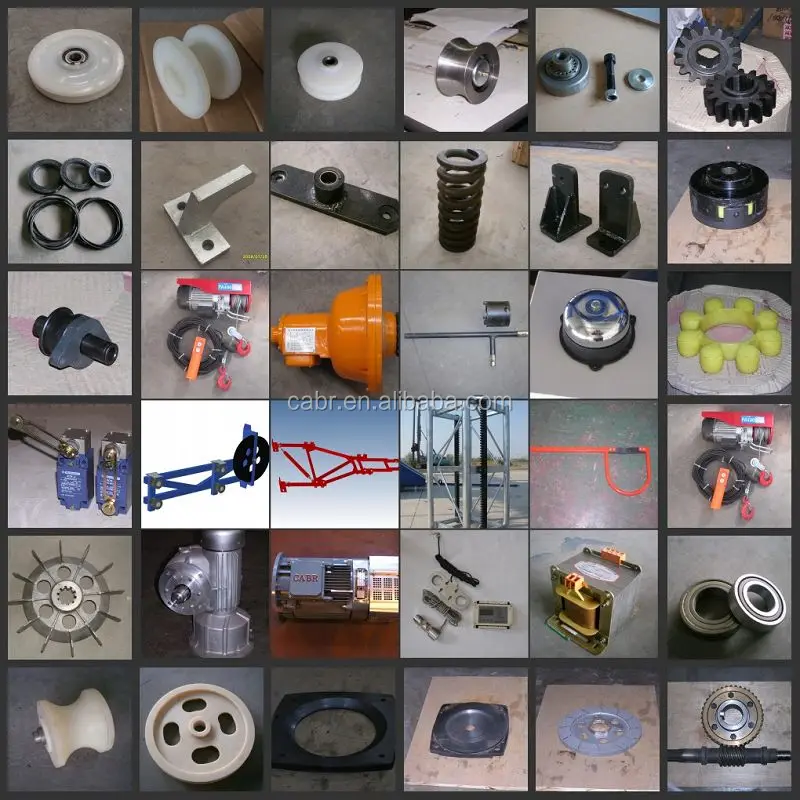

Spare parts

We can offer standard or non-standard products, according to customers’ requirements. We control the product quality critically for every step during the manufacturing process, even on the small step, like painting, etc.

For all the equipment, we can send engineer to site to offer free installation and commissioning guide for customer. Meanwhile, also with operation or technical training for related persons.

Our team in Dubai

Our team in Indonesia

Q1: Whether you can provide cutomized poducts?

A1: Yes. We are hi-tech enterprise affiliated to China Academy of Building Research. We have a group of engineers, who have

title of professor , senior engineer and engineer. We can give you special design as per the drawings of your building, helpin you solve different problems faced in your projects.

Q2: Whether customized prodcts takes a very long time to design and maufacture?

A2: Not exactly. Normally for us, some amendment in desig to adapt your requirement will maximum take one week. so even for your special project, it will be about 30-40 days delivery time.

Q3: What is the brand of your key components?

A3: Motor: Zhangjiang from Shangai, Gearbox: Xianghe from Tianjin, Inverter: Schneider of Toshiba

Other electrical components: Schneider or Simens

Automatic laning system: CABR,we develop specificaly for construction hoist

Q4: What kind of services you can provide?

A4: We are state owned company, high quality is our advantage, and high technology is our core competency. We ensure that

all the machine have been completely tested in our factory before delivery. We will give you one year warranty for complete machine. For probems caused by our production defect, we will provide you free services by sending skilled engineer there.

Q5: About the centrifugal safety device, how long is its life span?

A5: Centrifugal safety device is the most important safety device for building hoist, it is the final security assurance. As per our national standard GB10054-2005 , and GB10055-2007 , Free-fall test must be done every 3 months. And the centrifugal safety device must be sent to authorized department for inspection every one year. After 5 years, the centrifugal safety device must be mandatory scrapping.

Remarks: the above two National Standard were made and managed by us CABR.
