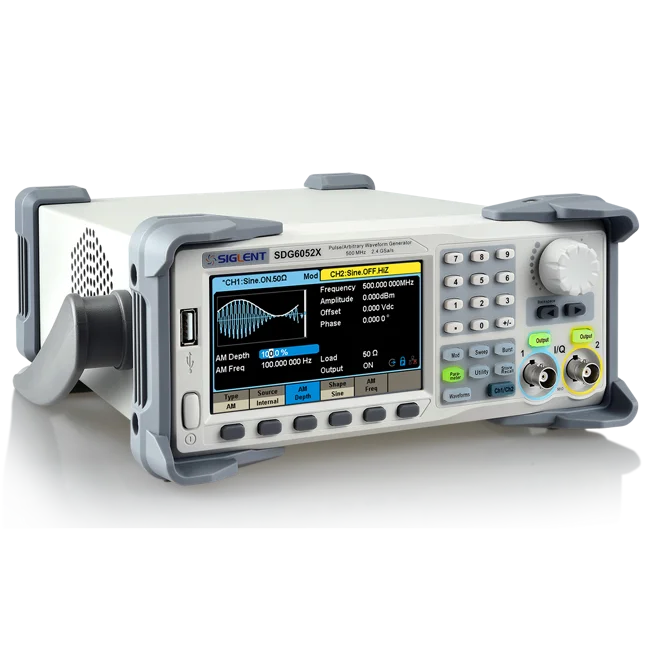

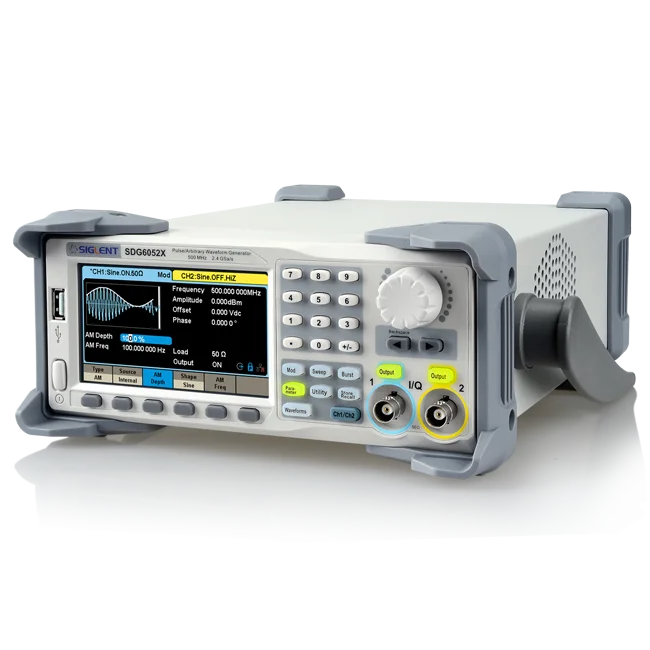

SDG6052X Pulse/Arbitrary Waveform Generator

SIGLENT’s SDG6000X is a series of dual-channel Pulse/ Arbitrary Waveform Generators that feature up to 500 MHz bandwidth, a maximum sample rate of 2.4 GSa/s and 16-bit vertical resolution. They also include proprietary TrueArb & EasyPulse technology that help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. In addition, the SDG6000X is a multi-function device which can generate Noise, IQ signals and PRBS patterns. These features enable the SDG6000X to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.

Key Features

• Dual-Channel, 500 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80dB dynamic range
• High-performance sampling system with 2.4 GSa/s sampling rate and 16-bit vertical resolution
• Multi-function signal generator, meeting requirements in wide range
•
• Sweep and Burst function
• Harmonics function
• Waveform Combining function
• Channel Coupling, Copy and Tracking functionr
• 196 built-in arbitrary waveforms
• High precision Frequency Counter

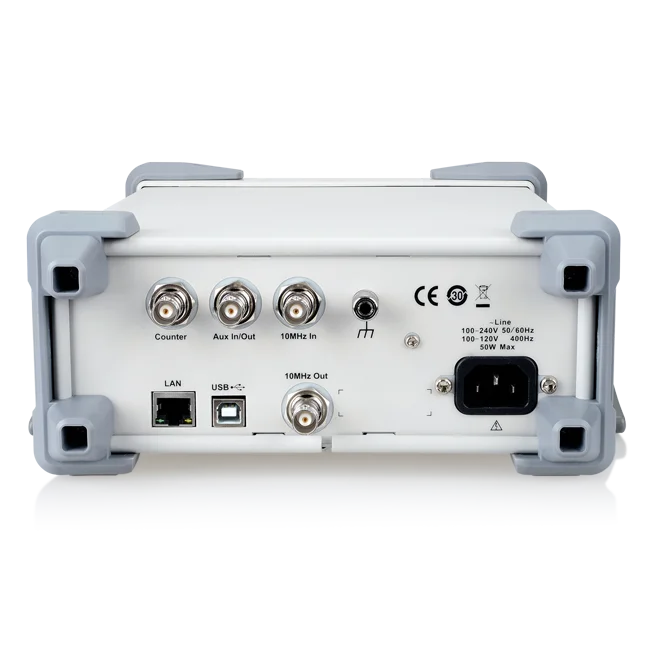

• Standard interfaces include: USB Host, USB Device (USBTMC), LAN(VXI-11, Socket, Telnet). Optional Interface: GPIB
• 4.3” touch screen display for easier operation
