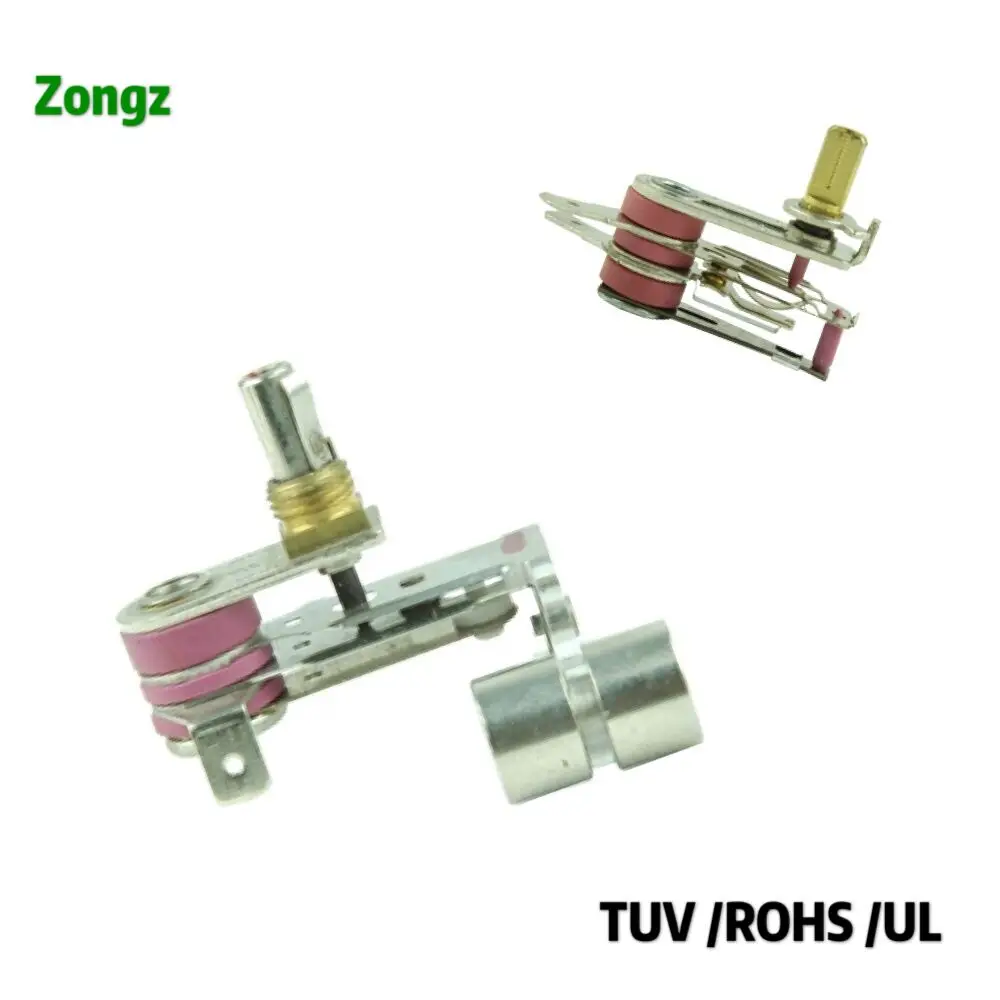

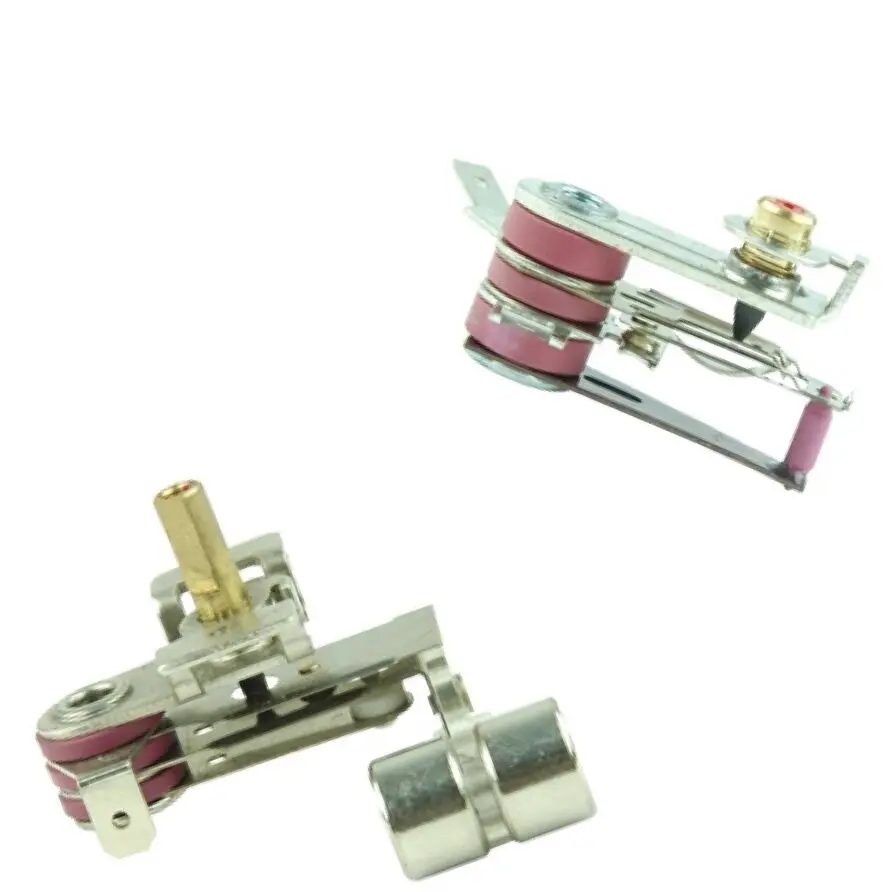

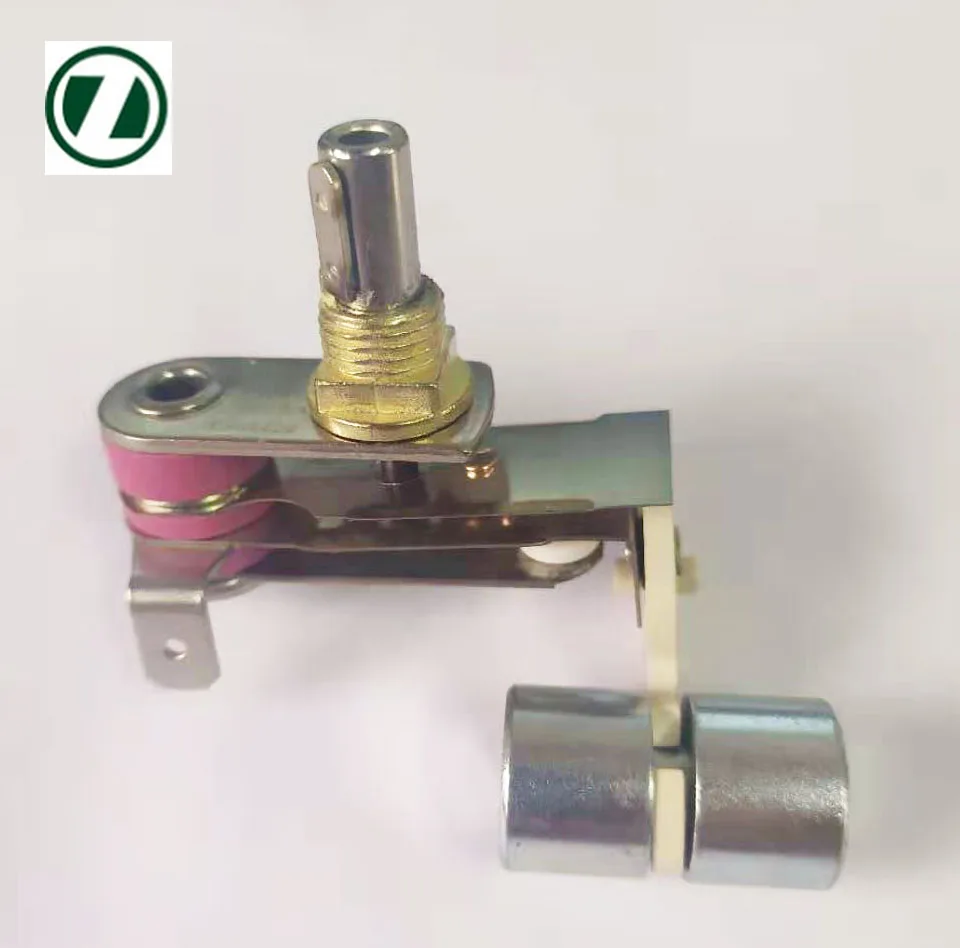

kst bimetal thermostat for heater

Product Overview

Description

Bimetal Thermostat Specification:

Electrical Ratings	AC 250V/10A 16A, AC125V/15A
Temperature Setting Range	0~180ºC
Max Service Temperature	300 ºC (Designed by user's requirements)
Temperature Tolerance	±5 ºC%
Reset Temperature	5 ºC -30 ºC
Life Cycle	No less than 100,000 times







Different bimetal thermostat



Working Principle:

Adjustable bimetal Thermostat is being used the bimetal as temperature response element. It can be deformed when the bimetal reach a definite temperature. Trip of bimetal can separate the contactor quickly and cuts off the power. The reset of bimetal can switch on the power when the temperature decreased to the original level. Adjusting the screw bolt to push the spring can adjust the different working temperature of appliances. ac thermostat, mechanical thermostat.
