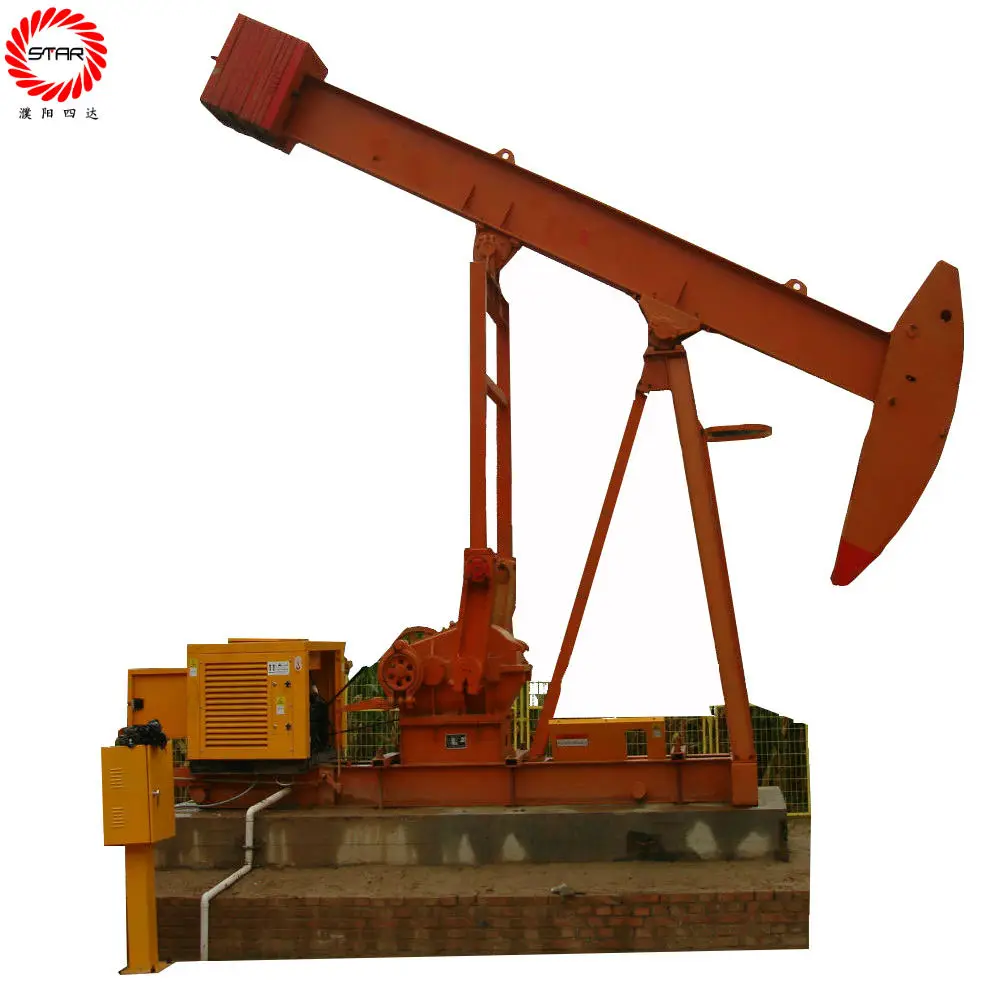

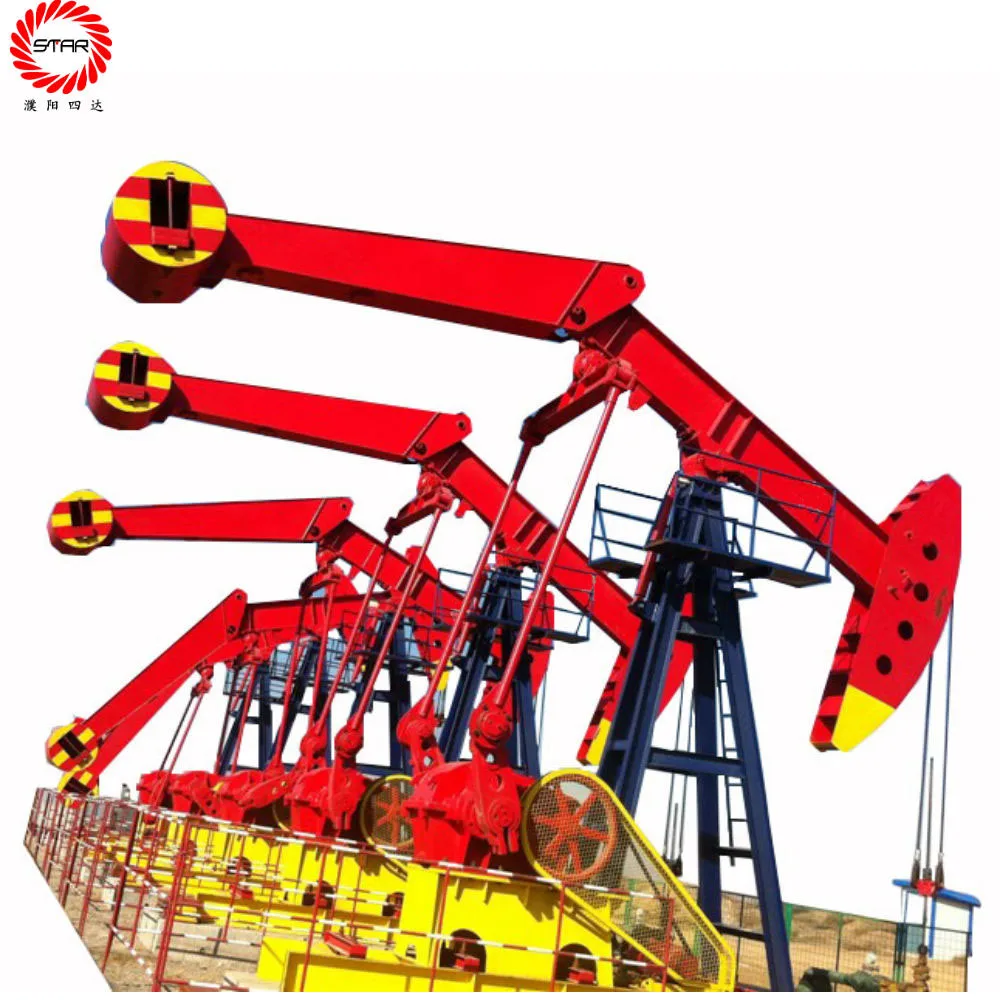

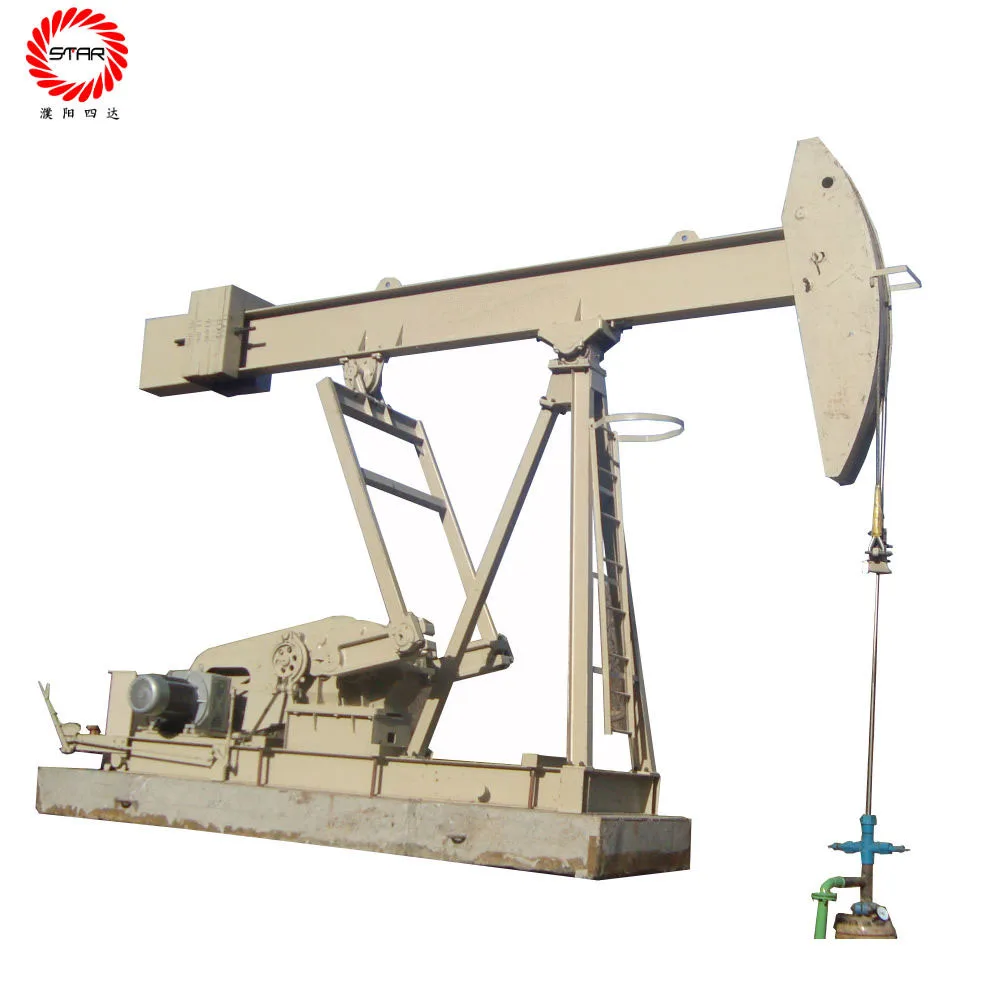

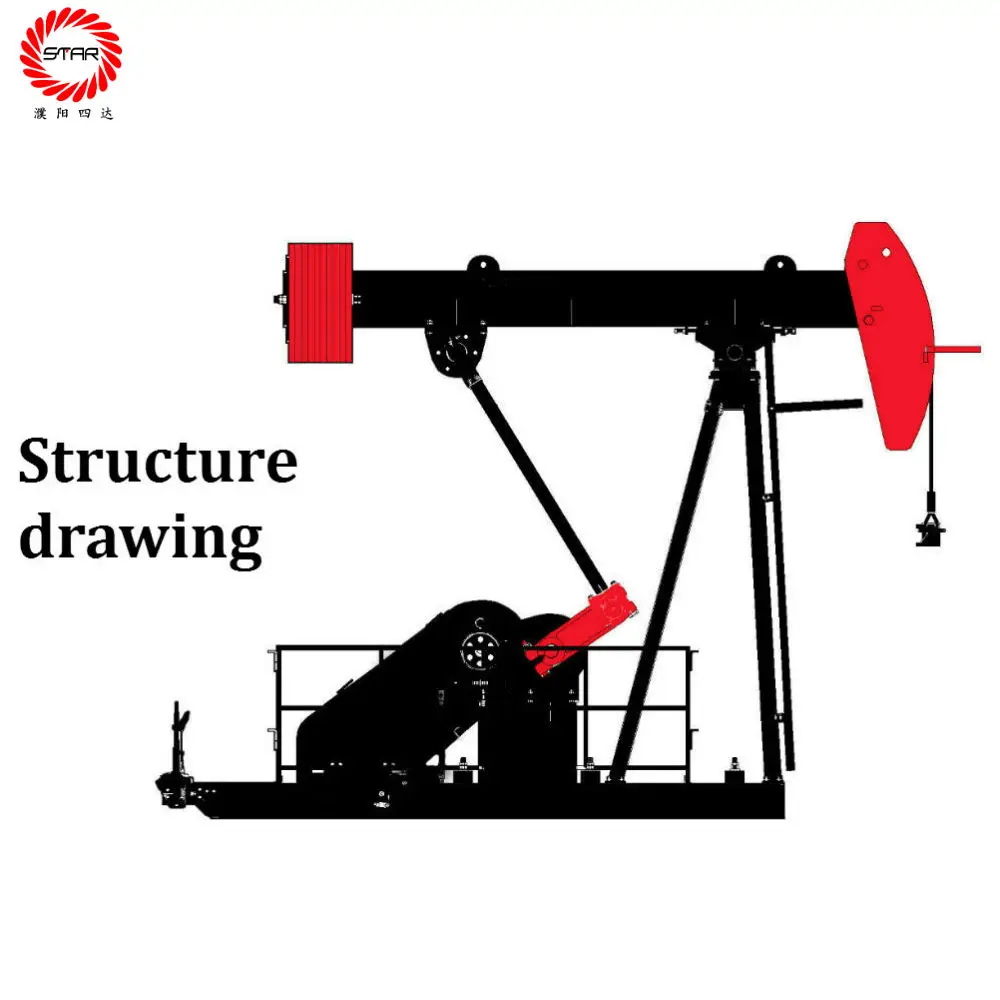

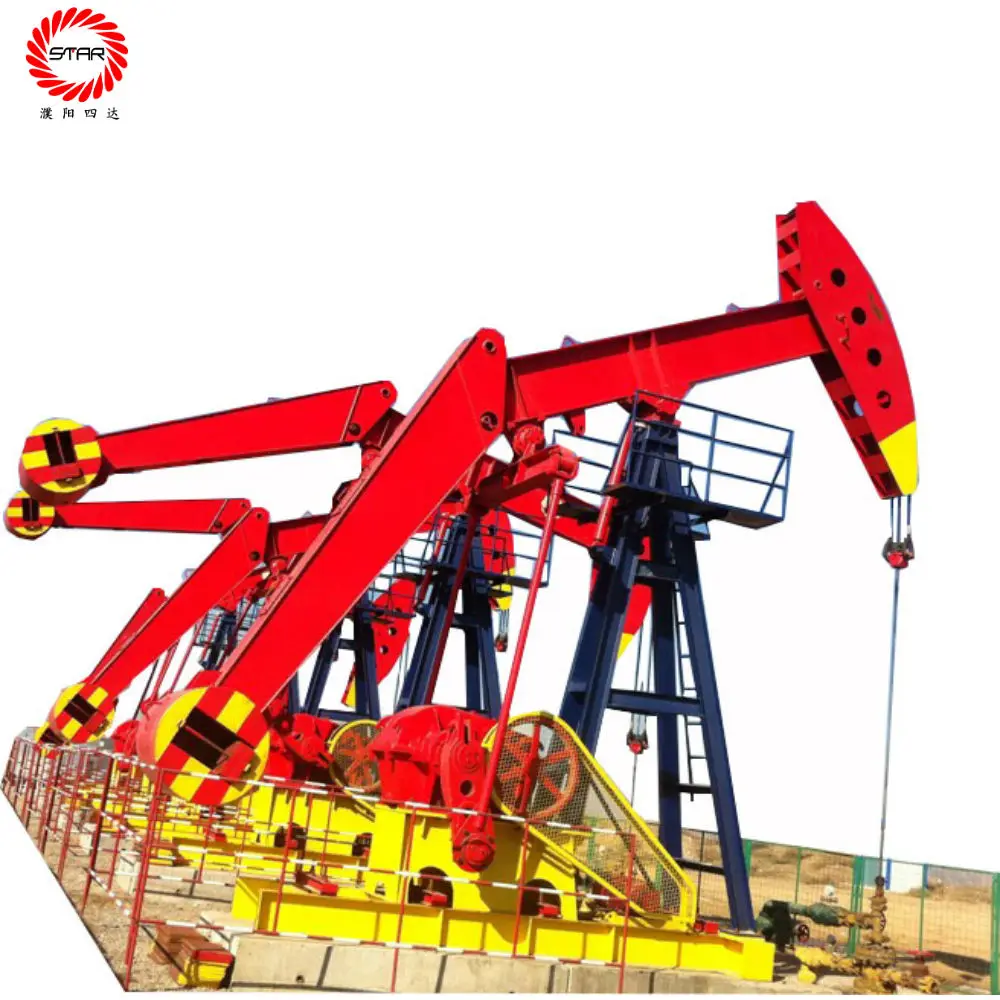

API 11E Oil Pump Jack is beam balanced units.These units fill the need of economically producing many of the shallow wells. It's a common type of suker rod pumpiing surface unit.
Carrier bar is used to connect polished rod, wire line and polish rod clips,high strength stability.
Wire Line
Description: Carrier Bar
Introduction:
The wire line is made of multiplayer, nontorsional steel wire. With enough strength, complied with API 11E Specifications.
Head Description:Horse head Introduction: Germany Horse head is welded with steel plate. Wire line is hung in the horse head rope supplort. The horse head connect to front of the walking beam.
Walking Beam
Description:Walking Beam,Bolt,Nut,Center bearing assembly,Beariing Cover,Beam Counter Weights Introduction: Walking beam is welded with steel plate. The front end of walking beam connect with horse-head through horse-head pin, and connect with equalizer at the rear. Whole walkiing beam is fixed on the center bearing.
Belt Guard
Description: Side fence,Front fencs,Bolt,Oblique gaskets,Washer,Spring Washer,Nut.
Introduction: Belt guard is the safety guard facility of the pumping unit. It is made of solid plate and bolted to the pumping unit's base assembly and the gear reducer.
Wan to know more, please contact Lillian.
Please supply following information, that I can make the quotation list soon:
1.Gear Reducer:Peak Torque Rating,Reductioin ratio,Type of bearings.
2.Frame structure:Unit structure rating,Range of stroke,Beam Counter Weights,Wrist Pin Bearing,Color.
3.Quantity.
4.Trading method:EXW, FOB, CIF(CIF need the destination port) ...
If have model is better, such as B-80D-119-64
Technical Parameters
Oil Pump Jack Main Technical Parameters
Packing & Delivery
Packaging
Name
Parts/Tools/Files
Method
Iron BOx
Packaging Details
Pumpiing units small parts,tools and files(Operation Manual,Parts Catalog) in to the Iron box,then with the Main Machine in to the container
Packaging
Name
Main Machine
Method
Naked
Packaging Details
After fixed, Pumping units main machine naked into the container.
Iron Box
Parts,Tools, Files
Fixed
Fixed and ready to delivery
Loading
Crane to assist in loading
Loading Finished
All the part into the container
Domestic Transport
Container is transported to the port.
Sea Shippinig
Container loaded on board, travel across the sea to the port of destination.
Remarks:
The number of containers required fot the pumping units shipment depends on the model.
