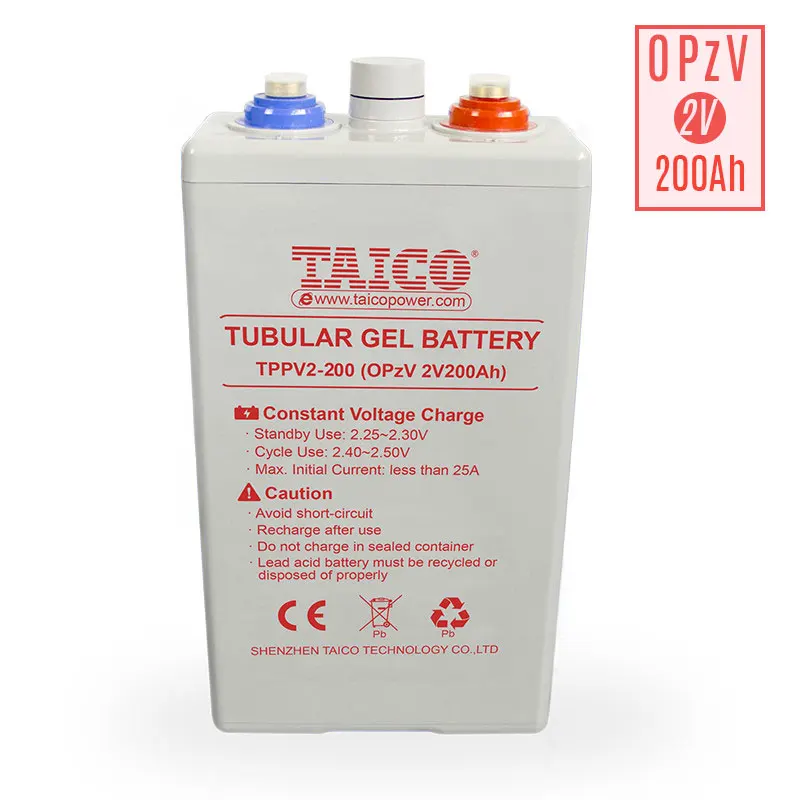

Feature of OPzV battery 2v 200ah:
Tubular positive plate and pasted negative plate design
20 years design floating charge service life
3500times cycle at 50% Deepth of Discharge
Wide suitability of ambient temperature range :-15℃~50℃
High recharge efficiency and good deep discharge performance
Application:
Wind-Solar Energy Storage system
Solar street lights
Off-grid energy storage
Household energy storage
Telecom backup system
Emergency backup energy sources
Uninterruptible power system
Mobile base stations
Grid load shifters
and more...
| ITEM | SPECIFICATION |
| Nominal Volt Rangle | 2V |
| Capacity Range in Ah | 200Ah-3000Ah |
| Container Material | ABS ( V0 Optional ) |
| Positive Plate | Tubular Plate with lead-calcium-tin grid alloy |
| Negative Plate | Flat pasted plate with lead-calcium grid alloy |
| Separators | Microporous PVC-Sio2 separator |
| Electrolyte | Gel: SiO2 gelled sulfuric acid |
| Charging Volt in V/Cell | 2.33-2.40 V/Cell |
| Charging Current | 0.1CA |
| Operating Temp.Range | -15°C - 50°C |
| Cycles up to | 3500 @50% DOD |
| Design Lifespan | 20 years |

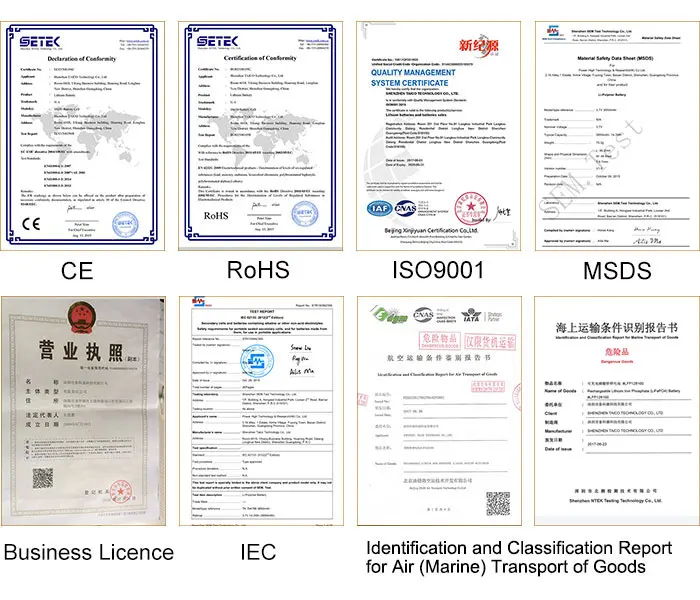

| Standards | ISO9001 IEC60896 IEC61427 CE RoHS BSEN61427 DIN43539 |
