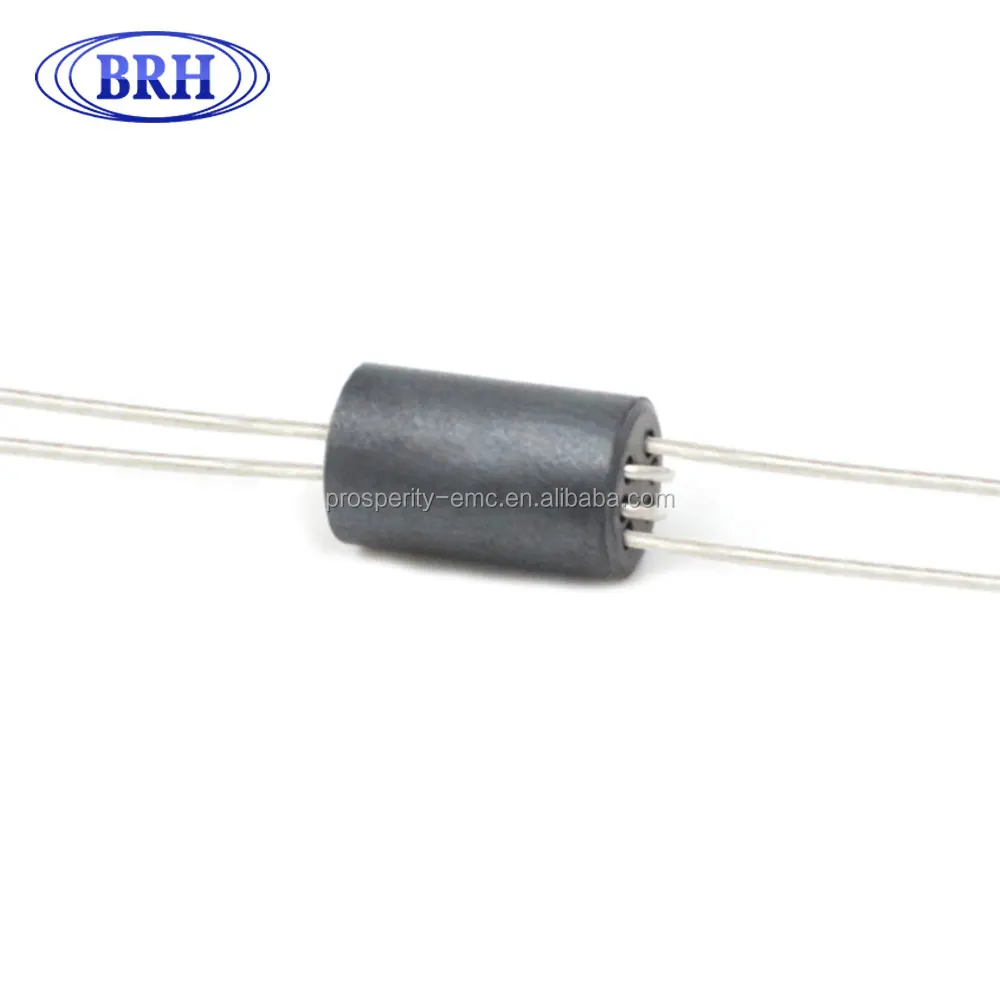

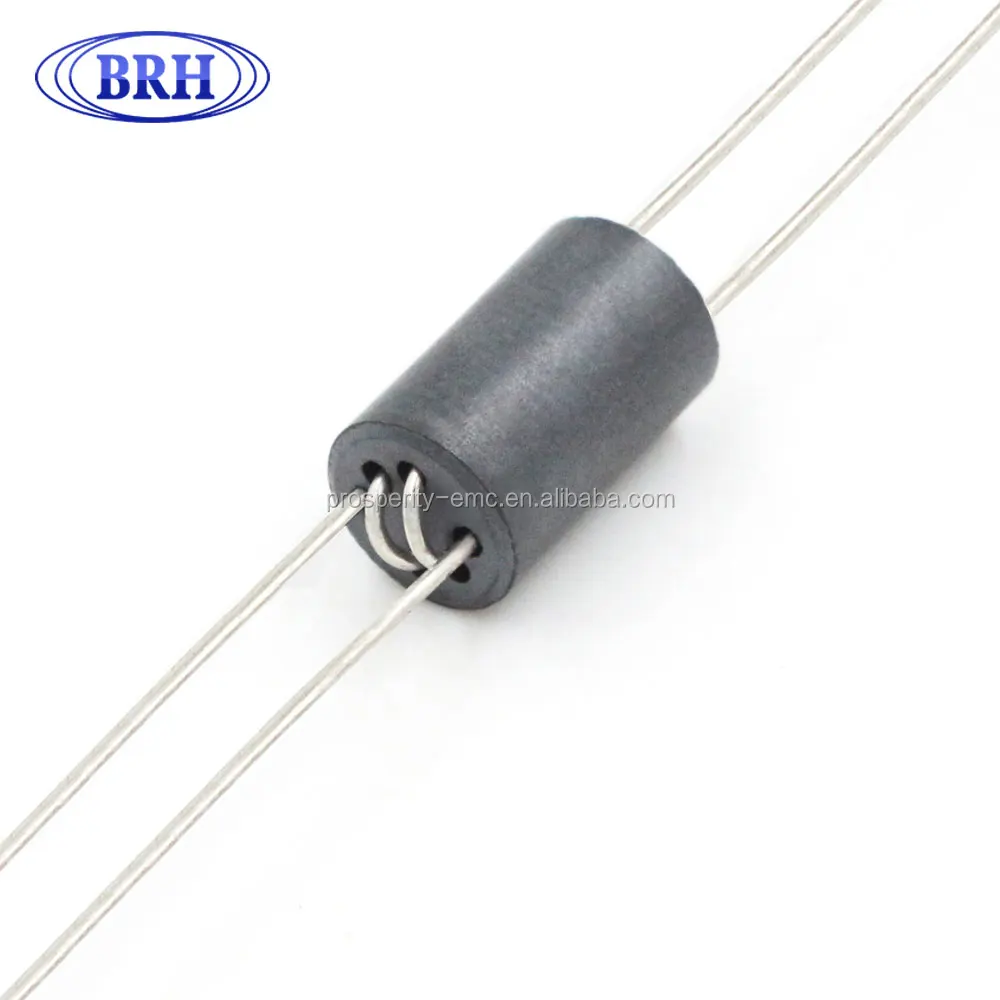

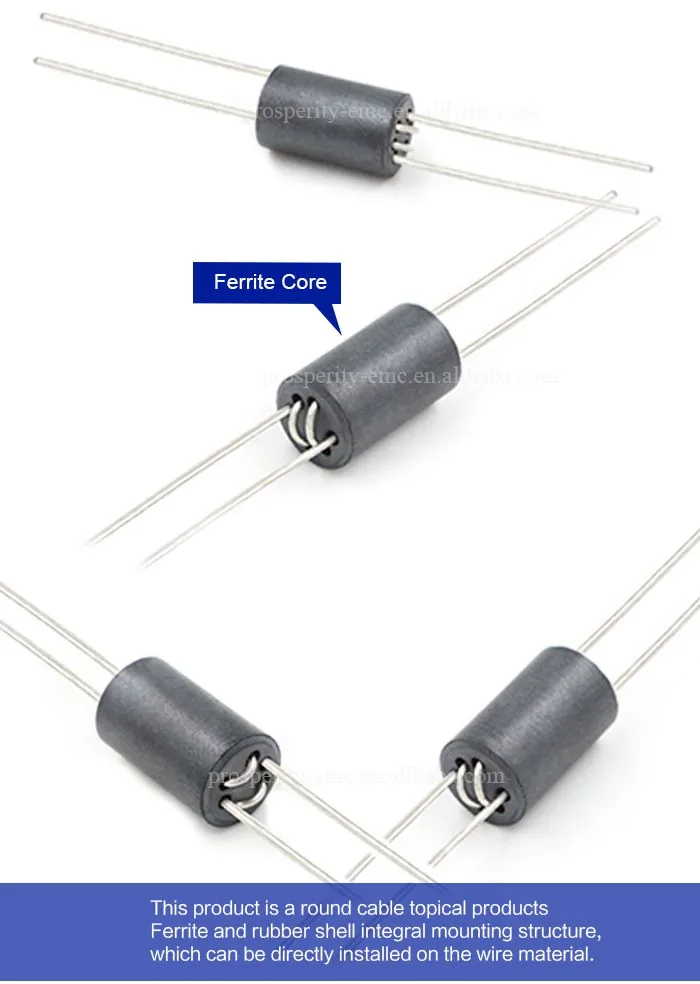

Wire wound high current Wide Band Choke coil ferrite bead inductor
Wire wound high current Wide Band Choke coil ferrite bead inductor
Wire wound high current Wide Band Choke coil ferrite bead inductor
Wire wound high current Wide Band Choke coil ferrite bead inductor

Wire wound high current Wide Band Choke coil ferrite bead inductor

Share on (60712764877):


Price:

Quantity:


Product Overview

Description


Description
\t

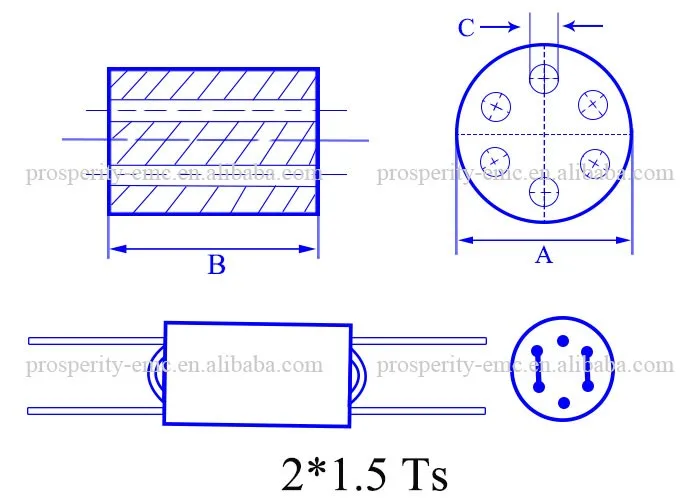

SIZE CODE(mm)
\t
A
\t
B
\t
C
\t
A2 R6H 6*10*0.85-2*1.5TS
\t
6.0±0.4
\t
10.0±0.4
\t
0.85±0.3
Parameter
\t
Electrical Requirements
\t
SIZE CODE (mm)
\t
A2 R6H 6*10*0.85-2*1.5TS
\t
at 25 MHz
\t
252Ω MIN
\t
at 100 MHz
\t
400Ω MIN
\t
TEST INSTRUMENTS
\t
LCR METER 4286A
\t
LCR METER
\t
HP16092A
\t
WIRE
\t
0.50T.C.W*40m/m 2*1.5Ts
\t
TEMPERATURE
\t
15℃ to 35℃
\t
HUMIDITY
\t
25% to 85% RH
\t

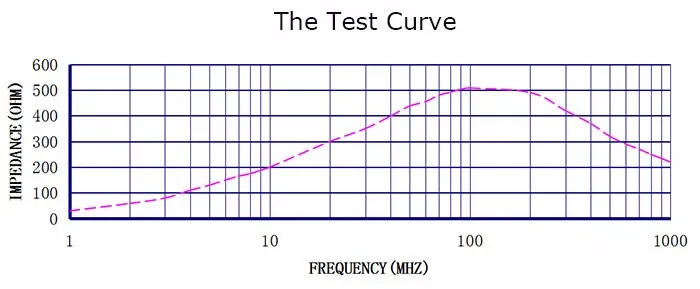

Test Data For Pre Production Samples
\t
MEAS.
 Item
\t
Ω
 AT 25MHz
\t
Ω
 AT 100MHz
\t
A
 m/m
\t
B
 m/m
\t
C
 m/m
\t
Suggest
\t
252Ω MIN
\t
400Ω MIN
\t
6.0±0.4
\t
10.0±0.4
\t
0.85±0.3
\t
1
\t
326.01
\t
500.04
\t
6.03
\t
10.17
\t
0.82
\t
2
\t
330.02
\t
508.15
\t
6.01
\t
10.04
\t
0.82
\t
3
\t
325.03
\t
506.12
\t
6.02
\t
10.01
\t
0.83
\t
4
\t
322.06
\t
503.21
\t
6.01
\t
10.02
\t
0.81
\t
5
\t
319.04
\t
506.12
\t
6.03
\t
10.02
\t
0.82
\t
6
\t
327.04
\t
508.04
\t
6.05
\t
10.00
\t
0.82
\t
7
\t
328.45
\t
506.12
\t
6.02
\t
10.03
\t
0.81
\t
8
\t
330.01
\t
507.01
\t
6.03
\t
10.02
\t
0.83
\t
9
\t
327.05
\t
505.01
\t
6.02
\t
10.02
\t
0.82
\t
10
\t
327.01
\t
504.06
\t
6.01
\t
10.01
\t
0.84
\t

\t

\t

\t

\t

\t

\t
X-bar
\t
326.17
\t
505.39
\t
6.02
\t
10.03
\t
0.82
\t
R
\t
10.98
\t
8.11
\t
0.04
\t
0.17
\t
0.03
\t
The above test data for reference,Actual results may differ due to different production batches.
