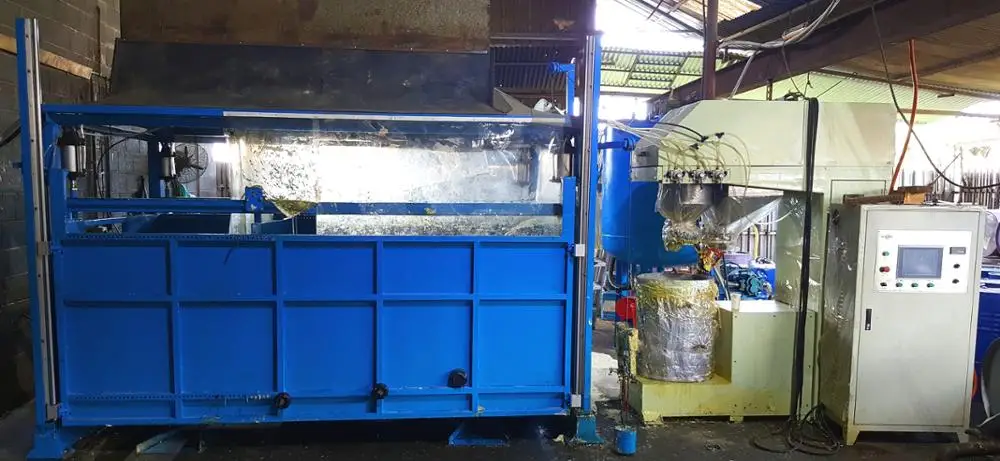

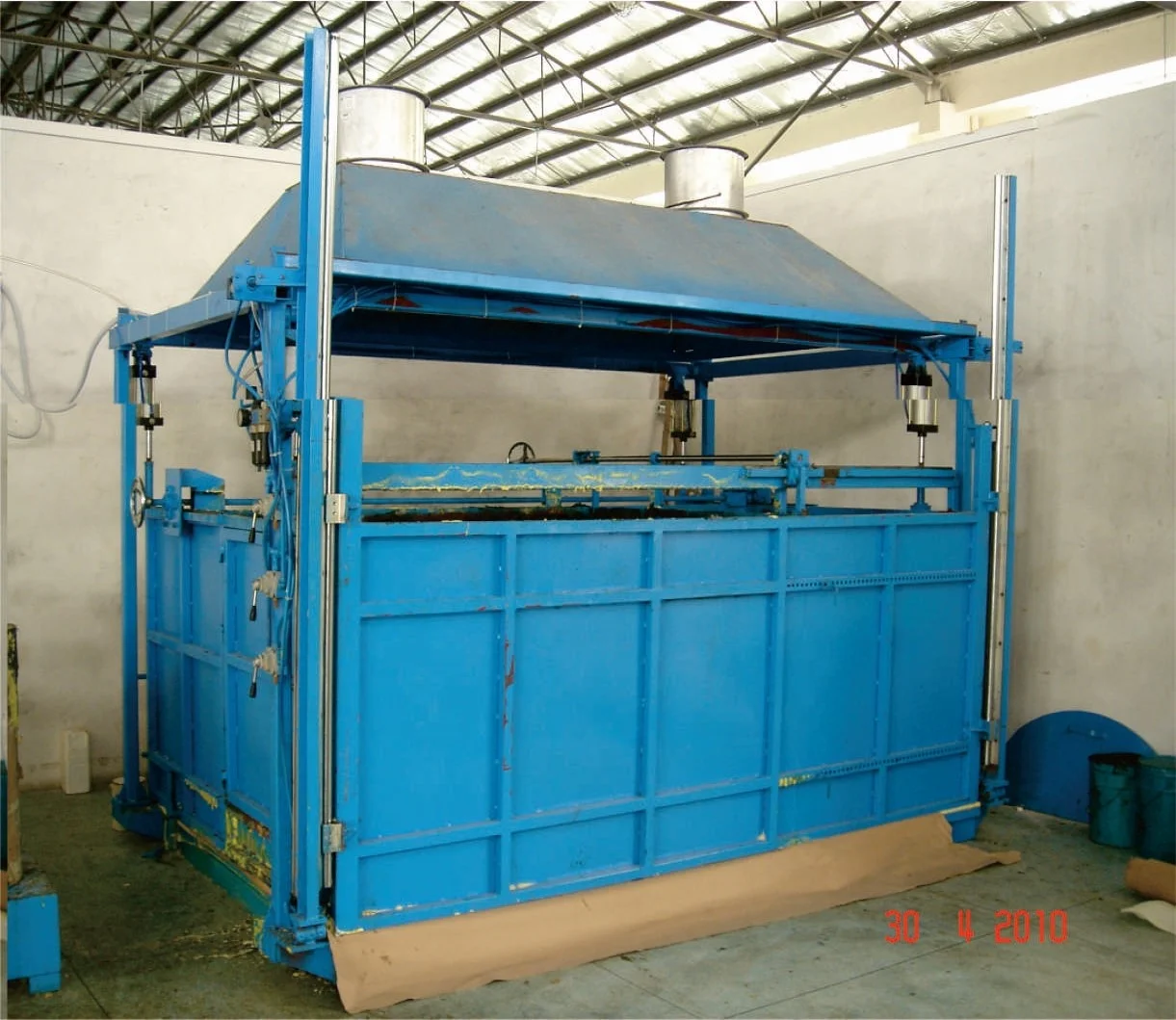

Batch Foaming Machine

 1.  This machine adopts automatic moving mixing system.

 2. The operation is simpler, the production efficiency is higher, and the foaming quality is better.

1.Equipped with 1PCS automatic pneumatic foaming mould;

2.The maximum mixing speed:0~2800r/min;

3.The mixing motor adopts 11kW DongGuan motor,and 15kW transducer is adopted to adjust the speed;

4.It is equipped with the high-speed and low-speed mixing independent timing functions;

5.Mixing bucket: diameter 500mm 1PCS,diameter 550mm 1PCS;

6.The new designed foaming raw materials adopts 3 independent storage tanks of components:PPG 1PCS(Carbon steel,2T),TDI 1PCS(stainless steel,1.5T),POP 1PCS(Carbon steel,2T);

7.PPG pump adopts the Viking pump(USA),TDI pump adopts the Shanghai pump,POP pump adopts the Viking pump(USA);

8.It adopts pneumatic valve to control the feeding;

9.All the pumps are driven by Dongguan motor,

10.The mixing bucket flips automatically when the materials are finished stirred ;

11.All of the three materials storage tanks adopt one set cold and hot water machine to control the temperature of original materials;

12.This machine adopts PLC and HMI to control,and it can save 10 groups foaming formulation;

13.Foaming size:L2000~3000mm(adjustable),W1000~2050mm(adjustable),H1200mm;

14.Foaming density:8~100kg/m³;

15.Total output:150kg ;

16.Total power:30kW ;

17.Main machine external size:L3500*W1500*H3500mm
