Flexible SK6812 RGBW LED Matrix 8x8 - 64 RGBW LED Pixels
Product Description
1. For sk6812 WS2812B LED Flexible rgb led matrix fans, we now have Flexible SK6812 RGBW LED Matrix 8x8 - 64 RGBW LED Pixels! Control all 64 ultra bright LEDs, set each RGBW LEDs as you wish to scroll message or draw little images.
2. ThisFlexible SK6812 RGBW LED Matrix 8x8 - 64 RGBW LED Pixels has a thick flexible PCB backing that can be gently bent and curved around surfaces. And also, they are the same integrated LEDs that used in our addressable sk6812 RGBW led pixel tapes.
3. Flexible SK6812 RGBW LED Matrix 8x8 - 64 RGBW LED Pixels has 8 pixels in each of its 8 lines, 64 LEDs in total. This is a continuous strip of leds making it easy to program for displays and is flexible so can be wrapped around objects and works with a 5v power supply.
4. Don't forget, with 64 LEDs, you could use over 4A of current if turn on all the LEDs on to white which we really don't recommend.

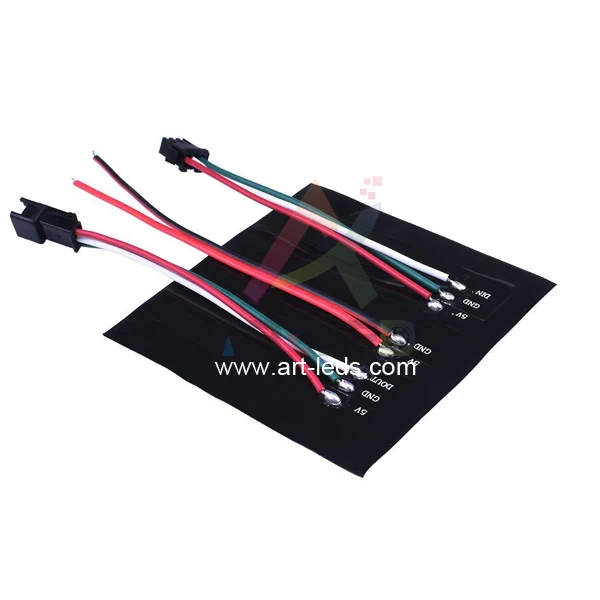

5.Flexible SK6812 RGBW LED Matrix 8x8 - 64 RGBW LED Pixels has two 3pin JST-SM conductor cables contains 1 JST-SM 3pin output side and 1 JST-SM 3pin input side.
6. Not only have Flexible SK6812 RGBW LED Matrix 8x8 - 64 RGBW LED Pixels, but also have 8x32 and 16x16 flexible RGBW led matrix panels.
7. In terms of White CCT of this RGBW led matrix panel, there are warm white 3000k, neutral white 4500k and blue white 6500k to choose.
Note:all flexible matirx are not designed for repeated flexing.
Product features
Flexible SK6812 RGBW LED Matrix 8x8 - 64 RGBW LED Pixels product features:
Light source
Flexible SK6812 RGBW LED Matrix 8x8 - 64 RGBW LED Pixels
Beam angle
140 deg.
Operating voltage
DC5V
Consumption watts
15±W
Pixel pitch(mm)
10mm
Entire piece LED quantity
64 pcs
PCB board size
80mm x 80mm , 2.5mm thickness
Current
3.3A at 5 V with full brightness
Brightness
R-650mcd, G-520mcd,B-460mcd
Operation Temperature
-20℃-60℃
Detailed Images

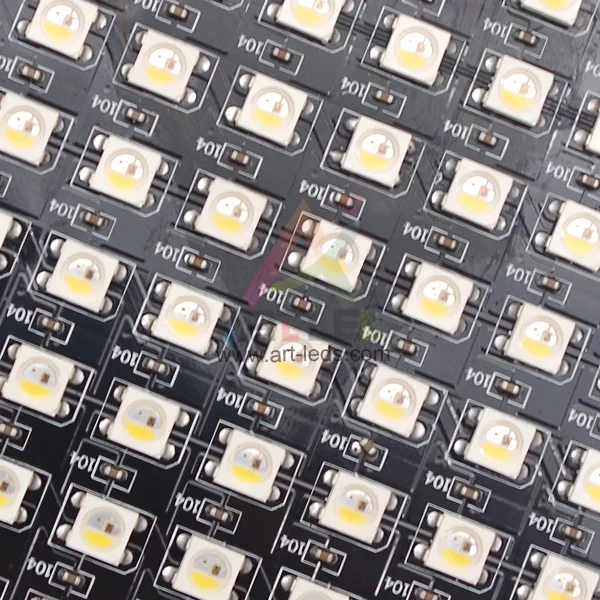

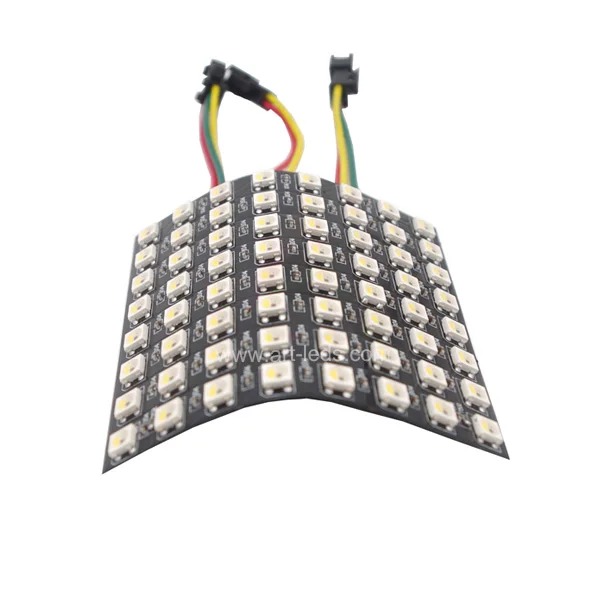

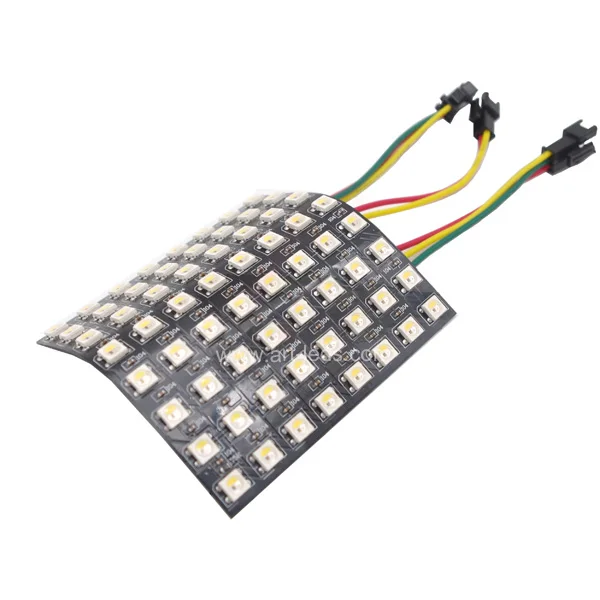

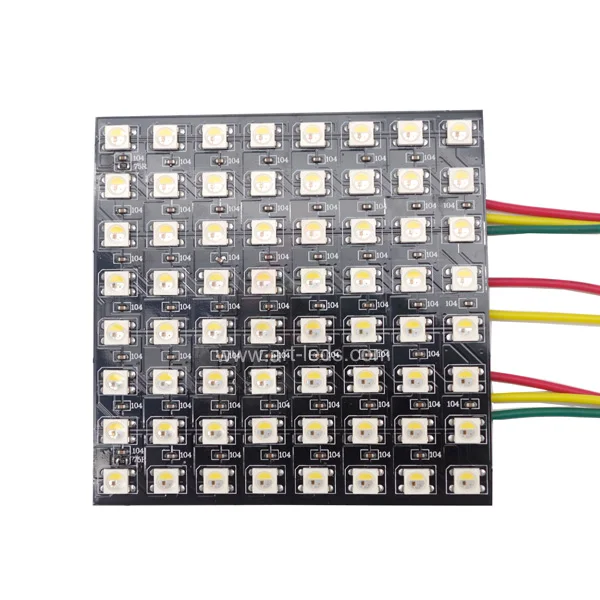

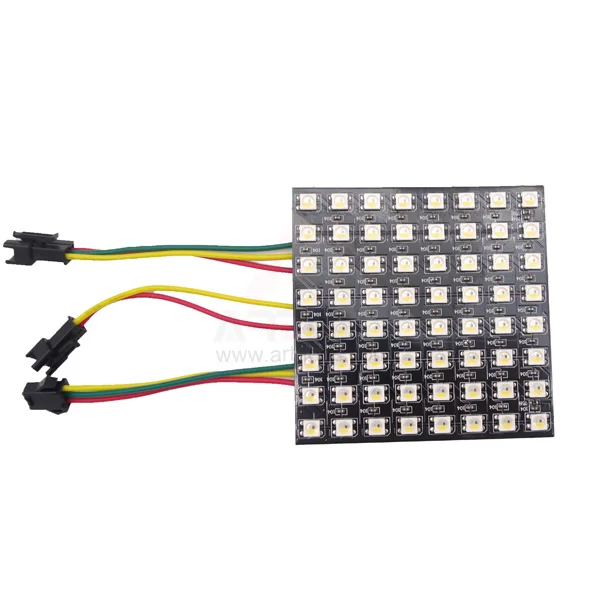

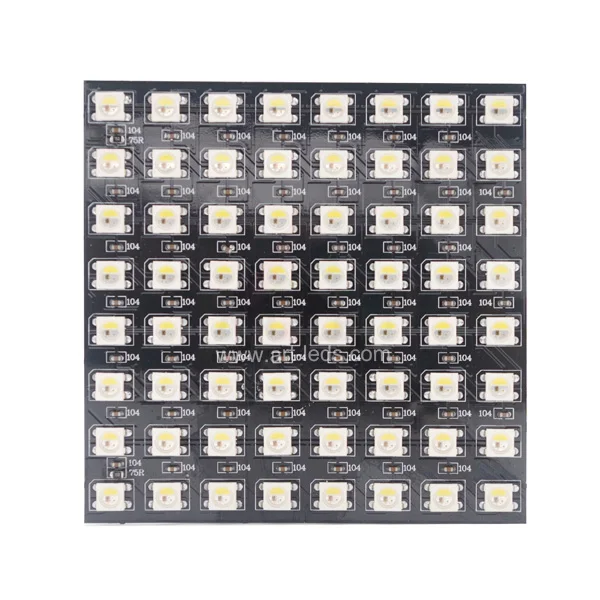

Flexible SK6812 RGBW LED Matrix 8x8 - 64 RGBW LED Pixels detailed images
Our Services
Flexible SK6812 RGBW LED Matrix 8x8 - 64 RGBW LED Pixels application:
Widely used in furniture, automotive, advertising, lighting, ships and home decoration industries.
1.City skyline lighting including buildings, advertising wall signs, Christmas landscape decoration. 2. Irregular design of body decoration, hotels, clubs, KTV places such as polygonal walls, drop ceilings and groove design. 3.Home cove trim ,door frames, bar, wine cabinet, wardrobe, TV cabinet. 4.entertainment, stage, live performance,etc.
Trade Terms
1. Payment Terms:
T/T, Western Union, Aliexpress Escrow
2. Lead Time:
Usually we had materials in stock, regular order delivery time 1--7days after the profoma invoice paid,
OEM products: 10--15days (Customized PCB board).
3.Warranty:
2 years warranty since the data of purchase our LED products.
4. Delivery Way:
DHL, Fedex, TNT UPS, EMS door to door service, by sea, by air, etc
