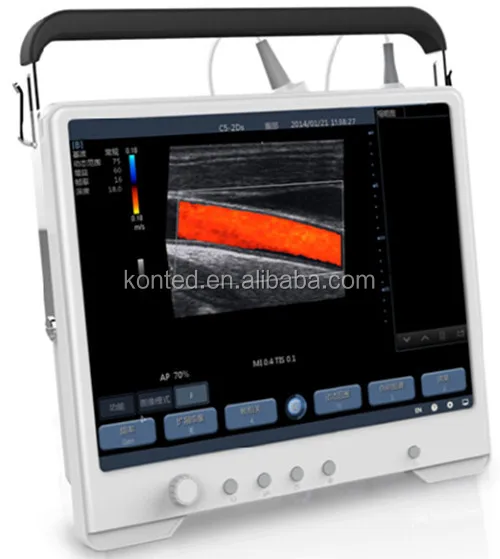

Portable ultrasound system medical equipment ultrasound scanner cheap color doppler
- Category: Other Radiology Equipment & Accessories >>>
- Supplier: Beijing Konted Medical Technology Co. Ltd. [Beijing China]Beijing
Share on (60713454394):
Product Overview
Description
Portable ultrasound system medical equipment ultrasound scanner cheap color doppler
Product Description
Imaging Processing
Pre-processing :
1 Cloud processing technology
2 Fine blood flow imaging, high sensitive
3 Gain
4 8-segment TGC
5 Dynamic range
6 Persistence
7 M soften
Post-processing:
1 Image enhancement
2 Gray-scale map
3 Pseudo color map
4 Interface to turn 180°
5 Left/right reverse
6 Up/down reverse
Application Package
Abdominal,Obstetrics,Gynecology, Urinary System, Cardiology, Radiology, and Organs/Small parts, Musculoskeletal, Pediatrics and Vascular, etc.
Function
Smart touch- screen design: | Supported |
Cine loop: | 334 frames movie playback stored |
Amplification: | 10 times |
Qopt: | One-key optimize |
Multi language: | Supported |
DICOM: | Supported |
Print: | Report print for text&graph&image |
Technical Specification
Modes: | B,M,2B,B/M,4B,C,PW, Power,DirPower,THI |
Gray Level: | 256 |
Display: | 15”LCD monitor |
Touchscreen: | Full Touchscreen |
Transducer Frequency: | 2-11Mhz |
Digital Technology: | Wide-angle imaging |
Panoramic focusing technology | |
Compatible with high and low speed blood | |
Panoramic imaging | |
Frequency composite | |
Space compound | |
Rolling M technology | |
Real-time Dynamic Aperture | |
Tissue Harmonic Imaging | |
Scanning Depth: | 220mm |
Probe ports: | 3 active transducer connector ports |
Peripheral ports: | 2 USB ports, serial port, LAN Ethernet, S-video |
Power supply: | 100-240V~ 50/60Hz <100VA |
Measurement and Calculation
B mode: | Distance, angle, area, volume, trace length, length ratio, area ratio,histogram |
M mode: | Distance, time, slope, heart rate |
Color and PW mode: | D velocity, D trace, PS/ED |
Application package: | Abdomen, Obstetric, Gynecology, Cardiac, Neural and Small parts. |
Standard Configuration
Main unit
15 inch high resolution LCD display:1024*768
Touchscreen
Two USB ports
One s-video out port
One networking port
One power inlet
3.5 MHz Large convex probe
Three transducer connectors
Abundant measurement&calculation software package.
Main unit warranty time 18 months
Probe warranty time 12 months

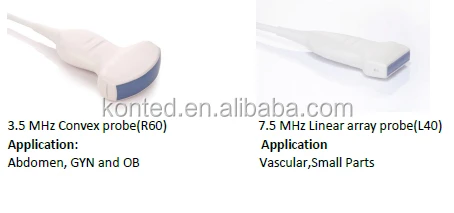

Probe Option (support 2~14MHz wideband probe,80 and 128 elements)
Packaging & Shipping
Packing: bag &carton.
Shipping: DHL, TNT, UPS, Fedex, ARAMEX, etc
Our Services
1. Performance assurance through preventative regular maintenance
2. Software upgrades for new features and diagnostics through Internet-based services
3. Up-to-date training materials for the operation and maintenance of equipments
4. Prompt responses to urgent questions by email, phone, or fax
5. Reasonable annual maintenance charges for services after warranty period is over
6. Updates or upgrades, wherever feasible, to equipment with the latest design improvements
Company Information
FAQ

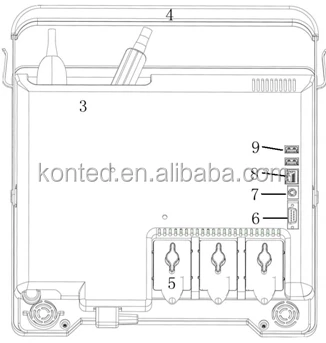

Introduction of Each Unit
No. | Name | Function |
1 | Touch screen display | Displays the images and parameters during scanning. |
2 | Control Panel | Operator-system interface or control. |
3 | Probe Cup | Place the probes |
4 | Handle | Used for carrying the system. |
5 | Probe port | Connects a probe to the main unit; or connects a probe extend module. |
6 | Serial interface | Universal serial port. |
7 | S-Video separate video output | Connects video printer. |
8 | Network port | Connects the network. |
9 | USB port | Connects the USB devices |
