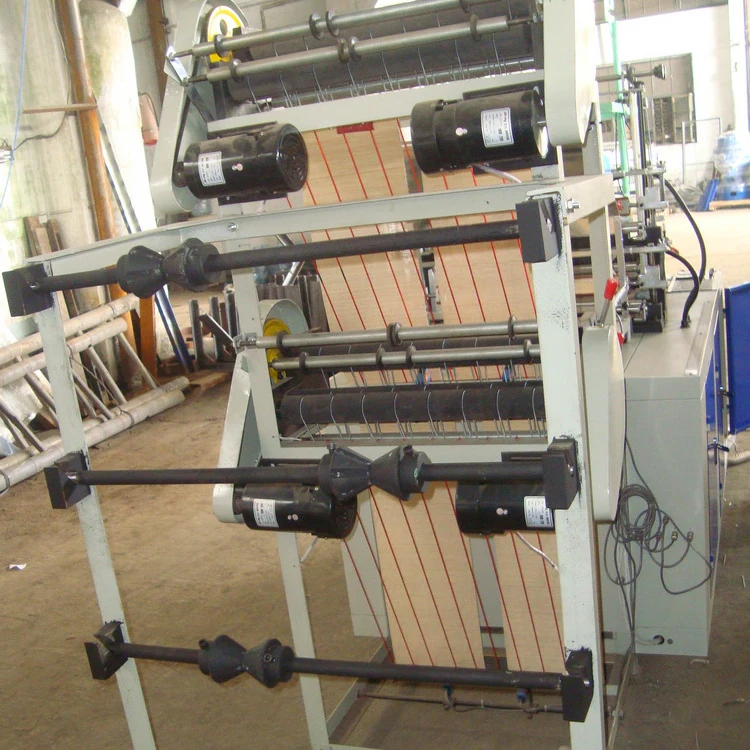

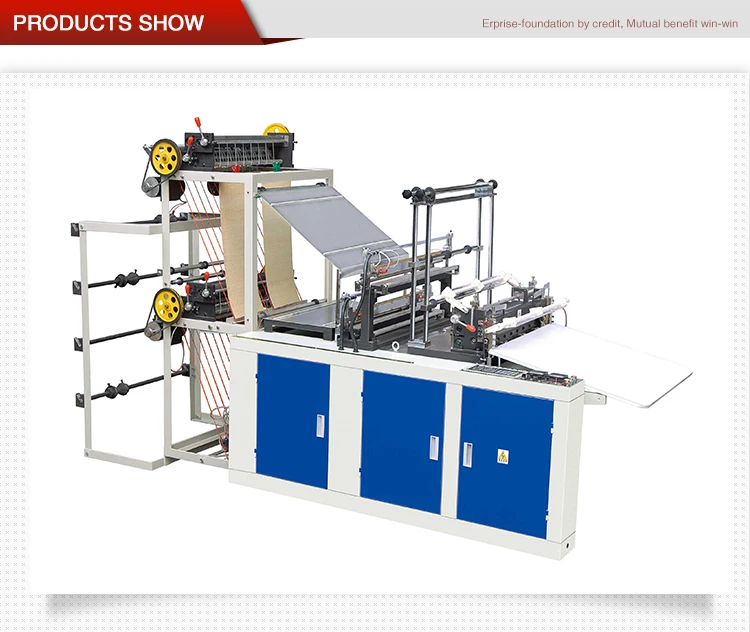

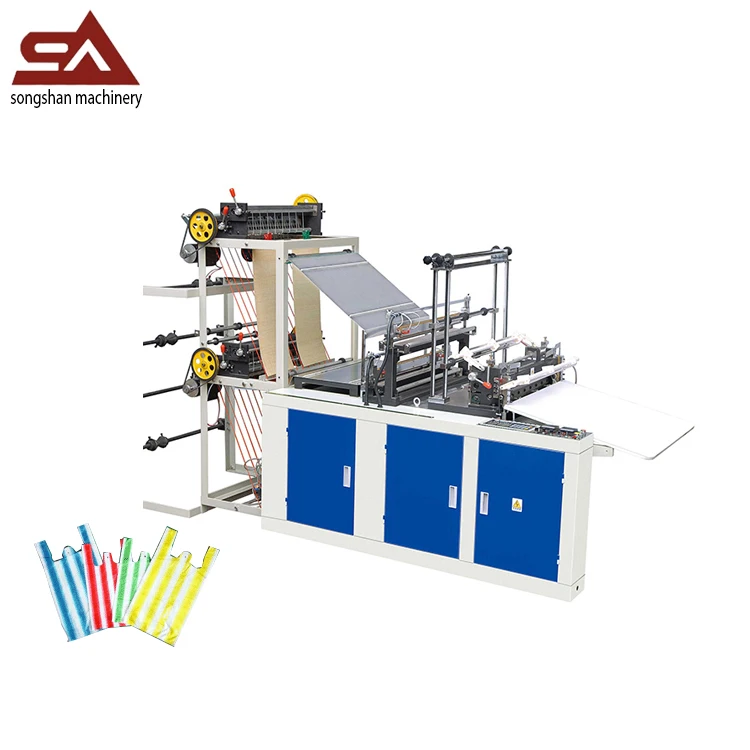

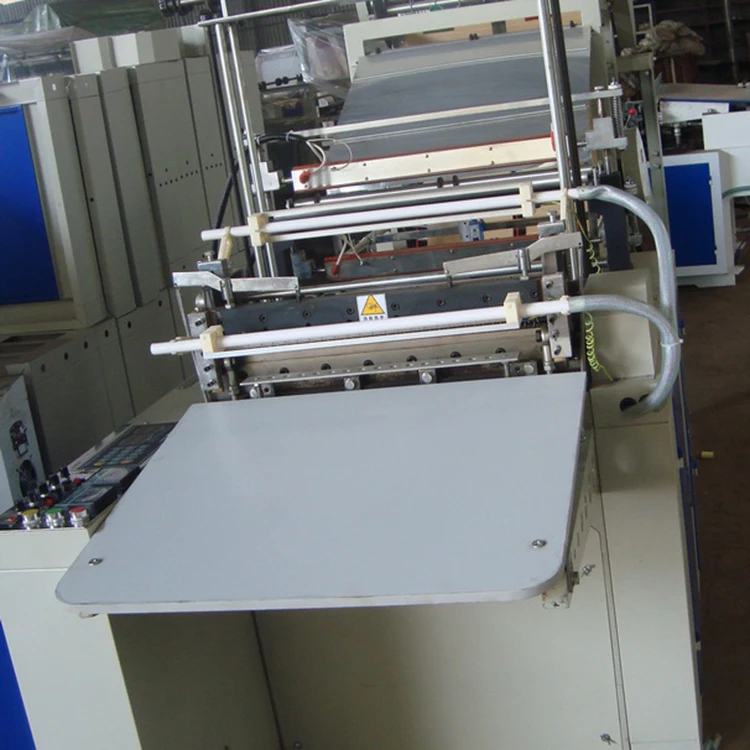

High speed four line cold cutting bag making machine for t-shirt bags

Banner


Our sealing (cold cutting) bag making machine is specially designed as dual-use machine for T-shirt bags and flat bags with photoelectric automatic tracking, fixed-length by microcomputer, high limit downtime, automatic counting and alarm on reaching the set value, high compensation accuracy, keep the bags neat, little error and high automation, so it is an ideal equipment for producing white bags, colored vest bags. The HDPE/LDPE film bags produced by this machine are suitable for go shopping in the supermarket and shopping malls.

General features:

Four production lines, high output

Hot sealing and cold cutting, highly automatic to produce flat bags; if work with punching unit this machine can produce T-Shirt bags

One photocell enables to cut printed bags

Position controller controls the operation, clear settings system for easy operation

Static eliminator to get rid of statics on film surface for better cutting

Digital temperature controllers to adjust the temperature of the heating bar

Model

SHXJ-700F

SHXJ-800F

SHXJ-900F

SHXJ-1000F

Cutting line

Double layer four line

Bag width

600mm×2

300mm×4

700mm×2

350mm×4

800mm×2

400mm×4

900mm×2

450mm×4

Bag length

1000mm

Cutting speed

50-130pcs/min/line

Motor

Stepping motor

Main motor

1.5KW

Heating Capacity

4KW

Power supply

220V, 50Hz

Electronics used

Top China Brand

Machine weight

850kg

900kg

950kg

1000kg

Dimension

3.2×1.25×1.8M

3.2×1.35×1.8M

3.2×1.45×1.8M

3.2×1.55×1.8M

Optional device

Servo motor, imported photocell

 flat pocket bag making machine.jpg-2_02-.jpg

Production process
