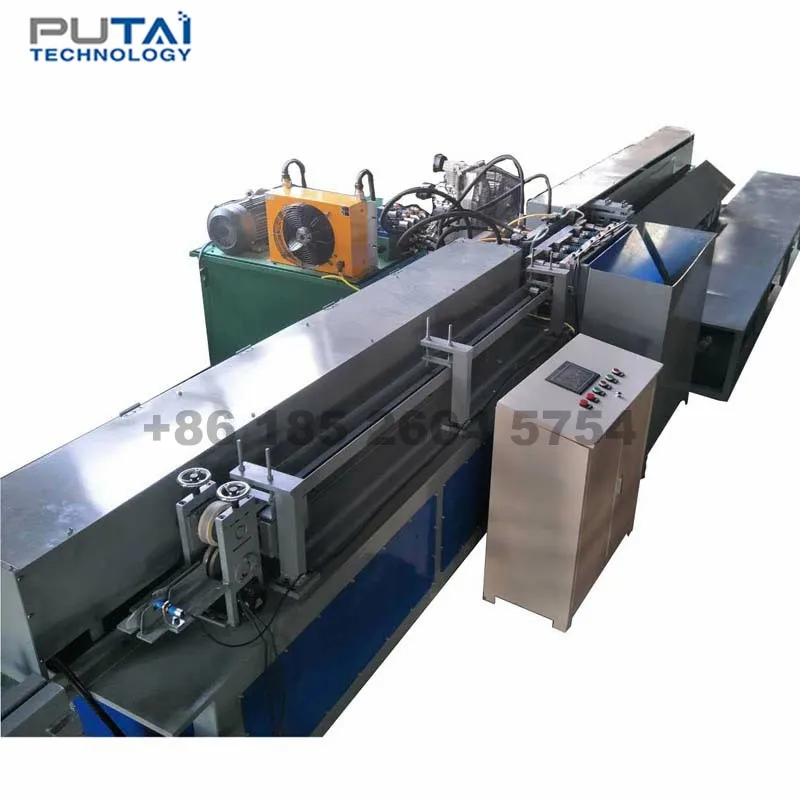

Automatic Main T Cross Tee Wall Angle Ceiling Grid Making Roll Forming Machine
- Category: >>>
- Supplier: Bazhou Chenglang Keel Equipment Co. Ltd
Share on (60714289723):
Product Overview
Description
Product Description
The t-grid Ceiling System Production line is based on three main subsystems: The main t grid bar roll forming machine, cross t grid bar roll forming machine and L angle roll forming machine
Specification of Automatic Ceiling T Grid making machine | ||||||
Decoiler | Weight | 150kg | ||||
Steel coil ID | 450-550（mm) | |||||
Steel coil OD | 1500（mm) | |||||

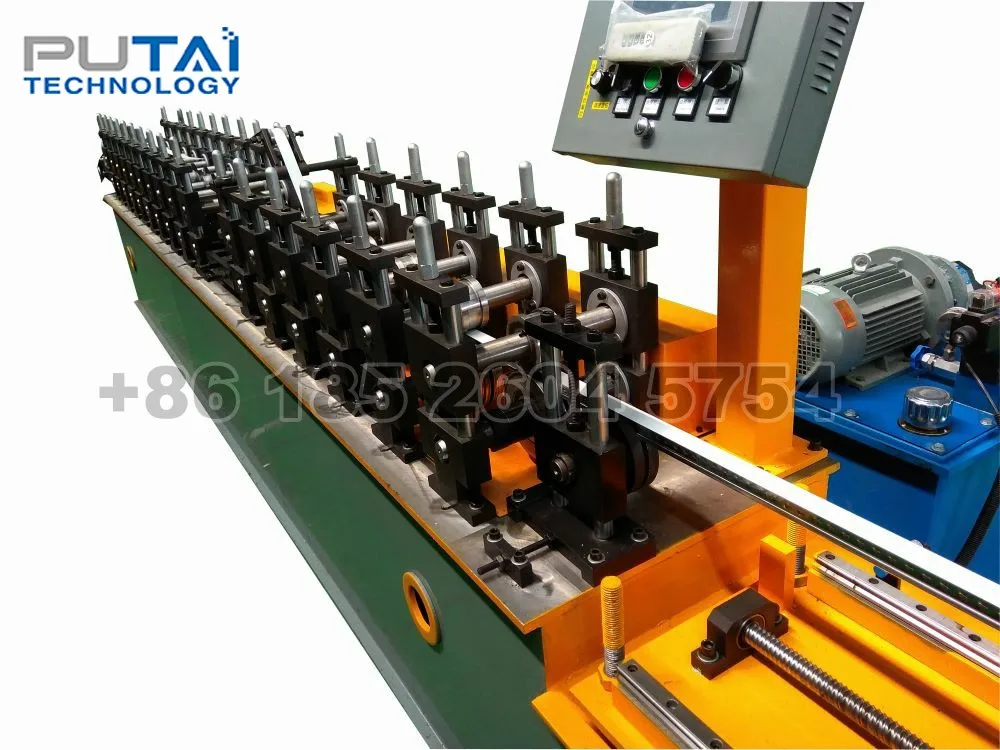

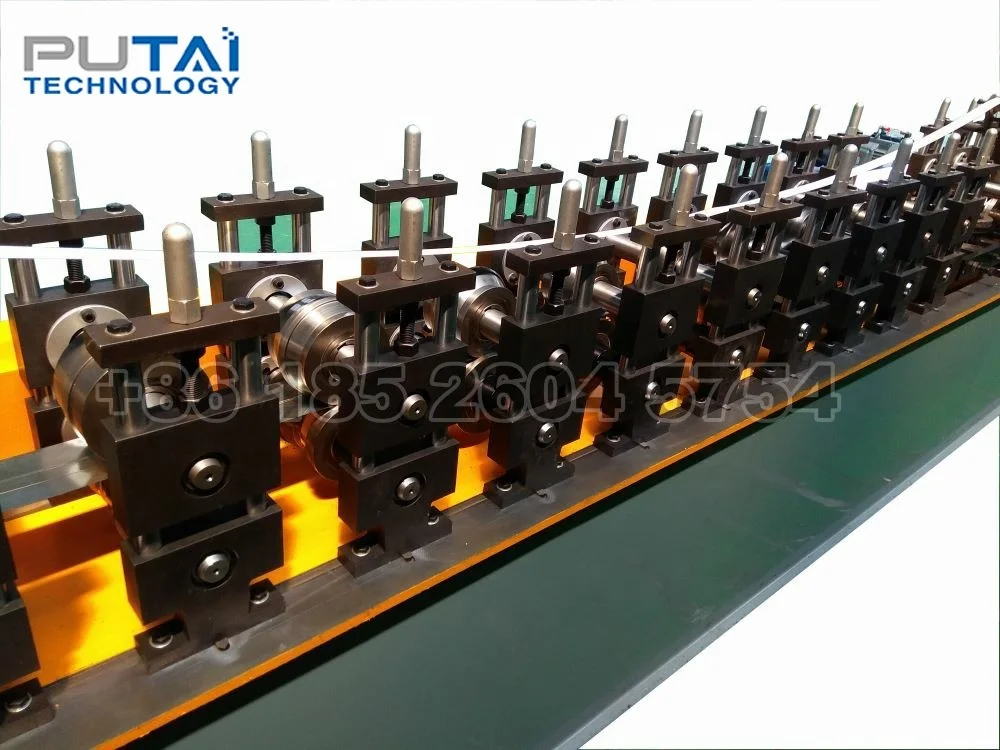

Roll forming machine | 14-18 Rows Material:Cr12 roller inner diameter:Φ40mm， roller outer diameter:minΦ90 heat treatment hardness:HRC58-62 | |||||
Transmission | The main drive uses chain drive, roll between the use of gear transmission | |||||
Middle Plate | Thickness 25mm, grinding six-sided, high-precision boring from processing | |||||
Hydraulic system | Motor Power | 7.5kw | ||||
Cutting system | Cutting System | Servo tracking system | ||||
Mold | Mold Material | SKD11 | ||||
Automatic Ceiling T Grid making machine's details
1.Stitching: section of four-wheel really bite, easy to replace.
2.Side panel: thickness of 25 mm, six surface grinding, precision boring.
3. main axis:Main shaft material is 45 # steel, finishing with mo bed after machining and tempering heat treatment.
4.Feed positioning: manually positioning, flexible adjustment on both ends.
5.Electrical control system: PLC programmable controller, touch screen automatic control system.
6.Die: material is SKD11, heat treatment hardness HRC58-62, template fine grinding, wire of high precision.
Automatic Ceiling T Grid making machine
1) Engineer avaialble to go abroad to installte machines and try machine.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Full automatic production line and semi-automatic production line for customer choose
4) Running in a high automatization and intellectualization,no pollution
5) With fewer molds, high production speed .

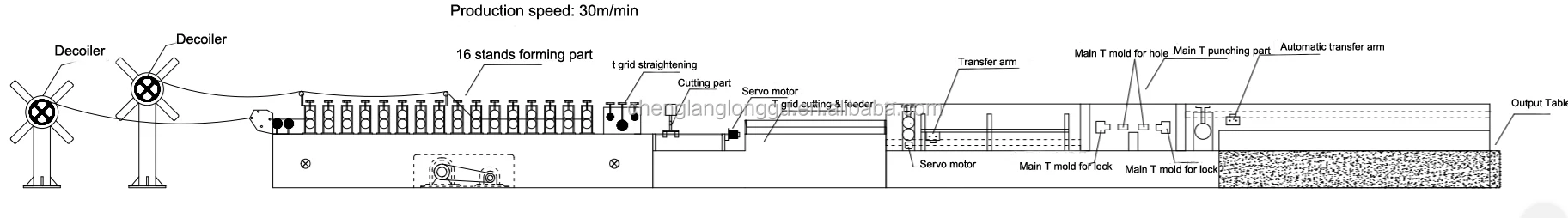

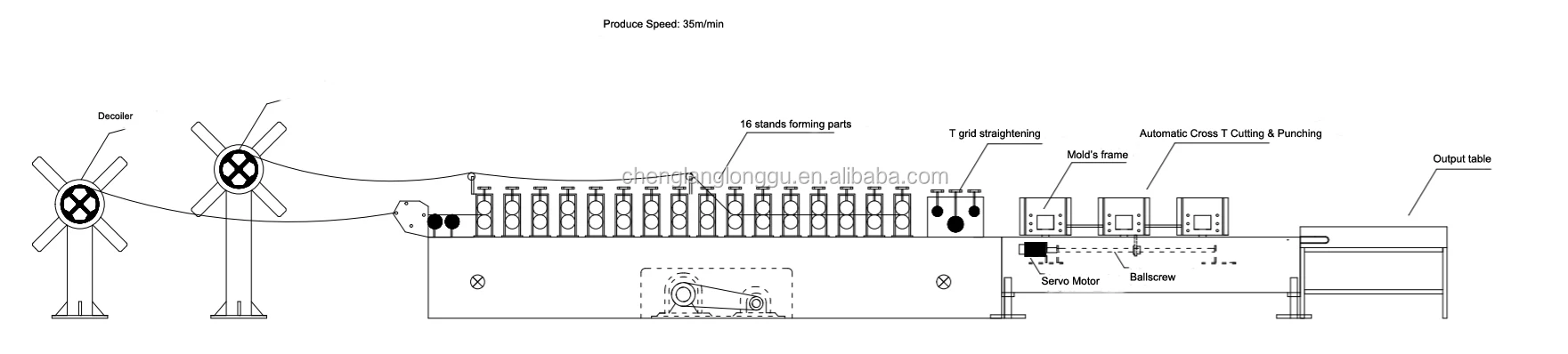

Production Flow
Detailed Images
Automatic Ceiling T Grid making machine's Main T grid punching machine
Name: Full automatic main T bar punching machine
Brand: Chenglang
Original: He bei, China
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits , convenient for operation. Function: To punch the dots on the T grid and punching lock on two sides end.
Automatic Ceiling T Grid making machine's Cross T grid punching machine
Name: Full automatic Cross T grid ceiling punching machine
Brand: Chenglang
Original: He bei, China
Function: To punch the dots on the T grid and punching lock on two sides end. work in high speed and easy to operate. save the worker cost.
Automatic Ceiling T Grid making machine's Painting dry device for center black tee grid ceiling
Name: Painting dry device for center black tee grid ceiling
Brand: Chenglang
Original: Hebei, China
It includs the hot wind motor to dry the black paint in the center black tee grid.
Automatic Ceiling T Grid making machine's Cross T output table
Name: Cross T grid output table
Brand: Chenglang
Original: Hebei, China
