BW LY7 12V battery tester battery monitor for lead acid battery
BW-LY7 12V battery tester battery monitor for lead acid battery
BW-LY7 12V battery tester battery monitor for lead acid battery
BW-LY7 12V battery tester battery monitor for lead acid battery
BW-LY7 12V battery tester battery monitor for lead acid battery
BW-LY7 12V battery tester battery monitor for lead acid battery

BW LY7 12V battery tester battery monitor for lead acid battery

Share on (60714621797):


Price:$4.00 - $4.80

Quantity:


Product Overview

Description


NEW Related products

LY4 battery indicator

TH01 battery indicator

LY6W battery indicator

LY7S battery tester

TD05 battery tester

LY6N battery tester

Product Description

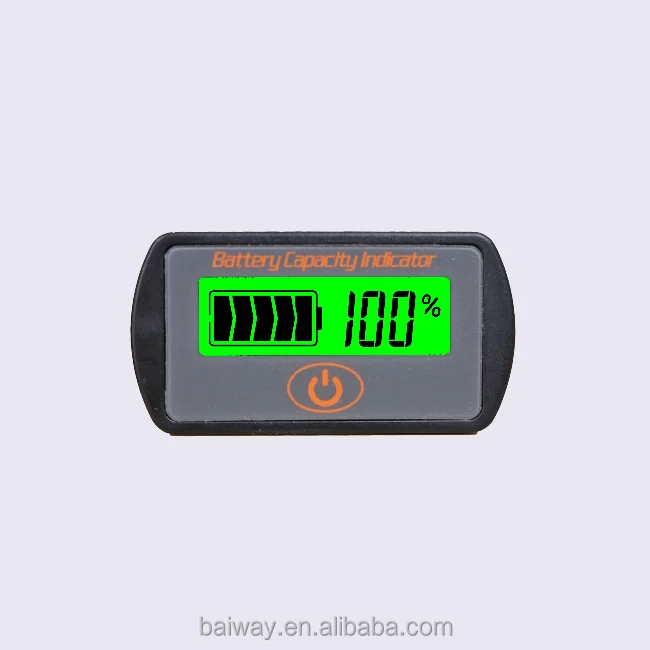

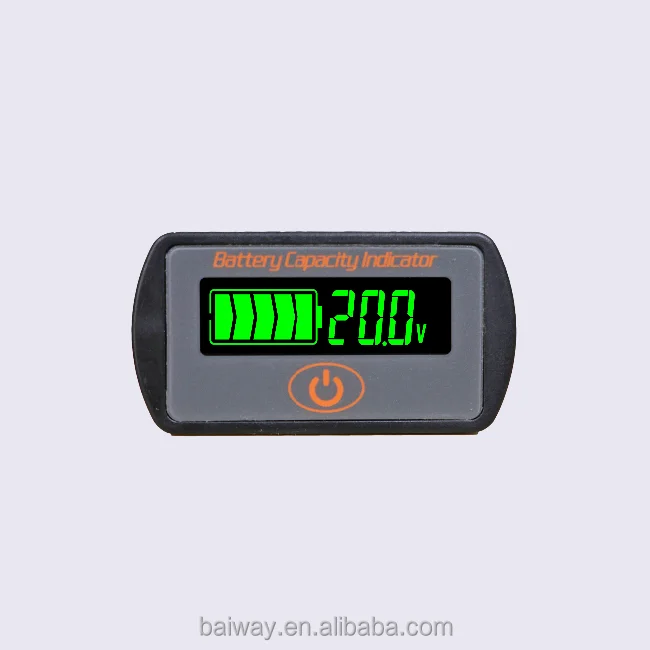

LY7 Battery Tester

      LY7 is a kind of universal voltage-type battery capacity tester, it can test the voltage and capacity of battery, and display them with intuitive battery symbol and percentage. Users can know the state of battery in time. LY7 has function of memory. It is suitable for mobile and portable equipments,electromobile,balance cars,cleaning machines,instruments,measuring equipments and so on.

Application:

      LY7 battery monitor is suitable for for 8-24V lead-acid batteries and lithium batteries

 Basic parameters:


\t
Parameter
\t
Min
\t
Type
\t
Max
\t
Unit
\t
Working voltage
\t
5.0
\t

\t
30.0
\t
V
\t
Working dissipation
\t
\t
8.0
\t
10.0
\t
mA
\t
Standby dissipation
\t

\t
0.5
\t
0.6
\t
mA
\t
Sleep dissipation
\t
\t
50.0
\t
60.0
\t
uA
\t
Capacity accuracy
\t

\t
±2.0
\t

\t
%
\t
Voltage accuracy
\t

\t
±2.0
\t

\t
%
\t
Current accuracy
\t

\t
±2.0
\t

\t
%
\t
Backlight on current
\t

\t
40.0
\t
50.0
\t
mA
\t
Backlight off current
\t

\t
30.0
\t
40.0
\t
mA
\t
Temperature range
\t
0
\t
20
\t
35
\t
℃
\t
Weight
\t
23.0
\t
g
\t

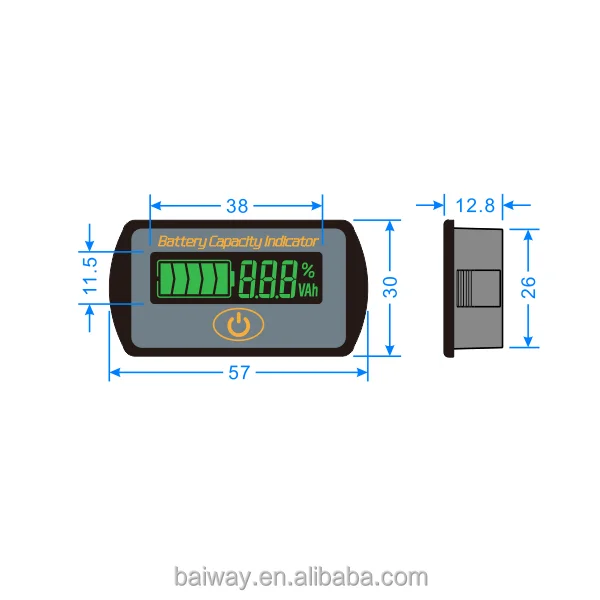

Size
\t
57*30*12
\t
mm

Install:

    This product is fixed by buckles, it is easy installation. First, open one rectangular orifice on the panel according to the size. Then put the coulometer into the rectangular orifice, and make sure the buckles are locked.

Our Company

      Shanghai Baiway electronic CO., LTD was founded in 2009. Our company has been focused on the production, design and development of battery applications for years, have rich experience.

      The company has a strong development of technical strength, and constantly introduce new products to meet the needs of various customers. Shanghai Baiway electronics Co., integrity, strength and quality of products recognized by the industry. Welcome friends from all walks of life come to visit, guidance and business negotiation.

Certifications
Packing & Delivery

      Packing: Each packed in sealing bag, bag size: 13*8*4cm, weight: 140g.
      Delivery: We can send goods off by sea, land, air and post according to you need.
      Receiving: Please make sure the goods are in good condition before sign for.Please contact us if you have any question about the products.

FAQ

1. Are you manufacturer or trader?
    We are manufacturer, and our company is established in 2009.
2. What is your delivery time?
    10-30 working days depends on your order quantity.
3. Where is your factory?
    Locate in Shanghai, China. You are welcome to visit our factory.
4. What are your main products?
    Our products include voltage type battery capacity tester, current type battery capacity indicator, etc.
5. Why do you choose us?
    Our company's products are independent R&D and manufacture, have high performance.
