Similar as SAMCO Greenfield Stud and Track Roll Forming Machine Steel Frame & Purlin Machine 11KW 4.0KW 245 550mpa 0.8 1.8mm BMS

Product Overview

Description



    Similar as SAMCO Greenfield Stud & Track roll forming line









1.Main features of quickly change Stud & Track roll forming line



    The advantages of Stud & Track roll forming line are as follows:

    1.Quick-Change type Stud & Track roll forming machine

    2.Produce 95% of the stud and track sizes used in the industry.

    3.Similar as SAMCO Greenfield Stud & Track rollforming line

    4.Easy operation, low maintenance cost

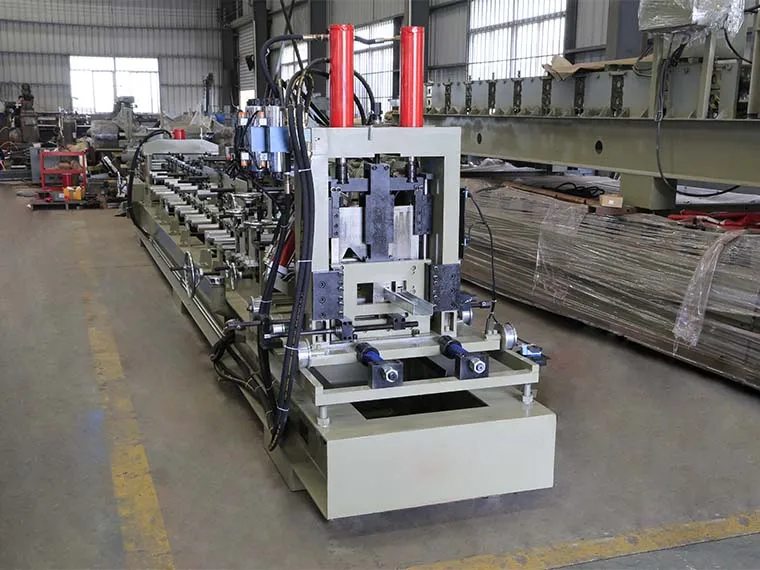

2.Detailed Images of Stud & Track roll forming line



    Machine Parts

        1) Stud & Track roll forming line leveling device

        Brand: BMS    Original: China

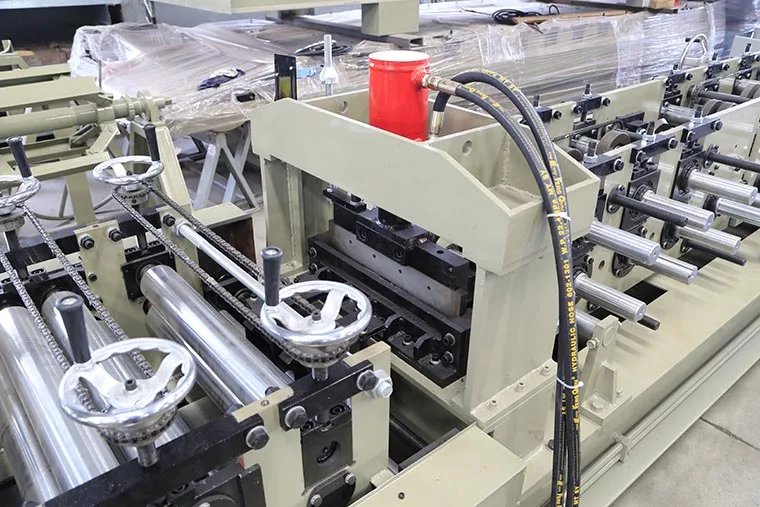

        2) Stud & Track roll forming line hydraulic pre-cutter

        Brand: BMS    Original: China

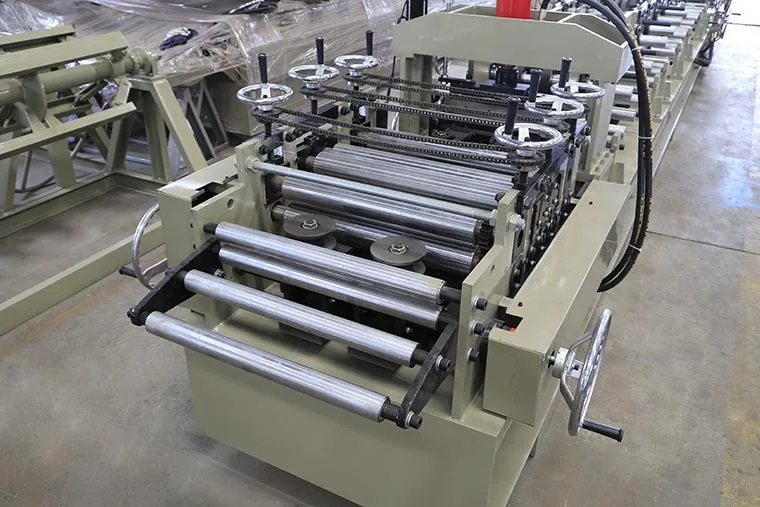

        3) Stud & Track roll forming line rollers

        Brand: BMS    Original: China

        Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        With feeding material guide, body framemade from 400# H type steel by welding

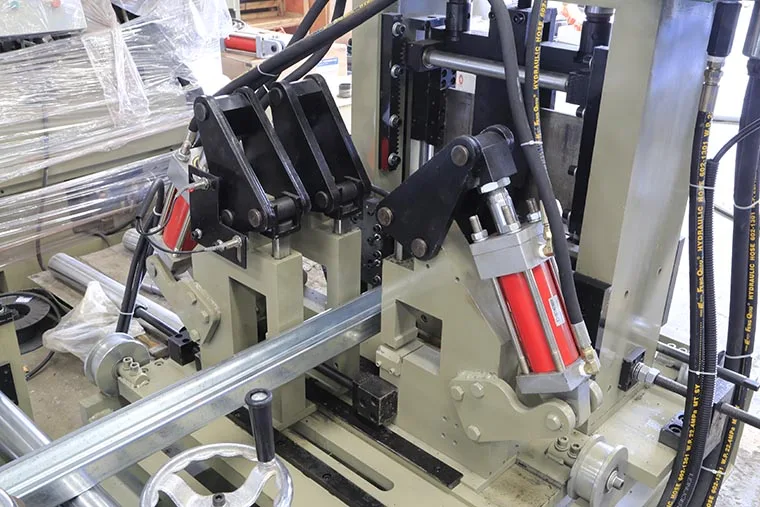

        4) Stud & Track roll forming line post punching system

        Brand: BMS    Original: China

        with 3 cylinder(one cyinder for single hole and 2 cylinders for dual-holes.

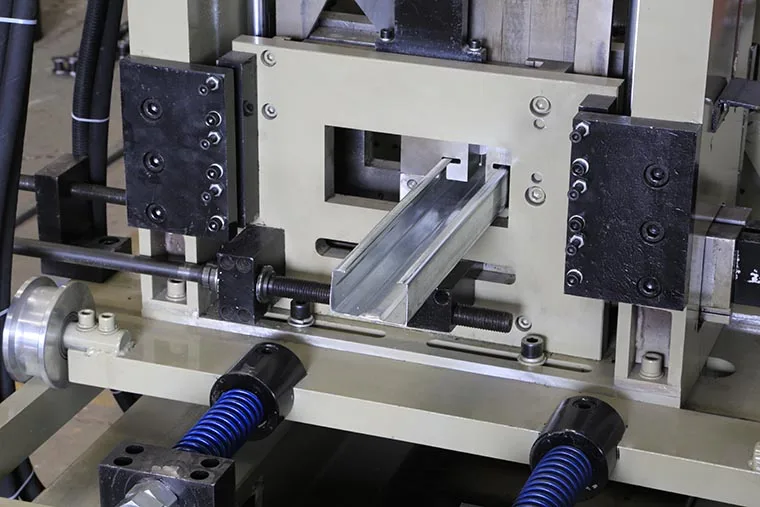

        5) Stud & Track roll forming line post cutter

        Brand: BMS    Original: China

        No need to change cutter for different size,

        made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 30mm steel plate by welding
        Pre-punching & Pre-cutting, stop to punch, stop to cut
        hydraulic motor:7.5KW, Hydraulic pressure range: 0-16Mpa

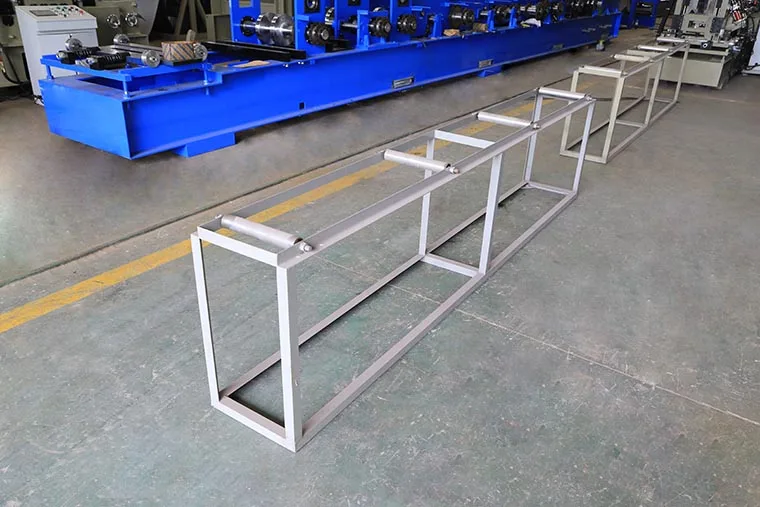

        6) Stud & Track roll forming line exit rack

        Brand: BMS    Original: China

        Un-powered,two units

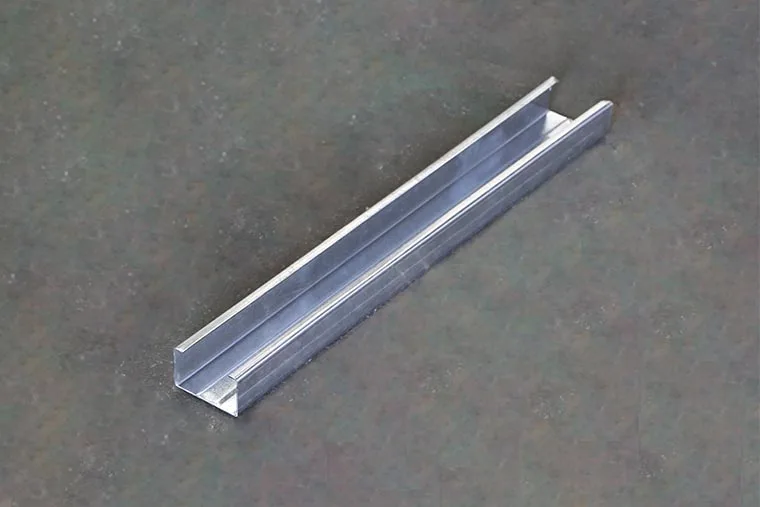

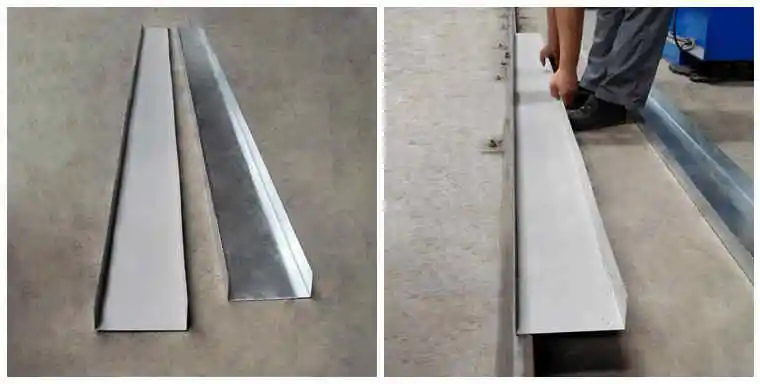

        7)Stud & Track roll forming line product show

        Brand: BMS    Original: China

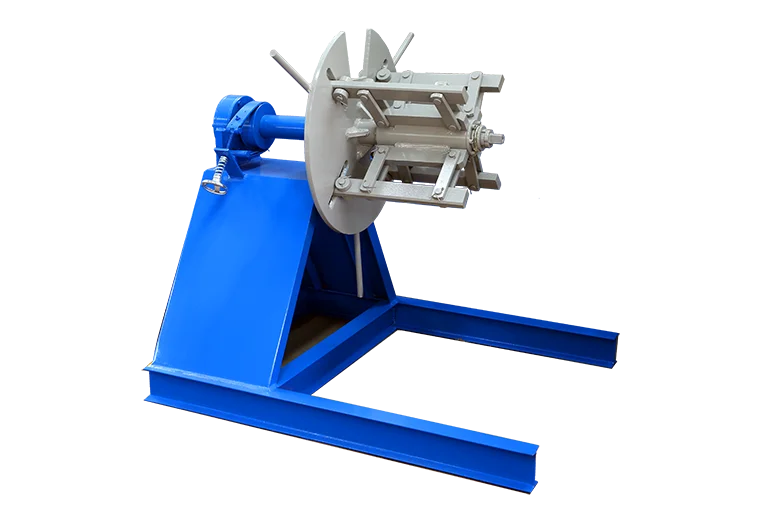

        8) Stud & Track roll forming line decoiler

        Brand: BMS    Original: China

        Manual Decoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 500mm, coil ID range 470mm±30mm

        Capacity: Max. 3Ton









        With 3 tons hydraulic decoiler for option







Other detailes of Stud & Track roll forming line



Suitable for material with thickness 1.0-2.0mm

Shafts manufactured from 45#,Main shaft diameter=φ80mm,precision machined

Motor driving,Gear chain transmission, 16 rollers to form and 7 rollers for straightening and levelling

Main motor=15KW , Frequency speed control. Forming speed approx.18m/min



PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)



Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of Stud & Track roll forming line



1. The warranty of Stud & Track roll forming line

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 40 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
