Термоэлектрический осушитель для корпусов
- Category: Industrial Dehumidifier >>>
- Supplier: Zhuzhou Sanda Electronic Manufacturing Co. Ltd.
Share on (60715330972):
Product Overview
Description
Thermoelectric Dehumidifier Device for enclosures
Product Description

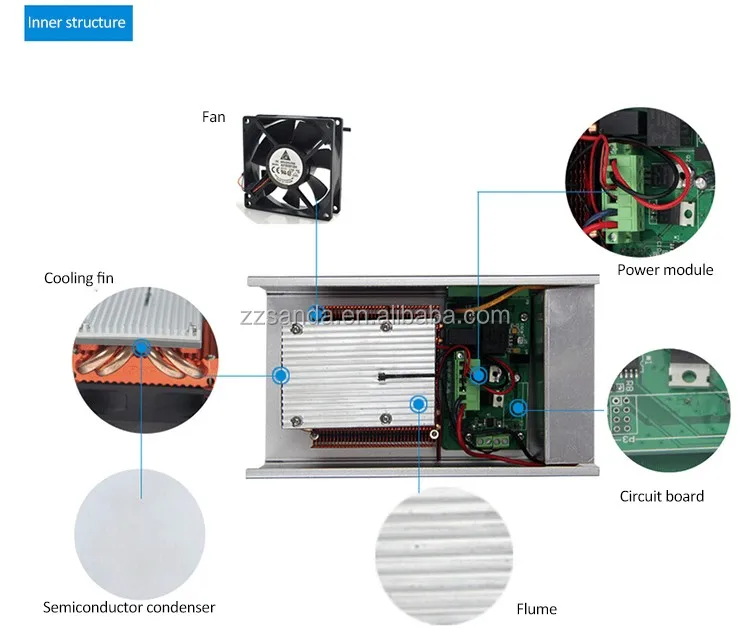

SANDA thermoelectric dehumidifying device is the ideal solution for cabinets in which condensation occurs due to changing climate and operating conditions. Condensation can cause corrosion and fault conditions in electrical switchgear. The thermoelectric dehumidifying unit creates a cold spot and collects the produced condensate. The thermoelectric dehumidifiers are more energy efficient than conventionally used heaters.
The SANDA Thermoelectric Dehumidifier removes moisture from the air within an enclosure, providing an inexpensive yet highly effective way to protect electronic and electrical components from condensation.
Can be used in mild steel, aluminum, stainless steel and nonmetallic enclosures
Reduces corrosion that can limit the life of internal electrical and electronic components
Condenses moisture from internal enclosure air and standing liquids
Built-in drain provision with plastic hose directs collected moisture to the Vent Drain
Mounts via DIN rail on internal panel
Thermoelectric Dehumidifier Features:
- Dew-point dehumidification, direct capture of water and discharged outside of the cabinet
- Stronger dehumidifying capacity 450mL/Day

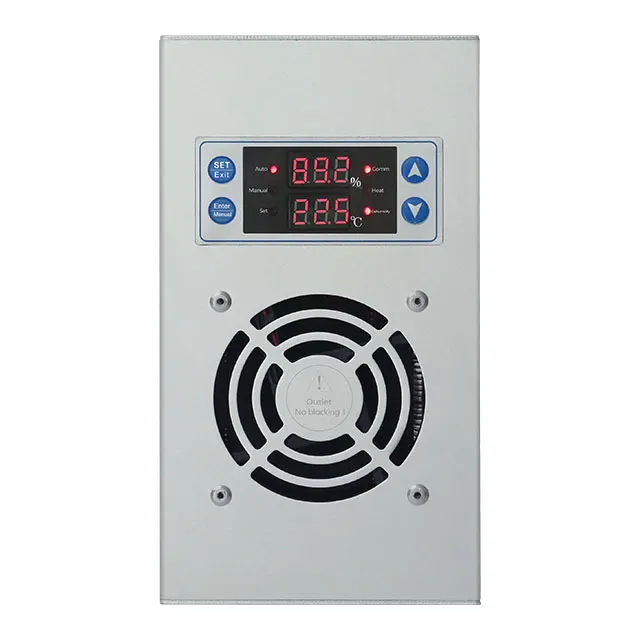

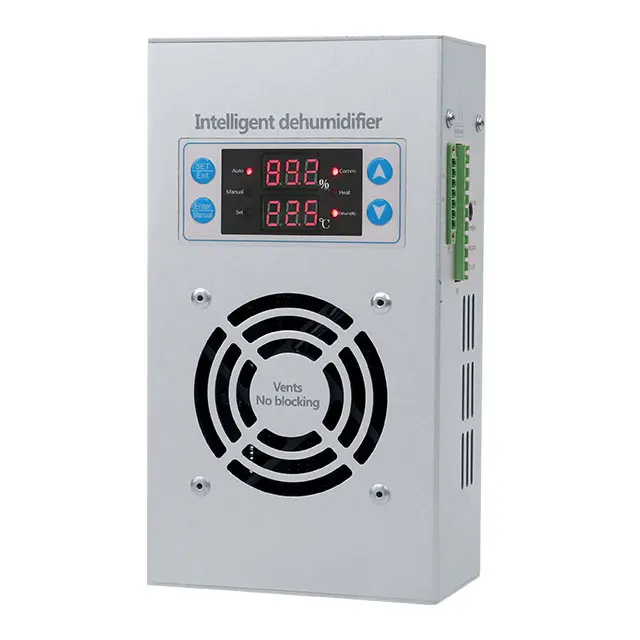

- Visual interface, real-time display of temperature and humidity
- Intelligent humidity control, adjustable humidity control range
- Heating function optional
- With RS485 conmmunication function
Thermoelectric Dehumidifier Specifications:
| Model No: | SDCS-E60S | Name: | Thermoelectric Dehumidifier |
| Dehumidifying effeciency: | 450ml/day (60W 35 degree RH=80% working condition | Heating Power: (Optional) | 50~500W |
| Dehumidifying temperature: | 5 degree~45 degree | Power: | 30W, 40W, 50W, 60W |
| Working temperature: | -25°C~85°C | Humidity Measuring Range: | 20% RH~90% RH |
| Temperature measuring Range: | -25°C~125°C | Dehumidify start value: | 45% RH~98% RH (Default 65% RH) |
| Temperature start value: | 1 °C~55 °C (Default 8°C) | Humidity Measuring accuracy: | ±3% RH |
| Temperature Measuring accuracy: | ±3°C | Display Method: | Two lines Three digital display |
| Display Resolution: | 0.1 | Shell Material: | Aluminum Alloy |
| Size: | 115*67*210mm | Water hose: | Silicon tube: D10mm, L1.5m |
| Dehumidifying Range: | 1~2.5m³ | Working Power: | AC90~240V |
Company Information
Your Advantages with Sanda Electronic:
1) ISO 9001:2008 audited factory, Patented design
2) 12 years R&D and manufacturing experience for dehumidifier; Cabinet air conditioner; Protection relay; Digital Meter; Temperature and humidity controller etc
3) ODM and OEM are warmly welcomed
4) Quality guarantee, 1 years warranty
5) 7/24h service, better pre-sale and after-sale service.
6) Professional suggestions, help you realize your goals and boost your sustainable development.
