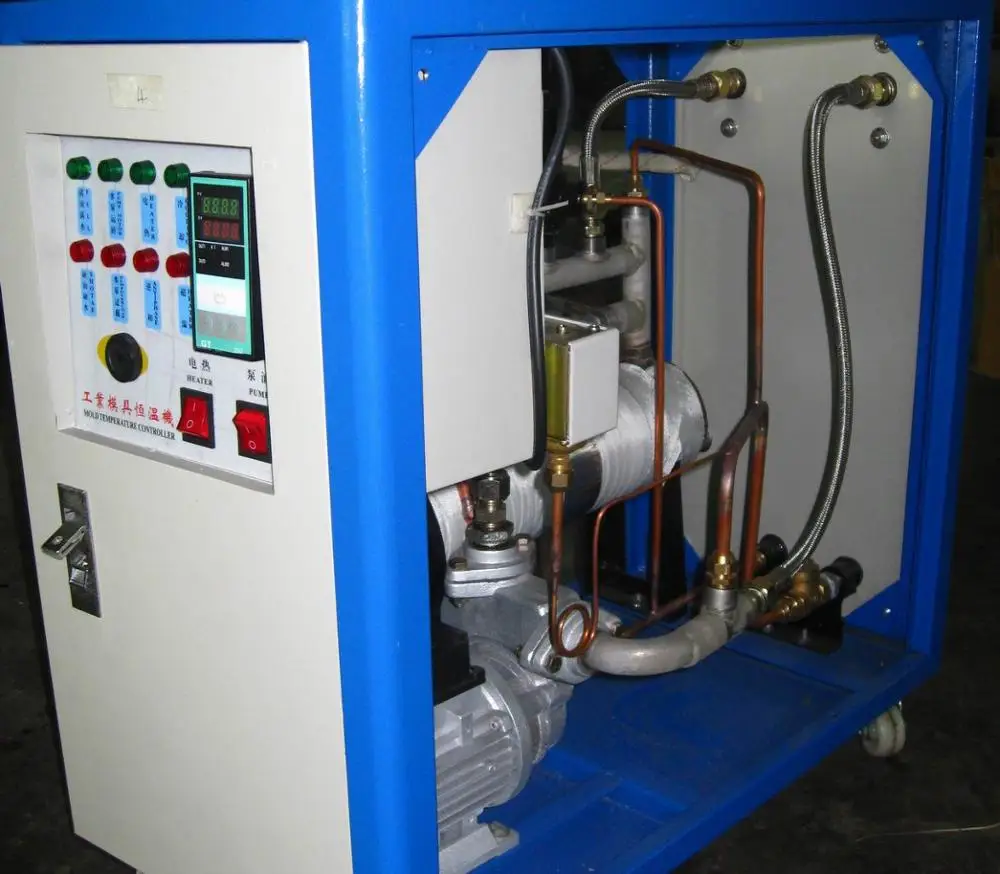

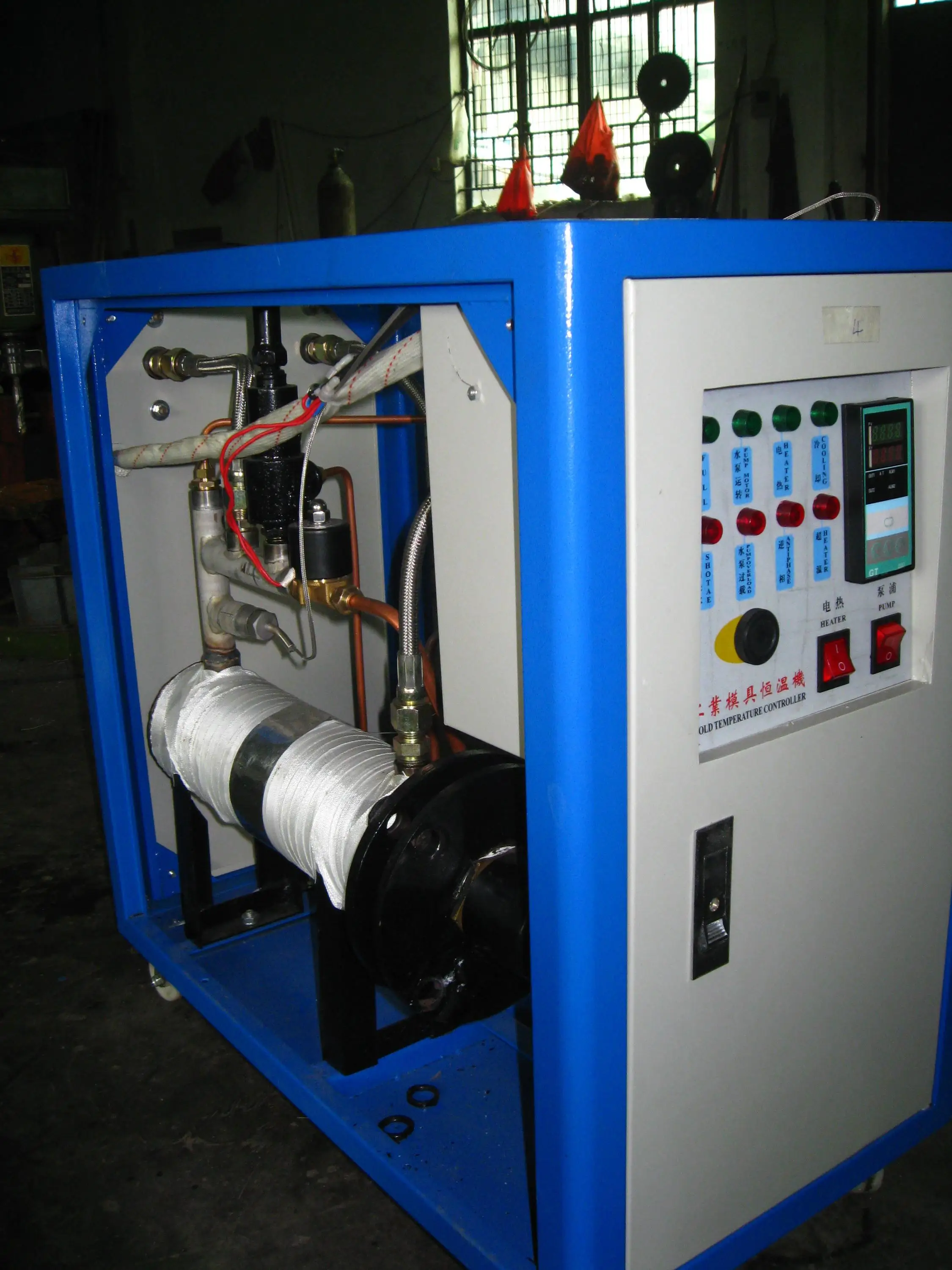

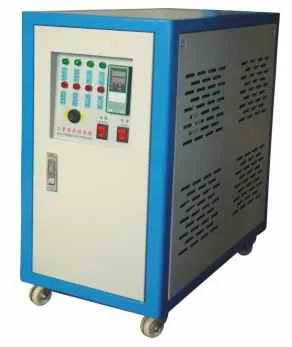

Water Molding Machine Automatic industrial mould temperature controller price
Features:
1) The temperature control meter adopts the Japan,Germany,Taiwan brand. 2) Precise in +-1°C and save over 35% electricity. 3) Two set of electric heater which can be used jointly or independent of each other. 4) Electric heater cylinder made from stainless steel. 5) Use imported components,longer life. 6) Rapid heating and cooling off speeds. Specifications:
Water Type -Safety Protect System * Auto supply water system * Main circuit-breaker * Pump reverse protect and direct lamp * Pump overload protect and direct lamp * Pump overlaod prortect and direct lamp * By-pass circuit * Overheat thermostat and direct lamp * Water shortage protect and direct lamp
pecifications
Water Type
Model
FST-3-W
FST-6-W
FST-9-W
FST-12-W
Control Temp. Range
Environment Temp. to 140 ℃
Voltage
3PHASE 380v 50Hz or 60Hz
Cooling Methold
Direct Cooling
Fluid
Clean Water
Heating Capacity KW
3
6
9
12
Pump Power
0.375
0.375
0.375
0.75
Flow Volume(L/MIN)
80
80
80
110
Cooling Water Pipe/inch
1/2
1/2
1/2
1/2
Process Fluid Pipe/inch
1/2*4
1/2*4
1/2*6
1/2*8
Exter Net Dimens ion L*W*H(mm)
650*340*580
650*340*580
650*340*580
750*400*700
Weight
54
54
72
90
Company Information
Widesky MachineryCo.Ltd., founded in the 1980's, specialized in crushers, grinders, rubber cutters, dryers, dehumidifiers, suction machines, color mixers, water chillers etc .Well accepted by customers from domestic and overseas,we look foward to your trust to cooperate with us!

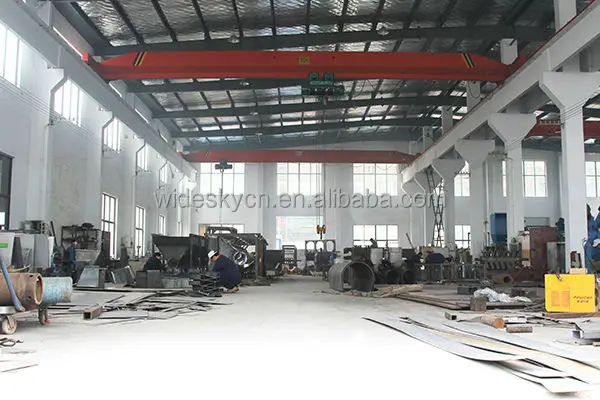

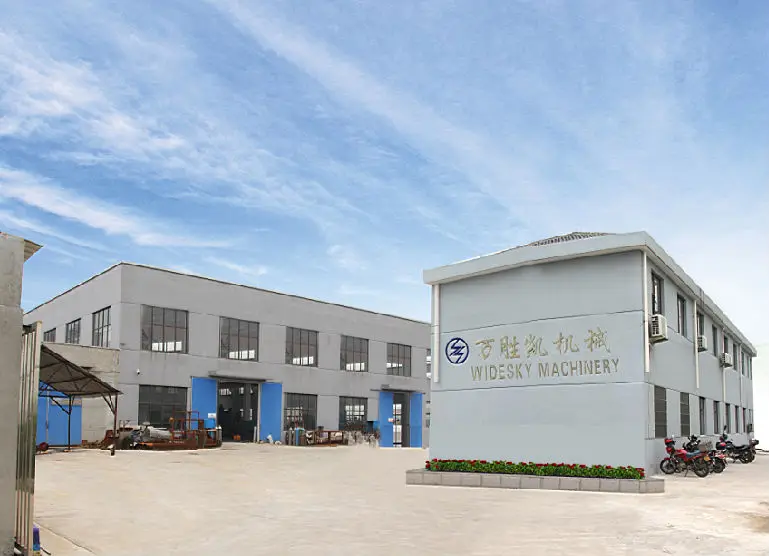

Factory:
Fairs:
Packaging & Shipping
Packaging Detail: Wooden package or container
Deliveray Detail: 15 days
Our Services
1. Prompt delivery with high quality goods.
2.15 months warranty time.
3. Provide free parts if the original one is damaged by our mistake.
4. If any problems with our products, we will handle within 24h.
