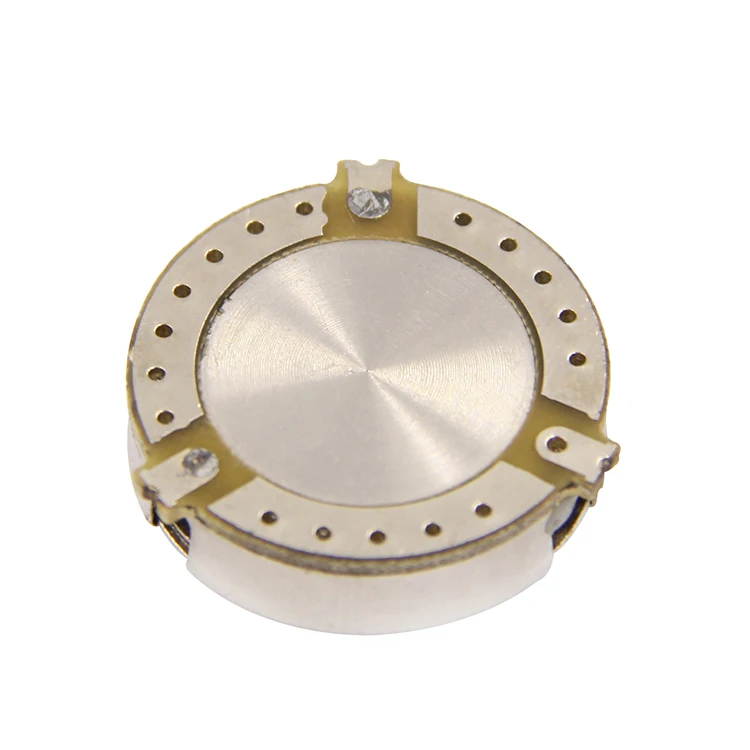

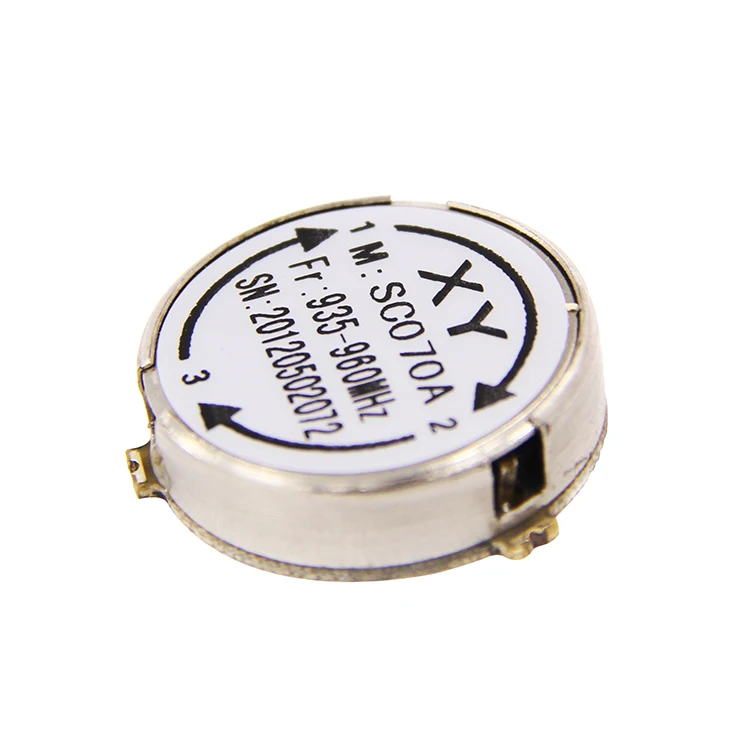

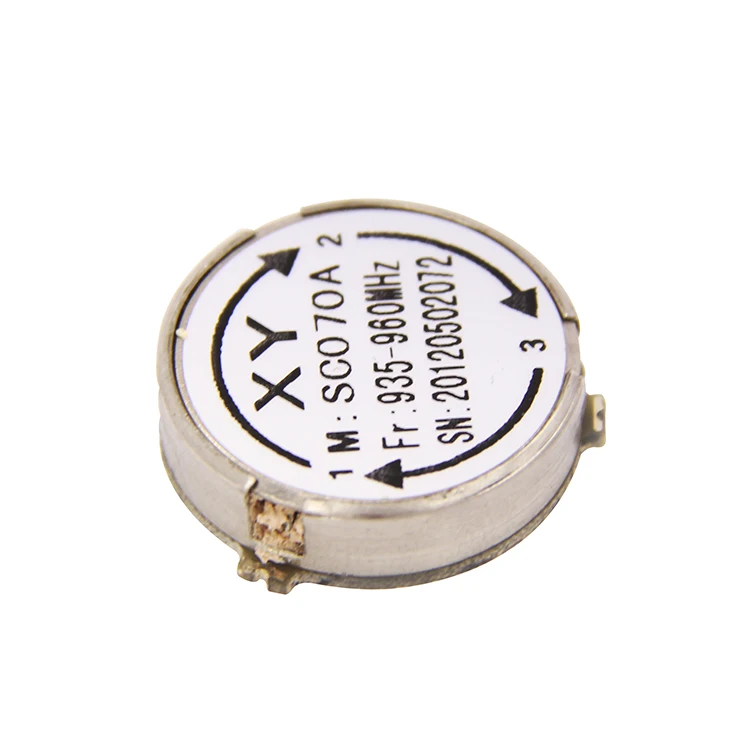

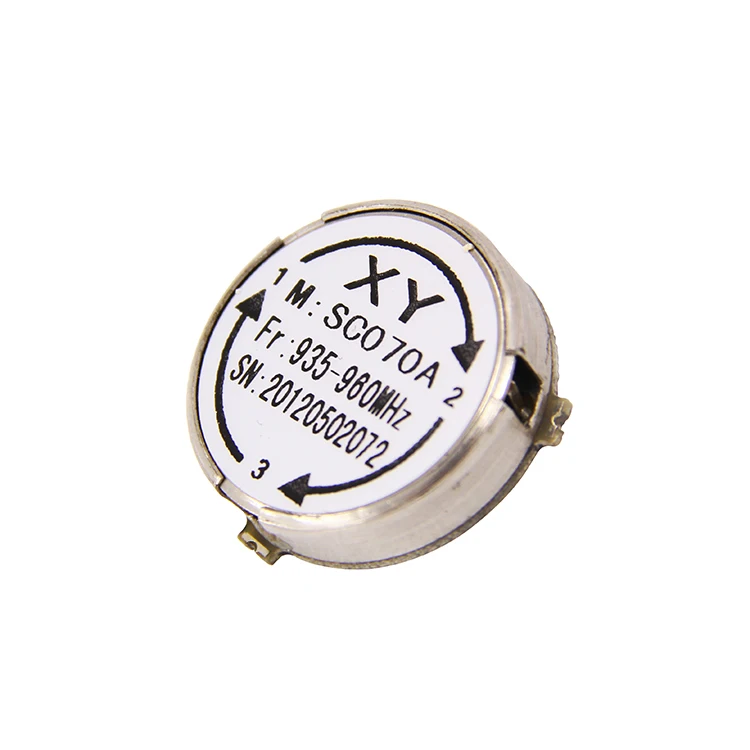

930 960 МГц низкая вставки для поверхностного монтажа потери высокотемпературный циркуляционный насос rf циркуляционный насос изолятор

Product Overview

Description

1,High Isolation;
2,Low Insertion Loss;
3,quality and quantity guaranteed;
4,Specific parameters can be designed according to user's requirements;
5,Suitable for the microwave mobile communication system, various rf system and radar system.

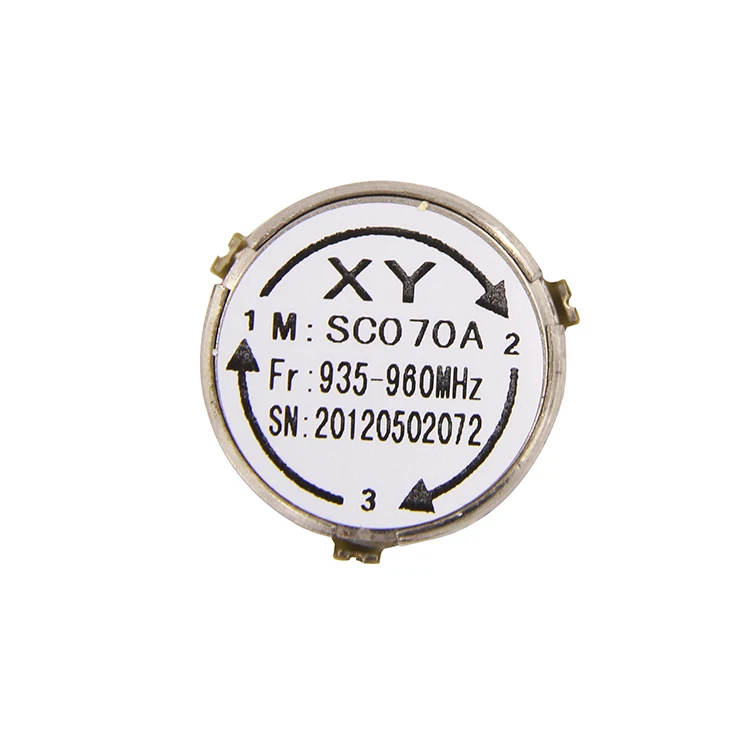

Part No.	SC070A
Frequency	930-960 MHz
BandWidth	30 MHz
Insertion Loss	0.3dB max
Isolation	23dB min
VSWR	1.2 max
Forward Power	100W min
Reverse Power	100W min
Temperature	-30℃~+75℃
Direction	Clockwise/Anticlockwise
Connector Type	TAB
Size	φ24.2*6.5 mm
